2012 RENAULT SCENIC stop start

13B-375V12 MR-372-J84-13B300$122.mif
DIESEL INJECTION
Fault finding – Interpretation of parameters13B
PR132
CONTINUED
Sensor electrical conformity
Check the air inlet circuit (from the air filter inlet to the inlet manifold,
apply Test 4 Turbocharged air inlet circuit check):
– air filter unit inlet not blocked and filter not clogged,
–visual inspection only, apply Test 4 of ALP 2 Starting fault or starting impossible,
– oil vapour recirculation circuit connection conformity.
–absence of leaks or blockages in the low and high pressure air circuits: pipes, presence and tightness of the
mounting clips, mounting of the turbocharger pressure sensor, intercooler, etc.
– check that the damper valve is not jammed closed.
Carry out the necessary repairs.
Check the electrical conformity of the air flowmeter:
Check the + 5 V supply of the air flowmeter on the following connection:
•3KJ of component 799.
Check the + 12 V after relay supply of the air flowmeter on the following connection:
•3FB of component 799.
Check the continuity and absence of interference resistance of the following connections:
•3DV between components 120 and 799,
•3DW between components120 and 799.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
With the flowmeter connected, the vehicle ignition on, and the engine stopped:
Check the voltage between connections 3DW and 3DV of component 799.
If the air flow sensor voltage is not between 0.3 V < X < 0.7 V, replace the sensor.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-408V12 MR-372-J84-13B300$122.mif
DIESEL INJECTION
Fault finding – Interpretation of parameters13B
PR816
PR817
PR818
PR819
PR820
PR821
PR822
PR823
PR824
PR825STORED REGENERATION START NO. 1
STORED REGENERATION START NO. 2
STORED REGENERATION START NO. 3
STORED REGENERATION START NO. 4
STORED REGENERATION START NO. 5
STORED REGENERATION START NO. 6
STORED REGENERATION START NO. 7
STORED REGENERATION START NO. 8
STORED REGENERATION START NO. 9
STORED REGENERATION START NO. 10
PARAMETER
DEFINITIONThese parameters are shown in miles (km).
NOTESSpecial notes:
These parameters should only be interpreted for ALP 9 Particle filter warning light
comes on too frequently.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80°C
These parameters are used so that the history of the last ten illuminations of the particle filter warning light are
known.
EDC16CP33_V18_PR816 / EDC16CP33_V18_PR817 / EDC16CP33_V18_PR818 / EDC16CP33_V18_PR819 / EDC16CP33_V18_PR820 /
EDC16CP33_V18_PR821 / EDC16CP33_V18_PR822 / EDC16CP33_V18_PR823 / EDC16CP33_V18_PR824 / EDC16CP33_V18_PR825 /
EDC16CP33_V1C_PR816 / EDC16CP33_V1C_PR817 / EDC16CP33_V1C_PR818 / EDC16CP33_V1C_PR819 / EDC16CP33_V1C_PR820 /
EDC16CP33_V1C_PR821 / EDC16CP33_V1C_PR822 / EDC16CP33_V1C_PR823 / EDC16CP33_V1C_PR824 / EDC16CP33_V1C_PR825 /
EDC16CP33_V54_PR816 / EDC16CP33_V54_PR817 / EDC16CP33_V54_PR818 / EDC16CP33_V54_PR819 / EDC16CP33_V54_PR820 /
EDC16CP33_V54_PR821 / EDC16CP33_V54_PR822 / EDC16CP33_V54_PR823 / EDC16CP33_V54_PR824 / EDC16CP33_V54_PR825 /
EDC16CP33_V20_PR816 / EDC16CP33_V20_PR817 / EDC16CP33_V20_PR818 / EDC16CP33_V20_PR819 / EDC16CP33_V20_PR820 /
EDC16CP33_V20_PR821 / EDC16CP33_V20_PR822 / EDC16CP33_V20_PR823 / EDC16CP33_V20_PR824 / EDC16CP33_V20_PR825 /
EDC16CP33_V58_PR816 / EDC16CP33_V58_PR817 / EDC16CP33_V58_PR818 / EDC16CP33_V58_PR819 / EDC16CP33_V58_PR820 /
EDC16CP33_V58_PR821 / EDC16CP33_V58_PR822 / EDC16CP33_V58_PR823 / EDC16CP33_V58_PR824 / EDC16CP33_V58_PR825 /
EDC16CP33_V5C_PR816 / EDC16CP33_V5C_PR817 / EDC16CP33_V5C_PR818 / EDC16CP33_V5C_PR819 / EDC16CP33_V5C_PR820 /
EDC16CP33_V5C_PR821 / EDC16CP33_V5C_PR822 / EDC16CP33_V5C_PR823 / EDC16CP33_V5C_PR824 / EDC16CP33_V5C_PR825 /
EDC16CP33_V24_PR816 / EDC16CP33_V24_PR817 / EDC16CP33_V24_PR818 / EDC16CP33_V24_PR819 / EDC16CP33_V24_PR820 /
EDC16CP33_V24_PR821 / EDC16CP33_V24_PR822 / EDC16CP33_V24_PR823 / EDC16CP33_V24_PR824 / EDC16CP33_V24_PR825 /
EDC16CP33_V26_PR816 / EDC16CP33_V26_PR817 / EDC16CP33_V26_PR818 / EDC16CP33_V26_PR819 / EDC16CP33_V26_PR820 /
EDC16CP33_V26_PR821 / EDC16CP33_V26_PR822 / EDC16CP33_V26_PR823 / EDC16CP33_V26_PR824 / EDC16CP33_V26_PR825 /
EDC16CP33_V60_PR816 / EDC16CP33_V60_PR817 / EDC16CP33_V60_PR818 / EDC16CP33_V60_PR819 / EDC16CP33_V60_PR820 /
EDC16CP33_V60_PR821 / EDC16CP33_V60_PR822 / EDC16CP33_V60_PR823 / EDC16CP33_V60_PR824 / EDC16CP33_V60_PR825
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 54, 58, 5C, 60
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-427V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
SC017PARTICLE FILTER REGENERATION
NOTESOnly run this command after interpretation of the following faults:
– DF308 Clogged particle filter,
– DF311 Failed regenerations limit exceeded,
– df312: speed request.
WARNING:
– It is essential to observe the health and safety guidelines (see MR364 (Mégane II ph2), MR370 (Scénic II ph2),
MR 395 (Laguna II ph2), 402 (Vel Satis ph2), 405 (Espace IV ph2) Mechanical, 19B, Exhaust, Particle
filter: Cleaning) and follow the procedure below.
SAFETY INSTRUCTIONS TO BE FOLLOWED:
The regeneration causes exhaust fumes and high temperatures.
It is strongly recommended that you put the vehicle outside during regeneration.
If it is not possible to carry out regeneration outside, use an extractor fan that can withstand the very high
regeneration temperatures (400°C at the exhaust outlet).
Perform regeneration on a surface free from fire risks (oil, dry leaves, etc.).
Nothing should be left in the vicinity of the exhaust pipe.
Check that there are no leaks or blockages in the exhaust pipe,
Repair if necessary.
WARNING:
Check the engine oil level before running the command to avoid any engine racing. The oil level must be
between the minimum level and the middle level on the oil dipstick.
Before performing a particle filter regeneration, it is essential to deactivate the air conditioning
compressor (risk of engine damage) and all the electrical consumers.
IF NECESSARY:
Regeneration can be stopped by pressing the engine start button twice briefly (less than 3 seconds).
Switch off the ignition and wait for the diagnostic tool message (maximum time 8 minutes) Communication
lost with computer: EDC16 C33, check the tool connection and the computer power supply before
switching the ignition back on.
EDC16CP33_V1C_SC017 / EDC16CP33_V54_SC017 / EDC16CP33_V20_SC017 / EDC16CP33_V58_SC017 / EDC16CP33_V5C_SC017 /
EDC16CP33_V24_SC017 / EDC16CP33_V28_SC017 / EDC16CP33_V62_SC017/ EDC16CP33_V26_SC017 / EDC16CP33_V60_SC017
EDC16CP33
Program No.: C4
Vdiag No.: 1C, 20, 24, 26,
28, 54, 58, 5C, 60, 62
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-440V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B

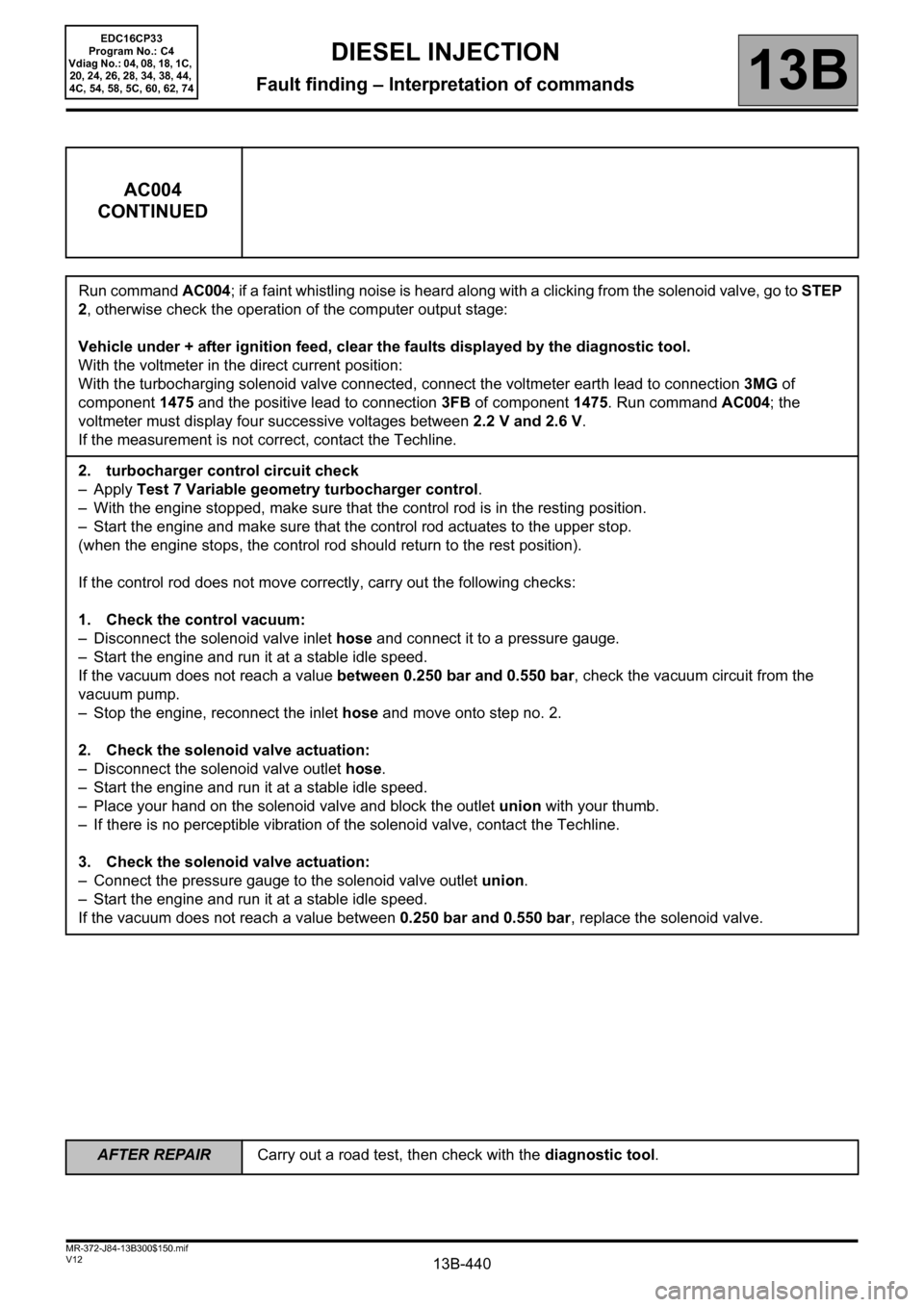

AC004
CONTINUED
Run command AC004; if a faint whistling noise is heard along with a clicking from the solenoid valve, go to STEP
2, otherwise check the operation of the computer output stage:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
With the voltmeter in the direct current position:
With the turbocharging solenoid valve connected, connect the voltmeter earth lead to connection 3MG of
component 1475 and the positive lead to connection 3FB of component 1475. Run command AC004; the
voltmeter must display four successive voltages between 2.2 V and 2.6 V.
If the measurement is not correct, contact the Techline.
2. turbocharger control circuit check
–Apply Test 7 Variable geometry turbocharger control.
– With the engine stopped, make sure that the control rod is in the resting position.
– Start the engine and make sure that the control rod actuates to the upper stop.
(when the engine stops, the control rod should return to the rest position).
If the control rod does not move correctly, carry out the following checks:
1. Check the control vacuum:
– Disconnect the solenoid valve inlet hose and connect it to a pressure gauge.
– Start the engine and run it at a stable idle speed.
If the vacuum does not reach a value between 0.250 bar and 0.550 bar, check the vacuum circuit from the
vacuum pump.
– Stop the engine, reconnect the inlet hose and move onto step no. 2.
2. Check the solenoid valve actuation:
– Disconnect the solenoid valve outlet hose.
– Start the engine and run it at a stable idle speed.
– Place your hand on the solenoid valve and block the outlet union with your thumb.
– If there is no perceptible vibration of the solenoid valve, contact the Techline.
3. Check the solenoid valve actuation:
– Connect the pressure gauge to the solenoid valve outlet union.
– Start the engine and run it at a stable idle speed.
If the vacuum does not reach a value between 0.250 bar and 0.550 bar, replace the solenoid valve.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-441V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC012DAMPER VALVE
NOTESCarry out this interpretation:
– after DF645 Damper valve position regulation, DF646 Damper valve position
sensor,
– or after a customer complaint (starting faults, poor performance).
Use the Wiring Diagram Technical Note, Laguna II ph2, Mégane ll, Scénic ll,
Espace IV ph2, Vel Satis ph2.
Measure the resistance between connections 38KQ and 38KP of component 1461.
If the resistance is not between 875 Ω and 1625 Ω replace the damper valve.
Check the continuity and absence of interference resistance of the following connections:
•38KQ between components 120 and 1461,
•38KP between components 120 and 1461.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
With the vehicle ignition on, and the engine stopped:
Make sure the damper flap is open,
If not, clean or replace the damper valve.
Actuate the valve using command AC012 and check the damper valve travel and rest position of the valve.
Check the operation of the computer output stage with a voltmeter in the alternating current position:
Actuate the valve with command AC012.
Connect the voltmeter earth lead to connection 38KS of component 1461 and the positive lead to connection
38KQ of component 1461.
The voltmeter should display three cycles of ON-OFF (12.5 V then return to 0V).
If the measurement is correct, replace the damper valve
If the measurement does not show any operation, contact the Techline.
EDC16CP33_V18_AC012 / EDC16CP33_V1C_AC012 / EDC16CP33_V54_AC012 / EDC16CP33_V20_AC012 / EDC16CP33_V58_AC012 /
EDC16CP33_V5C_AC012 / EDC16CP33_V24_AC012 / EDC16CP33_V04_AC012 / EDC16CP33_V08_AC012 / EDC16CP33_V44_AC012 /
EDC16CP33_V4C_AC012 / EDC16CP33_V34_AC012 / EDC16CP33_V38_AC012 / EDC16CP33_V74_AC012 / EDC16CP33_V28_AC012 /
EDC16CP33_V62_AC012 / EDC16CP33_V26_AC012 / EDC16CP33_V60_AC012
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-481
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP6 Fuel system leaks
NOTESBefore analysing this customer complaint, check that there are no faults, and the
conformity (or otherwise) of the parameters and statuses, using the diagnostic tool.
If the customer complaint is not eliminated, perform the following checks.
IMPORTANT:
Please observe the cleanliness guidelines and safety advice.
Procedure for checking for an external leak on the fuel circuit:
Clean away traces of grease with clean thinner and wipe the part or parts concerned with cleaning cloths.
Start the engine and increase the engine temperature until the diesel fuel reaches 40/50°C.
Stop the engine and check for traces of grease on the part or parts concerned.
If this is the case, replace the part or parts concerned.
Does the priming bulb show traces of grease?
(Visual and tactile inspections)
Check the assembly of the components and
the condition of the seal at the union of the two
components, if the leak is at the seal.
Replace the part or the parts concerned.
Bleed the fuel circuit and continue the checks.
Check the counter pressure valve located on
the fuel return line, after the injectors. Does the diesel filter show traces of grease?
(Visual and tactile inspections)
Do the fuel return pipes show traces of grease?
(Visual and tactile inspections)
YES
NO
YES
NO
YES
NO
A
EDC16CP33_V18_ALP06 / EDC16CP33_V1C_ALP06 / EDC16CP33_V54_ALP06 / EDC16CP33_V20_ALP06 / EDC16CP33_V58_ALP06 /
EDC16CP33_V5C_ALP06 / EDC16CP33_V24_ALP06 / EDC16CP33_V04_ALP06 / EDC16CP33_V08_ALP06 / EDC16CP33_V44_ALP06 /
EDC16CP33_V4C_ALP06 / EDC16CP33_V34_ALP06 / EDC16CP33_V38_ALP06 / EDC16CP33_V74_ALP06 / EDC16CP33_V28_ALP06 /
EDC16CP33_V62_ALP06 / EDC16CP33_V26_ALP06 / EDC16CP33_V60_ALP06
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-493V12 MR-372-J84-13B300$180.mif
DIESEL INJECTION
Fault finding – Test13B
TEST1 Exhaust system check
Engine stopped: Check that the silencer outlet is
not blocked. Repair or replace the silencer, if
necessary.
Check the seal of the exhaust manifold on the
contact surface between the turbocharger and the
exhaust manifold.
Is the seal in order?Repair or replace the faulty part.
Loosen the catalytic converter on the turbocharger
side.
Place a wooden block between the two parts.
Start the vehicle and check if the engine runs
better.
Is the engine running normally?The exhaust system is not the cause of the fault;
repeat the engine fault finding (see Customer
complaints - Fault finding chart).
Retighten the catalytic converter.
Loosen or separate the particle filter on the
catalytic converter side. Place a wooden block
between the two parts if necessary.
Start the vehicle and check if the engine runs
better.
Is the engine running normally?Replace the catalytic converter.
NO
YES
NO
YES
NO
YES
A
EDC16CP33_V18_TEST1 / EDC16CP33_V1C_TEST1 / EDC16CP33_V54_TEST1 / EDC16CP33_V20_TEST1 / EDC16CP33_V58_TEST1 /
EDC16CP33_V5C_TEST1 / EDC16CP33_V24_TEST1 / EDC16CP33_V04_TEST1 / EDC16CP33_V08_TEST1 / EDC16CP33_V44_TEST1 /
EDC16CP33_V4C_TEST1 / EDC16CP33_V34_TEST1 / EDC16CP33_V38_TEST1 / EDC16CP33_V74_TEST1 / EDC16CP33_V28_TEST1 /
EDC16CP33_V62_TEST1 / EDC16CP33_V26_TEST1 / EDC16CP33_V60_TEST1
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
