Page 464 of 510

13B-464V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
MT001
CONTINUED 5
PHASE 2:
Preliminary test:
Engine speed between: 2480 rpm < X < 2520 rpm
Coolant temperature > 70°C
EGR valve feedback position < 1%
Interpretation:
If, during phase 2, no data is outside the maximum and minimum limits for each variable, interpret the Monitool
analysis for phase 3.
Note: the interpretation of faults during phase 2 should only be carried out in the following situation:
– The variables measured during phase 1 are correct, i.e. they are within the maximum and minimum authorised
limits. If this is not the case, apply the different Monitool fault finding procedures which relate to the different faults
revealed during the phase 1. To confirm the repairs or modifications carried out, run the MT001 monitool test
again.
Faults, Values outside the limitsThreshold Fault finding procedure
Air flow < Minimum thresholdMinimum threshold < Turbocharging pressure
< maximum thresholdContact Techline
Turbocharging pressure < minimum threshold Contact Techline
Turbocharging pressure > maximum
thresholdContact Techline
Air flow > maximum thresholdMinimum threshold < Turbocharging pressure
< maximum thresholdContact Techline
Turbocharging pressure < minimum threshold Contact Techline
Turbocharging pressure > maximum
thresholdFault finding procedure Monitool no. 6
Turbocharging pressure
< minimum thresholdMinimum threshold < Air flow < maximum
thresholdContact Techline
Air flow < Minimum threshold Contact Techline
Air flow > maximum threshold Contact Techline
Turbocharging pressure
> maximum thresholdMinimum threshold < Air flow < maximum
thresholdContact Techline
Air flow < Minimum threshold Contact Techline
Air flow > maximum threshold
Fault finding procedure Monitool no. 6
EDC16CP33
Program No.: C4
Vdiag No.: 04, 44
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
Page 466 of 510

13B-466V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
MT001
CONTINUED 7
PHASE 3:
Preliminary test:
Engine speed between: 2480 rpm < X < 2520 rpm
Coolant temperature > 70°C
EGR valve feedback position < 1%
Interpretation:
If, during phase 3, there is no data outside of the maximum and minimum limits for each variable, then the air line
is correct and no component replacement is to be carried out. Check the fuel circuit or deal with present or stored
faults which are displayed on the diagnostic tool.
Note: the interpretation of faults during phase 3 should only be carried out in the following situation:
– The variables measured during phase 1 and 2 are correct, i.e. they are within the minimum and maximum
authorised limits. If this is not the case, apply the different Monitool fault finding procedures which relate to the
different faults revealed during the phase 1 and phase 2. To confirm the repairs or modifications carried out, run
the MT001 monitool test again.
Faults, Values outside the limitsThreshold Fault finding procedure
Air flow < Minimum thresholdMinimum threshold < Turbocharging
pressure < maximum thresholdFault finding procedure Monitool no. 7
Turbocharging pressure < minimum
thresholdFault finding procedure Monitool no. 8
Turbocharging pressure > maximum
thresholdContact Techline
Air flow > maximum thresholdMinimum threshold < Turbocharging
pressure < maximum thresholdContact Techline
Turbocharging pressure < minimum
thresholdContact Techline
Turbocharging pressure > maximum
thresholdContact Techline
Turbocharging pressure
< minimum thresholdMinimum threshold < Air flow < maximum
thresholdContact Techline
Air flow < Minimum thresholdFault finding procedure Monitool no. 8
Air flow > maximum threshold Contact Techline
Turbocharging pressure
> maximum thresholdMinimum threshold < Air flow < maximum
thresholdContact Techline
Air flow < Minimum threshold Contact Techline
Air flow > maximum threshold Contact Techline
EDC16CP33
Program No.: C4
Vdiag No.: 04, 44
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
Page 474 of 510
13B-474
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP2
CONTINUED 2
Check that the exhaust is not blocked: run Test 1 Exhaust pipe check, and follow the related fault finding
procedure (see Test 4).
Check the consistency of the signal from the engine coolant temperature sensor.
Check the operation of the rail pressure regulator (DRV) using command AC225 Rail pressure regulator and then
the operation of the pump pressure regulator (MPROP) using command AC226 Pump pressure regulator.
Check the timing setting.
Apply part B of Test 10 Poor injector operation.
End of part A.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 478 of 510

13B-478
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP4
CONTINUED 2
Perform the following road test (looking for a loss of power when accelerating under full load):
– in the highest gear ratio, accelerate fully,
– lift your foot off the accelerator pedal completely for at least 2 seconds,
– accelerate fully again,
– release the accelerator pedal completely,
– accelerate slightly.
If the loss of power was not noted during slight acceleration and if there was a loss of engine power during each
acceleration at full load, replace the diesel fuel injector return rail and its overpressure valve (see MR364
(Mégane II ph2), MR370 (Scénic II ph2), MR 395 (Laguna II ph2), 402 (Vel Satis ph2), 405 (Espace IV ph2)
Mechanical, 13B, Diesel injection, Diesel injector fuel return rail: Removal - Refitting).
Check the connection and positioning of the differential pressure sensor (see MR 395 (Laguna II ph2), 402 (Vel
Satis Ph2), 405 (Espace IV ph2), 364 (Mégane II ph2), 370 (Scénic II ph2) Mechanical, 19B, Exhaust, Particle
filter pressure sensor: Removal - Refitting).
Check the conformity of the accelerator pedal position sensor, the brake pedal sensor, the atmospheric pressure
sensor, the exhaust gas recirculation valve, and the damper valve (see Interpretation of statuses and
parameters).
Check the consistency of the signal from the air flowmeter, the engine coolant temperature sensor, the fuel
temperature sensor and the engine speed sensor.
Check the connections, the continuity and the absence of interference resistance of the following components:
– the air flowmeter (apply DF056 Air flow sensor circuit)
– the engine coolant temperature sensor (apply DF001 Coolant temperature sensor circuit)
– the fuel temperature sensor (apply DF098 Fuel temperature sensor circuit)
– the engine speed sensor (apply DF195 Engine speed/camshaft sensor consistency).
A
YES
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

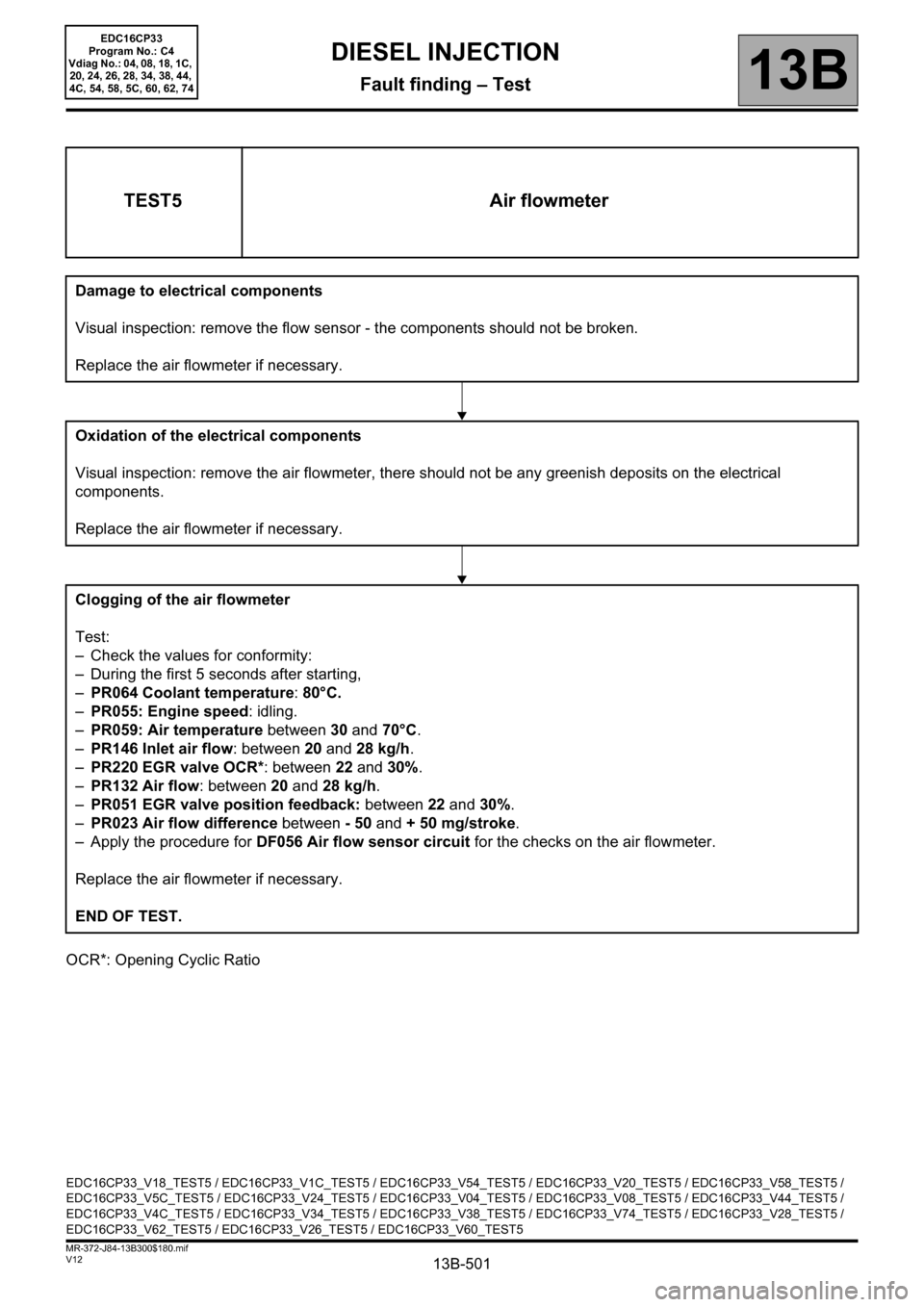

Page 501 of 510

13B-501V12 MR-372-J84-13B300$180.mif
DIESEL INJECTION
Fault finding – Test13B
OCR*: Opening Cyclic Ratio
TEST5 Air flowmeter
Damage to electrical components
Visual inspection: remove the flow sensor - the components should not be broken.
Replace the air flowmeter if necessary.
Oxidation of the electrical components
Visual inspection: remove the air flowmeter, there should not be any greenish deposits on the electrical
components.
Replace the air flowmeter if necessary.
Clogging of the air flowmeter
Test:
– Check the values for conformity:
– During the first 5 seconds after starting,
–PR064 Coolant temperature: 80°C.
–PR055: Engine speed: idling.
–PR059: Air temperature between 30 and 70°C.
–PR146 Inlet air flow: between 20 and 28 kg/h.
–PR220 EGR valve OCR*: between 22 and 30%.
–PR132 Air flow: between 20 and 28 kg/h.
–PR051 EGR valve position feedback: between 22 and 30%.
–PR023 Air flow difference between - 50 and + 50 mg/stroke.
– Apply the procedure for DF056 Air flow sensor circuit for the checks on the air flowmeter.
Replace the air flowmeter if necessary.
END OF TEST.
EDC16CP33_V18_TEST5 / EDC16CP33_V1C_TEST5 / EDC16CP33_V54_TEST5 / EDC16CP33_V20_TEST5 / EDC16CP33_V58_TEST5 /
EDC16CP33_V5C_TEST5 / EDC16CP33_V24_TEST5 / EDC16CP33_V04_TEST5 / EDC16CP33_V08_TEST5 / EDC16CP33_V44_TEST5 /
EDC16CP33_V4C_TEST5 / EDC16CP33_V34_TEST5 / EDC16CP33_V38_TEST5 / EDC16CP33_V74_TEST5 / EDC16CP33_V28_TEST5 /
EDC16CP33_V62_TEST5 / EDC16CP33_V26_TEST5 / EDC16CP33_V60_TEST5
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
