2012 RENAULT SANDERO check engine light

JauneNoirNoir texte
5.5
ENG_UD22290_8
Kit de gonflage des pneumatiques (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - D\
acia)
ENG_NU_817-9_B90_Dacia_5

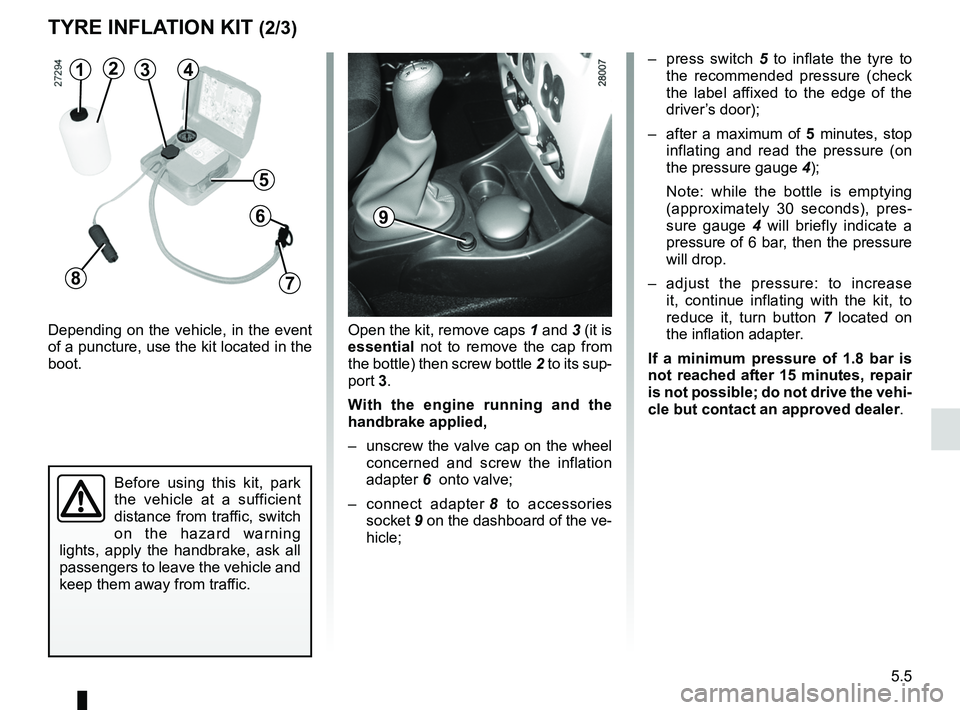

TYRE INFLATION KIT (2/3)
Depending on the vehicle, in the event
of a puncture, use the kit located in the
boot. –
press switch 5 to inflate the tyre to
the recommended pressure (check
the label affixed to the edge of the
driver’s door);
– after a maximum of 5 minutes, stop
inflating and read the pressure (on
the pressure gauge 4);
Note: while the bottle is emptying
(approximately 30 seconds), pres -
sure gauge 4 will briefly indicate a
pressure of 6 bar, then the pressure
will drop.
– adjust the pressure: to increase
it, continue inflating with the kit, to
reduce it, turn button 7 located on
the inflation adapter.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the vehi-
cle but contact an approved dealer .
1234
5
6
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
8
Open the kit, remove caps 1 and 3 (it is
essential not to remove the cap from
the bottle) then screw bottle 2 to its sup-
port 3.
With the engine running and the
handbrake applied,
– unscrew the valve cap on the wheel
concerned and screw the inflation
adapter 6 onto valve;
– connect adapter 8 to accessories
socket 9 on the dashboard of the ve-
hicle;
9
7

JauneNoirNoir texte
5.35
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-9_B90_Dacia_5
OPERATING FAULTS (2/5)
On the road POSSIBLE CAUSES WHAT TO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or
damaged. Check the tyre pressures; if this is not the cause, have
their condition checked by an approved dealer.
Coolant boiling in the coolant
reservoir. Mechanical fault: cylinder head
gasket damaged, faulty coolant
pump. Stop the engine.
Contact an approved dealer.
Engine cooling fan not working. Contact an approved dealer.
Smoke under the bonnet. Short circuit or cooling system
leak. Stop, switch off the ignition, stand away from the vehi-
cle and contact an approved Dealer.
The oil pressure warning light
comes on: on a bend or under braking The engine oil level is too low. Top up the engine oil (refer to the information on
“Engine oil level, topping up/refilling” in Section 4).
at idle speed Low oil pressure. Go to your nearest approved dealer.
The oil pressure warning
light takes a long time to
go out or remains lit during
acceleration. Loss of oil pressure.
Stop the vehicle: contact an approved dealer.

JauneNoirNoir texte
5.37
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-9_B90_Dacia_5

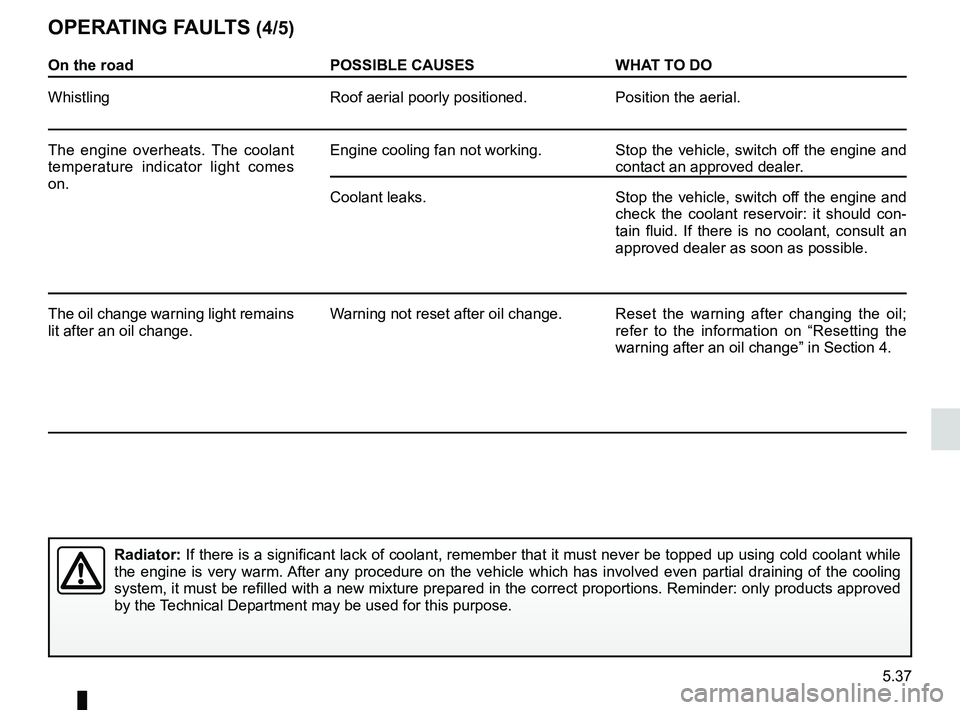

OPERATING FAULTS (4/5)
On the road POSSIBLE CAUSES WHAT TO DO
Whistling Roof aerial poorly positioned. Position the aerial.
The engine overheats. The coolant
temperature indicator light comes
on. Engine cooling fan not working.
Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Stop the vehicle, switch off the engine and
check the coolant reservoir: it should con -
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
The oil change warning light remains
lit after an oil change. Warning not reset after oil change.
Reset the warning after changing the oil;
refer to the information on “Resetting the
warning after an oil change” in Section 4.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by the Technical Department may be used for this purpose.

7.1
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
AlphAbeticAl index (1/4)
A
ABS ........................................................................\
2.12 – 2.13
accessories........................................................................\
5.33
accessories - installation ................................................... 5.33
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.11 → 1.14, 3.17
advice on antipollution ........................................... 5.22 → 5.24
air bag .................................................................... 1.15 → 1.20
activating the front passenger air bags ........................ 1.34
deactivating the front passenger air bags .................... 1.32
air conditioning .................................................... 3.4 – 3.5, 3.9
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.14 → 6.18
anti-lock braking system: ABS ................................2.12 – 2.13
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.14 → 2.16
automatic gearbox selector lever ...........................2.14 → 2.16
b
battery ........................................................................\
........ 4.12
troubleshooting ................................................. 5.25 – 5.26
battery (remote control) ..................................................... 5.27
bodywork (maintenance) ....................................... 4.13 → 4.15
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.7
bulbs changing .......................................................... 5.14 → 5.21
c
capacity of mechanical components ...........................4.4, 4.12
catalytic converter ................................................................ 2.4
central door locking ............................................................. 1.5
changing a bulb ..................................................... 5.14 → 5.21
changing a wheel ...................................................... 5.9 – 5.10changing gear
........................................................ 2.14 → 2.16
child booster seat .................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety ............................................... 1.2, 1.6, 1.21 → 1.31
child seats .............................................................. 1.21 → 1.31
children .............................................................. 1.5 – 1.6, 1.14
cigar lighter ........................................................................\
3.14
clock ........................................................................\
.......... 1.10
closing the doors ................................................................. 1.6
control instruments ....................................... 1.10, 1.40 → 1.50
controls .................................................................. 1.36 → 1.39
courtesy light ..................................................................... 3.10
d
dashboard .............................................................. 1.36 → 1.39
de-icing .................................................................. 1.53 → 1.55
rear screen ................................................................... 1.55
demisting rear screen ..................................................................... 3.7
dimensions ........................................................................\
.. 6.5
dipstick........................................................................\
......... 4.4
doors ........................................................................\
... 1.5 – 1.6
driver’s position ..................................................... 1.36 → 1.39
driving .................................................. 2.2 → 2.9, 2.11 → 2.16
e
electric door locking ............................................................. 1.5
electric windows ..................................................... 3.11 – 3.12
emergency brake assist ..................................................... 2.13
emergency spare wheel ................................. 5.3, 5.11 → 5.13
engine technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.8
engine immobiliser............................................................... 1.7
engine immobiliser (switch) ................................................. 2.2
engine oil ........................................................................\
..... 4.4
