2012 RENAULT MEGANE RS weight

JauneNoirNoir texte
1.39
ENG_UD18892_5
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_1

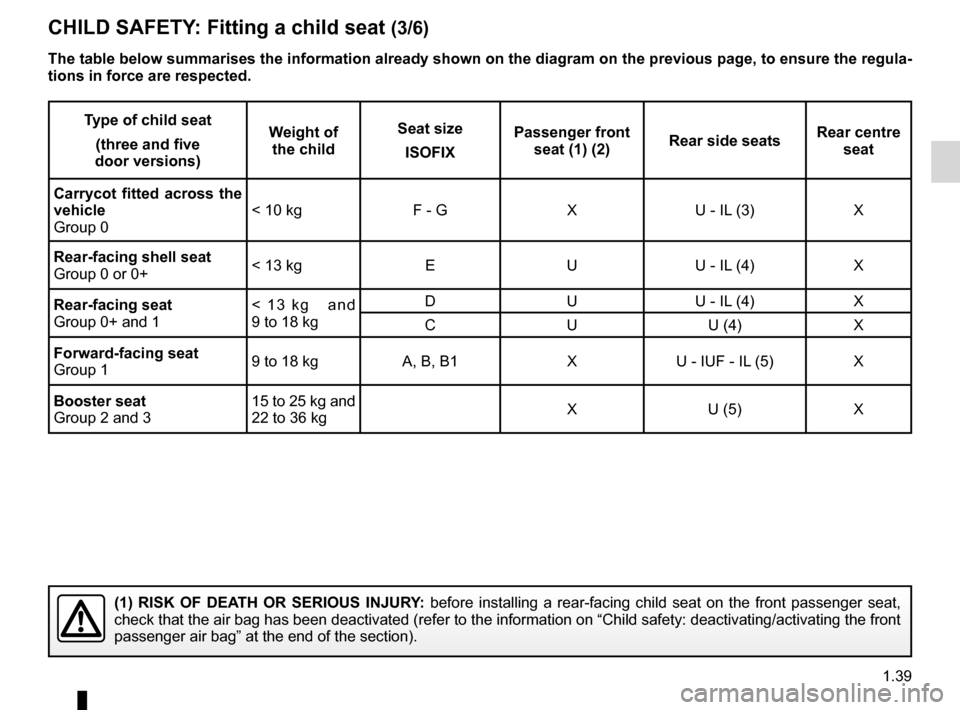

cHILd sAfETY : fitting a child seat (3/6)
Type of child seat
(three and five
door versions) Weight of
the child seat size
IsOfIX passenger front
seat (1) (2) Rear side seats Rear centre
seat
carrycot fitted across the
vehicle
Group 0 < 10 kg
F - GXU - IL (3) X
Rear-facing shell seat
Group 0 or 0+ < 13 kg
EUU - IL (4) X
Rear-facing seat
Group 0+ and 1 <
1 3 k g a n d
9 to 18 kg D
UU - IL (4) X
C UU (4) X
forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (5) X
Booster seat
Group 2 and 3 15 to 25 kg and
22 to 36 kg
X
U (5) X
(1) RIsK Of dEATH OR sERIOUs INJURY: before installing a rear-facing child seat on the front passenger seat,
check that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front
passenger air bag” at the end of the section).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.

1.42
ENG_UD18892_5
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-6_BDK95_Renault_1
cHILd sAfETY : fitting a child seat (6/6)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Type of child seat
(sport tourer version) Weight of
the child seat size
IsOfIX front passenger
seat (1) (5) Rear side seats Rear centre
seat
carrycot fitted across the vehicle
Group 0 < 10 kg
F - GXU - IL (2) X
shell seat/rear-facing seat
Group 0, or 0+ and 1 <
1 3 k g a n d
9 to 18 kg E, D, C
UU - IL (3) X
forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (4) X
Booster seat
Group 2 and 3 15 to 25 kg and
22 to 36 kg
X
U (4) X
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attache\
d by seat belt; check that it can be fitted correctly.
IUf/IL = On equipped vehicles, seat which allows a child seat with “Universal, semi-universal or vehicle specific” approval to be
fitted using the ISOFIX system. Check that it can be fitted correctly.
(1) Only a rear-facing child seat can be fitted in this seat: position the vehicle seat as far back as possible and gently tilt the seat-
back (approximately 25°).
(2) A carrycot can be fitted across the vehicle and will take up at least two seats. Position the child with his or her feet nearest the
door.
(3) Move the front seat as far forward as possible to fit a rear-facing child seat, then move back the seat(s) in front in accordance
with the child seat instructions.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and do not recline the
seatback more than 25°.
(5) RIsK Of dEATH OR sERIOUs INJURY: before installing a rear-facing child seat on the front passenger seat,
check that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front
passenger air bag” at the end of the section).

JauneNoirNoir texte
3.31
ENG_UD18945_5
Rangements / aménagements coffre à bagage (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
luggAgE coMPARTMENT ST oRAgE SPAcE AND FITTINgS (3/3)
Separating the luggage
compartment
(sport tourer version)
The loading area can be separated.
Turn locks 8 situated on either side of
the luggage compartment to the first
notch. Lift divider C using handle 4 ,
when the bolts make contact, push the
divider and it will lock.
Maximum weight: 20 kg. On the back there is an elastic strip 9 to
hold small objects vertically in position.
8
4
c
c
9
Always place objects being trans
-
ported so that the heaviest items
are resting against the back of the
rear bench seat.

transporting objectsin the luggage compartment ........... (up to the end of the DU)
towing rings .......................................... (up to the end of the DU)
towing towing equipment ............................ (up to the end of the DU)
towing equipment fitting ............................................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
3.32
ENG_UD10820_2
Transport d’objets dans le coffre (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Transporting objects in the luggage compartment/Towing (towing equipment)
TRANSPoRTINg oBjEcTS IN ThE luggAgE coMPARTMENT/TowINg (towing equipment)
A
Always position the heavi -
est items directly on the
floor. Use the lashing points
on the floor of the luggage
compartment, if these are fitted to
the vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
c
Always place the objects to be trans -
ported so that their largest side rests
against the back of the rear bench
seat, for normal loads (Example A), or
against the back of the front seats when
the rear bench seatbacks are folded
down.
If you have to place objects on the folded
seat back, it is vital that you remove the
headrests before folding the seat back
so that it can be folded as flat as possi-
ble against the seat. Three-door version
C = 875 mm
Five-door version c = 867 mm
Permissible nose weight, maximum
permissible towing weight, braked
and unbraked: refer to the information
on “Weights” in Section 6.

roof bars ............................................... (up to the end of the DU)
roof rack roof bars .......................................... (up to the end of the DU)
3.35
ENG_UD14413_3
Barres de toit (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_3
Roof bars
RooF BARS: AccESS To FIxINg PoINTS
Five-seater and sport tourer
versions
Open the doors to access the mount -
ing points 1.For information on the range of
equipment adapted to your vehi -
cle, we advise you to consult an ap-
proved Dealer.
Refer to the fitting instructions for in-
formation on how to fit roof bars and
conditions of use.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
Maximum permissible load on
roof rack: refer to the information
on “Weights” in Section 6.
1
Sport tourer versions
For vehicles fitted with original roof
bars, the roof bars are fixed and
must not be removed. To change
them contact an approved Dealer.
If original roof bars, ap -
proved by our Technical
Department, are supplied
with screws, only use these
screws for attaching the roof bars to
the vehicle.
Three door version
The fitting of roof bars is prohibited on
three door versions.

bonnet................................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
4.2
ENG_UD6330_1
Capot moteur (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_4
Bonnet
Opening the bonnet
Lift the bonnet; you will need to guide it
as it is held by a strut.
To open, pull handle
1 , located on the
left-hand side of the dashboard.
Unlocking the bonnet catch
To release it, lift tab 2.
BOnnet
1
2Closing the bonnet
Check that nothing has been left in the
engine compartment.
To close the bonnet again, hold the
bonnet in the middle and guide it down,
allowing a 30 cm gap before it is closed,
then release it. It will latch automatically
under its own weight.
Check that it is correctly
locked.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
In the event of an impact,
even slight, against the ra -
diator grille or bonnet, have
the bonnet catch checked
by an approved dealer as soon as
possible.Do not press down on the
bonnet: there is a risk that
the bonnet will close inad -
vertently.

tyre pressure......................................... (up to the end of the DU)
tyre pressures ....................................... (up to the end of the DU)
tyres ...................................................... (up to the end of the DU)
4.10
ENG_UD6333_1
Pression de gonflage des pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_4
Tyre Pressure
tyRe pReSSURe
The tyre pressure is indicated on
label A affixed to the edge of the driv -
er’s door. Open the door to read it.
B : dimension of the tyres fitted to the
vehicle.
C : tyre pressures for the front wheels
(non-motorway).
D : tyre pressures for the rear wheels
(non-motorway).
E : tyre pressures for the front wheels
(motorway). F
: tyre pressures for the rear wheels
(motorway).
G : tyre pressure for the emergency
spare wheel.
H: emergency spare wheel tyre dimen -
sion if different to the four tyres fitted to
the vehicle.
t yre safety and use of snow
chains
Refer to the information on “Tyres”
in Section 5 for the servicing con -
ditions and, depending on the ver -
sion, the use of chains.
Special note
For vehicles used fully laden
( m a x i m u m p e r m i s s i b l e a l l - u p
weight) and towing a trailer. The
maximum speed must be limited
to 60 mph (100 km/h) and the tyre
pressure increased by 0.2 bar.
Refer to the information on “Weights”
in Section 6.
CD
Fe
g
A
H
AB
When they need to be replaced, only tyres of the same make, size, type
and profile should be used.
t yres fitted to the vehicle should either be identical to those fitted
originally or conform to those recommended by your approved
dealer.

towingbreakdown ...................................... (up to the end of the DU)
towing hitch ........................................... (up to the end of the DU)
5.31
ENG_UD14787_2
Remorquage : dépannage (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_5
Towing
tOwIng : breakdown (1/2)
Before towing, unlock the steering
column: with the clutch depressed,
engage first gear (lever in position n
or r for vehicles with automatic trans -
missions), insert the RENAULT card in
the card reader then press the engine
start button for two seconds.
Reposition the lever to neutral (posi -
tion N for vehicles fitted with an auto -
matic gearbox)
The steering column unlocks, the ve -
hicle’s accessory functions are pow -
ered, and you can use the vehicle lights
(brake lights, hazard warning lights,
etc.). At night, the vehicle must be lit.
Once you have finished towing, press
the engine start button twice (risk of
running down the battery). The speed specified by current legis
-
lation for towing must always be ob -
served. If your vehicle is the towing
vehicle, do not exceed the maximum
towing weight for your vehicle (refer to
the information on “Weights” in Section
6).
t owing a vehicle with an
automatic gearbox
With the engine switched off, the trans-
mission is no longer lubricated. It is
preferable to tow this type of vehicle on
a trailer or tow it with the front wheels
off the ground.
u nder exceptional circumstances,
you may tow the vehicle with all four
wheels on the ground, only going for -
ward, with the gear lever in the n posi-
tion, and for a distance not exceeding
50 miles (80 km).
If the lever is stuck in P,
even though you are de -
pressing the brake pedal,
the lever can be released
manually. To do this, insert a rigid
rod in the hole 2, press the rod and
unlocking button 1 located on the
lever simultaneously.
1
2
D o n o t r e m o v e t h e
RENAULT card from the
reader when the vehicle is
being towed.
