Conditionnement d’air automatique bizone (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
AuT oMATIc clIMATE coNTRol (3/6)
Varying the ventilation speed
In automatic mode, the system uses
the most suitable amount of air to reach
and maintain the desired comfort level.
Use control 6 to increase or reduce the
ventilation speed.
In this case, automatic mode is
switched off.
Switching air conditioning on
or off
In automatic mode, the system switches
the air conditioning system on or off,
depending on the climate conditions.
Press button 4 to switch the air condi -
tioning on (indicator light on) or (indica -
tor light off).
Note: activating the “Clear View” func-
tion automatically activates the air con-
ditioning. Press button 3 to activate au-
tomatic mode again.
564
The displayed temperature values
show a comfort level.
When the vehicle is started in cold
or hot weather, increasing or de -
creasing the values displayed does
not mean that the temperature is
reached more quickly. Whatever the
indicated temperature may be, the
system optimises the increase or
decrease in temperature (the venti-
lation system does not start instantly
at maximum speed: it gradually in -
creases until the engine tempera -
ture is sufficient, which may take
from a few seconds to several min-
utes).
Generally speaking, unless there is
a particular fault, the dashboard air
vents should remain open.
3

JauneNoirNoir texte
3.11
ENG_UD20983_3
Conditionnement d’air automatique bizone (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3

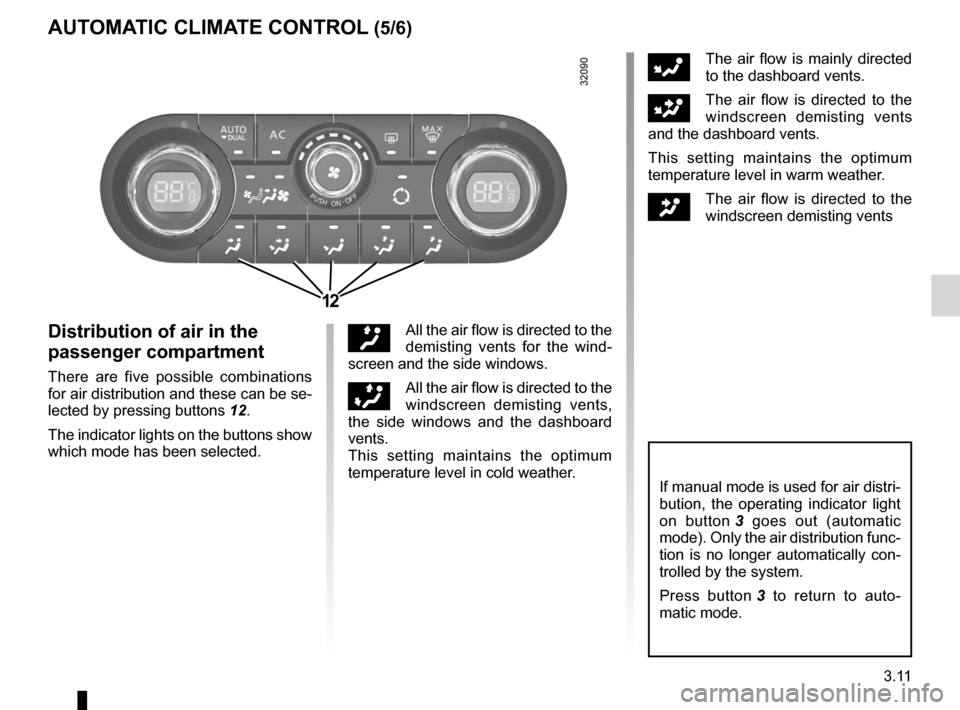

AuT oMATIc clIMATE coNTRol (5/6)
Distribution of air in the
passenger compartment
There are five possible combinations
for air distribution and these can be se-
lected by pressing buttons 12.
The indicator lights on the buttons show
which mode has been selected.
õ All the air flow is directed to the
demisting vents for the wind -
screen and the side windows.
÷All the air flow is directed to the
windscreen demisting vents,
the side windows and the dashboard
vents.
This setting maintains the optimum
temperature level in cold weather.
FThe air flow is mainly directed
to the dashboard vents.
GThe air flow is directed to the
windscreen demisting vents
and the dashboard vents.
This setting maintains the optimum
temperature level in warm weather.
JThe air flow is directed to the
windscreen demisting vents
If manual mode is used for air distri-
bution, the operating indicator light
on button 3 goes out (automatic
mode). Only the air distribution func-
tion is no longer automatically con-
trolled by the system.
Press button 3 to return to auto -
matic mode.
12

bonnet................................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
4.2
ENG_UD23503_5
Capot moteur (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_4
Bonnet
Opening the bonnet
To open, pull handle 1 , located on the
left-hand side of the dashboard.
To unlock, push tab 5 in the direction of
arrow A (the hook releases the bonnet).
BOnnet
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
In the event of even a slight
impact involving the radia -
tor grille or bonnet, have
the bonnet lock checked by
an approved Dealer as soon as pos-
sible.
15A
Closing the bonnet
Check that nothing has been left in the
engine compartment.
To close the bonnet, replace stay 2
back into its holder 3, hold the bonnet in
the middle and lower it to 30 cm above
the closed position, then release it. It
will latch automatically under its own
weight.
Ensure that the bonnet is
properly locked.
Check that nothing is pre -
venting the catch from lock-
ing (gravel, cloth, etc.).
After any procedure in the engine
compartment, make sure that you
do not forget anything (cloth, tools,
etc.).
Lift the bonnet, release stay 2 from its
holder 3 ; for your safety, always fix it
in location 4.
2
3
4

JauneNoirNoir texte
4.15
ENG_UD22866_8
Entretien des garnitures intérieures (X35 - X45 - X65 - J77 - X81 - J81 - X85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - X95 - B95 - D95 - E95 - K95 - J95 - R95 -
ENG_NU_977-2_H45_Ph2_Renault_4
You are strongly recom -
mended not to use high -
pressure or spray cleaning
equipment inside the pas -
senger compartment: use of such
equipment could impair the correct
functioning of the electrical or elec-
tronic components in the vehicle, or
have other detrimental effects.
InteRIOR tRIM MAIntenAnCe (2/2)
y ou should not:
You are strongly advised not to po -
sition objects such as deodorants,
scents, etc. near air vents, as this could
damage your dashboard trim.
Removal/replacing removable
equipment originally fitted in
the vehicle
If you need to remove equipment in
order to clean the passenger com -
partment (for example, mats), always
ensure that they are correctly refitted
and are the right way around (the driv-
er’s mat should be fitted on the driver’s
side, etc.) and fit them with the compo-
nents supplied with the equipment (for
example, the driver mat should always
be fixed using the pre-fitted mounting
components).
With the vehicle stationary, ensure that
nothing will impede driving (anything
obstructing the pedals, heel wedged by
the mat, etc.).
