2012 RENAULT KANGOO ESP

JauneNoirNoir texte
4.15
ENG_UD26811_2
Entretien de la carrosserie (peinture mate) (X44 - X77 - J77 - X85 - \
B90 - X61 - TEST - X77 ph2 - X95 - B95 - D95 - K95 - J95 - R95 - L90 Ph2 - F90 Ph2 - R90\
Ph2 - X62
ENG_NU_813-11_FK61_Renault_4
Respect local regulations about wash -
ing vehicles (e.g. do not wash your ve-
hicle on a public highway).
Observe the vehicle stopping distances
when driving on gravelled surfaces to
prevent paint damage.
Repair, or have repaired quickly, areas
where the paint has been damaged, to
prevent corrosion spreading.
Remember to visit the body shop pe -
riodically in order to maintain your
anti-corrosion warranty. Refer to the
Maintenance Document.
If it is necessary to clean mechani -
cal components, hinges, etc., spray
them with products approved by our
Technical Department to protect them
after they have been cleaned.
BoDyWoRk MAIntenAnCe (2/2)
We have selected special products
to care for your vehicle and you can
obtain these from the manufactur -
er’s accessory outlets.
Using a roller type car wash
Return the windscreen wiper stalk to
the Park position (refer to the informa-
tion on the “Windscreen washer, wiper”
in Section 1). Check the mounting of
external accessories, additional lights
and mirrors, and ensure that the wiper
blades are secured with adhesive tape.
Remove the radio aerial mast if your
vehicle is fitted with this equipment.
Remember to remove the tape and refit
the antenna after washing.
Cleaning the headlights
As the headlights are made of plastic
“glass”, use a soft cloth or cotton wool
to clean them. If this does not clean
them properly, moisten the cloth with
soapy water, then wipe clean with a soft
damp cloth or cotton wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco -
hol must not be used.
vehicles with a matte paint
finish
This type of paint requires certain pre-
cautions.
Do not do the following
– use wax-based products (polishing);
– rub hard;
– wash the vehicle in a roller-type car
wash;
– wash the vehicle using a high-pres-
sure device;
– attach stickers to the paintwork (risk
of leaving marks).
y ou should do the following
Wash the vehicle by hand using plenty
of water, using a soft cloth or a gentle
sponge.

JauneNoirNoir texte
5.13
ENG_UD23039_4
Pneumatiques (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
tyres (2/3)
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PsI).
never deflate a hot tyre.Fitting new tyres
changing wheels around
This practice is not recommended.
emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in -
structions on “Changing a wheel” in
Section 5.
t yre pressuresRespect the tyre pressures (including
the emergency spare wheel). Check
them at least once a month and before
a long journey (refer to the label on the
edge of the driver’s door).
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding;
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressures according to the condi -
tions of use (refer to the information
on “Tyre pressures”).
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– may mean that your vehicle no
longer conforms to current regu-
lations;
– it may change the way it handles
when cornering;
– it may cause the steering to be
heavy;
– It may affect the use of snow
chains.

wiper blades ......................................... (up to the end of the DU)
windscreen washer/wiper replacing blades .............................. (up to the end of the DU)
5.28
ENG_UD26546_5
Balais d’essuie-vitre (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Wiper blades
replacing windscreen wiper
blades 2
– with the ignition switched off , lift
wiper arm 2 slightly;
– pull tab 1 upwards;
– move the blade in the direction of the
arrow.
For refitting, proceed in the reverse
order and ensure that the blade is cor-
rectly clipped on.
wInDscreen wIPer BlaDes (1/2)
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
1
replacing windscreen wiper
blades 3
– with the ignition on and the engine
switched off, lower the windscreen
wiper stalk fully: they stop slightly
away from the bonnet;
– lift wiper arm 5 , pull tab 4 (move -
ment A ) and push the blade up -
wards.
t o refit
Slide the blade along the arm until it
clips on. Make sure that the blade is
correctly locked in position. Return the
windscreen wiper stalk to the park po-
sition.
3
4
5
a
2

towing hitch............................................................ (current page)
towing breakdown ....................................................... (current page)
5.30
ENG_UD9721_2
Remorquage : dépannage (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
access to towing points
Remove cover 1 or 3.
s crew in towing hitch 2 fully : as
much as possible by hand at first, then
finish by tightening it using the wheel -
brace.
Towing hitch 2 and wheelbrace are lo -
cated in the tool kit in the luggage com-
partment (refer to Section 5 “Tool kit”).
Towing: breakdown
t OwIng: breakdown (1/2)
Insert the key into the ignition switch
to unlock the steering wheel and to
use the indicator lights (brake lights,
indicators, etc.). the towed vehicle’s
lights must be switched on at night.
Furthermore, it is essential to respect
the towing regulations set out in the leg-
islation of the country concerned and, if
your vehicle is the towing vehicle, not to
exceed the towing weight of your vehi-
cle. Contact an approved Dealer.
When the engine is stopped, steering and braking assistance are not
operational.
Only use the front and rear towing
points (never use the driveshafts).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.
1
3
22
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).

battery (remote control) ........................ (up to the end of the DU)
remote control door locking batteries .......................................... (up to the end of the DU)
5.35
ENG_UD13290_3
Télécommande à radiofréquence : piles (X61 - F61 - K61 - Re\
nault)
ENG_NU_813-11_FK61_Renault_5

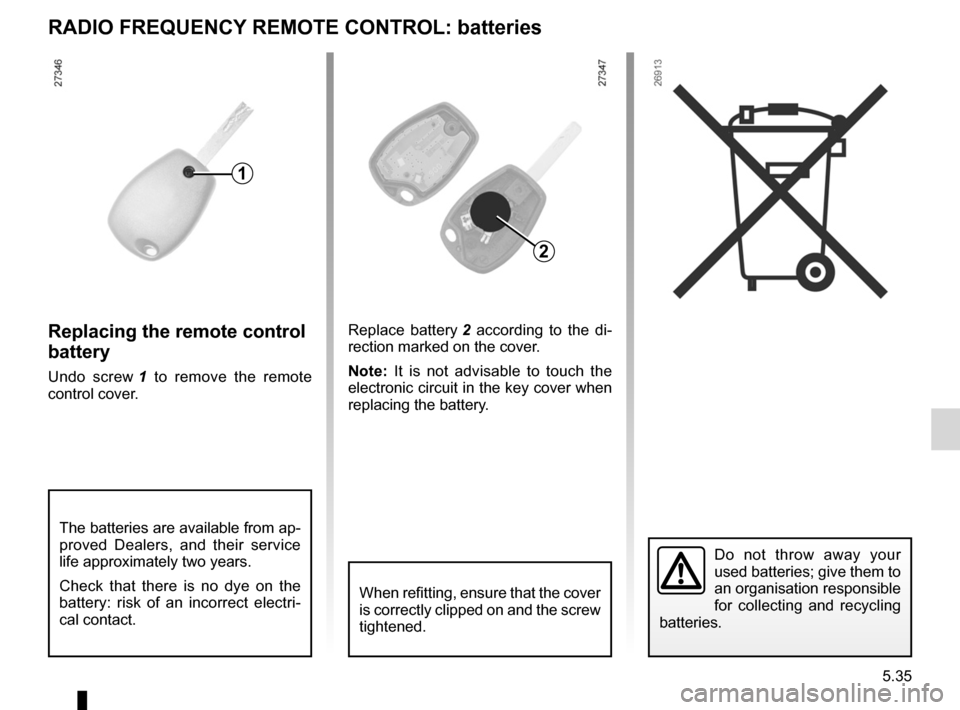

replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di -
rection marked on the cover.
n ote: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Radio frequency remote control: batteries
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
raDIO FreQuency remOte cOntrOl: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.

technical specifications ......................... (up to the end of the DU)
vehicle identification ............................. (up to the end of the DU)
paintwork reference .......................................................... (current page)
vehicle identification plates ................... (up to the end of the DU)
6.2
ENG_UD29643_6
Plaques d’identification (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_6
Vehicle identification plates
Vehicle identification plates
a
B
t he information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
the presence and location of the in-
formation depends on the vehicle.
Vehicle identification plate A
1 Manufacturer name.
2 EC design number or approval
number.
3 Identification number.
depending on the vehicle, this
information is also given on
marking B.
4 MAM (Maximum Authorised Mass)
for front axle.
5 GTW (Gross train weight: vehicle
fully loaded, with trailer).
6 MPAW (Maximim Permissible
Weight) for front axle.
7 MPAW on rear axle.
8 Reserved for related or additional
entries.
9 Diesel exhaust emissions.
10 Paint reference (colour code).
a
97
8
10
5
1
2
3
4
6

weights .................................................................. (current page)
towing .................................................................... (current page)
towing a caravan ................................................... (current page)
towing weights ...................................... (up to the end of the DU)
6.5
ENG_UD26105_4
Masses (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_6
Weights (in kg)
t he weights indicated are for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
contact an approved dealer.
Maximum permissible all-up weight (MMac)
t otal train weight (MtR) Van version
estate version all terrain
Weights are indicated on the vehicle identification plate (refer to the information on “Vehicle identification plates” in Section 6)
Braked t railer Weight * found by calculating: MtR - MMac
Unbraked trailer weight * 600684696
permissible nose weight * 75
Maximum permissible load on roof 100 (including the carrying device)
* t owing weight (t owing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
– It is important to respect local towing regulations in force, specifically those set out in the Highway Code. Please contact your
authorised dealer about adapting any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the vehicle and trailer must not exceed 48 mph (80 km/h) (van versions) or 60 mph
(100 km/h) (estate versions) and the tyre pressure must be increased by 0.\
2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weight transfer on estate and 4Wd versions, average wheelbase
Depending on the local legislation, if the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be
transferred to the braked trailer, within the limits of the Gross Train Weight.
Weights (in kg)

7.1
FRA_UD29767_11
Index (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_7
AlphAbeticAl index (1/5)
A
ABS .............................................................. 1.53, 2.15 → 2.17
accessories........................................................................ 5.34
accessories socket ............................................................ 3.22
additional methods of restraint .......................................... 1.33
air bag ........................................................... 1.29 → 1.33, 1.52
activating the front passenger air bags ............ 1.44 → 1.46
deactivating the front passenger air bags ........ 1.44 → 1.46
air conditioning ........................................................ 3.4 → 3.15
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.15 → 6.20
anti-corrosion protection .................................................... 4.14
anti-lock braking system: ABS ...............................2.15 → 2.17
antipollution advice .............................................................. 2.11 → 2.13
ashtrays ............................................................................. 3.22
ASR (traction control) ................................... 1.54, 2.15 → 2.17
audible and visual signals .................................................. 1.69
automatic gearbox (use) ........................................ 2.27 → 2.29
automatic gearbox selector lever ...........................2.27 → 2.29
b
battery ............................................................ 1.54, 4.11 – 4.12
troubleshooting ................................................. 5.24 – 5.25
battery (remote control) ..................................................... 5.35
bonnet ......................................................................... 4.2 – 4.3
brake fluid ............................................................................ 4.8
brake lights changing bulbs .................................................. 5.18 – 5.19
bulbs changing .......................................................... 5.15 → 5.23
c
catalytic converter ................................................................ 2.9
central door locking ............................................................. 1.5
changing a bulb ............................... 5.15 → 5.17, 5.21 → 5.23 changing a wheel
............................................................... 5.10
changing gear ................................................. 2.7, 2.27 → 2.29
child minder mirror ............................................................. 3.18
child restraint/seat ............................. 1.34 – 1.35, 1.37 → 1.46
child safety ....1.2, 1.4, 1.6, 1.34 – 1.35, 1.37 → 1.46, 2.3, 3.19
child seats .......................................... 1.34 – 1.35, 1.37 → 1.43
children ................................................................... 1.34 – 1.35
cigar lighter ........................................................................ 3.22
cleaning: inside the vehicle .............................................. 4.16 – 4.17
clock .................................................................................. 1.68
closing the doors ..................................................... 1.6 → 1.10
control instruments ................................................ 1.52 → 1.58
coolant ............................................................................... 1.52
courtesy light .......................................................... 3.16 – 3.17
courtesy mirrors ................................................................. 3.18
cruise control ................................................ 1.54, 2.21 → 2.24
d
dashboard ............................................................... 1.48 – 1.49
deadlocking the doors ......................................................... 1.4
demisting rear screen ................................................. 3.4, 3.12 – 3.13
windscreen ............................................................ 3.5, 3.13
dimensions ................................................................. 6.6 – 6.7
dipstick........................................................................ 4.4 – 4.5
display ................................................................... 1.56 → 1.58
doors ........................................................................ 1.6 → 1.13
driver’s position ...................................................... 1.48 – 1.49
driving ............................................................. 2.9, 2.15 → 2.29
driving position settings ............................................................ 1.25 → 1.28
e
electric windows ..................................................... 3.19 – 3.20
Electronic Stability Program: ESP .........................2.15 → 2.17
