2012 RENAULT FLUENCE Z.E. remote control

5.1
ENG_UD29440_4
Sommaire 5 (L38 - X38 - Renault)
ENG_NU_914-4_L38e_Renault_5
Section 5: Practical advice
Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3
Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.4
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9
Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
Headlights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14
Rear lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17
Indicator lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.18
Interior lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.19
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21
12 volt battery: breakdowns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 5.23
Radio frequency remote control unit: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 5.25
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.26
Wipers (replacing blades) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.27
Towing/breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.31

battery (remote control) ........................ (up to the end of the DU)
5.25
ENG_UD23947_3
Télécommande à radiofréquence : piles (L38 - X38 - X32 - B3\
2 - Renault)
ENG_NU_914-4_L38e_Renault_5

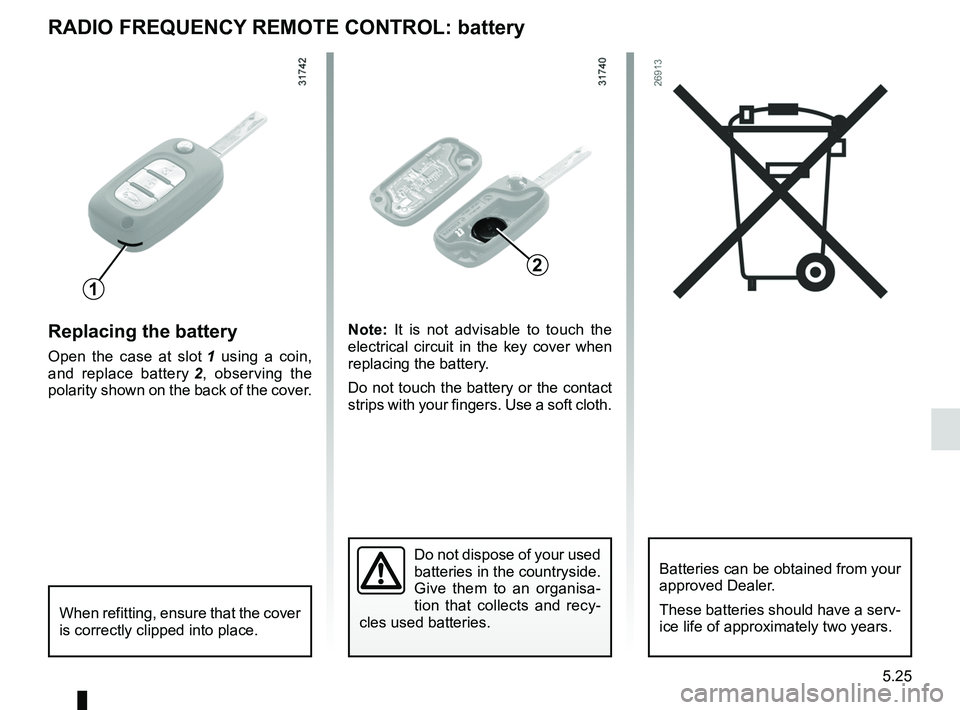

Radio frequency remote control unit: battery
rADIO FrEqUENCY rEmOTE CONTrOL: battery
replacing the battery
Open the case at slot 1 using a coin,
and replace battery 2 , observing the
polarity shown on the back of the cover. Note:
It is not advisable to touch the
electrical circuit in the key cover when
replacing the battery.
Do not touch the battery or the contact
strips with your fingers. Use a soft cloth.
Do not dispose of your used
batteries in the countryside.
Give them to an organisa -
tion that collects and recy -
cles used batteries.Batteries can be obtained from your
approved Dealer.
These batteries should have a serv-
ice life of approximately two years.
When refitting, ensure that the cover
is correctly clipped into place.
1
2

5.32
ENG_UD29326_3
Anomalies de fonctionnement (L38 électrique - Renault)
ENG_NU_914-4_L38e_Renault_5
Jaune NoirNoir texte
OPErATINg FAULTs (2/4)
FAULTs POssIBLE CAUsEsWHAT TO DO
The remote control does not lock or
unlock the doors. The remote control battery is flat.
Use the emergency key.
Use of appliances operating on
the same frequency as the remote
control (mobile phone, etc.). Stop using the devices or use the key.
Vehicle located in a high electro -
magnetic radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the in-
formation on “Locking, unlocking the open
-
ing elements” in Section 1 and “Starting,
stopping the engine” in Section 2).
The steering column remains locked. Steering wheel locked.To unlock, move the key and the steering
wheel (please refer to the information on
“Starting, stopping the engine” in Section 2).
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged. Check the tyre pressures. If this is not the
problem, have them checked by an ap
-
proved Dealer.

7.1
FRA_UD29442_4
Index (L38 - X38 - Renault)
ENG_NU_914-4_L38e_Renault_7
AlphAbeticAl index (1/5)
A
ABS ........................................................................\
. 2.9 → 2.12
accessories........................................................................\
5.26
accessories socket ............................................................ 3.19
additional methods of restraint .....................1.29 → 1.32, 1.35
side protection ............................................................. 1.34
to the front seat belts ....................................... 1.29 → 1.32
to the rear seat belts ........................................ 1.29 → 1.33
adjusting your driving position ....................... 1.22 – 1.23, 1.26
air bag .................................................................... 1.29 → 1.35
activating the front passenger air bags ........................ 1.48
deactivating the front passenger air bags .................... 1.46
air conditioning ................................................. 3.4 → 3.8, 3.11
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.13 → 6.18
anti-corrosion protection ...................................................... 4.9
anti-lock braking system: ABS .................................2.9 → 2.12
armrest: front .............................................................................. 3.17
ashtray ........................................................................\
....... 3.19
ASR (traction control) .............................................. 2.9 → 2.12
audible and visual signals .................................................. 1.70
b
battery ........................................................................\
........ 1.55
12 volt battery breakdown recovery ......................................... 5.23 – 5.24
maintenance ......................................................... 4.6 – 4.7
12 volt battery ........................ 1.2 → 1.6, 4.6 – 4.7, 5.23 – 5.24
battery (remote control) ..................................................... 5.25
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.5
bulbs changing .......................................................... 5.14 → 5.18c
central door locking
............................................... 1.19 → 1.21
changing a bulb ..................................................... 5.14 → 5.18
changing a wheel ...................................................... 5.9 – 5.10
changing gear ............................................................. 2.3 – 2.4
charge meter .............................................................. 1.58, 2.8
charging cord ........................................................... 1.8 → 1.13
charging flap ............................................................ 1.7 → 1.13
charging socket ..................................... 1.2 → 1.6, 1.8 → 1.13
child restraint/seat ............................. 1.37 – 1.38, 1.40 → 1.48
child safety ....................... 1.15, 1.37 – 1.38, 1.40 → 1.48, 3.12
child seats .......................................... 1.37 – 1.38, 1.40 → 1.45
children ...................................... 1.15, 1.17 – 1.18, 1.37 – 1.38
children (safety) ................................................................. 3.12
cigar lighter ........................................................................\
3.19
cleaning: inside the vehicle .............................................. 4.11 – 4.12
clock ........................................................................\
.......... 1.49
closing the doors ................................................... 1.17 → 1.20
connected services .............................................................. 1.3
control instruments ................................................ 1.54 → 1.60
controls .................................................................. 1.50 → 1.53
coolant ........................................................................\
......... 4.4
courtesy light ...................................... 3.14 – 3.15, 5.19 – 5.20
courtesy mirrors ................................................................. 3.15
cruise control ................................................ 1.55, 2.13 → 2.19
cruise control-speed limiter.................................... 2.13 → 2.19
customised vehicle settings .............................................. 1.68
customising the vehicle settings ....................................... 1.68
d
dashboard .............................................................. 1.50 → 1.53
daytime running lights ........................................................ 1.71
display ................................................................... 1.54 → 1.58
doors .............................................................. 1.17 – 1.18, 1.21
doors/tailgate ................................................. 1.17 – 1.18, 1.21
