2012 RENAULT CLIO SPORT TOURER dashboard

4.16
ENG_UD21919_7
Entretien des garnitures intérieures (X35 - X45 - X65 - J77 - X81 - \
J81 - X85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - X95 - B95 - D9\
5 - K95 - J95 - R95 - L38 -
ENG_NU_853-8_BCSK85_Renault_4
y ou should not:
You are strongly advised not to po -
sition objects such as deodorants,
scents, etc. near air vents, as this could
damage your dashboard trim.
You are strongly recom -
mended not to use high -
pressure or spray cleaning
equipment inside the pas -
senger compartment: use of such
equipment could impair the correct
functioning of the electrical or elec-
tronic components in the vehicle, or
have other detrimental effects.

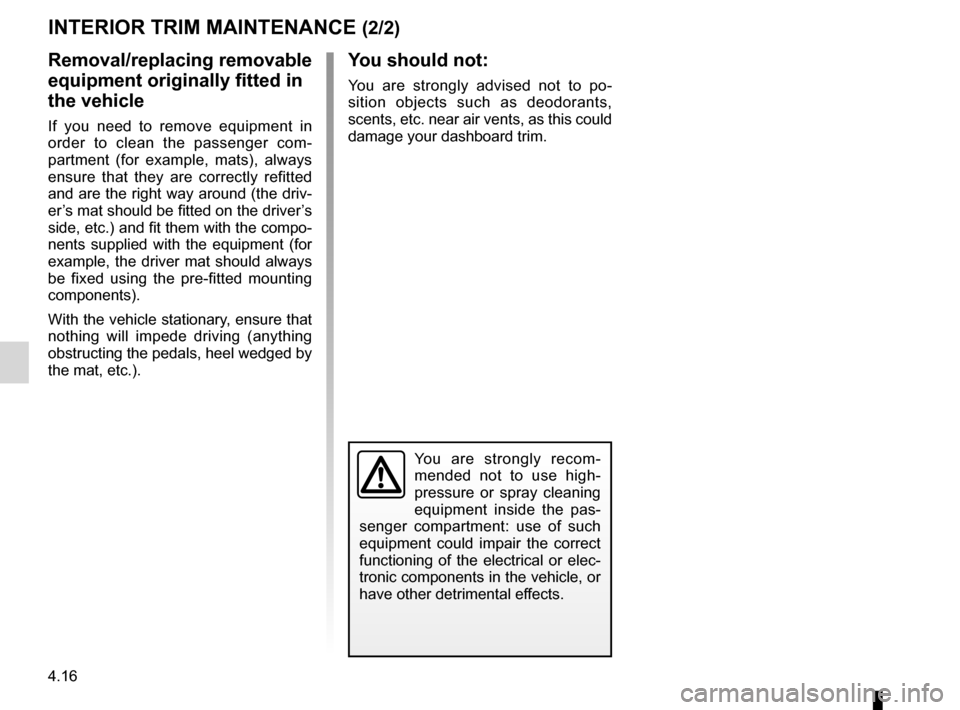

INTERIOR TRIM MAINTENANCE (2/2)
Removal/replacing removable
equipment originally fitted in
the vehicle
If you need to remove equipment in
order to clean the passenger com -
partment (for example, mats), always
ensure that they are correctly refitted
and are the right way around (the driv-
er’s mat should be fitted on the driver’s
side, etc.) and fit them with the compo-
nents supplied with the equipment (for
example, the driver mat should always
be fixed using the pre-fitted mounting
components).
With the vehicle stationary, ensure that
nothing will impede driving (anything
obstructing the pedals, heel wedged by
the mat, etc.).

5.8
ENG_UD26494_1
Kit de gonflage des pneumatiques (X85 - B85 - C85 - S85 - K85 - X98 - R\
enault)
ENG_NU_853-8_BCSK85_Renault_5

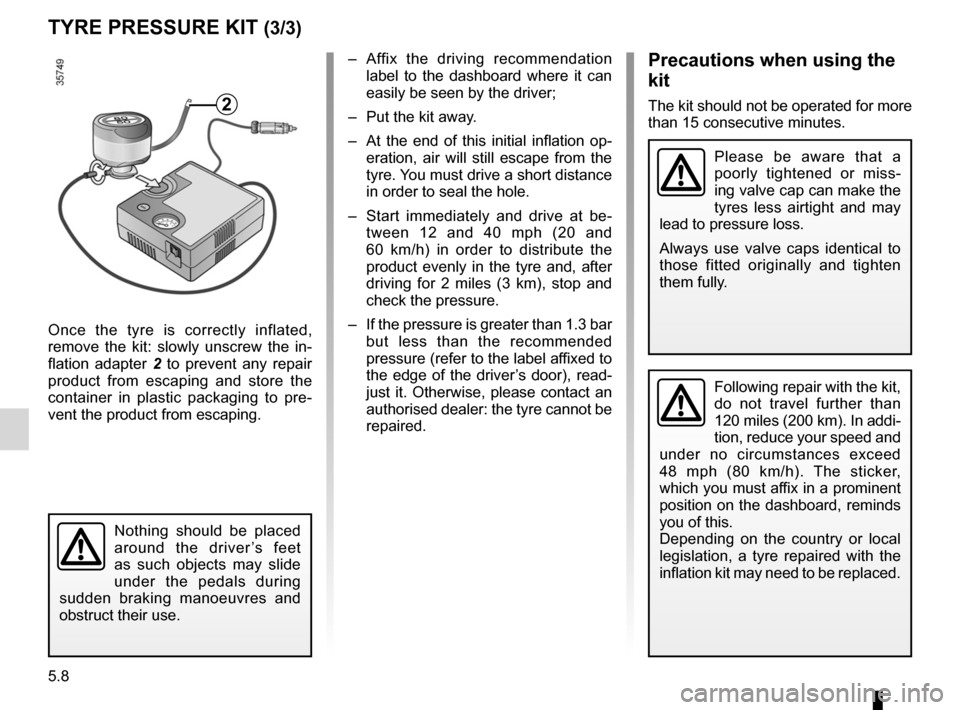

TYRE PRESSURE KIT (3/3)
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in -
flation adapter 2 to prevent any repair
product from escaping and store the
container in plastic packaging to pre -
vent the product from escaping.
– Affix the driving recommendation
label to the dashboard where it can
easily be seen by the driver;
– Put the kit away.
– At the end of this initial inflation op-
eration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.
– Start immediately and drive at be -
tween 12 and 40 mph (20 and
60 km/h) in order to distribute the
product evenly in the tyre and, after
driving for 2 miles (3 km), stop and
check the pressure.
– If the pressure is greater than 1.3 bar
but less than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), read-
just it. Otherwise, please contact an
authorised dealer: the tyre cannot be
repaired.Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Nothing should be placed
around the driver ’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
2
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and may
lead to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi -
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.

7.1
FRA_UD27585_9
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_7
AlphAbeticAl index (1/5)
A
ABS ........................................................................\
2.17 – 2.18
accessories........................................................................\
5.35
accessories socket ............................................................ 3.28
additional methods of restraint .......................................... 1.35
side protection ............................................................. 1.34
to the front seat belts ....................................... 1.29 → 1.32
to the rear seat belts .................................................... 1.33
adjusting your driving position 1.20 → 1.23, 1.25 → 1.28, 3.29
advice on antipollution ........................................... 2.13 → 2.15
air bag .................................................................... 1.29 → 1.35
activating the front passenger air bags ........................ 1.50
deactivating the front passenger air bags .................... 1.48
air conditioning ........................................................ 3.4 → 3.16
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.15 → 6.20
anti-corrosion protection .................................................... 4.13
anti-lock braking system: ABS ................................2.17 – 2.18
antipollution advice .......................................................................... 2.13
ashtray ........................................................................\
....... 3.28
audible and visual signals .................................................. 1.51
automatic gearbox (use) ........................................ 2.31 → 2.33
automatic gearbox selector lever ...........................2.31 → 2.33
b
battery ........................................................... 4.12, 5.28 → 5.31
battery (remote control) ..................................................... 5.32
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.9
bulbs changing .......................................................... 5.16 → 5.25
c
catalytic converter ................................................................ 2.9
central door locking .................... 1.6, 1.9 → 1.12, 1.15 → 1.18 changing a bulb
..................................................... 5.16 → 5.25
changing a wheel .................................................... 5.11 – 5.12
changing gear ........................................................ 2.31 → 2.33
child restraint/seat ............................. 1.36 – 1.37, 1.39 → 1.48
child safety .......1.2 – 1.3, 1.11, 1.13 – 1.14, 1.32, 1.36 – 1.37,
1.39 → 1.48, 2.5, 3.17 → 3.19
child seats .......................................... 1.36 – 1.37, 1.39 → 1.47
children .............. 1.2 – 1.3, 1.7, 1.11, 1.13 – 1.14, 1.36 – 1.37,
3.17 → 3.20
cigar lighter ........................................................................\
3.28
clock ....................................................................... 1.73 – 1.74
closing the doors ................................................... 1.13 → 1.18
control instruments ............................ 1.56 → 1.65, 1.73 – 1.74
controls .................................................................. 1.52 → 1.55
courtesy light ............................................................ 3.23, 5.24
courtesy mirrors ................................................................. 3.22
cruise control ......................................................... 2.27 → 2.30
cruise control-speed limiter.................................... 2.24 → 2.30
d
dashboard .............................................................. 1.52 → 1.55
deadlocking the doors ................................................ 1.6, 1.12
demisting rear screen ............................................................ 3.4, 3.13
windscreen ............................................................ 3.5, 3.14
dimensions ................................................................. 6.4 – 6.5
dipstick........................................................................\
......... 4.5
doors/tailgate ........................................................... 1.2 → 1.18
driver’s position ..................................................... 1.52 → 1.59
driving .................... 2.2, 2.4 → 2.11, 2.13 → 2.15, 2.17 → 2.35
driving position settings ............................................................ 1.25 → 1.28
e
electric windows .................................................... 3.17 → 3.19
Electronic Stability Program: ESP .......................... 2.19 – 2.20
