2012 Ram Cargo Van keyless

Auto Unlock Doors
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Remote Unlock Sequence
WhenDriver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice, to unlock the passen-
ger’s doors. When All Doors 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the SELECT button until a check-mark appears next to the feature showing the system has been
activated or the check-mark is removed showing the
system has been deactivated.
RKE Linked To Memory
When this feature is selected the memory seat, mirror,
and radio settings will return to the memory set position
when the RKE transmitter UNLOCK button is pressed. If
this feature is not selected then the memory seat, mirror,
and radio settings can only return to the memory set
position using the door mounted switch. To make your
selection, press and release the SELECT button until a
check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 317

NOTE:
•When the parking brake is applied and the automatic
transmission is placed in gear, the “Brake Warning
Light” will flash. If vehicle speed is detected, a chime
will sound to alert the driver. Fully release the parking
brake before attempting to move the vehicle.
•This light only shows that the parking brake is ap-
plied. It does not show the degree of brake application.
When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. For vehicles equipped
with an automatic transmission, apply the parking brake
before placing the shift lever in PARK, otherwise the load
on the transmission locking mechanism may make it
difficult to move the shift lever out of PARK. The parking
brake should always be applied whenever the driver is
not in the vehicle.
WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave Keyless Enter-N-Go in the ACC or
ON/RUN mode. A child could operate power win-
dows, other controls, or move the vehicle. (Continued)
440 STARTING AND OPERATING

CavityCartridge
Fuse Mini-
Fuse Description
M19 — 25 Amp NaturalPowertrain
M20 — 15 Amp BlueInstrument Cluster
Interior Light, Switch
Bank, Steering Col-
umn Module, Switch
Steering Wheel
M21 — 20 Amp YellowPowertrain
M22 — 10 Amp RedHorn
M23 — 10 Amp RedHorn
M24 — 25 Amp NaturalRear WiperCavity
Cartridge
Fuse Mini-
Fuse Description
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump – If
Equipped
M26 — 10 Amp RedPower Mirror Switch,
Driver Window
Switch
M27 — 10 Amp RedWireless Control
Module, Keyless
Entry Module
M28 — 10 Amp RedPowertrain, Transmis-
sion Control Module
M29 — 10 Amp RedOccupant Classifica-
tion Module
M30 — 15 Amp BlueRear Wiper Module,
Power Folding Mirror
M31 — 20 Amp YellowBack-Up Lamps
7
MAINTAINING YOUR VEHICLE 583

Automatic Headlights.................... 199
Automatic Temperature Control (ATC) ......... 400
Automatic Transaxle Selection Of Lubricant ................. 591
Automatic Transmission ................422,569
Adding Fluid ....................... 571
Fluid and Filter Changes ............... 571
Fluid Change ....................... 571
Fluid Level Check .................... 571
Fluid Type ...................... 570,591
Gear Ranges ........................ 427
Special Additives ..................... 570
B-Pillar Location ........................ 457
Battery ............................... 556
Jump Starting ....................... 532
Keyless Transmitter Replacement (RKE) ..... 26
Saving Feature (Protection) .............. 204
Belts, Seat ............................. 101 Blind Spot Monitoring
.................... 117
Body Mechanism Lubrication ............... 560
Brake Assist System ...................... 444
Brake Control System, Electronic ............. 443
Brake Fluid ............................ 591
Brake System ........................... 567
Fluid Check ........................ 568
Parking ........................... 439
Warning Light ....................... 294
Brake/Transmission Interlock ............... 424
Brakes ............................... 567
Break-In Recommendations, New Vehicle ........ 98
Bulb Replacement ....................... 586
Bulbs, Light ......................... 103,585
Calibration, Compass ..................... 314
Camera, Rear ........................... 224
Capacities, Fluid ........................ 589
10
INDEX 621

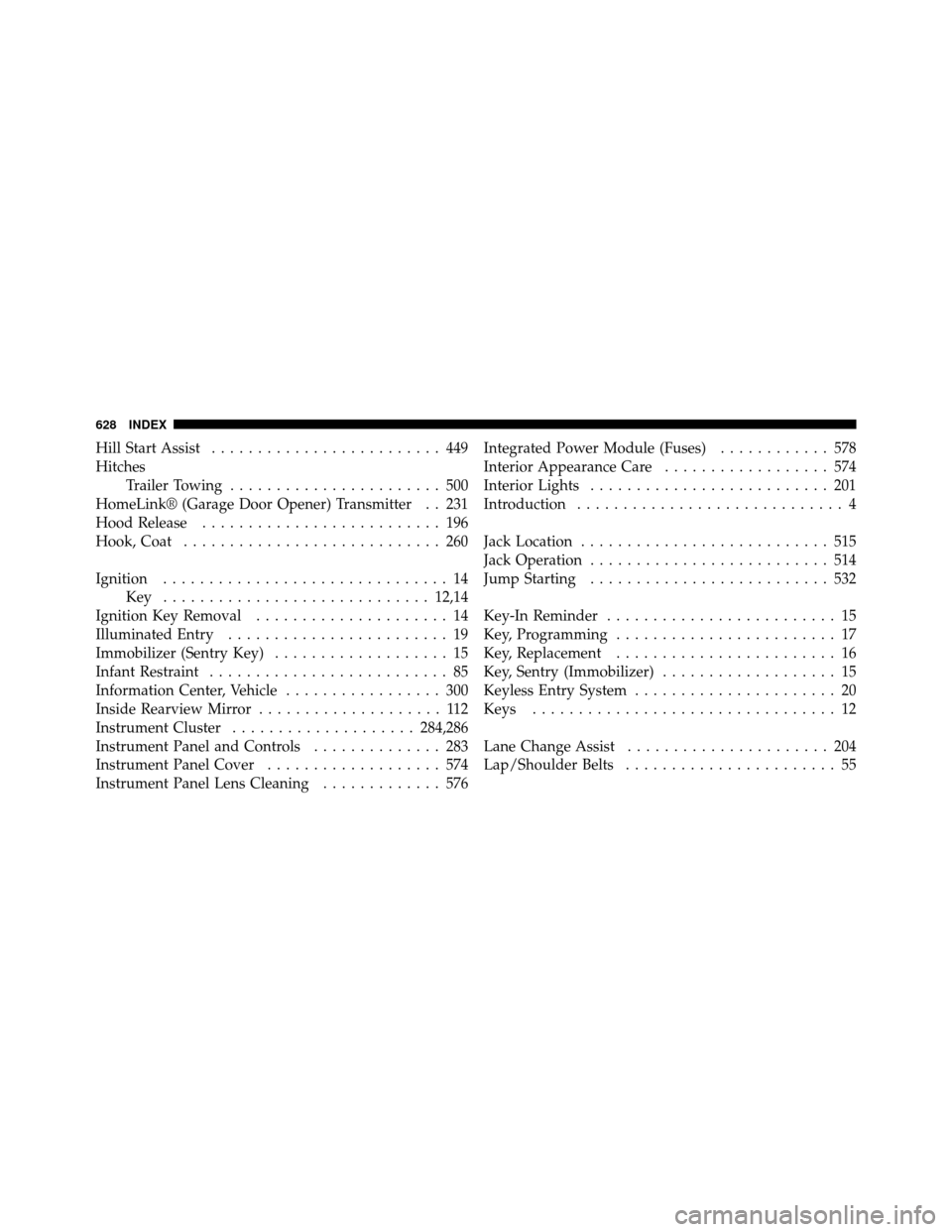

Hill Start Assist......................... 449
Hitches Trailer Towing ....................... 500
HomeLink® (Garage Door Opener) Transmitter . . 231
Hood Release .......................... 196
Hook, Coat ............................ 260
Ignition ............................... 14
Key ............................. 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 15
Infant Restraint .......................... 85
Information Center, Vehicle ................. 300
Inside Rearview Mirror .................... 112
Instrument Cluster .................... 284,286
Instrument Panel and Controls .............. 283
Instrument Panel Cover ................... 574
Instrument Panel Lens Cleaning ............. 576Integrated Power Module (Fuses)
............ 578
Interior Appearance Care .................. 574
Interior Lights .......................... 201
Introduction ............................. 4
Jack Location ........................... 515
Jack Operation .......................... 514
Jump Starting .......................... 532
Key-In Reminder ......................... 15
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Keyless Entry System ...................... 20
Keys ................................. 12
Lane Change Assist ...................... 204
Lap/Shoulder Belts ....................... 55
628 INDEX

Radio Operation........................ 392
Radio Remote Controls .................... 390
Rear Air Conditioning .................398,408
Rear Camera ........................... 224
Rear Cross Path ......................... 123
Rear Heater ............................ 398
Rear Park Sense System ................... 215
Rear Window Defroster ................... 269
Rearview Mirrors ........................ 112
Reclining Front Seats ..................... 167
Recorder, Event Data ...................... 84
Recreational Towing ...................... 509
Reformulated Gasoline .................... 482
Reminder, Seat Belt ....................... 68
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 390
Remote Starting System .................... 29
Removable Floor Console .................. 265
Replacement Keys ........................ 16 Replacement Parts
....................... 549
Replacement Tires ....................... 469
Reporting Safety Defects ................... 614
Resetting Oil Change Indicator .........288,289,309
Restraint, Head ......................... 167
Restraints, Child ....................... 85,89
Rocking Vehicle When Stuck ................ 536
Roof Rack (Luggage Rack) ................. 271
Rotation, Tires .......................... 472
Safety Checks Inside Vehicle ................ 101
Safety Checks Outside Vehicle ............... 103
Safety Defects, Reporting .................. 614
Safety Information, Tire ................... 452
Safety Tips ............................. 99
Safety, Exhaust Gas .................... 51,100
Satellite Radio Antenna ................... 343
Schedule, Maintenance .................... 594
Seat Belt Maintenance .................... 576
10
INDEX 633

Traction Control......................... 443
Traction Control Switch ................... 443
Trailer Towing .......................... 495
Cooling System Tips .................. 508
Hitches ............................ 500
Minimum Requirements ................ 503
Trailer and Tongue Weight .............. 502
Wiring ............................ 506
Trailer Towing Guide ..................... 501
Trailer Weight .......................... 501
Transaxle Selection of Lubricant ................. 591
Transmission ........................... 569
Automatic ....................... 422,569
Fluid .......................... 570,591
Transmitter Battery Service
(Remote Keyless Entry) .................... 26
Transmitter, Garage Door Opener (HomeLink®) . . 231
Transmitter, Remote Keyless Entry (RKE) ........ 20Transporting Pets
........................ 95
Tread Wear Indicators .................... 468
Trip Odometer .......................... 286
Turn Signals ................... 203,286,587,588
UCI Connector ......................... 346
Uconnect™ (Hands-Free Phone) ............. 125
Umbrella Holder ........................ 256
Uniform Tire Quality Grades ................ 617
Universal Consumer Interface (UCI) Connector . . . 346
Universal Transmitter ..................... 231
Unleaded Gasoline ....................... 482
Upholstery Care ........................ 574
Vanity Mirrors .......................... 116
Variance, Compass ....................... 314
Vehicle Certification Label ................. 492
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 458,492,494
10
INDEX 637
