WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer-
ship for service if your vehicle overheats.
5. Speedometer
The speedometer shows the vehicle speed in miles per
hour and/or kilometers per hour (MPH/km/h).
6. 4LOW Indicator Light – If Equipped This light alerts the driver that the vehicle is in
the four-wheel drive LOW mode. The front and
rear driveshafts are mechanically locked to-
gether forcing the front and rear wheels to
rotate at the same speed. Low range provides a greater
gear reduction ratio to provide increased torque at the
wheels. For vehicles equipped with a premium cluster this indi-
cator will display in the Electronic Vehicle Information
Center (EVIC). Refer to ”Electronic Vehicle Information
Center (EVIC)” in “Understanding Your Instrument
Panel” for further information.
7. 4WD Indicator Light – If Equipped
This light indicates the vehicle is in four-wheel
drive and 4LOCK. 4WD allows all four wheels
to receive torque from the engine simultane-
ously.
8. TOW/HAUL Indicator Light – If Equipped The TOW HAUL button is located on the
center stack switch bank. This light will illumi-
nate when TOW HAUL mode is selected
16 UNDERSTANDING YOUR INSTRUMENT PANEL

9. Electronic Stability Control (ESC) Indicator
Light/Traction Control System (TCS) Indicator Light –
If EquippedIf the Electronic Stability Control (ESC)/
Traction Control System (TCS) Indicator Light
begins to flash during acceleration, ease up on
the accelerator and apply as little throttle as
possible. This indicator light starts to flash as soon as the
tires lose traction and the Electronic Stability Control
(ESC) becomes active. The “ESC/TCS Indicator Light”
also flashes when TCS is active. Be sure to adapt your
speed and driving to the prevailing road conditions. If
the “ESC/TCS Indicator Light” is on solid, the ESC
system has been turned off by the driver or a temporary
condition exists that will not allow full ESC function.
10. Exhaust Brake Indicator Light
This light will illuminate when the exhaust brake has
been turned on. 11. Vehicle Security Light — If Equipped
This light will flash at a fast rate for approxi-
mately 15 seconds, when the vehicle security
alarm is arming, and then will flash slowly
until the vehicle is disarmed.
12. Oil Pressure Gauge
The pointer should always indicate some oil pressure
when the engine is running. A continuous high or low
reading under normal driving conditions may indicate a
lubrication system malfunction. Immediate service
should be obtained from an authorized dealer.
13. Odometer/Trip Odometer Button
Press this button to toggle between the odometer and the
trip odometer display. Holding the button in resets the
trip odometer reading when in trip mode.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 17

14. Odometer/Electronic Vehicle Information Center
(EVIC) Display
Odometer
The odometer shows the total distance the vehicle has
been driven. U.S. federal regulations require that upon
transfer of vehicle ownership, the seller certify to the
purchaser the correct mileage that the vehicle has been
driven. Therefore, if the odometer reading is changed
during repair or replacement, be sure to keep a record of
the reading before and after the service so that the correct
mileage can be determined.
The two trip odometers show individual trip mileage. To
switch from odometer to trip odometers, press and
release the TRIP ODOMETER button.
To reset a trip odometer, display the desired trip odom-
eter to be reset then push and hold the button for
approximately two seconds until the display resets.15. Shift Lever Indicator
This display indicator shows the transmission shift lever
selection.
16. High Beam Indicator Light
This indicator shows that headlights are on high
beam. Push the multifunction lever forward to
switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
17. Voltmeter
When the engine is running, the gauge indicates the
electrical system voltage. The pointer should stay within
the normal range if the battery is charged. If the pointer
moves to either extreme left or right and remains there
during normal driving, the electrical system should be
serviced.
18 UNDERSTANDING YOUR INSTRUMENT PANEL

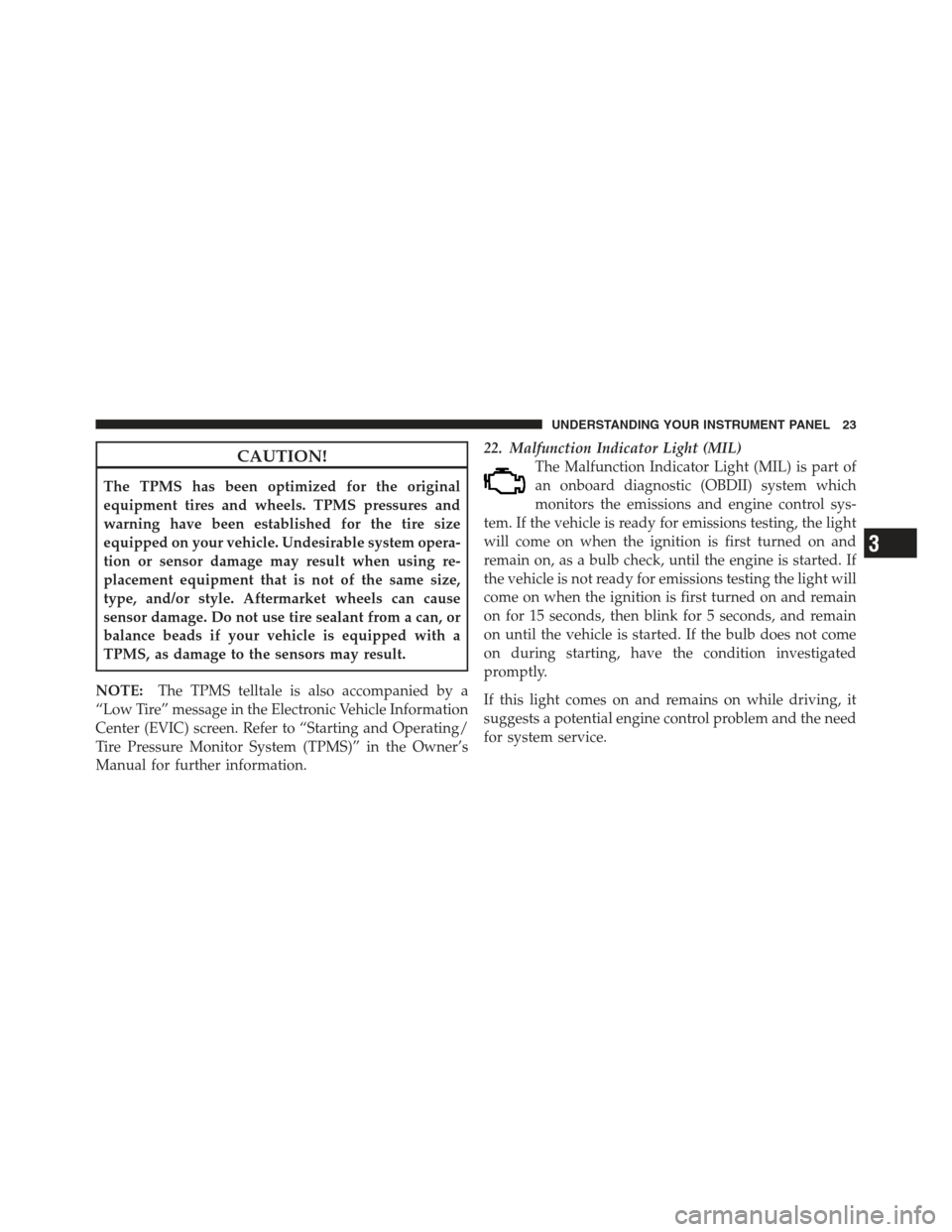

CAUTION!
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can, or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.
NOTE: The TPMS telltale is also accompanied by a
“Low Tire” message in the Electronic Vehicle Information
Center (EVIC) screen. Refer to “Starting and Operating/
Tire Pressure Monitor System (TPMS)” in the Owner’s
Manual for further information. 22. Malfunction Indicator Light (MIL)
The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic (OBDII) system which
monitors the emissions and engine control sys-
tem. If the vehicle is ready for emissions testing, the light
will come on when the ignition is first turned on and
remain on, as a bulb check, until the engine is started. If
the vehicle is not ready for emissions testing the light will
come on when the ignition is first turned on and remain
on for 15 seconds, then blink for 5 seconds, and remain
on until the vehicle is started. If the bulb does not come
on during starting, have the condition investigated
promptly.
If this light comes on and remains on while driving, it
suggests a potential engine control problem and the need
for system service.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 23

Although your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability.
23. Airbag Warning Light This light turns on and remains on for six to
eight seconds as a bulb check when the ignition
switch is first turned ON. If the light is not on
during starting, stays on, or turns on while
driving, have the system inspected by an authorized
dealer as soon as possible. 24. Front Fog Light Indicator Light – If Equipped
This indicator will illuminate when the front fog
lights are on.
25. Seat Belt Reminder Light When the ignition switch is first turned ON, this
light will turn on for five to eight seconds as a bulb
check. During the bulb check, if the driver’s seat
belt is unbuckled, a chime will sound. After the bulb
check or when driving, if the driver’s seat belt remains
unbuckled, the seat belt reminder light will flash or
remain on continuously. Refer to Occupant Restraints/
Enhanced Seat Belt Use Reminder System (BeltAlert )in
“Things To Know Before Starting Your Vehicle” in the
Owners Manual for further information.
24 UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION!
If the “Water In Fuel Indicator Light” remains on, DO
NOT START the engine before you drain water from
the fuel filter to avoid engine damage.
If the “Water In Fuel Indicator Light” comes on and a
single chime is heard while you are driving, or with the
ignition switch in the ON position, there may be a
problem with your water separator wiring or sensor. See
your authorized dealer for service.
Upon proper draining of the water from the fuel filter, the
“Water In Fuel Indicator Light” will remain illuminated
for approximately 10 seconds. If the water was drained
while the engine was running, the “Water In Fuel Indi-
cator Light” may remain on for approximately three
minutes. NOTE:
Care should be taken in disposing of used fluids
from your vehicle. Used fluids, indiscriminately dis-
carded, can present a problem to the environment. Con-
tact an authorized dealer, service station, or government
agency for advice on recycling programs and for where
used fluids and filters can be properly disposed of in
your area.
Drain the fuel/water separator filter when the “Water In
Fuel Indicator Light” is ON. Within 10 minutes of vehicle
shutdown, turn the drain valve (located on the side of the
filter) counterclockwise 1/4 turn, turn the ignition switch
to the ON position, and allow any accumulated water to
drain. Leave the drain valve open until all water and
contaminants have been removed. When clean fuel is
visible, close the drain valve by turning it clockwise, and
turn the ignition switch to OFF.
6
MAINTAINING YOUR VEHICLE 107

Refer to the following messages that may be displayed on
your Electronic Vehicle Information Center (EVIC):
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
Perform Service
Your vehicle will require emissions maintenance at a set
interval. To help remind you when this maintenance is
due, the Electronic Vehicle Information Center (EVIC)
will display “Perform Service”. When the “Perform Ser-
vice” message is displayed on the EVIC it is necessary to
have the emissions maintenance performed. Emissionsmaintenance may include replacing the Closed Crank-
case Ventilation (CCV) filter element, and cleaning of the
EGR Cooler. The procedure for clearing and resetting the
Perform Service
indicator message is located in the
appropriate Service Information.
Exhaust System – Regeneration Required Now
“Exhaust System — Regeneration Required Now” will be
displayed on the Electronic Vehicle Information Center
(EVIC) if the exhaust particulate filter reaches 80% of its
maximum storage capacity. Under conditions of exclu-
sive short duration and low speed driving cycles, your
Cummins diesel engine and exhaust after-treatment
system may never reach the conditions required to re-
move the trapped PM. If this occurs, the “Exhaust System
— Regeneration Required Now” message will be dis-
played in the EVIC. If this message is displayed, you will
hear one chime to assist in alerting you of this condition.
