LIMIT THE CAUSES OF EXCESS
CONSUMPTION
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refi t your summer tyres.
OBSERVE THE RECOMMENDATIONS ON
MAINTENANCE
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil fi lter, air fi lter...)
and observe the schedule of operations recommended by the
manufacturer.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overfl ow.
At the wheel of your new vehicle, it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down
to a consistent average.
Page 106 of 336
104
All repairs and changing of tyres on a wheel fi tted with this
system must be carried out by a PEUGEOT dealer or a qualifi ed
workshop.
If, when changing a tyre, you install a wheel which is not detected
by your vehicle (example: fi tting of snow tyres), you must have
the system reinitialised by a PEUGEOT dealer or a qualifi ed
workshop.
This system does not avoid the need to have the tyre pressures
checked regularly (refer to the "Identifi cation markings" section)
to ensure that the optimum dynamic performance of the vehicle is
maintained and prevent premature wear of the tyres, particularly in
arduous driving conditions (heavy load, high speed).
The tyre pressures must be checked cold, at least once a month.
Remember to also check the pressure of the spare wheel if your
vehicle has one.
The tyre under-infl ation detection system may experience
temporary interference due to electro-magnetic signals on a
frequency close to that used by the system.
Puncture
The STOP
warning lamp comes on and this warning lamp is
displayed in the instrument panel, accompanied by an audible
signal and an alert message identifying the wheel concerned.
)
Stop as soon as it is safe to do so, avoiding any sudden movement
of the steering wheel and the brakes.
)
Repair or change the damaged wheel (punctured or very defl ated
tyre), and have the tyre pressure checked as soon as possible.
Sensor(s) not detected or faulty
This warning lamp is displayed in the instrument panel
accompanied by an alert message to identify the wheel or wheels
which are not detected or to indicate a fault in the system.
Contact a PEUGEOT dealer or a qualifi ed workshop to replace the
faulty sensor(s).
This message is also displayed when one of the wheels is away
from the vehicle (being repaired) or when one or more wheels
without a sensor are fi tted.
If your vehicle has a spare wheel, this does not have a sensor.
Page 165 of 336
8/
PRACTICAL INFORMATION

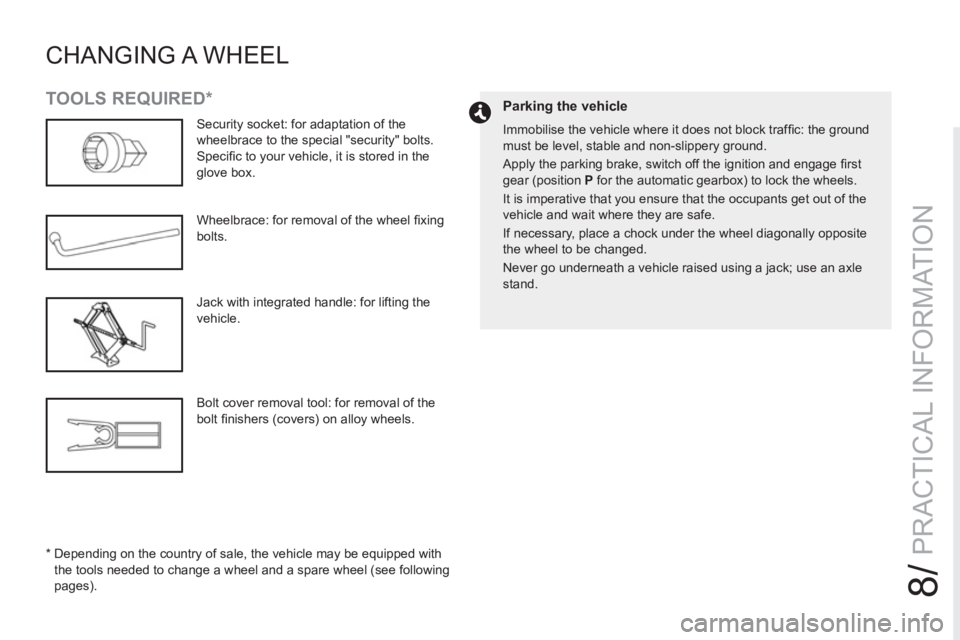

CHANGING A WHEEL
Parking the vehicle
Immobilise the vehicle where it does not block traffi c: the ground
must be level, stable and non-slippery ground.
Apply the parking brake, switch off the ignition and engage fi rst
gear (position P
for the automatic gearbox) to lock the wheels.
It is imperative that you ensure that the occupants get out of the
vehicle and wait where they are safe.
If necessary, place a chock under the wheel diagonally opposite
the wheel to be changed.
Never go underneath a vehicle raised using a jack; use an axle
stand.
Security socket: for adaptation of the
wheelbrace to the special "security" bolts.
Specifi c to your vehicle, it is stored in the
glove box.
Wheelbrace: for removal of the wheel fi xing
bolts.
Jack with integrated handle: for lifting the
vehicle.
TOOLS REQUIRED *
Bolt cover removal tool: for removal of the
bolt fi nishers (covers) on alloy wheels.
*
Depending on the country of sale, the vehicle may be equipped with
the tools needed to change a wheel and a spare wheel (see following
pages).
Page 166 of 336
164

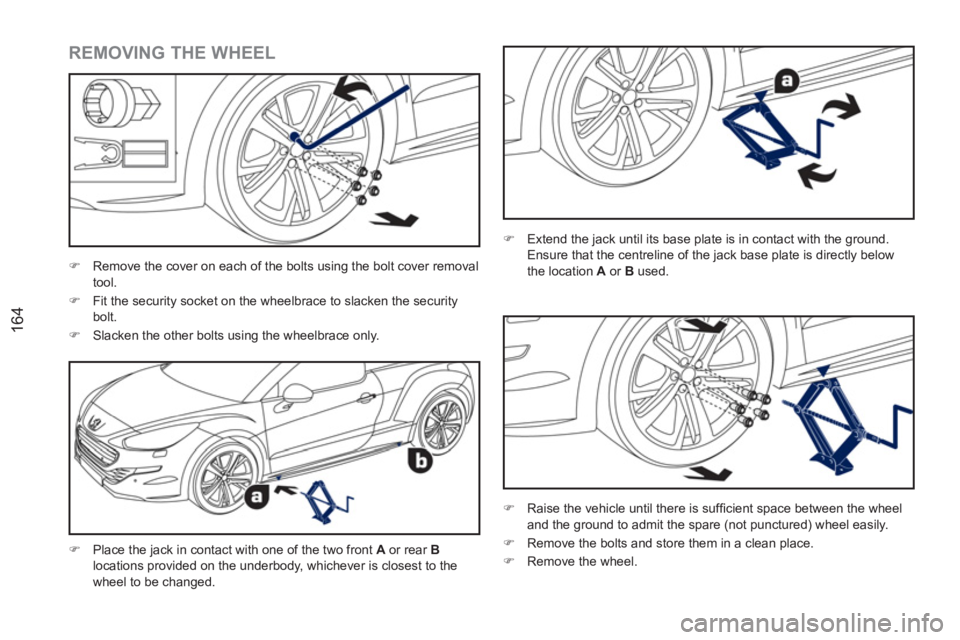

REMOVING THE WHEEL
)
Place the jack in contact with one of the two front A
or rear B
locations provided on the underbody, whichever is closest to the
wheel to be changed.
)
Raise the vehicle until there is suffi cient space between the wheel
and the ground to admit the spare (not punctured) wheel easily.
)
Remove the bolts and store them in a clean place.
)
Remove the wheel.
)
Remove the cover on each of the bolts using the bolt cover removal
tool.
)
Fit the security socket on the wheelbrace to slacken the security
bolt.
)
Slacken the other bolts using the wheelbrace only.
)
Extend the jack until its base plate is in contact with the ground.
Ensure that the centreline of the jack base plate is directly below
the location A
or B
used.
Page 168 of 336
166

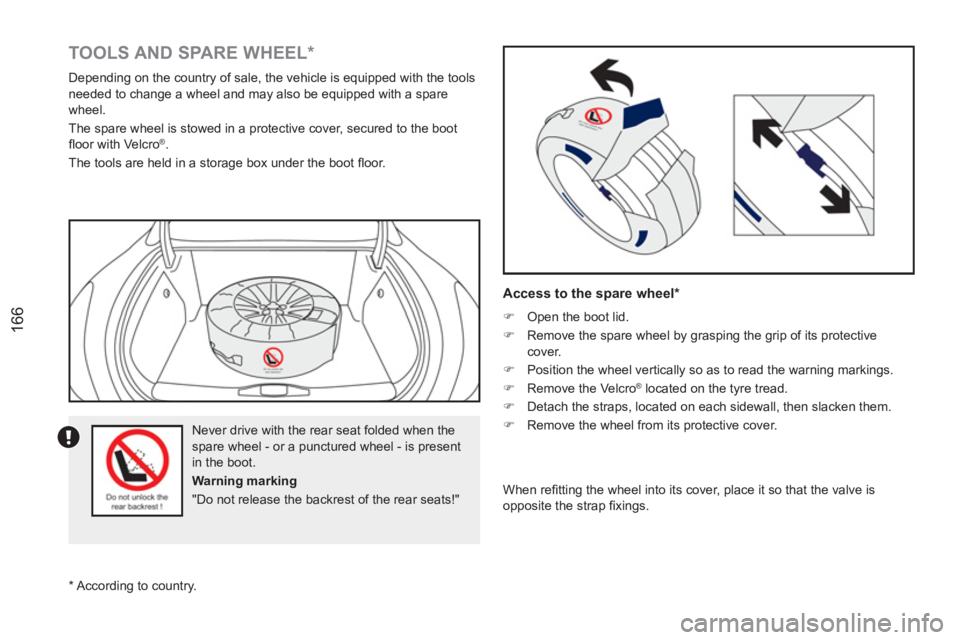

TOOLS AND SPARE WHEEL *
Depending on the country of sale, the vehicle is equipped with the tools
needed to change a wheel and may also be equipped with a spare
wheel.
The spare wheel is stowed in a protective cover, secured to the boot
fl oor with Velcro
®.
The tools are held in a storage box under the boot fl oor.
Never drive with the rear seat folded when the
spare wheel - or a punctured wheel - is present
in the boot.
Warning marking
"Do not release the backrest of the rear seats!"
*
According to country.
Access to the spare wheel *
)
Open the boot lid.
)
Remove the spare wheel by grasping the grip of its protective
cover.
)
Position the wheel vertically so as to read the warning markings.
)
Remove the Velcro
® located on the tyre tread.
)
Detach the straps, located on each sidewall, then slacken them.
)
Remove the wheel from its protective cover.
When refi tting the wheel into its cover, place it so that the valve is
opposite the strap fi xings.
Page 186 of 336
184
ENGINE COMPARTMENT FUSES
The fusebox is placed in the engine compartment near the battery (left-
hand side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding paragraph).
)
When you have fi nished, close the cover carefully to assure the
sealing of the fusebox.
Fuse table
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, injection
pump and EGR electrovalves (Diesel),
injectors (Diesel).
F2
15 A
Horn.
F3
10 A
Front wash-wipe.
F4
20 A
Daytime running lamps.
F5
15 A
Air fl ow sensor, coolant pump, oil pump,
thermostat, blow-by heater (petrol),
by-pass and EGR electrovalves (Diesel),
diesel heater (Diesel).
F6
10 A
Steering wheel angle sensor, ABS/ESC
control unit, ESC sensor.
F7
10 A
Power steering control unit, automatic
gearbox, engine coolant level detector,
dual function brake switch.
F8
25 A
Starter motor control.
F9
10 A
Diagnostic socket, directional
headlamps, particle emission fi lter pump
(Diesel).
F10
30 A
Engine control unit actuators (petrol:
ignition coils, electrovalves, injectors,
fuel pump (Diesel: electrovalves,
heaters).
F11
40 A
Air conditioning blower.
Page 284 of 336
282

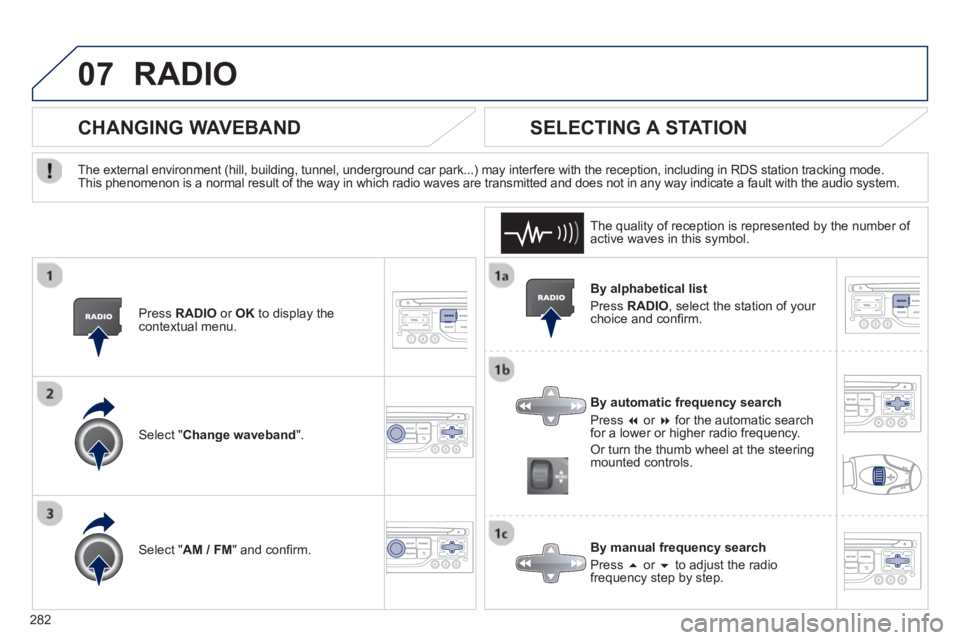

07RADIO
By alphabetical list
Pr
ess RADIO, select the station of your choice and confi rm.
B
y automatic frequency search
Press or
for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess
or
to adjust the radio
frequency step by step.
SELECTING A STATION
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode.This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.
The qualit
y of reception is represented by the number of
active waves in this symbol.
Pr
ess RADIO
or OK
to display the contextual menu.
CHANGING WAVEBAND
Select "Change waveband".
Select "AM / FM" and confi rm.
