Page 117 of 336
5/
SAFETY
FRONT AIRBAGS
System which protects the driver and front passenger in the event of
a serious front impact in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fi tted in the centre of the steering wheel; the front
passenger's airbag is fi tted in the dashboard above the glove box.
Deployment
The airbags are deployed, except the passenger's front airbag if it is
deactivated, in the event of a serious front impact to all or part of the
front impact zone A
, in the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to the rear of the vehicle.
The front airbag infl ates between the thorax and head of the front
occupant of the vehicle and the steering wheel, driver's side, and the
dashboard, passenger's side to cushion their forward movement.
Deactivation
Only the passenger's front airbag can be deactivated:
)
with the ignition off
, insert the key in the passenger airbag
deactivation switch,
)
turn it to the "OFF"
position,
)
then, remove the key keeping the switch in the new position.
To assure the safety of your child, the passenger's front airbag
must be deactivated when you install a "rear facing" child seat on
the front passenger seat.
Otherwise, the child would risk being seriously injured or killed if
the airbag were deployed. This warning lamp comes on in the passenger's front airbag
warning lamps display when the ignition is on and until the
airbag is reactivated.
Page 120 of 336
11 8

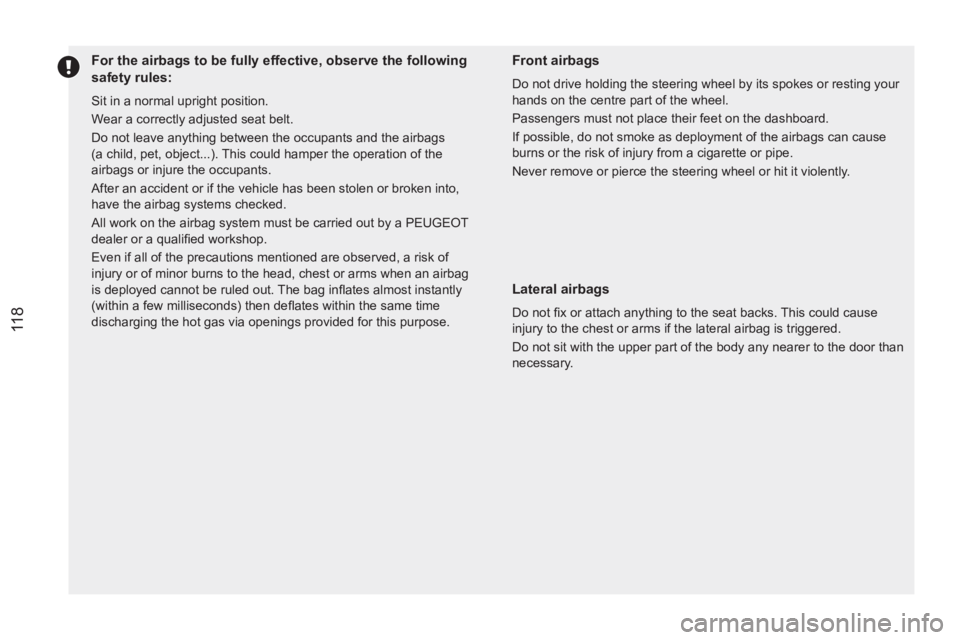

For the airbags to be fully effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the occupants and the airbags
(a child, pet, object...). This could hamper the operation of the
airbags or injure the occupants.
After an accident or if the vehicle has been stolen or broken into,
have the airbag systems checked.
All work on the airbag system must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.
Even if all of the precautions mentioned are observed, a risk of
injury or of minor burns to the head, chest or arms when an airbag
is deployed cannot be ruled out. The bag infl ates almost instantly
(within a few milliseconds) then defl ates within the same time
discharging the hot gas via openings provided for this purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your
hands on the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause
burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Lateral airbags
Do not fi x or attach anything to the seat backs. This could cause
injury to the chest or arms if the lateral airbag is triggered.
Do not sit with the upper part of the body any nearer to the door than
necessary.
Page 159 of 336
8/
PRACTICAL INFORMATION
DESCRIPTION OF THE KIT
A.
"Sealant" or "Air" position selector.
B.
On "I"
/ off "O"
switch.
C.
Defl ation button.
D.
Pressure gauge (in bar or p.s.i.).
E.
Compartment housing:
- a cable with adaptor for 12 V socket,
- various infl ation adaptors for accessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.
G.
White pipe with cap for repair.
H.
Black pipe for infl ation.
I.
Speed limit sticker.
The speed limit sticker I
must be affi xed to the vehicle's steering
wheel to remind you that a wheel is in temporary use.
Do not exceed a speed of 50 mph (80 km/h) when driving with a
tyre repaired using this type of kit.
Page 186 of 336
184
ENGINE COMPARTMENT FUSES
The fusebox is placed in the engine compartment near the battery (left-
hand side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding paragraph).
)
When you have fi nished, close the cover carefully to assure the
sealing of the fusebox.
Fuse table
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, injection
pump and EGR electrovalves (Diesel),
injectors (Diesel).
F2
15 A
Horn.
F3
10 A
Front wash-wipe.
F4
20 A
Daytime running lamps.
F5
15 A
Air fl ow sensor, coolant pump, oil pump,
thermostat, blow-by heater (petrol),
by-pass and EGR electrovalves (Diesel),
diesel heater (Diesel).
F6
10 A
Steering wheel angle sensor, ABS/ESC
control unit, ESC sensor.
F7
10 A
Power steering control unit, automatic
gearbox, engine coolant level detector,
dual function brake switch.
F8
25 A
Starter motor control.
F9
10 A
Diagnostic socket, directional
headlamps, particle emission fi lter pump
(Diesel).
F10
30 A
Engine control unit actuators (petrol:
ignition coils, electrovalves, injectors,
fuel pump (Diesel: electrovalves,
heaters).
F11
40 A
Air conditioning blower.
Page 189 of 336
8/
PRACTICAL INFORMATION
TOWING A VEHICLE
TOWING EYE
This is stored in the boot under the fl oor.
For access to it:
)
open the boot,
)
raise the fl oor using the strap,
)
secure it in the vertical position beyond the stops, located on the
sides of the boot,
)
remove the towing eye from the storage box.
GENERAL RECOMMENDATIONS
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of
the towed vehicle.
The person at the wheel of the towed vehicle must have a valid
driving licence.
When towing a vehicle with all four wheels on the ground, always
use an approved towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off, there is no longer any
power assistance for braking or steering.
In the following cases, you must always call on a professional
recovery service:
- vehicle broken down on a motorway or fast road,
- 4 wheel drive vehicle,
- when it is not possible to put the gearbox into neutral, unlock
the steering, or release the parking brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...
Page 195 of 336
8/
PRACTICAL INFORMATION
ACCESSORIES
A wide range of accessories and genuine parts is available from the
PEUGEOT dealer network.
These accessories and parts have been tested and approved for
reliability and safety.
They are all adapted to your vehicle and benefi t from PEUGEOT's
recommendation and warranty.
"Comfort":
front parking sensors, cool box...
"Transport solutions":
boot tray, boot spacers, towbar bicycle carrier, towbar with quickly
detachable ball, towbar harnesses...
"Style":
leather and alcantara sport steering wheel, alcantara gear lever gaiter,
alloy wheels, door mirror shells in carbon fi bre...
"Safety and security":
anti-theft alarm, window etching, wheel security bolts, breathalyser, fi rst
aid kit, fi re extinguisher, warning triangle, high visibility jacket, booster
cushions and child seats, stolen vehicle tracking system, snow chains,
anti-skid tyre covers...
"Protection":
boot liner, mats * , bumper protective strips, vehicle protective cover...
*
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
When fi tting a trailer towbar and its harness outside the
PEUGEOT dealer network, this must be done following the
manufacturer's recommendations.
Page 284 of 336
282
07RADIO
By alphabetical list
Pr
ess RADIO, select the station of your choice and confi rm.
B
y automatic frequency search
Press or
for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess
or
to adjust the radio
frequency step by step.
SELECTING A STATION
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode.This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.
The qualit
y of reception is represented by the number of
active waves in this symbol.
Pr
ess RADIO
or OK
to display the contextual menu.
CHANGING WAVEBAND
Select "Change waveband".
Select "AM / FM" and confi rm.
Page 285 of 336
283
07
preset station.
Or press then turn the thumb wheel at the steeringmounted controls.
PRESETTING A STATION
After selecting a station, press one of the buttonson the numerical keypad for 2 seconds to preset the current station.
An audible signal confi rms that the station has been preset.
Press RADIO.
ACTIVATE / DEACTIVATE RDS
RDS, if activated, allows you to continue listening to the same station
by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout
the entire country as radio stations do not cover 100 % of the territory.
This explains the loss of reception of the station during a journey.
Select " Guidance options
" then confi rm.
Activate or deactivate "RDS " then confi rm.
RADIO
