Page 183 of 336
8/
PRACTICAL INFORMATION
CHANGING A FUSE
Before changing a fuse, it is necessary to:
)
identify and rectify the cause of the failure,
)
switch off all electrical consumers,
)
immobilise the vehicle and switch off the ignition,
)
identify the failed fuse using the tables and diagrams in the
following pages.
When working on a fuse, it is important to:
)
use the special tweezer to extract the fuse from its housing.
)
always replace the failed fuse with a fuse of the same rating
(same colour); the use of a fuse of a different rating may cause a
malfunction (risk of fi re).
Good
Failed
Tweezer
If the fault recurs soon after changing a fuse, have the electrical
system of your vehicle checked by a PEUGEOT dealer or a
qualifi ed workshop.
Installing electrical accessories
Your vehicle's electrical system is designed to operate with
standard or optional equipment.
Before installing other electrical equipment or accessories on your
vehicle, contact a PEUGEOT dealer or a qualifi ed workshop.
PEUGEOT will not accept responsibility for the cost incurred in
repairing your vehicle or for rectifying malfunctions resulting from
the installation of accessories not supplied and not recommended
by PEUGEOT and not installed in accordance with its instructions,
in particular when the combined consumption of all of the
additional equipment connected exceeds 10 milliamperes.
Page 184 of 336
182
DASHBOARD FUSES
The fusebox is placed in the lower part of the dashboard (left hand side,
inside the glove box). It consists of two boxes.
Access to the fuses
)
refer to the paragraph "Access to tools".
Fuse tables
Fuse N°
Rating
Functions
F1
-
Not used.
F2
30 A
Locking and deadlocking earth.
F3
5 A
Airbags, active bonnet and pretensioners
control unit.
F4
10 A
Clutch pedal switch, electrochrome
rear view mirror, automatic gearbox,
switching and protection unit.
F5
30 A
One-touch electric windows, folding
mirrors supply.
F6
-
Not used.
F7
5 A
Front and rear courtesy lamps, map
reading lamps, sun visor lighting, glove
box lighting.
F8
20 A
Audio equipment, audio/telephone,
multifunction screen, tyre under-infl ation
detection, clock.
F9
30 A
12 V socket.
F10
15 A
Steering mounted controls.
F11
15 A
Low current ignition switch.
F12
15 A
Instrument panel, air conditioning,
driver's seat memory unit, rain /
sunshine sensor, airbags.
Box 1
Page 185 of 336
8/
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F13
5 A
Engine fusebox, active bonnet.
F14
15 A
Multifunction screen, seat belt and
passenger's front airbag warning lamps
display, instrument panel screen, amplifi er,
Bluetooth system, parking sensors control
unit, Peugeot Connect USB.
F15
30 A
Locking and deadlocking.
F17
40 A
Rear screen and door mirrors demist/
defrost.
SH
-
PARC shunt.
Fuse N°
Rating
Functions
G36
30 A
Hi-Fi amplifi er.
G37
30 A
Passenger's seat memory unit.
G38
30 A
Driver's seat memory unit.
G39
5 A
Lighting memory unit.
G40
30 A
Driver and passenger heated seats.
Box 2
Page 186 of 336
184
ENGINE COMPARTMENT FUSES
The fusebox is placed in the engine compartment near the battery (left-
hand side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding paragraph).
)
When you have fi nished, close the cover carefully to assure the
sealing of the fusebox.
Fuse table
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, injection
pump and EGR electrovalves (Diesel),
injectors (Diesel).
F2
15 A
Horn.
F3
10 A
Front wash-wipe.
F4
20 A
Daytime running lamps.
F5
15 A
Air fl ow sensor, coolant pump, oil pump,
thermostat, blow-by heater (petrol),
by-pass and EGR electrovalves (Diesel),
diesel heater (Diesel).
F6
10 A
Steering wheel angle sensor, ABS/ESC
control unit, ESC sensor.
F7
10 A
Power steering control unit, automatic
gearbox, engine coolant level detector,
dual function brake switch.
F8
25 A
Starter motor control.
F9
10 A
Diagnostic socket, directional
headlamps, particle emission fi lter pump
(Diesel).
F10
30 A
Engine control unit actuators (petrol:
ignition coils, electrovalves, injectors,
fuel pump (Diesel: electrovalves,
heaters).
F11
40 A
Air conditioning blower.
Page 187 of 336
8/
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F12
40 A
Windscreen wipers slow / fast speed.
F13
40 A
Built-in systems interface supply (ignition
positive).
F14
-
Not used.
F15
10 A
Right-hand main beam headlamp.
F16
10 A
Left-hand main beam headlamp.
F17
15 A
Left-hand dipped headlamp.
F18
15 A
Right-hand dipped headlamp.
F19
15 A
Variable timing electrovalve, oxygen
sensors (petrol), electrovalves (Diesel).
F20
10 A
Turbine discharge and canister purge
electrovalves (petrol), air fl ow sensor
(1.6 litre THP 200), water in diesel
sensor (Diesel).
F21
5 A
Fans control, Turbo pump (petrol),
Valvetronic motor (1.6 litre THP 200).
Page 188 of 336
186
Table of fuses over the battery
Fuse N°
Rating
Functions
F1
-
Not used.
F2
5 A
Dual function brake switch.
F3
5 A
Battery charge unit.
F4
25 A
ABS/ESC electrovalves.
F5
-
Not used.
F6
15 A
Automatic gearbox. All work on the other types of fuses (midi-fuses and maxi-fuses)
must only be done by a PEUGEOT dealer or a qualifi ed workshop.
Page 196 of 336
194
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter,
you can contact a PEUGEOT dealer for the specifi cation of
transmitters which can be fi tted (frequency, maximum power,
aerial position, specifi c installation requirements), in line with the
Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, it may be
compulsory to have a high visibility safety vest, warning triangle
and spare bulbs and fuses available in the vehicle.
The fi tting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your
vehicle's electronic system and excessive electrical consumption.
Please note this precaution. You are advised to contact a
PEUGEOT representative to be shown the range of recommended
equipment and accessories.
"Multimedia":
portable navigation systems, Wi-Fi on Board...
By going to a PEUGEOT dealer you can also obtain products for
cleaning and maintenance (exterior and interior) - including ecological
products from the "TECHNATURE" range, topping up products
(screenwash, ...), touch-up pens and aerosols for the exact colour of
your vehicle, refi lls (cartridge for temporary tyre repair kit...), ...
Page 239 of 336
237
08
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
Press the end of the steering mounted control to
accept the call or end the call in progress. Select the "Yes" tab to accept or "No"
to re
fuse and confi rm by pressing OK.

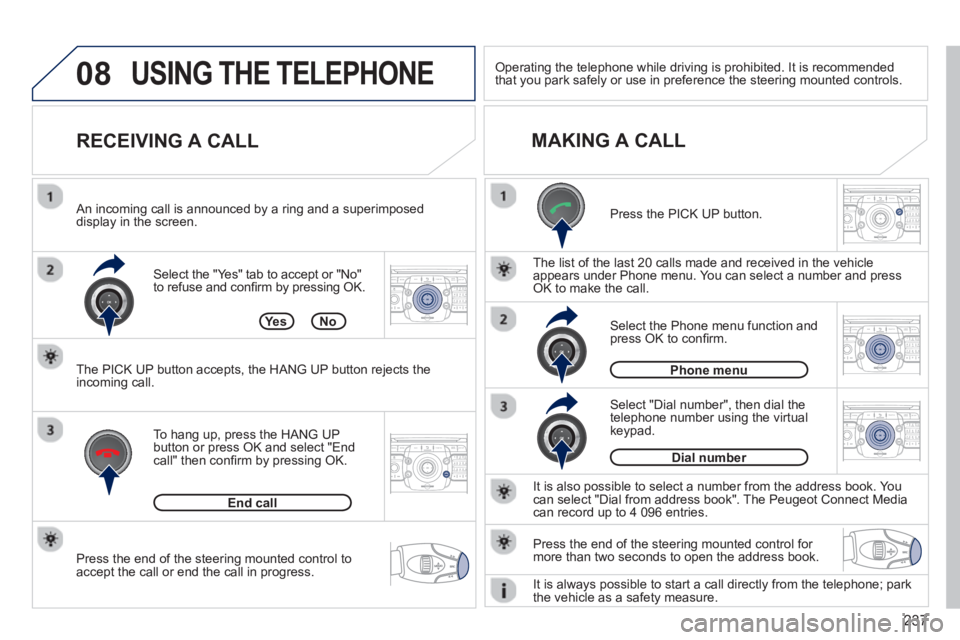

RECEIVING A CALL
MAKING A CALL
An incoming call is announced by a ring and a superimposed
display in the screen.
To han
g up, press the HANG UP
button or press OK and select "Endcall" then confi rm by pressing OK.
End call
Press the PICK UP button.
It is also possible to select a number
from the address book. Youcan select "Dial from address book". The Peugeot Connect Mediacan record up to 4 096 entries.
Select "Dial number", then dial the
telephone number using the virtualkeypad.
Select the Phone menu function and press OK to confi rm.
Dial number
Phone menu
Th
e list of the last 20 calls made and received in the vehicle
appears under Phone menu. You can select a number and pressOK to make the call.
YesNo
The PICK UP button accepts, the HANG UP button rejects the
incoming call.
USING THE TELEPHONE
Press the end of the steering mounted control for more than two seconds to open the address book.
Operating the telephone while driving is prohibited. It is recommended
that you park safely or use in preference the steering mounted controls.
It is alwa
ys possible to start a call directly from the telephone; park
the vehicle as a safety measure.
