Page 123 of 336
5/
SAFETY
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.
Groups 2 and 3: from 15 to 36 kg
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster
is used on its own.
L5
"RÖMER KIDFIX"
Page 124 of 336
122
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Seat
Weight of the child
/indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U(R)
U(R)
U(R)
U(R)
Outer rear seats
X
X
X
X
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car" cots cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U(R) : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or "forward facing", with
the seat adjusted to its highest position.
X:
seat not suited to the installation of a child seat for the weight group indicated.
Page 125 of 336
5/
SAFETY
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must be positioned on the child's
shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the
child's thighs.
PEUGEOT recommends the use of a booster seat which has a back,
fi tted with a seat belt guide at shoulder level. The incorrect installation of a child seat in a vehicle compromises
the child's protection in the event of an accident.
When installing a child seat using the seat belt, ensure that the
seat belt is tightened correctly on the child seat and that it secures
the child seat fi rmly on the vehicle's seat.
Remember to fasten the seat belts or the child seat harnesses
keeping
the slack
in relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward facing" child seat, ensure
that the back of the child seat is in contact with the back of the
vehicle's seat and that the head restraint does not cause any
discomfort.
Children under the age of 10 must not travel in the "forward
facing" position on the front passenger seat, unless the rear seats
are already occupied by other children, cannot be used or are
absent.
Deactivate the passenger airbag when a "rear facing" child seat
is installed on the front seat. Otherwise, the child would risk being
seriously injured or killed if the airbag were to infl ate. As a safety precaution, do not leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun,
with the windows closed,
- the keys within reach of children inside the vehicle.
Page 126 of 336
124
"ISOFIX" MOUNTINGS
Your vehicle is approved with regulation ISOFIX mountings.
The diagram below indicates which seats are fi tted with these ISOFIX
mountings:
These are three rings for each seat:
- two rings A
, located between the vehicle seat back and cushion,
indicated by a label,
- a ring B
referred to as the TOP TETHER
, located under a cover
behind the top of the backrest for fi xing the upper strap. This ISOFIX mounting system provides fast, reliable and safe fi tting of
the child seat in your vehicle.
The ISOFIX child seats
are fi tted with two locks which are secured
easily on the two rings A
.
Some also have a top tether strap
which is attached to ring B
.
To attach this strap, open the cover at the top of the backrest. Then fi x
the hook on ring B
and tighten the top tether strap.
The incorrect installation of a child seat in a vehicle compromises
the child's protection in the event of an accident.
For information regarding the possibilities for installing ISOFIX
child seats in your vehicle, refer to the ISOFIX child seat locations
table.
Page 127 of 336
5/
SAFETY

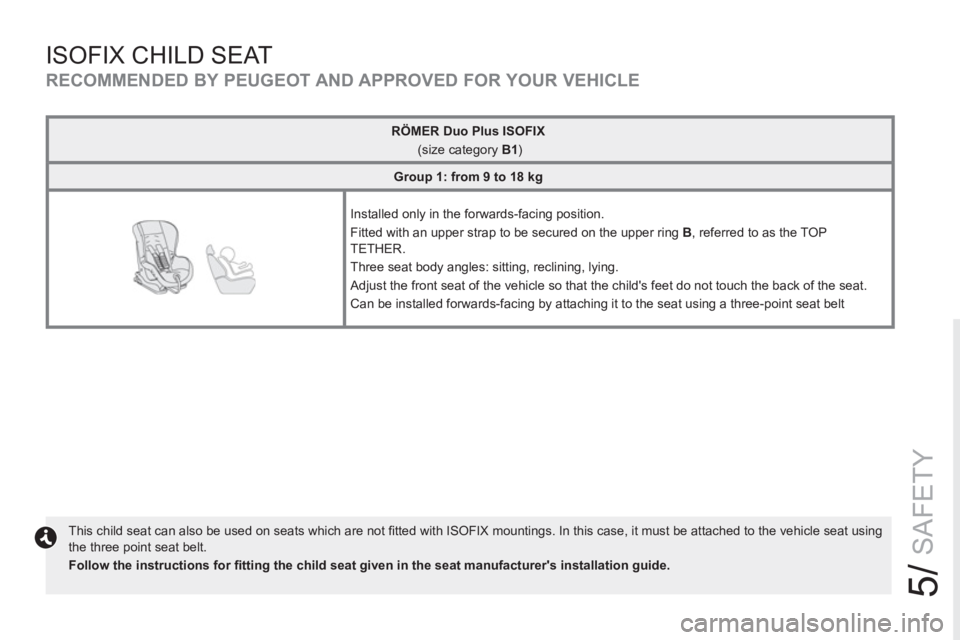

ISOFIX CHILD SEAT
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using
the three point seat belt.
Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.
RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER
Duo Plus ISOFIX
(size category B1
)
Group 1: from 9 to 18 kg
Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B
, referred to as the TOP
TETHER.
Three seat body angles: sitting, reclining, lying.
Adjust the front seat of the vehicle so that the child's feet do not touch the back of the seat.
Can be installed forwards-facing by attaching it to the seat using a three-point seat belt
Page 165 of 336
8/
PRACTICAL INFORMATION
CHANGING A WHEEL
Parking the vehicle
Immobilise the vehicle where it does not block traffi c: the ground
must be level, stable and non-slippery ground.
Apply the parking brake, switch off the ignition and engage fi rst
gear (position P
for the automatic gearbox) to lock the wheels.
It is imperative that you ensure that the occupants get out of the
vehicle and wait where they are safe.
If necessary, place a chock under the wheel diagonally opposite
the wheel to be changed.
Never go underneath a vehicle raised using a jack; use an axle
stand.
Security socket: for adaptation of the
wheelbrace to the special "security" bolts.
Specifi c to your vehicle, it is stored in the
glove box.
Wheelbrace: for removal of the wheel fi xing
bolts.
Jack with integrated handle: for lifting the
vehicle.
TOOLS REQUIRED *
Bolt cover removal tool: for removal of the
bolt fi nishers (covers) on alloy wheels.
*
Depending on the country of sale, the vehicle may be equipped with
the tools needed to change a wheel and a spare wheel (see following
pages).
Page 166 of 336
164
REMOVING THE WHEEL
)
Place the jack in contact with one of the two front A
or rear B
locations provided on the underbody, whichever is closest to the
wheel to be changed.
)
Raise the vehicle until there is suffi cient space between the wheel
and the ground to admit the spare (not punctured) wheel easily.
)
Remove the bolts and store them in a clean place.
)
Remove the wheel.
)
Remove the cover on each of the bolts using the bolt cover removal
tool.
)
Fit the security socket on the wheelbrace to slacken the security
bolt.
)
Slacken the other bolts using the wheelbrace only.
)
Extend the jack until its base plate is in contact with the ground.
Ensure that the centreline of the jack base plate is directly below
the location A
or B
used.
Page 167 of 336
8/
PRACTICAL INFORMATION

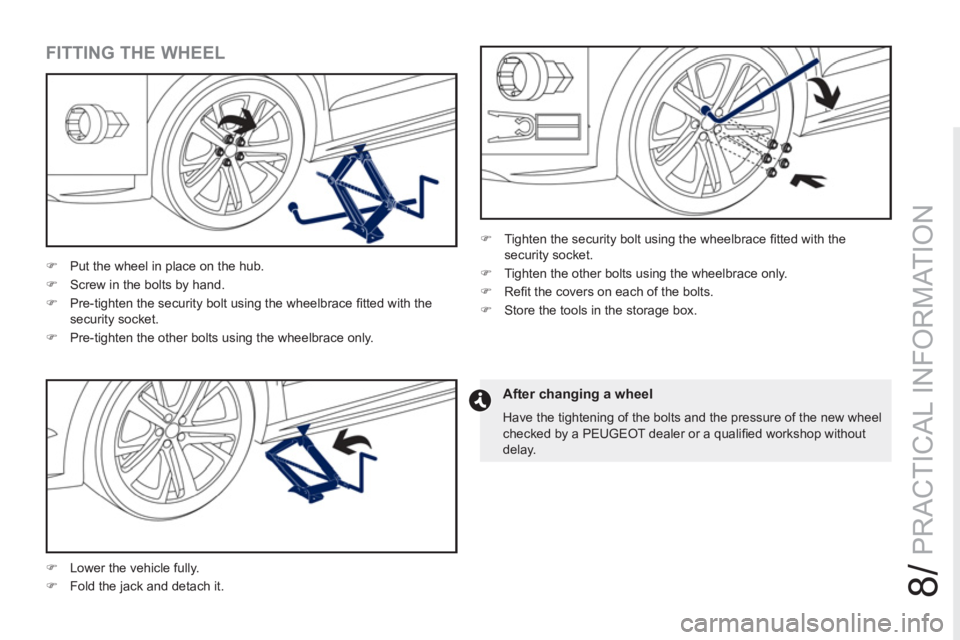

FITTING THE WHEEL
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand.
)
Pre-tighten the security bolt using the wheelbrace fi tted with the
security socket.
)
Pre-tighten the other bolts using the wheelbrace only.
)
Lower the vehicle fully.
)
Fold the jack and detach it.
)
Tighten the security bolt using the wheelbrace fi tted with the
security socket.
)
Tighten the other bolts using the wheelbrace only.
)
Refi t the covers on each of the bolts.
)
Store the tools in the storage box.
After changing a wheel
Have the tightening of the bolts and the pressure of the new wheel
checked by a PEUGEOT dealer or a qualifi ed workshop without
delay.
