Page 142 of 268
Page 143 of 268
Dimensions
TECHNI
CAL DAT
A
8
*
Value for rear suspension.
L1
L2
H1
H1
H2
L Overall length
4 805 to 4 813
5 135 to 5 143
H Overall height
1 894 * / 1 942
2 204 * / 2 276
A Wheelbase
3 000
3 122
B Front overhang
975
C Rear overhang
830 to 838
1 038 to 1 046
D Overall width:
over panels
1 870
with mouldings
1 895
with mirrors folded
1 986
with mirrors unfolded
2 194
E Width of front track
1 562 to 1 570
F Width of rear track
1 596 to 1 604
I Length of interior floor
2 254
2 584
J Maximum interior height under roof
1 449
1 750
K Maximum interior width
1 600
M Interior width between wheel arches
1 245
Turning circle between kerbs (m)
12.18
12.59
Maximum loads (kg)
Payload
1 000 to 1 200
On roof
170
m
3
5
6
7
DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 2 heights
(H1, H2), refer to the tables:
Page 144 of 268
142
Dimensions

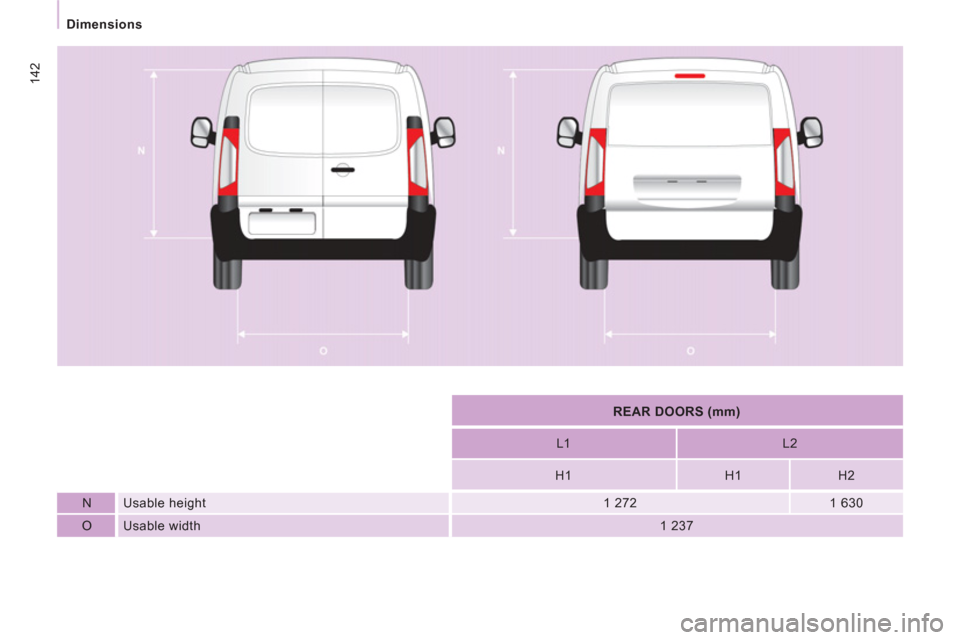

REAR DOORS (mm)
L1
L2
H1
H1
H2
N Usable height
1 272
1 630
O Usable width
1 237
Page 145 of 268
Dimensions
TECHNI
CAL DAT
A
8
SLIDING SIDE DOOR (mm)
L1
L2
H1
H1
H2
P
Height
1 293
1 301
Q
Width
924
Page 146 of 268
Page 147 of 268
145
Dimensions
TECHNI
CAL DAT
A
8
PLATFORM CAB (mm)
L2
L Overall length
5 016
A Wheelbase
3 122
B Front overhang
975
C Rear overhang
920
Max rear body overhang
1 420
D Overall width (excluding mirrors)
1 895
E Width of front track
1 574
F Width of rear track
1 574
- Gross vehicle weight
-
- Max weight at the front
1 400
- Max weight at the rear
1 700
