Under the bonnet


PETROL ENGINE


4.
Brake and clutch fluid reservoir.

5.
Air filter.

6.
Engine oil dipstick.
7.
Engine oil filler cap.

8.
Power steering reservoir.

9.
Removable towing eye.

1.
Screen/headlamp wash reservoir.

2.
Fusebox.

3.
Coolant header tank.

11 0


Levels



Cooling system

Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging your
engine.
When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
PEUGEOT dealer or a qualified workshop as
soon as possible.

Power steering fluid level

The vehicle must be parked on level ground
with the engine cold. Unscrew the cap
integrated with the gauge and check the
level which must be between the MIN and
MAX marks. When this occurs with the engine running it
is due to the start of saturation of the particle
emission filter (exceptionally prolonged
urban type driving conditions: low speed,
long traffic jams, ...).
In order to regenerate the filter, you are
advised to drive at a speed higher than
40 mph (60 km/h) for at least five minutes
as soon as possible, when traffic conditions
permit (until the message disappears and
the service warning lamp goes off).
During regeneration of the particle emission
filter, relay noise may be heard under the
dashboard.
If the message is still displayed and if the
service warning lamp remains on, contact a
PEUGEOT dealer or a qualified workshop.

Topping up
The level must be between the MIN and
MAX marks on the expansion bottle. If
more than 1 litre of fluid is required to top
up the level, have the system checked by a
PEUGEOT dealer or a qualified workshop.



Screenwash and headlamp wash
level
For best quality cleaning and for your safety,
we would advise that you use products of
the PEUGEOT range.
Capacity of the screenwash reservoir:
approximately 4.5 litres.
If your vehicle is fitted with headlamp
washers, the capacity of the reservoir is
7.5 litres.
To ensure optimum cleaning and prevent
freezing, this fluid must not be topped up or
replaced with plain water.


Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive
is indicated by lighting of the
service warning light, accompanied by an
audible signal and a message in the screen.
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.

126


Changing a bulb


CHANGING A BULB


Type A
All glass bulb: pull
gently as it is fitted by
pressure.

Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.

Type C
Halogen bulb: release
the retaining spring from
its housing.

TYPES OF BULB

Various types of bulb are installed on your vehicle. To remove them: Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use lint-
free cloths.
When each operation has been completed,
check the operation of the lighting.

12
7


Changing a bulb

QUICK HEL
P
7


3.
Direction indicators
Type B
, PY21W - 21W (amber)


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.
FRONT LAMPS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.


1.
Dipped / Main beam headlamps
Type C
, H4 - 55W


- Remove the centre cover by pulling
the flexible rubber tab.

- Disconnect the electrical connector.

- Release the retaining spring.

- Change the bulb taking care to align
the metal part with the slots in the
lamp.


2.
Sidelamps
Type A
, W5W - 5W


- Remove the cover by pulling the
flexible rubber tab.

- Remove the bulb holder fitted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.
4.
Foglamps
Type C
, H1 - 55W
Contact a PEUGEOT dealer or a qualified
workshop.

Changing a bulb



DIRECTION INDICATOR SIDE
REPEATER

Type A
, WY5W - 5W (amber)


- Push the repeater towards the rear and
disengage it.

- Support the connector and turn the bulb
holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,
remove it and change it.

- When refitting, engage the repeater
towards the rear and bring it towards the
front.
Front / Rear


Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.

COURTESY LAMPS


Type A
, 12V5W - 5W


- Unclip the lens by sliding a screwdriver
in the slots on each side of the courtesy
lamp.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure
that it is secured correctly.



High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds
to avoid damaging their coating and seals.

132


Changing a fuse


RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses
F


Amperes
A

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone,
Trailer fusebox (accessory), Coachbuilder/vehicle
converter unit (platform cab)


9


10
Load space accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Digital air conditioning, Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors


17


10 Heated mirrors only

134


Changing a fuse


FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses
F


Amperes
A

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems


11


40
Front ventilation


12


30
Windscreen wipers


13


40 Built-in systems interface


14


30
Free

14
9


Exterior

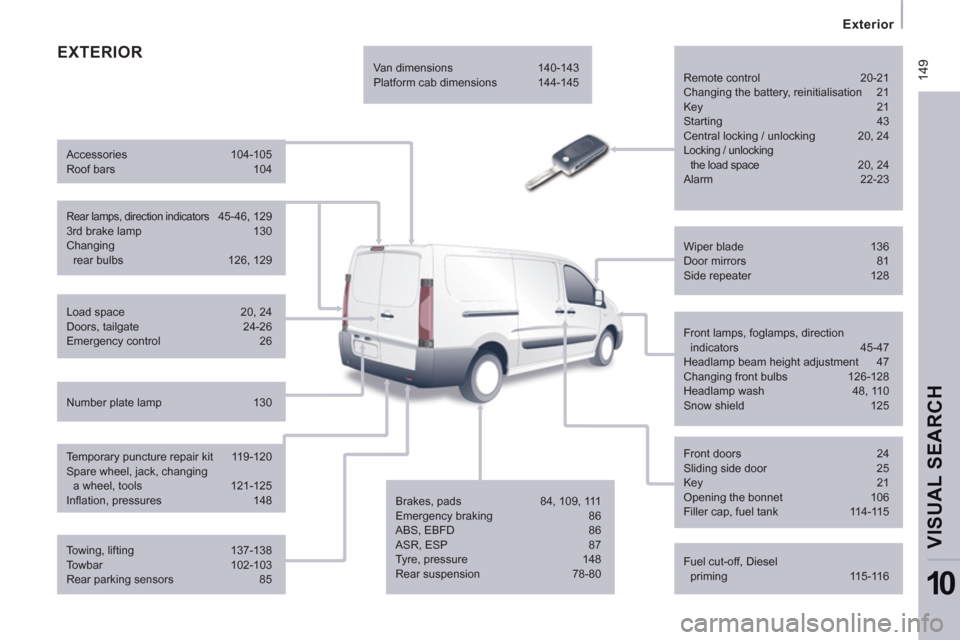

VISUAL SEARCH
10

EXTERIOR

Remote control 20-21
Changing the battery, reinitialisation 21
Key 21
Starting 43
Central locking / unlocking 20, 24
Locking / unlocking
the load space 20, 24
Alarm 22-23
Fuel cut-off, Diesel
priming 115-116 Wiper blade 136
Door mirrors 81
Side repeater 128
Front lamps, foglamps, direction
indicators 45-47
Headlamp beam height adjustment 47
Changing front bulbs 126-128
Headlamp wash 48, 110
Snow shield 125
Front doors 24
Sliding side door 25
Key 21
Opening the bonnet 106
Filler cap, fuel tank 114-115
Towing, lifting 137-138
Towbar 102-103
Rear parking sensors 85 Load space 20, 24
Doors, tailgate 24-26
Emergency control 26
Temporary puncture repair kit 119-120
Spare wheel, jack, changing
a wheel, tools 121-125
Infl ation, pressures 148

Rear lamps, direction indicators 45-46, 129
3rd brake lamp 130
Changing
rear bulbs 126, 129 Accessories 104-105
Roof bars 104
Number plate lamp 130 Van dimensions 140-143
Platform cab dimensions 144-145
Brakes, pads 84, 109, 111
Emergency braking 86
ABS, EBFD 86
ASR, ESP 87
Tyre, pressure 148
Rear suspension 78-80
