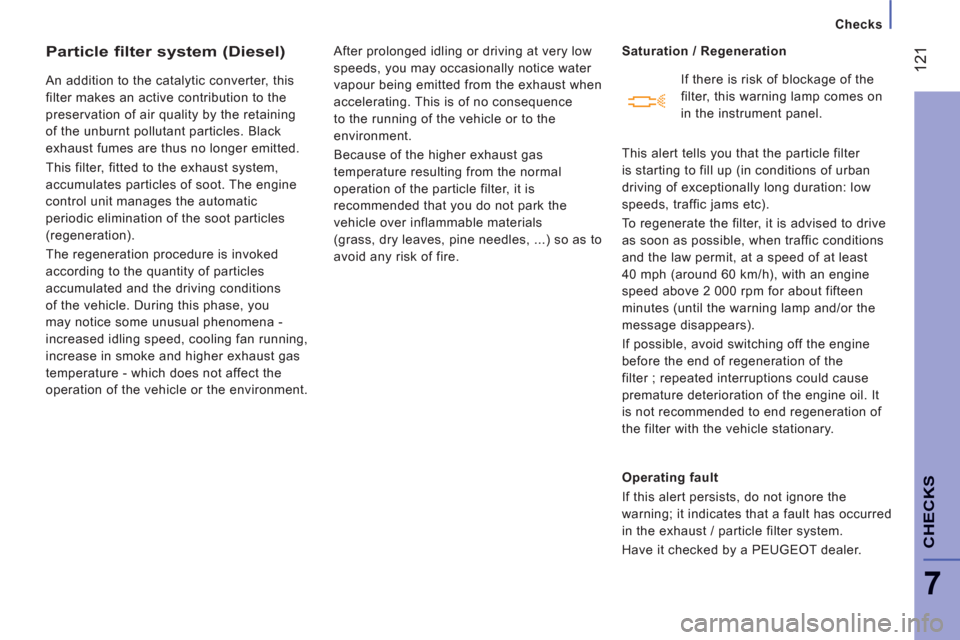

Particle filter system (Diesel)

An addition to the catalytic converter, this
filter makes an active contribution to the
preservation of air quality by the retaining
of the unburnt pollutant particles. Black
exhaust fumes are thus no longer emitted.
This filter, fitted to the exhaust system,
accumulates particles of soot. The engine
control unit manages the automatic
periodic elimination of the soot particles
(regeneration).
The regeneration procedure is invoked
according to the quantity of particles
accumulated and the driving conditions
of the vehicle. During this phase, you
may notice some unusual phenomena -
increased idling speed, cooling fan running,
increase in smoke and higher exhaust gas
temperature - which does not affect the
operation of the vehicle or the environment. After prolonged idling or driving at very low
speeds, you may occasionally notice water
vapour being emitted from the exhaust when
accelerating. This is of no consequence
to the running of the vehicle or to the
environment.
Because of the higher exhaust gas
temperature resulting from the normal
operation of the particle filter, it is
recommended that you do not park the
vehicle over inflammable materials
(grass, dry leaves, pine needles, ...) so as to
avoid any risk of fire.
Saturation / Regeneration

Operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred
in the exhaust / particle filter system.
Have it checked by a PEUGEOT dealer.
This alert tells you that the particle filter
is starting to fill up (in conditions of urban
driving of exceptionally long duration: low
speeds, traffic jams etc).
To regenerate the filter, it is advised to drive
as soon as possible, when traffic conditions
and the law permit, at a speed of at least
40 mph (around 60 km/h), with an engine
speed above 2 000 rpm for about fifteen
minutes (until the warning lamp and/or the
message disappears).
If possible, avoid switching off the engine
before the end of regeneration of the
filter ; repeated interruptions could cause
premature deterioration of the engine oil. It
is not recommended to end regeneration of
the filter with the vehicle stationary. If there is risk of blockage of the
filter, this warning lamp comes on
in the instrument panel.

12
3
7
CHECK
S


Fuel
Low fuel level

When the fuel tank level E
(Empty) is reached, this warning
lamp comes on. At this moment,
you have enough fuel left to
drive approximately 30 miles (50 km)
,
depending on the driving conditions, the
engine and the profile of the road. Fill up
without delay to avoid running out of fuel. The fuel tank must be filled with the engine
off.


- Open the fuel filler flap.

- Support the cap with one hand.

- With the other hand, insert the key, then
turn it anticlockwise.

- Remove the cap and hook it onto the
clip located on the inside of the flap.
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle. This could
cause malfunctions.
The capacity of the fuel tank is
approximately 90
litres.


- After filling the fuel tank, lock the cap
and close the flap.
FUEL SYSTEM CUT-OFF

In the event of a serious collision, a device
automatically cuts off the fuel supply
to the engine and the vehicle's electrical
supply.
FILLING WITH FUEL
Fuel tanks of different capacities,
60 and 125 litres, may be fitted. Check that there is no smell or leak of fuel
outside the vehicle.
Restore the supply by pressing:


- the first button,
located below the steering wheel.

- the second button, located in the
battery compartment, under the front
passenger's floor.


In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.

Changing a wheel

12
6


1. PARKING THE VEHICLE

As far as possible, park the vehicle on level,
stable and non-slippery ground.
Apply the parking brake, switch off the
ignition and engage first gear.
Put on a high visibility jacket and position
the warning triangle.
If possible, place a chock under the
wheel diagonally opposite the wheel to be
changed. 2. TOOLS
These are located under the front passenger
seat cushion.


- Turn the button a quarter of a turn then
pull the box.

- After use, press the button then turn it a
quarter of a turn to secure the box.

A.
Extended socket.

B.
Ratchet wrench.

C.
Jack.

D.
Towing hook.

E.
Wheelbrace.

F.
Screwdriver.


CHANGING A WHEEL
You must ensure that the occupants get out
of the vehicle and wait in a safe location.

136


Changing a fuse


PASSENGER'S SIDE DASHBOARD FUSES



- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5
Right-hand dipped beam headlamp


13


7.5
Left-hand dipped beam headlamp


31


5
Relay supply


32


7.5
Interior lighting


33


20
Battery sensor


34


20
Minibus interior lighting - Hazard warning


36


10

Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls - Air conditioning
controls - Tachograph - Battery


37


7.5
Brake lamps switch - Third brake lamp - Instrument panel


38


20
Central locking


42


5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


20

Windscreen wiper motor


47


20
Driver's electric window motor


48


20
Passenger electric window motor


49


5
Audio system - Instrument panel controls


50


7.5
Airbags and pre-tensioners unit


51


5
Tachograph - Cruise control - Air conditioning controls - Reversing lamps - water in Diesel sensor


53


7.5
Instrument panel


89


-
Not used


90


7.5
Left hand main beam headlamp


91


7.5
Right han main beam headlamp


92


7.5
Left hand foglamp


93


7.5
Right hand foglamp

156
