Checks


CHECKS
Air filter and passenger compartment filter

A clogged passenger compartment fi lter may
reduce the performance of the air conditioning
system and generate undesirable odours. The
replacement intervals for these components
are indicated in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as often
if necessary, refer to the "Under the bonnet"
section of chapter 7.


Manual gearbox

Have the level checked in accordance with
the manufacturer's servicing schedule.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the servicing booklet which
correspond to your vehicle's engine.
Only use products recommended by
PEUGEOT or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, PEUGEOT
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer.


Bleeding the water contained in
the Diesel filter
If this warning lamp comes on,
bleed the filter, otherwise bleed
regularly each time the engine oil
is changed.
To drain the water out, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Leave open until
all of the water has been drained out. Then
tighten the bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires a special qualification which is
guaranteed by a PEUGEOT dealer.

Battery

At the start of winter, have your battery
checked by a PEUGEOT dealer.
Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc/drum wear status

For any information relating to checking
the brake disc/drum wear status, contact a
PEUGEOT dealer.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.

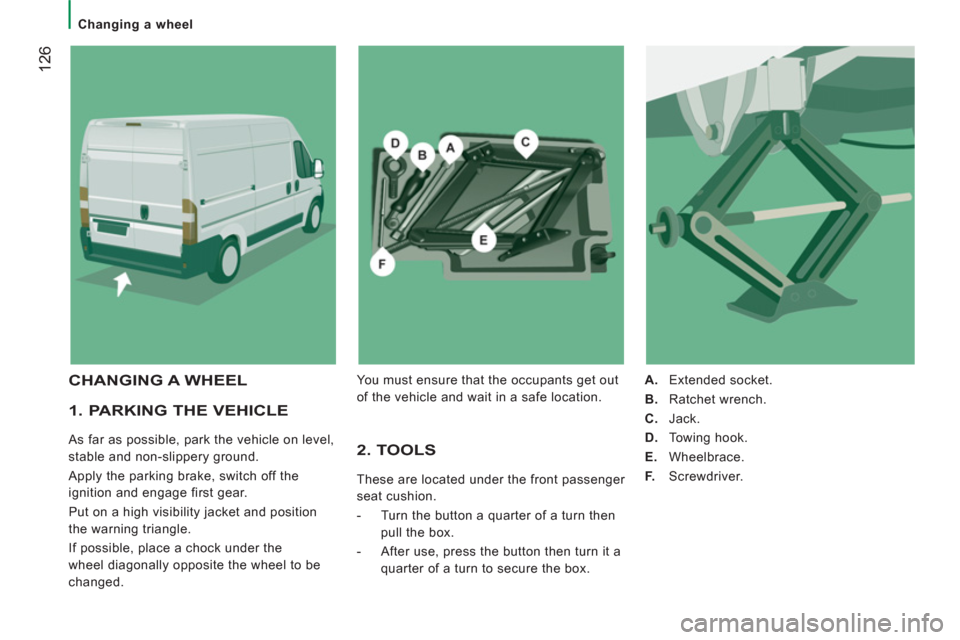

Changing a wheel

12
6


1. PARKING THE VEHICLE

As far as possible, park the vehicle on level,
stable and non-slippery ground.
Apply the parking brake, switch off the
ignition and engage first gear.
Put on a high visibility jacket and position
the warning triangle.
If possible, place a chock under the
wheel diagonally opposite the wheel to be
changed. 2. TOOLS
These are located under the front passenger
seat cushion.


- Turn the button a quarter of a turn then
pull the box.

- After use, press the button then turn it a
quarter of a turn to secure the box.

A.
Extended socket.

B.
Ratchet wrench.

C.
Jack.

D.
Towing hook.

E.
Wheelbrace.

F.
Screwdriver.


CHANGING A WHEEL
You must ensure that the occupants get out
of the vehicle and wait in a safe location.

12
8

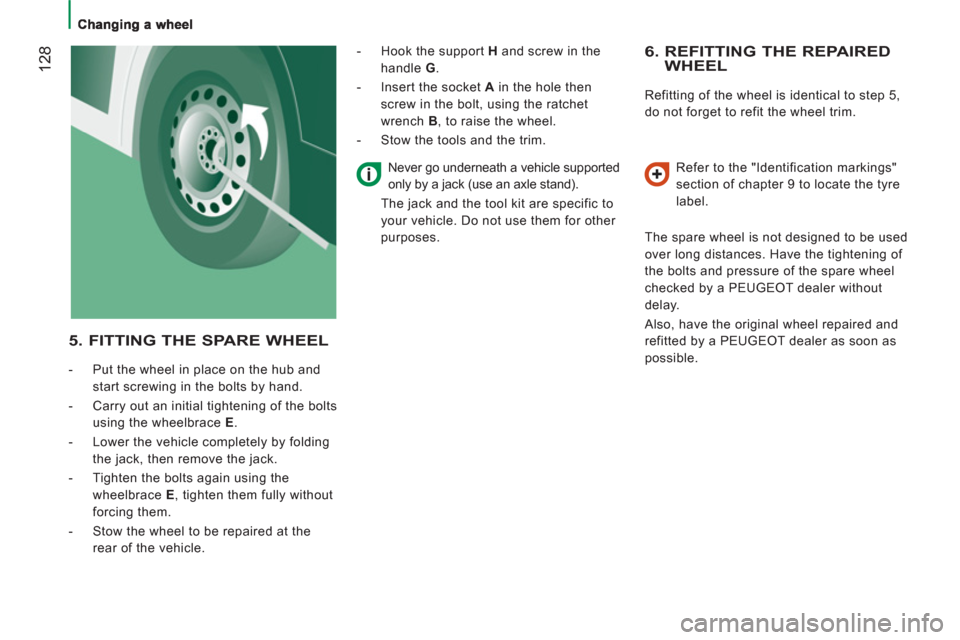

6. REFITTING THE REPAIREDWHEEL

Refitting of the wheel is identical to step 5,
do not forget to refit the wheel trim.

Refer to the "Identification markings"
section of chapter 9 to locate the tyre
label.
The spare wheel is not designed to be used
over long distances. Have the tightening of
the bolts and pressure of the spare wheel
checked by a PEUGEOT dealer without
delay.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.


5. FITTING THE SPARE WHEEL



- Put the wheel in place on the hub and
start screwing in the bolts by hand.

- Carry out an initial tightening of the bolts
using the wheelbrace E
.

- Lower the vehicle completely by folding
the jack, then remove the jack.

- Tighten the bolts again using the
wheelbrace E
, tighten them fully without
forcing them.

- Stow the wheel to be repaired at the
rear of the vehicle.
- Hook the support H
and screw in the
handle G
.

- Insert the socket A
in the hole then
screw in the bolt, using the ratchet
wrench B
, to raise the wheel.

- Stow the tools and the trim.
Never go underneath a vehicle supported
only by a jack (use an axle stand).
The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.

14
0

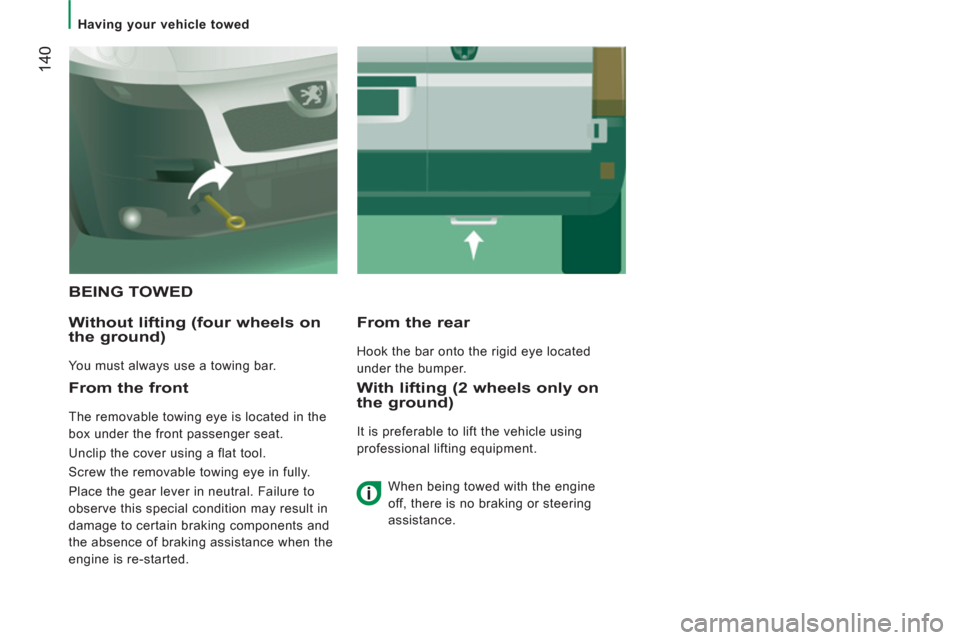

Having your vehicle towed


BEING TOWED

Without liftin
g (four wheels on
the ground)
You must always use a towing bar.
From the rear

Hook the bar onto the rigid eye located
under the bumper.


From the front

The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting (2 wheels only on
the ground)
It is preferable to lift the vehicle using
professional lifting equipment.
When being towed with the engine
off, there is no braking or steering
assistance.

150

Weights

WEIGHTS



Dimensions


Model


GVW in kg


L1 H1
330
3 000

333
3 300

L2 H1
333
3 300

335
3 500

L2 H2
330
3 000

333
3 300

335
3 500

L3 H2
330
3 000

335
3 500

435
3 500

440
4 000

L3 H3
330
3 000

335
3 500

435
3 500

440
4 000

L4 H2
335
3 500

L4 H3
435
3 500 Refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.

151
9
TECHNI
CAL DAT
A
Weights

* 15 inch wheels.

** 16 inch wheels.

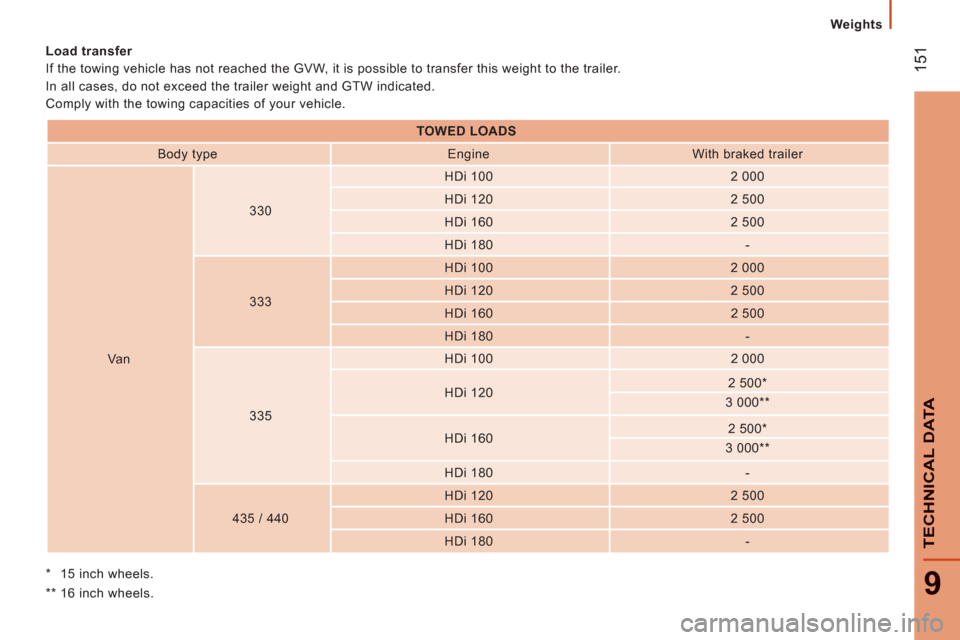

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.




TOWED LOADS


Body type
Engine
With braked trailer

Va n
330
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

333
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

335
HDi 100
2 000

HDi 120
2 500 *
3 000 **


HDi 160
2 500 *
3 000 **


HDi 180
-

435 / 440
HDi 120
2 500

HDi 160
2 500

HDi 180
-

152

Weights

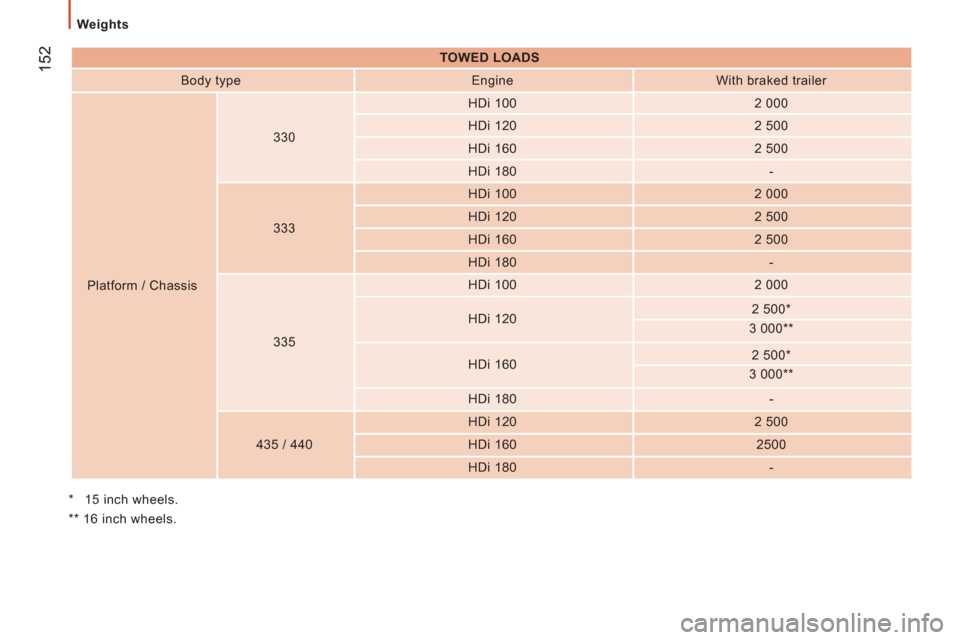

TOWED LOADS


Body type
Engine
With braked trailer
Platform / Chassis
330
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

333
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

335
HDi 100
2 000

HDi 120
2 500 *
3 000 **


HDi 160
2 500 *
3 000 **


HDi 180
-
435 / 440
HDi 120
2 500

HDi 160
2500

HDi 180
-
*
15 inch wheels.
**
16 inch wheels.

153
9
TECHNI
CAL DAT
A
Weights


TOWED LOADS


Body type
Engine
With braked trailer

Combi
330
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

333
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-
