Page 213 of 304
8
211
Practical information
Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches the maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of altitude.
Side wind
)Take into account the increased sensitivity
to side wind.
Cooling
To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed. )
To lower the engine speed, reduce your speed. The maximum towed load on a long incline
depends on the gradient and the ambient
tem
perature.
In all cases, keep a check on the coolant
temperature.
)If the warning lamp and the STOPwarning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.
Braking
To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of enginebraking is recommended.
Tyres
)
Check the tyre pressures of the towingvehicle and of the trailer, obser ving the
recommended pressures.
Lighting
)
Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be deactivated automatically if a genuinePEUGEOT towbar is used.
R
efer to the "Technical Data" section for detailsof the weights and towed loads which apply to your vehicle.
Page 227 of 304
10
225
Technical data
Electric motor and battery
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and ageing of the battery.
Electric motor-
Te c h n o l ogy
Synchronous with permanent magnets.
Max. power: EU standard
(kW) 27
Max. power speed
(rpm)
2 500
Max. torque: EU standard (Nm)
200
Max. torque speed (rpm) 1 250
Ef ficienc
y (%)80 to 90
Hi
gh voltage batteryNi-MH(Nickel Metal Hydride)
Volt a
ge (V~)
200
Energy capacity (kWh / Ah)
1.1 / 5.5
Ran
ge (miles (km)) 1. 2 (2) (approximately)
Page 228 of 304
226
Technical data
Diesel engine2.0 litre HDi 163 hp
Gearbox
Electronic gearbox(6-speed)
Model code
8URHC8/P
Cubic capacity (cc)
1 997
Bore x stroke
(mm)
85 x 88
Max power: EU standard
(kW) 120
Max power engine speed (rpm) 3 850
Max torque: EU standard
(Nm) 300
Max torque engine speed (rpm)
1 750
F
uel Diesel
Catalytic conver ter yes
Particle emission filter yes
Oil capacity (in litres)
Engine (with filter replacement) 5
Engine and gearbox
Page 229 of 304
10
227
Technical data

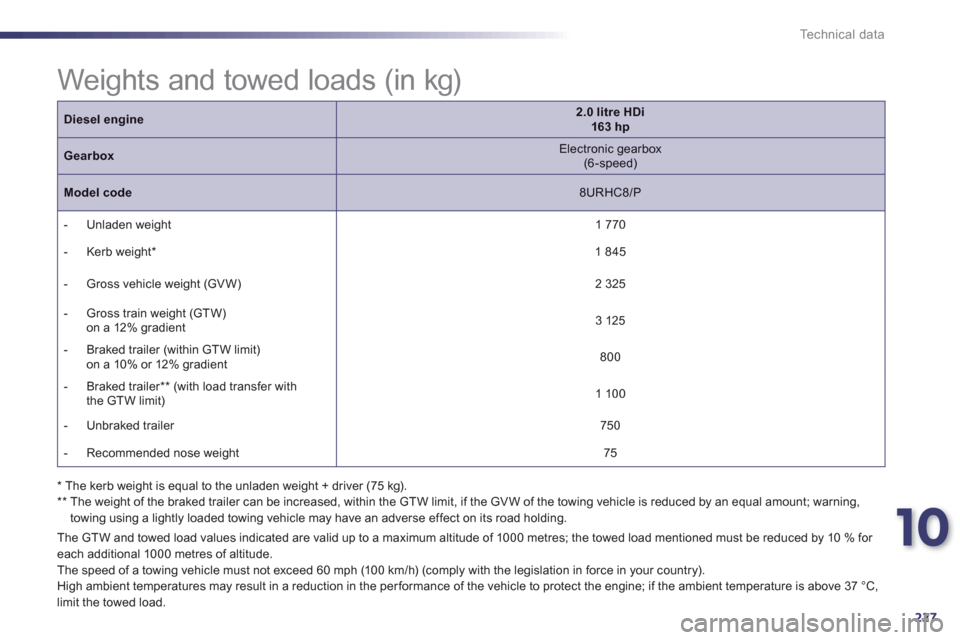

Weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The kerb wei
ght is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Diesel engine2.0 litre HDi163 hp
Gearbox
Electronic gearbox(6-speed)
Model code
8URHC8/P
-
Unladen weight 1 770
- Kerb wei
ght *1 845
- Gross vehicle wei
ght (GV W)
2 325
-
Gross train weight (GTW)
on a 12% gradient 3 125
- Braked trailer
(within GTW limit) on a 10% or 12% gradient800
- Braked trailer **
(with load transfer withthe GTW limit)
1 100
- Unbraked trailer
750
- Recommended nose weight
75
Page 230 of 304
228
Technical data
Dimensions (in mm)
conditions.
This value will vary with vehicle load, the nature of the ground surface and the surroundings.
If the driver considers that the vehicle can traverse an obstacle, they assume entire responsibility for this.
