2012 PEUGEOT 5008 boot

PRACTICAL INFORMATION
193

After changing a wheel
To store the punctured wheel in the boot
correctly, fi rst remove the central cover.

When using the "space-saver" type spare wheel, do not exceed 50 mph (80 km/h).

Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer or a
qualifi ed workshop without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.


Fitting a wheel

List of operations


)
Put the wheel in place on the hub
using the centring guide 4
.

)
Screw in the bolts by hand to the
stop.

)
Using the wheelbrace 1
fi tted with
the security socket 5
, pre-tighten
the security bolt (if your vehicle has
them).

)
Pre-tighten the other bolts using the
wheelbrace 1
only.

)
Lower the vehicle fully.

)
Fold the jack 2
and detach it.

)
Using the wheelbrace 1
fi tted with
the security socket 5
, tighten the
security bolt (if your vehicle has
them).

)
Tighten the other bolts using the
wheelbrace 1
only.

)
Refi t the bolt covers to each of the
bolts (according to equipment).

)
Store the tools in the box.


Fitting the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the bolts
on fi tting it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

PRACTICAL INFORMATION
198

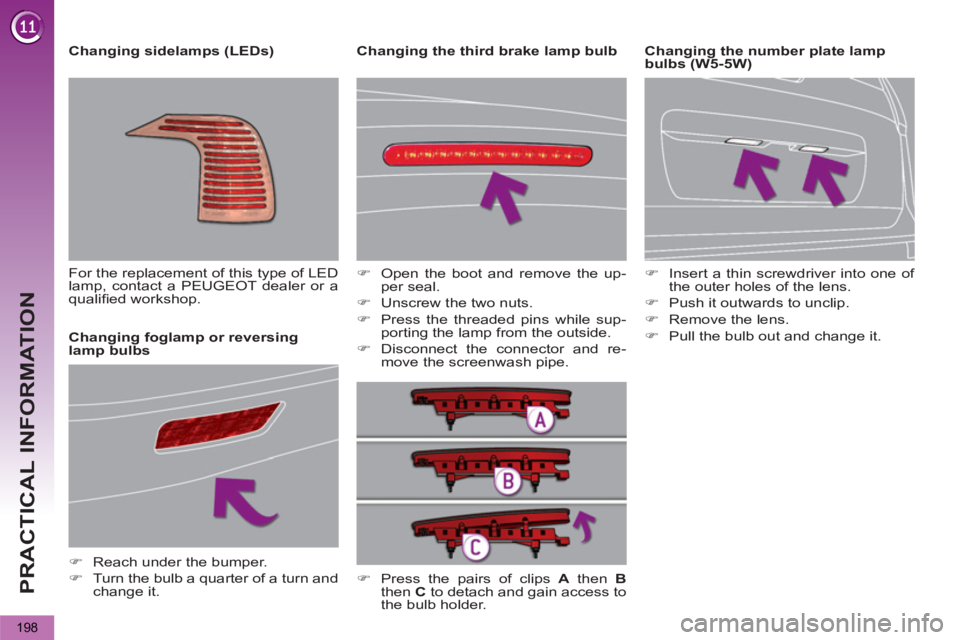

Changing the third brake lamp bulb

















Changing foglamp or reversing
lamp bulbs


)
Reach under the bumper.

)
Turn the bulb a quarter of a turn and
change it.



)
Open the boot and remove the up-
per seal.

)
Unscrew the two nuts.

)
Press the threaded pins while sup-
porting the lamp from the outside.

)
Disconnect the connector and re-
move the screenwash pipe.

)
Press the pairs of clips A
then B

then C
to detach and gain access to
the bulb holder.

Changing sidelamps (LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb out and change it.


Changing the number plate lamp
bulbs (W5-5W)

PRACTICAL INFORMATION
200

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables

F us e
N°


Ratin g
(A)


Functions




F1


15

Rear wiper.


F2


-

Not used.


F3


5

Airbag control unit.


F4


10
Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia.


F5


30

Front one-touch electric windows.


F6


30

Rear one-touch electric windows.


F7


5
Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
202


Fuse
N°



Rating
(A)



Functions




F29



-

Not used


F30



5

Heated door mirrors.


F31



30

Boot 12 V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air conditioning.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors, Hi-Fi amplifi er authorisation.


F36



10

Trailer fusebox control unit, driver's door control pad.


F37



20

Hi-Fi amplifi er.


F38



30

Driver's electric seat.


F39



20

Panoramic sunroof blind.


F40



-

Not used.

PRACTICAL INFORMATION
209
TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.





Access to the tools
Towing your vehicle



)
On the front bumper, unclip the cov-
er by pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.

)
On the rear bumper, unclip the cov-
er by pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.



Towing another vehicle

The towing eye is installed under the
left-hand concertina board, in the boot
interior trim.
To gain access to it:


)
open the boot,

)
raise the concertina board,

)
remove the towing eye from the
holder.

)
Place the gear lever in neu-
tral (position N
on the elec-
tronic gear control gearbox
or automatic gearbox).
Failure to observe this special con-
dition could result in damage to cer-
tain braking components and the
absence of braking assistance the
next time the engine is started.

PRACTICAL INFORMATION
213

"Multimedia":

audio systems, amplifi ers, satellite navigation
systems, Bluetooth hands-free system, CD
changer, speakers, DVD player, USB Box,
front and rear parking sensors, additional
Bluetooth wireless headphones, Bluetooth
audio headphones mains charger.


Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).




"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.

*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.

ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.


"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.
Depending on the legislation
in force in the country, it may
be compulsory to have a high
visibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.








"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.

You can also obtain cleaning and main-
tenance products (exterior and interior),
products for topping up (screenwash
fl uid...) and refi lls (sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.

ALPHABETICAL INDEX
325
Accessories ...........................213
Accessory socket,
12 volt ...102, 104, 109, 110, 114
Access to the 3rd row ..............71
Adjusting headlamps .........94, 95
Adjusting
head restraints ................67, 69
Adjusting seat
belt height ...................132, 133
Adjusting
the steering wheel .................75
Airbags ....................................36
Airbags, curtain..............138, 139
Airbags, front .................136, 139
Airbags, lateral...............138, 139
Air conditioning ........................25
Air conditioning, digital.......59, 62
Air conditioning,
manual ............................59, 60
Air fi lter ..................................177
Air fl ow .....................................25
Air vents...................................58
Alarm .......................................81
Anti-pinch.........................83, 108
Anti-theft ..................................78
Armrest, rear .......................... 110
Assistance call .......................224
Audible warning .....................128
Audio/video sockets...............254
Audio streaming
(Bluetooth) ..........................315
Automatic illumination of
headlamps ......................91, 94
Automatic operation of hazard
warning lamps .....................128
Automatic rain sensitive
windscreen wipers ..........96, 98
Auxiliary
socket .........254, 290, 310, 312Battery ...........................177, 206
Battery, charging ....................206
Battery, remote control ......79, 80
Blind for panoramic
sunroof ................................108
Blinds ..................................... 115
Bluetooth (hands-
free) .... 255-257, 291, 292, 313
Bluetooth
(telephone) .... 255-257, 291, 292
Bonnet ...................................172
Bonnet stay............................172
Boot .........................................87
Boot lamp ...................... 101, 115
Brake discs ............................178
Brake lamps...........................197
Brake pads ............................178
Brakes ...................................178Checks...........174, 175, 177, 178
Child lock ...............................127
Children .................120, 124, 125
Child seats ............................ 116
Child seats,
conventional ................ 118, 120
Closing the boot.................77, 87
Closing the doors...............77, 85
Cold climate screen ...............212
Colour screen,
retractable .................49, 51, 53
Concertina boards ..... 72, 109, 110
Connectors,
audio ....103, 104, 290, 310, 312
Control for panoramic
sunroof blind .......................108
Coolant level ....................37, 176
Coolant temperature
indicator ................................37
Courtesy lamps........................99
Courtesy mirror ......................103
Cruise control ........................154
Cup holder ............. 102, 109, 110
A
B
Capacity, fuel tank ...................89
CD MP3 .........................289, 309
Central locking ...................77, 86
Centre console ......................104
Changing a bulb ....194, 197, 198
Changing a fuse ....................199
Changing a wheel ..........188, 190
Changing
a wiper blade ................98, 208
Changing
the date ...............260, 294, 317
Changing the remote
control battery .......................79
Changing
the time ...............260, 294, 317
Checking levels .............176, 177
Checking the engine oil level ......40
Checking tyre pressures
(using the kit) ......................179
C
Date
(setting) .......260, 294, 316, 317
Daytime
running lamps .......93, 194, 196
Deactivating ESP ...................131
Deactivating the passenger
airbag ..................................136
Deadlocking .............................77
Defrosting ..........................60, 61
Demisting.................................60
Dials and gauges .....................27
Diesel additive level ...............177
Dimensions ............................221
Dipped beam ...........91, 194, 195
Dipstick ............................40, 176
Directional lighting ...................95
D

ALPHABETICAL INDEX
326
Eco-driving ..............................25
Economical driving .................25
Economy mode......................208
Electric window controls ..........83
Electronic engine
immobiliser ......................78, 80
Electronic stability control
(ESC) ..................................130
Emergency boot release..........88
Emergency call ..............224, 225
Emergency warning lamps ....128
Energy economy mode..........208
Engine, Diesel ........90, 173, 175,
216, 217, 220
Engine,
petrol .............90, 174, 214, 215
Engine compartment .....174, 175
Engine
compartment fusebox .........199
Engine oil level
indicator ........................40, 176
Engines..........................214, 216
Environment ......................25, 80
ESC/ASR ...............................130
ESP/ASR ...............................131
E
Hazard warning lamps ...........128
Head-up display.....148, 152, 154
Headlamp adjustment........94, 95
Headlamps, directional ....95, 194
Headlamp wash .......................97
Headlamp wash reservoir ......176
Head restraints, front ...............67
Head restraints, rear ................69
Heated seats ...........................67
Heating ........................25, 59, 60
Height and reach adjustment,
steering wheel .......................75
High load retaining net........... 112
Hill start assist .......................145
Hooks ............................ 110, 114
Horn .......................................128 Direction
indicators ............128, 194, 197
Distance alert.........................150
Doors .......................................85
Doors emergency control ........87
Door trays ..............................102
Dynamic emergency
braking ................................143Fitting roof bars...................... 211
Fittings, boot .................. 109, 110
Flashing indicators.................128
Foglamps, rear ........................92
Folding the rear
seats .........................69, 71, 72
Front foglamps.........92, 194, 196
Front seats...................65, 66, 68
Fuel..............................25, 89, 90
Fuel consumption ....................25
Fuel fi ller cap ...........................89
Fuel fi ller fl ap .....................89, 90
Fuel gauge...............................89
Fuel tank ............................89, 90
Fusebox, dashboard ..............199
Fuses .....................................199
Filling with fuel ...................89, 90
Fitting a wheel .......................192
F
G.P.S. ............................238, 277
Gearbox, automatic .......161, 178
Gearbox, electronic
gear control .........157, 164, 178
Gearbox, manual ...156, 164, 178
Gear lever ................................25
Gear lever,
automatic gearbox ..............161
Gear lever, electronic gear
control gearbox ...................157
Gear lever, manual gearbox .....156
Gear shift indicator ................156
Glove box ......................102, 103
Grab handles .........................102
Guidance .......................238, 277
Guide-me-home.......................94
G
Halogen headlamps...............194
Hands-free kit ........291, 292, 313
H
Identifi cation plates ................222
Indicator lamps, status.............30
Indicators, direction ...............128
Infl ating accessories
(using the kit) ......................179
Infl ating tyres ...........................25
Inputs for audio
system ........254, 290, 310, 312
Instrument panel lighting .........41
Instrument panels ..............27, 28
Instrument panel screen ...27, 156
Intelligent Traction Control .....130
Interior fi ttings ........................102
Interior mood lighting .............100
ISOFIX child seats ......... 123-125
ISOFIX mountings .................123
I
Jack ...............................188, 190
JACK socket ..........104, 310, 312
J
