TECHNICAL DATA
220


WEIGHTS AND TOWED LOADS - 5008 5-seat LCV (in kg)



Engine


1.6 litre Turbo e-HDi
110 hp



2 litre Turbo HDi
150 hp



Gearbox

Manual
(6-speed)


Electronic gear control
(6-speed)
Manual
(6-speed)


Manual
(6-speed)

Model codes

9HZ
9HZ
9HR
RHE


- Unladen weight
1 481
1 482
1 481
1 572


- Kerb weight *

1 556
1 557
1 556
1 647


- Gross vehicle weight (GVW) **

2 225
2 230
2 200
2 310


- Gross train weight (GTW)
on a 12% gradient ***

3 120
3 170
3 475


- Braked trailer (within GTW limit)
on a 10% or 12% gradient ****

895
890
970
1 165


- Braked trailer (with load transfer
within the GTW limit)
X
X
X
X


- Unbraked trailer

750
750


- Recommended nose weight
70
70

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**

Exceeding the maximum rear axle weight involves limiting the speed to 50 mph (80 km/h) as defi ned in point 2.7 of
the Directive.

***
Exceeding the gross vehicle weight when the vehicle is towing involves limiting the speed to 50 mph (80 km/h) as defi ned
in point 2.7 of the Directive.

****
Maximum braked trailer weight within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10% for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
221

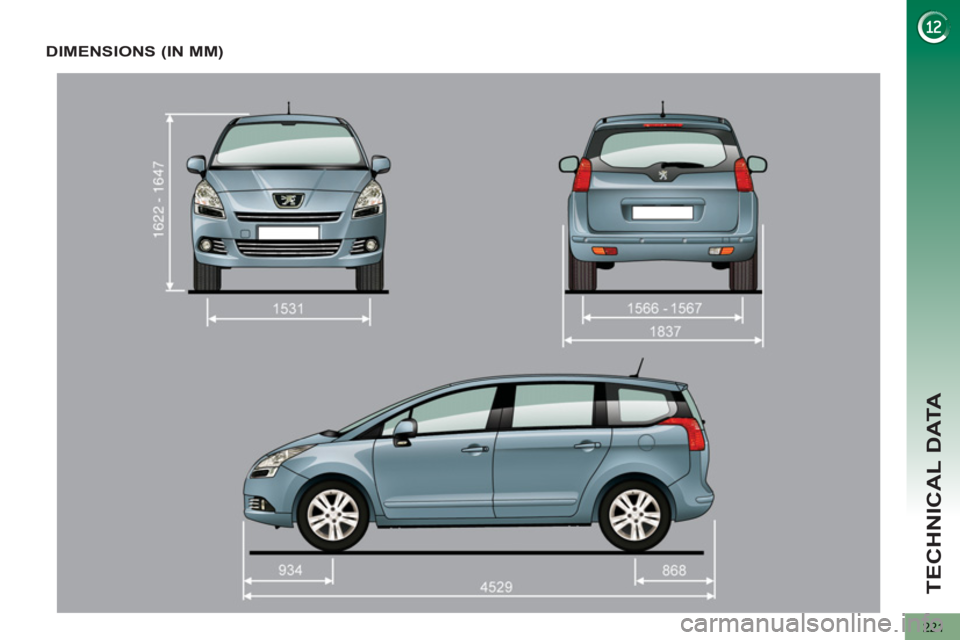

DIMENSIONS (IN MM)

TECHNICAL DATA
222
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle.

Low tyre pressures increase
fuel consumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number
(VIN) under the bonnet.

This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number
(VIN) on the windscreen lower
crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the driver's side.
D.
Tyre/paint label.

This label is fi tted to the door aperture
or middle pillar, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

ALPHABETICAL INDEX
328
Screen menu
map .............261, 295, 318, 320
Screenwash, front....................97
Screenwash fl uid level .....97, 176
Seat adjustment...........65, 66, 69
Seat belts....... 110, 132, 133, 135
Seat confi gurations ..................73
Seats, electric ..........................66
Seats, rear ...................69, 71, 72
Serial number, vehicle ...........222
Service indicator ......................38
Servicing ..................................25
Setting
the clock ......260, 294, 316, 317
Short-cut menus ....234, 275, 276
Sidelamps ................ 91, 194-197
Side repeater .........................196
SIM card ........................103, 258
Spare wheel...................188, 190
Spectacles storage ................102
Speed limiter..........................152
Speedometer ...........................27
Spotlamps, side .....................100
Stability control (ESP)............131
Starting
the vehicle .............78, 157, 161
Steering mounted
controls, audio ............232, 305
Stopping
the vehicle .............78, 157, 161
Stop & Start ..........57, 61, 63, 89,
164, 172, 177, 206
Storage ... 102, 104, 106, 109, 110
Storage box ...........................103
Storage drawer ......................106
Storage wells ................. 109, 110
Stowing rings ................. 109, 110
Sun visor................ 102, 103, 115
Synchronising
the remote control .................79
System, navigation ........238, 277
Systems, ASR and ESP ........131 Reinitialising
the remote control .................79
Remote control ............76, 77, 80
Removable screen
(snow shield) .......................212
Removing a wheel .................192
Removing the mat .................105
Repair kit, puncture .......179, 185
Replacing bulbs .....194, 197, 198
Replacing fuses .....................199
Replacing the air fi lter ............177
Replacing the oil fi lter ............177
Replacing the particle
emission fi lter ......................178
Replacing the passenger
compartment fi lter ...............177
Replacing wiper blades .....98, 208
Resetting the service
indicator ................................39
Resetting the trip recorder .......41
Rev counter .............................27
Reversing lamp......................197
Rigid panel...............................71
Risk areas (update) .......245, 284
Roof bars ............................... 211
Routine checks ..............177, 178
Running out of fuel (Diesel) .....173
Safety for children....83, 120, 127
Screen, colour
16/9 .............233, 261, 274, 295
Screen,
monochrome .......306, 318, 320
Screen, monochrome C...........55
Screen, multifunction (with audio
equipment) ....44, 46, 49, 51, 53
Screen, multifunction
(without audio equipment) ....42
Screen-wash reservoir...........176
S
Table of weights .....215, 217, 220
Tables, aircraft .......................106
Tables of engines...........214, 216
Tables of fuses.......................199
Tank, fuel .................................90
Technical data........ 214-217, 220
Telephone ............. 225, 255-257,
291, 292
Telephone, hands-free ... 255-257
Temperature, coolant ...............37
Temperature control
for heated seats ....................67
Temporary tyre repair kit ........179
Third brake lamp....................198
TMC (Traffi c info) ...........247, 285
Tools ..............................188, 190
Torch .............. 101, 109, 110, 115
Total distance recorder ............41
Towbar ...................................210
Towed loads...........215, 217, 220
Towing another vehicle ..........209
Traction control (ASR) ...........131
Traffi c information
(TA) .............248, 286, 287, 308
Traffi c information
(TMC) ..........247, 248, 285, 286
Trip computer ..............54, 55, 57
Trip distance recorder ..............41
Tyre pressures .......................222
Tyres ........................................25
Tyre under-infl ation
detection .............................129
T
Under-infl ation (detection) .....129
Under fl oor storage ................ 114
Unlocking .................................76
Unlocking from the inside ........86
U

VISUAL SEARCH
334
TECHNICAL DATA - MAINTENANCE


Identifi cation markings ................ 222
Petrol weights ............................. 215
Diesel weights ..................... 217-219
Diesel weights - LCV .................. 220
Running out of fuel, Diesel ......... 173

Checking levels ................... 176-177


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid
Checking components ......... 177-178


- air fi lter

- passenger compartment fi lter

- oil fi lter

- brake pads/discs


Changing bulbs.................... 194-198


- front

- rear

12 V battery ......................... 206-207
Load reduction, economy mode ...208
Engine compartment
fuses ......................... 199, 203-205

Opening the bonnet .................... 172
Under the bonnet, petrol ............. 174
Under the bonnet, Diesel ............ 175
Petrol engines............................. 214
Diesel engines ............................ 216
Dimensions ................................. 221
