2012 PEUGEOT 5008 height adjustment

CO
75

Adjustment



)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".


Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.

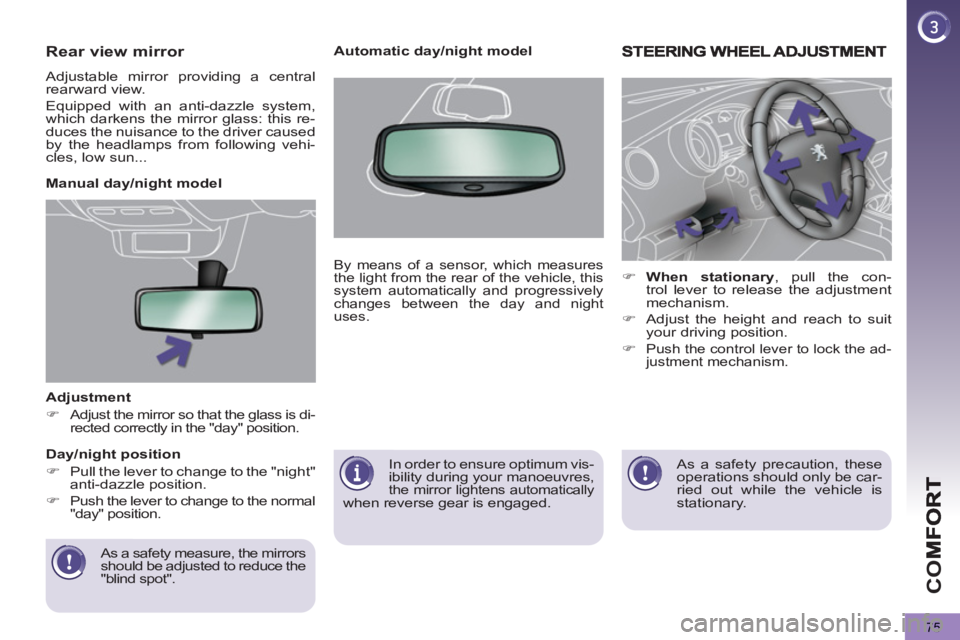

Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...

In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically when reverse gear is engaged.







Automatic day/night model

By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.


)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)

Push the control lever to lock the ad-
justment mechanism.

As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.

VIS
94

In fog or snow, the sunshine
sensor may detect suffi cient
light. In this case, the lighting
will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror; the as-
sociated functions would no longer
be controlled.

Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters in the vehicle confi gura-
tion menu,

- automatic activation of "guide-me-
home" lighting when automatic lillumi-
nation of headlamps is in operation.

Automatic illumination of headlamps

The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation


)
Turn the ring to the "AUTO"
posi-
tion. The automatic illumination of
headlamps is accompanied by a
message in the screen.


Deactivation


)
Turn the ring to another position.
Deactivation is accompanied by a
message in the screen.

Operating fault
In the event of a malfunction of
the sunshine sensor, the lighting
comes on, this warning lamp is
displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
5 people.

-.
Intermediate setting.

2.
5 people + maximum authorised load.

-.
Intermediate setting.

3.
Driver + maximum authorised load.

VIS
95
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
mately 12 mph (20 km/h) and associ-
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.

with directional lighting


without directional lighting

Programming
Operatin
g fault
The function is activated or
deactivated via the vehicle
confi guration menu.
If a fault occurs, this warning
lamp fl ashes in the instrument
panel, accompanied by a mes-
sage in the screen.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS


If a malfunction occurs, do not
touch the xenon bulbs. Con-
tact a PEUGEOT dealer or a
qualifi ed workshop.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamps beam
automatically and when stationary, in re-
lation to the load in the vehicle.

If a malfunction occurs, this warn-
ing lamp is displayed on the in-
strument panel, accompanied by
an audible signal and a message
on the multifunction screen.
The system then places your headlamps
in the lowest position.
When stationary or moving
at very low speed or when
reverse gear is engaged, the
function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.

SA
F
132

Height adjustment

Front seat belt not fastened/
unfastened warning lamp









Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


)
To adjust the anchorage point,
squeeze the control A
and slide it
until you fi nd a notch.

When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two minutes
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the driver
and/or the front passenger fastens their
seat belt.
Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.

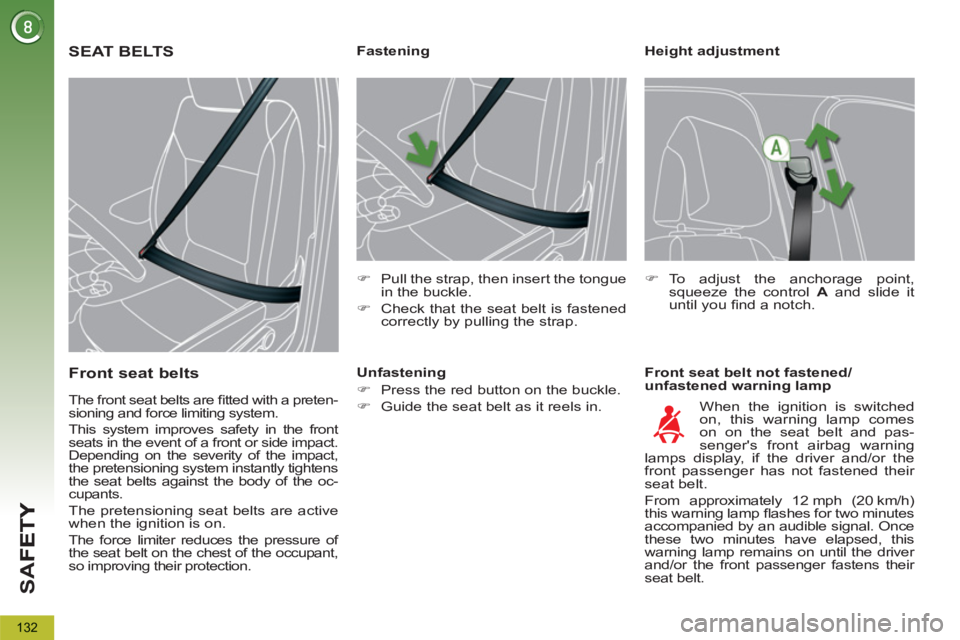

SEAT BELTS

Front seat belts


The front seat belts are fi tted with a preten-
sioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact,
the pretensioning system instantly tightens
the seat belts against the body of the oc-
cupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure of
the seat belt on the chest of the occupant,
so improving their protection.

D
R
I
148

System which projects various informa-
tion onto a transparent strip in the fi eld
of vision of the driver so that they do not
have to take their eyes off the road.
This system operates when the engine
is running and the settings are stored
when the ignition is switched off.

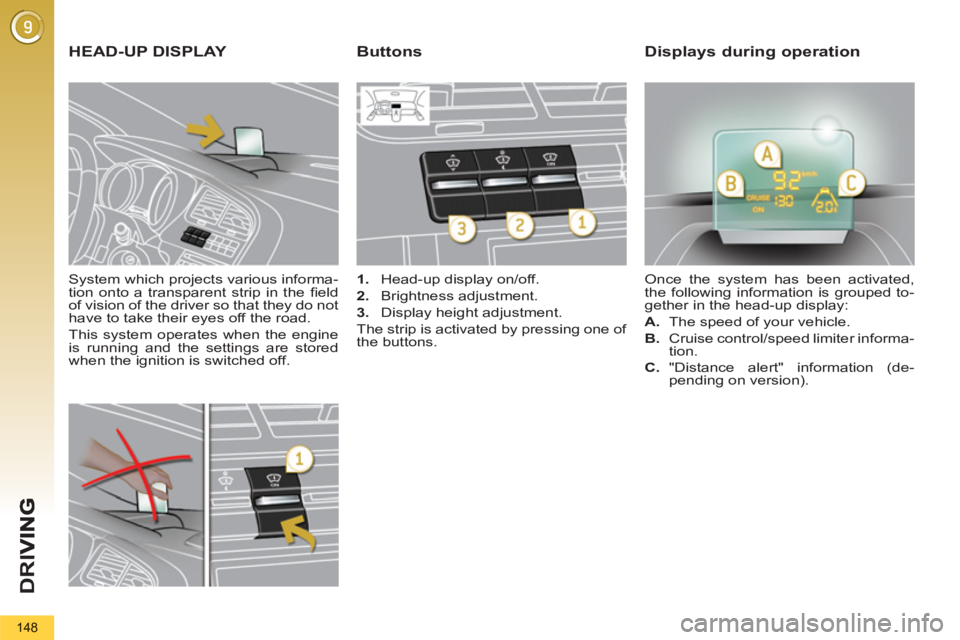

HEAD-UP DISPLAY



1.
Head-up display on/off.

2.
Brightness adjustment.

3.
Display height adjustment.
The strip is activated by pressing one of
the buttons. Once the system has been activated,
the following information is grouped to-
gether in the head-up display:


A.
The speed of your vehicle.

B.
Cruise control/speed limiter informa-
tion.

Buttons Displays during operation



C.
"Distance alert" information (de-
pending on version).

D
R
149

In certain extreme weather
conditions (rain and/or snow,
bright sunshine, ...) the head-
up display may not be legible or may
suffer temporary interference.
Certain glasses (sunglasses, spec-
tacles or polarised lenses) may ham-
per reading of the information.
To clean the transparent strip, which
is made of organic glass, use a clean,
soft cloth (such as a spectacles cloth
or microfi bre cloth). Do not use a dry
or abrasive cloth or detergent or sol-
vent products as these could scratch
the strip or damage the anti-refl ec-
tion coating.

We recommend that adjust-
ments are only made using
these buttons when the vehi-
cle is stationary.
When stationary or while driving, no
objects should be placed around the
transparent strip (or on its cover) to
avoid blocking the strip output and
preventing its correct operation.


)

With the engine running, press button 1
.
The activated/deactivated status when
the engine was switched off is retained
when the engine is switched on again.

Height adjustment



)
With the engine running, adjust the
display to the required height using
button 3
:


- up to move the display up,

- down to move the display down.


Activation/Deactivation Brightness adjustment



)
With the engine running, adjust the
brightness of the information using
button 2
:


- up to increase the brightness,

- down to decrease the brightness.

PRACTICAL INFORMATION
203

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions



F1



20

Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).


F2



15

Horn.


F3



10

Front/rear screenwash.


F4



10

Daytime running lamps.


F5



15

Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 l THP 16V), oil vapour heater (1.6 l THP 16V),
diesel heater (1.6 l HDI 16V).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.


F10



30

Engine management unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning blower.

ALPHABETICAL INDEX
326
Eco-driving ..............................25
Economical driving .................25
Economy mode......................208
Electric window controls ..........83
Electronic engine
immobiliser ......................78, 80
Electronic stability control
(ESC) ..................................130
Emergency boot release..........88
Emergency call ..............224, 225
Emergency warning lamps ....128
Energy economy mode..........208
Engine, Diesel ........90, 173, 175,
216, 217, 220
Engine,
petrol .............90, 174, 214, 215
Engine compartment .....174, 175
Engine
compartment fusebox .........199
Engine oil level
indicator ........................40, 176
Engines..........................214, 216
Environment ......................25, 80
ESC/ASR ...............................130
ESP/ASR ...............................131
E
Hazard warning lamps ...........128
Head-up display.....148, 152, 154
Headlamp adjustment........94, 95
Headlamps, directional ....95, 194
Headlamp wash .......................97
Headlamp wash reservoir ......176
Head restraints, front ...............67
Head restraints, rear ................69
Heated seats ...........................67
Heating ........................25, 59, 60
Height and reach adjustment,
steering wheel .......................75
High load retaining net........... 112
Hill start assist .......................145
Hooks ............................ 110, 114
Horn .......................................128 Direction
indicators ............128, 194, 197
Distance alert.........................150
Doors .......................................85
Doors emergency control ........87
Door trays ..............................102
Dynamic emergency
braking ................................143Fitting roof bars...................... 211
Fittings, boot .................. 109, 110
Flashing indicators.................128
Foglamps, rear ........................92
Folding the rear
seats .........................69, 71, 72
Front foglamps.........92, 194, 196
Front seats...................65, 66, 68
Fuel..............................25, 89, 90
Fuel consumption ....................25
Fuel fi ller cap ...........................89
Fuel fi ller fl ap .....................89, 90
Fuel gauge...............................89
Fuel tank ............................89, 90
Fusebox, dashboard ..............199
Fuses .....................................199
Filling with fuel ...................89, 90
Fitting a wheel .......................192
F
G.P.S. ............................238, 277
Gearbox, automatic .......161, 178
Gearbox, electronic
gear control .........157, 164, 178
Gearbox, manual ...156, 164, 178
Gear lever ................................25
Gear lever,
automatic gearbox ..............161
Gear lever, electronic gear
control gearbox ...................157
Gear lever, manual gearbox .....156
Gear shift indicator ................156
Glove box ......................102, 103
Grab handles .........................102
Guidance .......................238, 277
Guide-me-home.......................94
G
Halogen headlamps...............194
Hands-free kit ........291, 292, 313
H
Identifi cation plates ................222
Indicator lamps, status.............30
Indicators, direction ...............128
Infl ating accessories
(using the kit) ......................179
Infl ating tyres ...........................25
Inputs for audio
system ........254, 290, 310, 312
Instrument panel lighting .........41
Instrument panels ..............27, 28
Instrument panel screen ...27, 156
Intelligent Traction Control .....130
Interior fi ttings ........................102
Interior mood lighting .............100
ISOFIX child seats ......... 123-125
ISOFIX mountings .................123
I
Jack ...............................188, 190
JACK socket ..........104, 310, 312
J
