FAMILIARISATION
8

INTERIOR

Digital air conditioning

This automatic air conditioning system
maintains the desired level of com-
fort and adequate air circulation in the
passenger compartment.

Cruise control

This system automatically maintains
the vehicle speed at the value pro-
grammed by the driver, without use of
the accelerator pedal.

Audio and communication
systems
These systems benefi t from the lat-
est technology: MP3 compatible audio
system, Bluetooth hands-free tele-
phone, colour screen...

Four wheel drive system with
electronic control
This system permits the selection of a
transmission mode to suit the driving
conditions.


44




121



162




119

9
PRACTICAL INFORMATION

Dashboard fuses

The fuseboxes are placed in the lower
dashboard behind the enclosed storage
compartment (left-hand side).

Access to the fuses


)
Open the cover A
,

)
Pull it towards you to extract it,

)
Change the fuse (refer to the cor-
responding paragraph).

Fuse N°



Rating



Functions




1*



30 A

Heating.


2



15 A

Brake lamps, third brake lamp, built-in systems
interface.


3



10 A

Rear foglamps.


4



30 A

Windscreen wipers and screenwash.


5



10 A

Diagnostic socket.


6



20 A

Central locking, door mirrors.


7



15 A

Audio equipment, telematics, multifunction screen,
Bluetooth system.


8



7.5 A

Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.


9



15 A

Multifunction screen, instrument panel.


10



15 A

Built-in systems interface.


11



15 A

Rear wiper.


12



7.5 A

Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.


13



-

Not used.


14



10 A

Ignition switch.


15



20 A

Sunroof.


16



10 A

Door mirrors, audio equipment, telematics.

11
AUDIO EQUIPMENT and TELEMATICS
F - Consult the air conditioning con-
ditions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator,
F6 - the AUTO mode indicator. E - Consult the environment informa-
tion:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the ambient temperature. The ice
symbol fl ashes if there is a risk of
ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call.
Refer to the hands-free tele-
phone section to connect your
Bluetooth
® mobile telephone.


Environment, air conditioning,
telephone
F1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
G
EF

11
AUDIO EQUIPMENT and TELEMATICS
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE

What is the Bluetooth® hands-free
telephone with voice recognition?
SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telephone call is progress. Decrease the audio volume.
PICK UP
Press to answer an incoming call.
If a second incoming call is received,
press this button to place the fi rst
call on hold and speak to the second
caller.
In this case, a brief press switches
between callers.
To establish a three-way conver-
sation, press the SPEAK button to
switch to voice recognition mode and
say "Incorporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.



General notes

Increase the audio volume. Audio system on/off.


The system uses wireless
communication technology
referred to as Bluetooth
®
which allows you to make
hands-free telephone calls
in your vehicle via your
Bluetooth
® compatible mo-
bile telephone.
You can make telephone calls using
a microphone located in the courtesy
lamp, making use of the simple steering
mounted controls or by the voice rec-
ognition function with voice commands.
Five languages are available: English
(by default), Spanish, French, German
and Italian.

11
AUDIO EQUIPMENT and TELEMATICS

Matching your Bluetooth®
telephone
The system can register up to 7 Bluetooth®
compatible mobile telephones.
The telephone which has the highest
level of priority is connected automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the parking
brake applied.
1 - Press the SPEAK button.
7 - Say a 4-digit number which will
be recorded as the matching
code. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order
of priority between 1 and 7. One is
the highest level of priority".
If the system does not detect the
Bluetooth
® compatible mobile
telephone, the matching proc-
ess stops accompanied by an
audible signal.
If you select a level of priority
which has already been allo-
cated to another telephone, the
system asks you if you wish to
replace this level of priority. Remember this matching code as
you must enter it in the telephone
in one of the following steps of
the matching procedure.
9 - The system says "Start the match-
ing procedure on the telephone.
Consult the instructions in the tel-
ephone manual".
2 - Say "Confi gure".
3 - Say "Matching options".
5 - Say "Match a telephone". 8 -
The system confi rms the validity of
the number spoken, answer "Yes".
Say "No" to return to step 7.

10 - Consult your mobile tele-
phone's user manual and
enter the matching code
recorded in step 7 in the
telephone. 14 - Say a number between 1 and
7 to establish the level of pri-
ority of the mobile telephone.
15 - The system says and confi rms the
and the
of its priority.
16 - Answer or say
to return to step 13.
17 -
The systems says "Matching com-
plete" then emits an audible signal and
deactivates the voice recognition
.
4 - The system says "Do you wish to
match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
6 - The systems says "Please say the
4 digits of a matching code". If the code is incorrect, the system
locks. To clear the code:


- check that the telephone's
voice recognition is not acti-
vated,

- with the ignition on and the
audio system active, press
the HANG UP button for
2 seconds, 3 times in suc-
cession.
11 - When it detects a Bluetooth
® com-
patible mobile telephone, the system
says "Please say the name of the
telephone after the bleep".

11
AUDIO EQUIPMENT and TELEMATICS





















Making a telephone call using a number, phone book
A Bluetooth® compatible mobile telephone
must be matched with the system.

Using a telephone number
If your vehicle is fi tted with the
audio-telematics screen, you
can use the press buttons to dial
a number then make a call.
Recording a name in the system's
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
4 - Say the telephone number.
5 - The system asks you to
confi rm this number, answer
"Yes". Say "No" to return to
the previous step. 2 - Say "Phone book".
4 - Say "New entry".
6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
10 - Answer "Yes" or say "No" to
return to step 7.
12 - If you do not wish to change
the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
14 - Answer "Yes" or say "No" to
return to step 11.
1 - Press the SPEAK button.
3 - The system says "Number please".
3 - The system says "Select one of the
following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
5 - The system says "Name please". To enter a new number: 9 - The system asks you to confi rm the
location.
11 - If a telephone number has already
been recorded for this location, the
system says "The current number
is , number please".
13 - The system asks you to confi rm the
number.

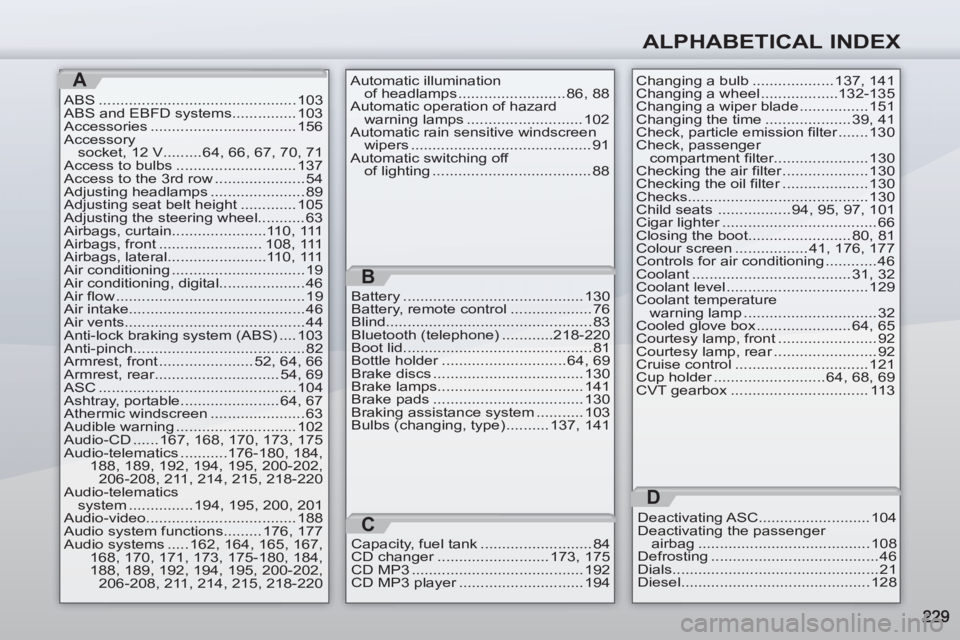

ALPHABETICAL INDEX
A
ABS .............................................. 103
ABS and EBFD systems............... 103
Accessories .................................. 156
Accessory
socket, 12 V ......... 64, 66, 67, 70, 71
Access to bulbs ............................ 137
Access to the 3rd row ..................... 54
Adjusting headlamps ...................... 89
Adjusting seat belt height ............. 105
Adjusting the steering wheel........... 63
Airbags, curtain......................110, 111
Airbags, front ........................ 108, 111
Airbags, lateral.......................110, 111
Air conditioning ............................... 19
Air conditioning, digital.................... 46
Air flow ............................................ 19
Air intake......................................... 46
Air vents.......................................... 44
Anti-lock braking system (ABS) .... 103
Anti-pinch........................................ 82
Armrest, front ...................... 52, 64, 66
Armrest, rear ............................. 54, 69
ASC .............................................. 104
Ashtray, portable ....................... 64, 67
Athermic windscreen ...................... 63
Audible warning ............................ 102
Audio-CD ...... 167, 168, 170, 173, 175
Audio-telematics ...........176-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220
Audio-telematics
system ............... 194, 195, 200, 201
Audio-video................................... 188
Audio system functions......... 176, 177
Audio systems ..... 162, 164, 165, 167,
168, 170, 171, 173, 175-180, 184,
188, 189, 192, 194, 195, 200-202,
206-208, 211, 214, 215, 218-220Automatic illumination
of headlamps ......................... 86, 88
Automatic operation of hazard
warning lamps ........................... 102
Automatic rain sensitive windscreen
wipers .......................................... 91
Automatic switching off
of lighting ..................................... 88
Battery .......................................... 130
Battery, remote control ................... 76
Blind................................................ 83
Bluetooth (telephone) ............218-220
Boot lid............................................ 81
Bottle holder ............................. 64, 69
Brake discs ................................... 130
Brake lamps.................................. 141
Brake pads ................................... 130
Braking assistance system ........... 103
Bulbs (changing, type) .......... 137, 141Changing a bulb ................... 137, 141
Changing a wheel ..................132-135
Changing a wiper blade ................ 151
Changing the time .................... 39, 41
Check, particle emission filter ....... 130
Check, passenger
compartment filter ...................... 130
Checking the air filter .................... 130
Checking the oil filter .................... 130
Checks.......................................... 130
Child seats ................. 94, 95, 97, 101
Cigar lighter .................................... 66
Closing the boot........................ 80, 81
Colour screen ................. 41, 176, 177
Controls for air conditioning ............ 46
Coolant ..................................... 31, 32
Coolant level ................................. 129
Coolant temperature
warning lamp ............................... 32
Cooled glove box ...................... 64, 65
Courtesy lamp, front ....................... 92
Courtesy lamp, rear ........................ 92
Cruise control ............................... 121
Cup holder .......................... 64, 68, 69
CVT gearbox ................................ 113
B
Capacity, fuel tank .......................... 84
CD changer .......................... 173, 175
CD MP3 ........................................ 192
CD MP3 player ............................. 194
C
D
Deactivating ASC.......................... 104
Deactivating the passenger
airbag ........................................ 108
Defrosting ....................................... 46
Dials................................................ 21
Diesel............................................ 128
