CONTENTS
FAMILIARISATION 4-25
INSTRUMENTS
and CONTROLS 44-58CHILD
SAFETY 118-128
MULTIFUNCTION
SCREENS 59-67SAFETY 129-138 COMFORT 68-81
ACCESS 82-96
VISIBILITY 97-106FITTINGS 107-117
Instrument panels ........................... 44
Indicator and warning lamps .......... 46
Indicators ........................................ 54
Adjustment buttons ......................... 58Child seats .....................................118
ISOFIX child seats........................ 125
Child lock ...................................... 128
Screen C
(Peugeot Connect Sound)............ 59
16/9 high definition retractable
colour screen
(Peugeot Connect Media) ............ 62Direction indicators ....................... 129
Hazard warning lamps.................. 129
Horn .............................................. 129
ESC system .................................. 130
Front seat belts............................. 132
Airbags ......................................... 135 Heating and Ventilation .................. 68
Rear screen demist - defrost .......... 69
Dual-zone digital air conditioning ... 70
Front seats ..................................... 73
Rear seats ...................................... 77
Steering wheel adjustment ............. 79
Mirrors ............................................ 80
Remote control key ........................ 82
Alarm .............................................. 87
Electric windows ............................. 89
Doors .............................................. 91
Boot ................................................ 93
Lower tailgate ................................. 94
Fuel tank ......................................... 95
Misfuel prevention (Diesel) ............. 96
Lighting controls ............................. 97
Automatic illumination
of headlamps .............................. 100
Headlamp adjustment .................. 100
Wiper controls .............................. 101
Automatic rain sensitive wipers .... 103
Courtesy lamps ............................ 104
Interior mood lighting .................... 105
Boot lamp ..................................... 106Interior fittings ............................... 107
Front armrest ................................ 109
Rear multimedia ............................ 111
Panoramic sunroof ........................113
Boot fittings ....................................114
HYBRID SYSTEM 26-43
Eco-driving...................................... 37
Page 13 of 284
11
FAMILIARISATION
OPENING
Boot
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.
Closing
)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.
Lower tailgate
93
Opening
)
Push the handle C
to the right and
tilt the tailgate D
.
Closing
)
Raise the tailgate D
, push it fully
to close it, check that it is locked
correctly.
94
Page 23 of 284
21
FAMILIARISATION
ARRANGE YOUR BOOT
Rear seats
)
Check that nothing is preventing the
seat backs from folding (front seats
moved forwards, head restraints,
seat belts, ...).
)
Check also that no object on or under
the seat could hinder its movement.
77
)
Pull the control of the 1/3 section,
from the boot.
)
Pull the control of the 2/3 section,
from the boot.
The seats are aligned with the fl oor and
the lower tailgate.
Adjustable boot floor
11 5 100 kg max.
Place the fl oor in this position (at an
angle), two stops support it to allow
access underneath it.
Page 29 of 284
HYBRID SYSTEM
27
Main parts of the HYbrid4 system
The Diesel HDi Diesel engine 1
, located at the front, drives the front wheels and
provides most of the power needed to drive the vehicle.
It is fi tted with the Stop & Start
system 5
which recharges the batteries and pro-
vides additional power when needed (in 4x4 mode).
The electric motor 2
, located at the rear, drives the rear wheels on its own, or
supplements the Diesel engine, according to the hybrid mode selected.
It recovers energy and charges the batteries during phases of deceleration of the
vehicle and is active up to 70 mph (120 km/h).
A 200 V NI-MH high voltage battery 3
, provides a source of energy for the rear
electric motor.
Its charging rate is managed automatically by the vehicle during phases of deceleration.
It is located in a compartment in the boot, access to which is restricted to trained
service technicians.
The battery state of charge
is indicated by 8 horizontal or vertical bars (depending
on the screen).
The conventional battery
, located under the bonnet, powers the vehicle's 12 V
systems. It is recharged automatically by the high voltage network.
Page 40 of 284
HYBRID SYSTEM
38
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilometres)
that you will see the fuel consumption set-
tle down to a consistent average.
Page 42 of 284
HYBRID SYSTEM
40

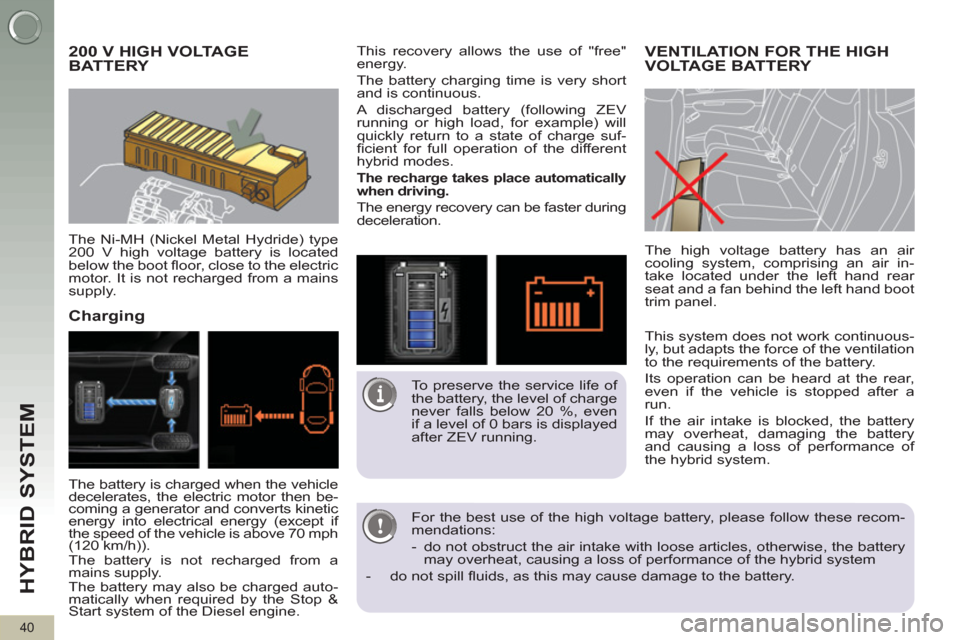

200 V HIGH VOLTAGE
BATTERY
The Ni-MH (Nickel Metal Hydride) type
200 V high voltage battery is located
below the boot fl oor, close to the electric
motor. It is not recharged from a mains
supply.
Charging
This recovery allows the use of "free"
energy.
The battery charging time is very short
and is continuous.
A discharged battery (following ZEV
running or high load, for example) will
quickly return to a state of charge suf-
fi cient for full operation of the different
hybrid modes.
The recharge takes place automatically
when driving .
The energy recovery can be faster during
deceleration.
This system does not work continuous-
ly, but adapts the force of the ventilation
to the requirements of the battery.
Its operation can be heard at the rear,
even if the vehicle is stopped after a
run.
If the air intake is blocked, the battery
may overheat, damaging the battery
and causing a loss of performance of
the hybrid system.
VENTILATION FOR THE HIGH
VOLTAGE BATTERY
For the best use of the high voltage battery, please follow these recom-
mendations:
- do not obstruct the air intake with loose articles, otherwise, the battery
may overheat, causing a loss of performance of the hybrid system
- do not spill fl uids, as this may cause damage to the battery.
The battery is charged when the vehicle
decelerates, the electric motor then be-
coming a generator and converts kinetic
energy into electrical energy (except if
the speed of the vehicle is above 70 mph
(120 km/h)).
The battery is not recharged from a
mains supply.
The battery may also be charged auto-
matically when required by the Stop &
Start system of the Diesel engine.
To preserve the service life of
the battery, the level of charge
never falls below 20 %, even
if a level of 0 bars is displayed
after ZEV running.
The high voltage battery has an air
cooling system, comprising an air in-
take located under the left hand rear
seat and a fan behind the left hand boot
trim panel.
Page 52 of 284
50
INSTRUMENTS and CONTROLS
Warning lamps
When the hybrid system is active or the vehicle is being driven, the illumination of one of the following warning lamps indicates
a fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, associated
with another warning
lamp, accompanied
by an audible signal
and a message in
the screen. It is associated with the
braking system, the power
steering, the engine oil
pressure, the engine coolant
temperature or the hybrid
system. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a
PEUGEOT dealer.
Service
temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen, such as, for example:
- the hybrid system,
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- saturation of the particle emission
fi lter (Diesel).
For any other faults, contact a PEUGEOT
dealer.
fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen and contact a
PEUGEOT dealer.
(PEF:
particle
emissions
fi lter, Diesel)
fi xed, associated
temporarily with a
message on the risk
of FEP fi lter blockage. This indicates the start of
saturation of the particle
emissions fi lter. As soon as traffi c conditions permit,
regenerate the fi lter by by driving at a
speed of of least 36 mph (60 km/h) until
the service warning lamp goes off.
fi xed. This indicates the low level of
the Diesel additive reservoir. Have it topped up as soon as possible
by a PEUGEOT dealer.
Page 55 of 284
53
INSTRUMENTS and CONTROLS
Warning lamp
is on
Cause
Action/Observations
Door(s)
open
fi xed if the speed is
below 6 mph (10 km/h).
A door, the boot, the lower
tailgate or the bonnet (with
alarm only) is still open. Close the door or boot.
fi xed and accompanied
by an audible signal if
the speed is above
6 mph (10 km/h).
Seat belt not
fastened/
unfastened
fi xed then fl ashing
accompanied by an
increasing audible
signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt. Pull the strap then insert the tongue in
the buckle.
Airbags
on temporarily. This lamp comes on for a few
seconds when you turn on
the ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.
fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Water in
Diesel
fi xed. The Diesel fuel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system.
You must stop as soon it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.
Battery
charge
*
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.
*
According to destination country.
