2012 Peugeot 3008 Hybrid 4 ESP

18
FAMILIARISATION
SEEING CLEARLY

Lighting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of
headlamps.
97, 98



Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
129



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.
101

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
102

19
FAMILIARISATION
MONITORING

Instrument panel



A.
With the ignition on, the needle should
indicate the level of fuel remaining.

B.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
44


Warning lamps



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the hybrid system active, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
46


Switch panels

Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
ECO OFF.
36
158
131
87
147
129
92

B.
Visual and audible
parking sensors.

C.
ESP OFF.

D.
Interior volumetric
protection alarm.

E.
Head-up display.

F.
Hazard warning
lamps.

G.
Central locking.
Lower


Central

20
FAMILIARISATION
PASSENGER SAFETY

Passenger's front airbag



1.
Insert the key.

2.
Select the position:

"OFF"
(deactivation), with "rear facing"
child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
136


Seat belts and passenger's
front airbag


A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H.
Passenger's front airbag activated
warning lamp.
133, 136


Child lock
(locking of the rear doors)
Illumination of the indicator lamp indicates
the status of the corresponding function.
128

HYBRID SYSTEM
31





HYBRID4 MODE SELECTOR


The selector allows the user to choose
between 4 drive modes for the vehicle.
Turn the dial to the right or left; the mode
selected is confi rmed by illumination of
the corresponding indicator.


ZEV
mode, to force electric running.

Sport
mode, to make use of the maxi-
mum performance of the vehicle.

Auto mode



4WD
mode, to force the vehicle into 4x4
mode.

It automatically manages the operation
of the Diesel engine and the electric
motor, according to inherent vehicle pa-
rameters, traffi c conditions and driving
style so as to optimise the vehicle's
fuel consumption
.
In particular, this mode activates "zero
emissions" electric running
when the
conditions allow.
In auto mode, the electric motor
:


-
can drive the vehicle on its own up to
around 36 mph (60 km/h) in "zero emis-
sions" electric running, depending on
the state of charge of the battery, if the
conditions specifi c to the vehicle are
met and if acceleration is moderate,

- supplements the Diesel engine

when moving off and changing gear,
during acceleration and when traction
from the front wheels is inadequate (it
automatically adds
4 wheel drive
),

- is no longer active above 70 mph
(120 km/h).



AUTO
mode, for normal use and opti-
mised fuel consumption.
This standard
mode to use in
preference
is activated auto-
matically
on starting the hy-
brid system.

HYBRID SYSTEM
33

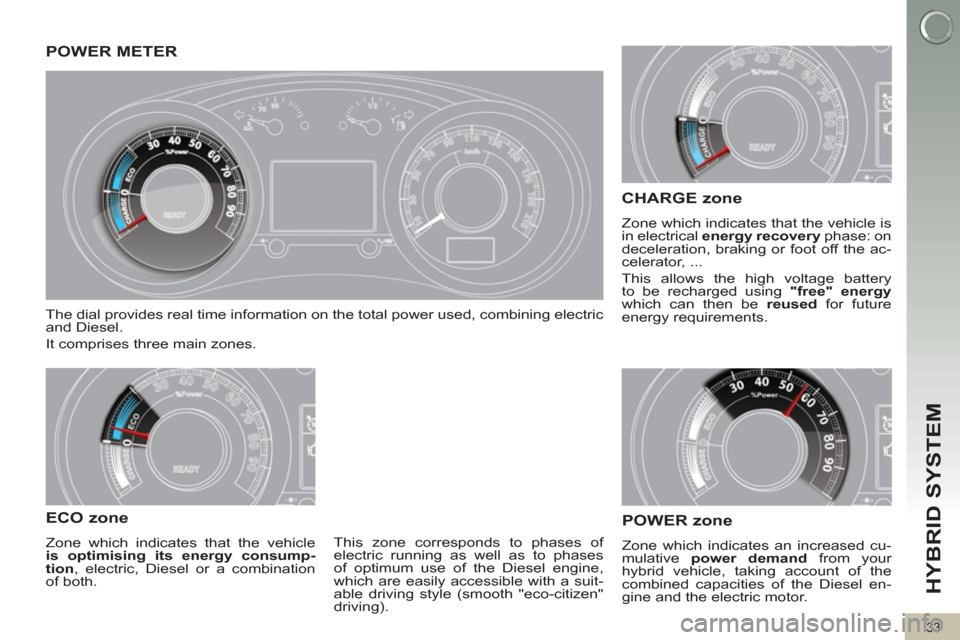

POWER METER

The dial provides real time information on the total power used, combining electric
and Diesel.
It comprises three main zones.


ECO zone

Zone which indicates that the vehicle
is optimising its energy consump-
tion
, electric, Diesel or a combination
of both.

POWER zone

Zone which indicates an increased cu-
mulative power demand
from your
hybrid vehicle, taking account of the
combined capacities of the Diesel en-
gine and the electric motor.


CHARGE zone

Zone which indicates that the vehicle is
in electrical energy recovery
phase: on
deceleration, braking or foot off the ac-
celerator, ...
This allows the high voltage battery
to be recharged using "free" energy

which can then be reused
for future
energy requirements.
This zone corresponds to phases of
electric running as well as to phases
of optimum use of the Diesel engine,
which are easily accessible with a suit-
able driving style (smooth "eco-citizen"
driving).

HYBRID SYSTEM
39
CONSUMPTION OF YOUR HYBRID IN THE SCREEN


Average consumption over the last 5 minutes.
"60 % Hybrid Use" corresponds to 60 % of the
running time driven by the hybrid system and
40 % of the time with the Diesel engine only
(with no contribution from the hybrid system).


For more information on the trip computer,
refer to the corresponding section.


Resetting the history

With trip 2 displayed, press the control
for 2 seconds to reset the history to
zero.

46
INSTRUMENTS and CONTROLS

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the "Ac-
cess" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section).

Choice of units
This menu allows you to select the
units: temperature (°Celsius or °Fahr-
enheit) and fuel consumption (l/100 km,
mpg or km/l).

Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .

*
According to country.









Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off,
refer to the information on the warning
lamp concerned.

Associated warnings
The illumination of certain warning
lamps may be accompanied by an au-
dible signal and a message in the multi-
function screen.
The warning lamps may come
on continuously (fi xed) or fl ash.
Certain warning lamps may
come on in two different modes. Only
by relating the type of illumination to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a fault
has occurred.

47
INSTRUMENTS and CONTROLS

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.



Warning lamp



is on



Cause



Action/Observations






Left-hand
direction
indicato

r


fl ashing
with buzzer. The lighting stalk is pushed
down.




Right-hand
direction
indicator


fl ashing
with buzzer.
The lighting stalk is pushed up.




Sidelamps


fi xed. The lighting stalk is in the
"Sidelamps" position.




Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.




Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
Ready


fi xed. The vehicle is ready to move
off; you can press the
accelerator. It comes on once high voltage is established in
the vehicle.




Front
foglamps


fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch
off the rear foglamps.
