CAUTION
●Do not push start this vehicle. The
three-way catalyst may be damaged.
● Automatic Transmission (A/T) or Con-
tinuously Variable Transmission (CVT)
models cannot be push-started or tow-
started. Attempting to do so may cause
transmission damage.
● For manual transmission models, never
try to start the vehicle by towing it.
When the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle. If your vehicle is overheating (indicated by a red
high temperature warning light) , or if you
feel a lack of engine power, detect abnormal
noise, etc. take the following steps.
WARNING
● Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
● To avoid the danger of being scalded,
never remove the radiator cap while the
engine is still hot. When the radiator
cap is removed, pressurized hot water
will spurt out, possibly causing serious
injury.
● Do not open the hood if steam is com-
ing out.
1. Move the vehicle safely off the road, apply the parking brake and move the shift selector
to N (Neutral) (manual transmission) or to P
(Park) (A/T or CVT) .
Do not stop the engine.
2. Turn off the air conditioner (if so equipped) . Open all the windows, move the heater or air
conditioner temperature control to maximum
hot and fan control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. (If steam or cool-
ant is escaping, turn off the engine.) Do not
open the hood further until no steam or
coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
5.
Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking, the
water pump belt is missing or loose, or the
cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling
fan can start at any time.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-9

WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to re-
move the spark plugs. An incorrect socket
can damage the spark plugs.
If replacement is required, see your NISSAN
dealer for assistance.
The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide.” When replacing the filter, wipe the
inside of the air cleaner filter housing and the
cover with a damp cloth.
To remove the air cleaner filter, push the tabs
1
and pull the unit upward2.
WARNING
●Operating the engine with the air
cleaner removed can cause you or oth-
ers to be burned. The air cleaner not
only cleans the air, it stops the flame if
the engine backfires. If it isn’t there, and
the engine backfires, you could be
burned. Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
SDI1864
AIR CLEANER
8-18Maintenance and do-it-yourself

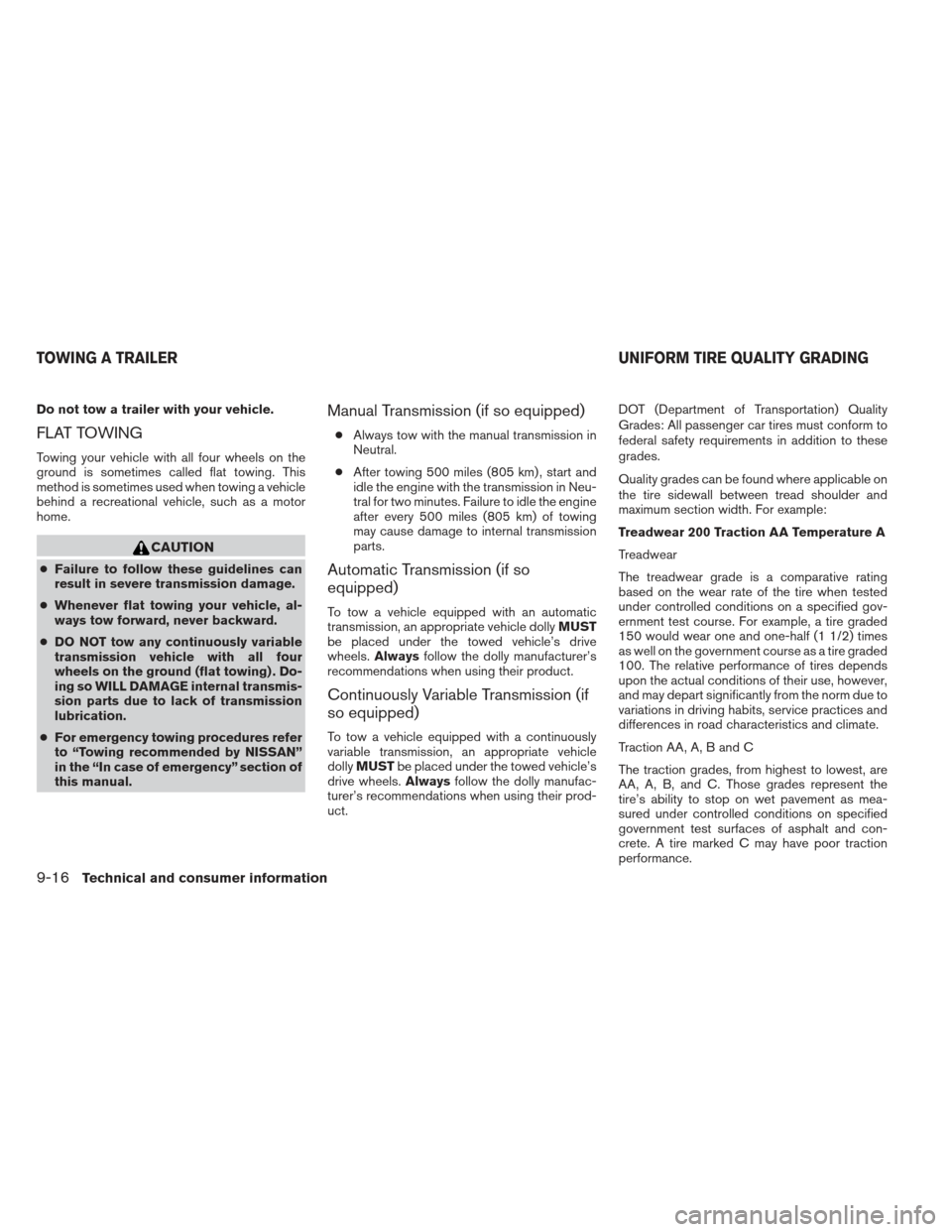

Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
●Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● DO NOT tow any continuously variable
transmission vehicle with all four
wheels on the ground (flat towing) . Do-
ing so WILL DAMAGE internal transmis-
sion parts due to lack of transmission
lubrication.
● For emergency towing procedures refer
to “Towing recommended by NISSAN”
in the “In case of emergency” section of
this manual.
Manual Transmission (if so equipped)
● Always tow with the manual transmission in
Neutral.
● After towing 500 miles (805 km) , start and
idle the engine with the transmission in Neu-
tral for two minutes. Failure to idle the engine
after every 500 miles (805 km) of towing
may cause damage to internal transmission
parts.
Automatic Transmission (if so
equipped)
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle’s drive
wheels. Always follow the dolly manufacturer’s
recommendations when using their product.
Continuously Variable Transmission (if
so equipped)
To tow a vehicle equipped with a continuously
variable transmission, an appropriate vehicle
dolly MUST be placed under the towed vehicle’s
drive wheels. Alwaysfollow the dolly manufac-
turer’s recommendations when using their prod-
uct. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
TOWING A TRAILER
UNIFORM TIRE QUALITY GRADING
9-16Technical and consumer information

10 Index
A
ABS (Anti-lock Braking System) ........5-28
Air bag (See supplemental restraint
system) .....................1-34
Air bag system Front (See supplemental front impact air bag
system) ...................1-41
Side and curtain (See supplemental
side air bag and curtain side-impact
air bag system) ...............1-45
Airbagwarninglabels.............1-48
Airbagwarninglight...........1-48,2-12
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation ..........4-12
Air conditioner service ...........4-17
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls .....4-9
Servicing air conditioner ..........4-17
Airflowcharts..................4-13
Alarm system
(See vehicle security system) .........2-16
Anchor point locations .............1-20
Antenna.....................4-48
Anti-lock brake warning light ..........2-8
Anti-lock Braking System (ABS) ........5-28
Armrests .....................1-4
Audible reminders ...............2-15
Audio system ..................4-17 Compact disc (CD) player . .4-28, 4-32, 4-38
FM/AM radio with compact disc
(CD) player
.................4-30
FM-AM radio with compact disc
(CD)
player ....................4-26
FM/AM/SAT radio with compact disc
(CD) player .................4-35
Audio System iPod Player .............4-42,4-44
Audio system Radio ....................4-17
Steering wheel audio control switch . . .4-47
USB interface ................4-41
Automatic Automatic power window switch .....2-32
Automatic transmission fluid (ATF) ....8-12
Driving with automatic transmission ....5-17
Automatic anti-glare inside mirror .......3-29
Automatic door locks ..............3-6
AUXjack.................4-34,4-40
B
Battery ......................8-15
Chargewarninglight.............2-9
Before starting the engine ...........5-11
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-32
Bluetooth hands-free phone system .....4-49
Boosterseats..................1-31 Brake
Anti-lock Braking System (ABS) ......5-28
Brakefluid..................8-13
Brakelight(Seestoplight).........8-29
Brake system ................5-27
Brake warning light ..............2-8
Brake wear indicators ........2-15,8-20
Parking brake operation ..........5-22
Self-adjusting brakes ............8-20
Brakes ......................8-20
Break-inschedule ...............5-25
Brightness/contrast button ...........4-8
Brightness control Instrument panel ..............2-22
Bulb check/instrument panel ..........2-8
Bulbreplacement................8-29
C
Capacities and recommended
fuel/lubricants ...................
9-2
Cargocover...................2-29
Cargo (See vehicle loading information) . . .9-12
CarphoneorCBradio.............4-48
CDcareandcleaning .............4-46
CD player (See audio system) . .4-28, 4-32, 4-38
Child restraints .......1-15,1-15,1-16,1-18
Precautions on child
restraints ........1-16,1-23,1-27,1-31
Top tether strap anchor point locations . .1-20
Child restraint with top tether strap ......1-20
Child safety rear door lock ............3-7

Front air bag system
(See supplemental restraint system)......1-41
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-25
Fuel-filler door and cap ...........3-25
Fuel-filler door lock opener lever ......3-25
Fuel gauge ...................2-5
Fueloctanerating...............9-4
Fuel recommendation .............9-3
Loosefuelcapwarning ........2-5,3-26
Fuses.......................8-21
Fusiblelinks ...................8-23
G
Gascap .....................3-25
Gauge Fuel gauge ...................2-5
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Generalmaintenance...............8-2
Glovebox.....................2-29
H
Hands-free phone system, Bluetooth .....4-49
Hazard warning flasher switch .........2-23
Headlightandturnsignalswitch........2-20
Headlightcontrolswitch ............2-20 Headlights
....................8-28
Heater Heater and air conditioner controls .....4-9
Heater operation ...............4-11
Hood release ...................3-23
Horn .......................2-24
I
Ignition switch ...................5-7
Immobilizer system .........2-17,3-4,5-11
Important vehicle information label .......9-10
Increasing fuel economy .............5-25
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).....................2-7
Inside automatic anti-glare mirror ........3-29
Inside mirror ...................3-29
Instrument brightness control ..........2-22
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-22
Intelligent Key system Key operating range .............3-12
Mechanicalkey ................3-3
Remote keyless entry operation .......3-16
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interiorlight....................2-35
iPod Player................4-42,4-44
ISOFIX child restraints .............1-18
J
Jump starting ...................6-7 K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-16
Keys, Except Intelligent Key ............3-2
Keys, For Intelligent Key system .........3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission

control information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-48
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-18
License plate Installing the license plate ..........9-11
Light Airbagwarninglight.........1-48, 2-12
Brake light (See stop light) .........8-29
Bulb check/instrument panel .........2-8
Bulbreplacement..............8-29
Charge warning light .............2-9
Fog light switch ...............2-23
Headlightandturnsignalswitch......2-20
Headlight control switch ..........2-20
Headlights..................8-28
10-3

FM/AM radio with compact disc
(CD) player..................4-30
FM/AM/SAT radio with compact disc
(CD) player ..................4-35
Steering wheel audio control switch ....4-47
Readiness for inspection maintenance
(I/M) test .....................9-19
Rear power windows ..............2-32
Rearseat......................1-4
Rear window and outside mirror defroster
switch .......................2-20
Rear window wiper and washer switches . . .2-19
Recorders Eventdata..................9-19
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-18
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-16,1-23,1-27,1-31
Reporting safety defects (US only) .....9-18
Seat adjustment Front manual seat adjustment ........1-2
Rear seat adjustment .............1-4
Seat belt Child safety ..................1-15
Infantsandsmallchildren..........1-15
Injured Person ................1-11
Largerchildren................1-16
Precautionsonseatbeltusage........1-8
Pregnant women ...............1-11
Seat belt extenders .............1-14 Seatbeltmaintenance............1-14
Seatbelts ...................1-8
Shoulder belt height adjustment
......1-14
Three-point type with retractor .......1-11
Seat belt warning light ..............2-12
Seats Adjustment ...................1-2
Frontseats...................1-2
Manual front seat adjustment .........1-2
Rearseat....................1-4
Security indicator light ..............2-14
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-17,3-4,5-11
Self-adjusting brakes ..............8-20
Service manual order form ...........9-20
Servicing air conditioner .............4-17
Setting button ...................4-5
Shifting Automatic transmission ...........5-18
Continuously Variable Transmission
(CVT) .....................5-14
Manual transmission .............5-21
Shiftlockrelease.............5-15,5-19
Shoulder belt height adjustment ........1-14
Side air bag system (See supplemental
side air bag and curtain side-impact air
bag system) ...................1-45
Sparkplugreplacement.............8-17
Speedometer ...................2-4
SRSwarninglabel................1-48
Starting Before starting the engine ..........5-11
Jump starting .................6-7
Precautions when starting and driving ....5-2
Push starting ..................6-9
Starting the engine .............5-12 Steering
Power steering system ...........5-27
Tilting steering wheel ............3-28
Steering wheel audio control switch ......4-47
Stoplight.....................8-29
Storage......................2-25
Storage tray ...................2-26
Sunglasses case .................2-27
Sunglasses

holder ................2-27
Sunroof (see Moonroof) .............2-33
Sun visors ....................3-28
Supplemental air bag warning labels ......1-48
Supplemental air bag warning light . . .1-48, 2-12
Supplemental front impact air bag system . . .1-41
Supplemental restraint system Information and warning labels .......1-48
Precautions on supplemental restraint
system ....................1-34
Supplemental restraint system
(Supplemental air bag system) .........1-34
Supplemental side and curtain side-impact
air bag system ..................1-45
Switch Automatic power window switch ......2-32
Fog light switch ...............2-23
Hazard warning flasher switch .......2-23
Headlightandturnsignalswitch......2-20
Headlight control switch ..........2-20
Ignition switch .................5-7
Overdrive switch ...............5-20
Power door lock switch ............3-6
Rear window and outside mirror defroster
switch .....................2-20
Rear window wiper and washer
switches...................2-19
Turnsignalswitch..............2-22
10-5
