2012 NISSAN QUEST navigation

Black plate (119,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
A maximum of 5 calculated routes can be
stored.
Stored routes can be easily retrieved and set as
the suggested route.
INFO:
Stored route includes only locations (destination
and waypoints) and route calculation conditions,
not the route itself.
1. Push .
2. Highlight [Route Info] and push .
3. Highlight [Store Route] and push
.4. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push .
The current route is stored.OTHER SETTINGSA route can also be stored using the following
procedure.1. Push . 2. Highlight [Navigation] and push
.
3. Highlight [Address Book] and push .
4. Highlight [Stored Routes] and push .
5. Highlight [Store Current Route] and push .
6. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The current
route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
“Deleting stored item” (page 6-18)
. If any waypoints are not set on the route, the
route cannot be stored.
Storing location/route
6-5
STORING ROUTE

Black plate (120,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-6
Storing location/route
A travelled route up to the current location can
be stored. A maximum of 5 tracked routes can
be stored.1. Push

Black plate (121,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
An Avoid Area can be stored.
The Avoid Area is an area that can be excluded
from a route, such as a road that is always
congested. Once Avoid Areas are stored, the
system avoids those areas when calculating a
route. Up to 10 Avoid Areas can be stored.
1. Push .2. Highlight [Navigation] and push .3. Highlight [Address Book] and push
.
4. Highlight [Avoid Area] and push .5. Highlight [Add New] and push .
INFO:
A maximum of 10 Avoid Areas can be
stored.
When 10 Avoid Areas are already stored, a
new Avoid Area cannot be stored until a
currently stored Avoid Area is deleted.
“Deleting stored item” (page 6-18)
6. Highlight the appropriate method to search for a location and push .
“4. Setting destination”
7. Set the following items for the searched
location.
Available setting items:
.
[Rename]:
Changes the name.
“Rename” (page 6-16)
.
[Move Location]:Adjusts the location of the Avoid Area.
“Move Location” (page 6-16)
Storing location/route
6-7
STORING AVOID AREA

Black plate (122,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-8
Storing location/route
.
[Resize Area]: Adjusts the range of the Avoid Area.
“Resize Area” (page 6-16)
.
[FWY]:Avoids Freeways.
“FWY” (page 6-17)
.
[Delete]:Deletes the avoid area.
“Delete” (page 6-17)
8. After finishing the setting, highlight [OK] and push . Items stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
BASIC OPERATION1. Push
.
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push .
4. Highlight the preferred item and push .Available items.[Stored Location]:
Edits the information of a stored home and
Address.
“Editing stored home and address”
(page 6-8)
. [Stored Routes]:
Edits the information of a stored route.“Editing stored route” (page 6-14) .
[Stored Tracking]:
Edits the information of a stored tracked
route.
“Editing stored tracking” (page 6-14)
. [Avoid Area]:
Edits the information of a stored Avoid Area.“Editing avoid area” (page 6-15)
. [Delete Stored Items]:
Deletes a stored location or route.“Delete stored items” (page 8-10)
. [Transfer Address Book]:
Imports or exports the data of the stored
items using a USB memory.
EDITING STORED HOME AND AD-
DRESS1. Highlight [Stored Location] and push
.
EDITING ADDRESS BOOK

Black plate (132,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6-18
Storing location/route

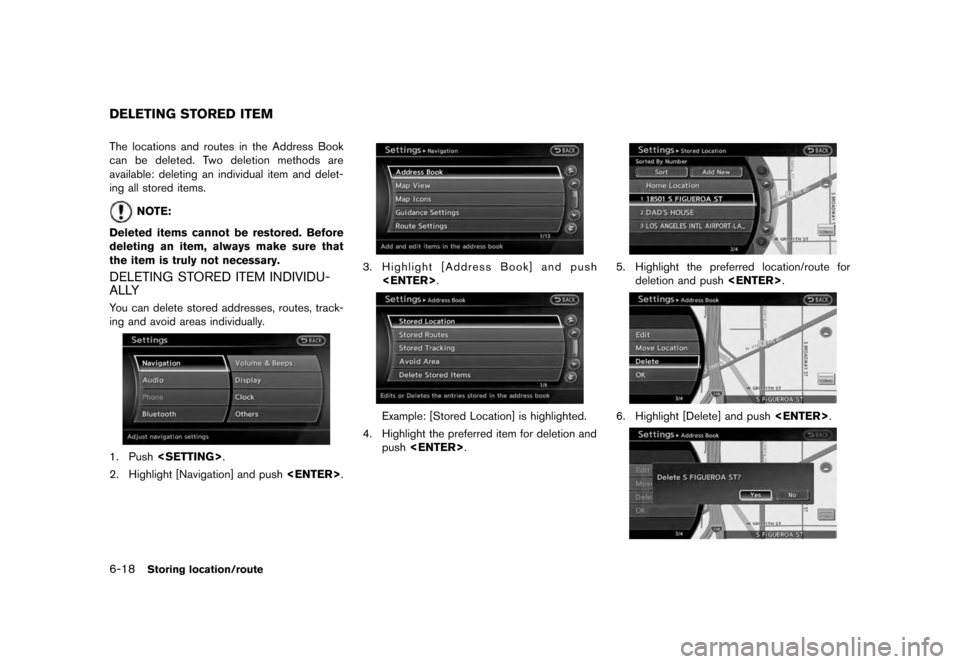

The locations and routes in the Address Book
can be deleted. Two deletion methods are
available: deleting an individual item and delet-
ing all stored items.
NOTE:
Deleted items cannot be restored. Before
deleting an item, always make sure that
the item is truly not necessary.
DELETING STORED ITEM INDIVIDU-
ALLYYou can delete stored addresses, routes, track-
ing and avoid areas individually.1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.
Example: [Stored Location] is highlighted.
4. Highlight the preferred item for deletion and push .
5. Highlight the preferred location/route for
deletion and push .6. Highlight [Delete] and push .
DELETING STORED ITEM

Black plate (133,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The stored item
is deleted from the Address Book.Other settingsA stored address can also be deleted using the
following procedure.1. Push .
2. Highlight [Address Book] and push .
3. Highlight [Store/Edit] and push .
4. Highlight [Edit or Delete an Entry] and push .
5. Highlight a preferred address and push .
“4. Setting destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this proce-
dure.
DELETING INDIVIDUAL ITEM ON THE
MAP1. Align the cross pointer over the preferred stored location for deletion by moving on the
map. Then push .2. Highlight [Delete] and push .
3. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push .
The stored item is deleted from the Address
Book.DELETING ALL STORED ITEMS1. Push .
2. Highlight [Navigation] and push .3. Highlight [Address Book] and push
.
Storing location/route
6-19

Black plate (135,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

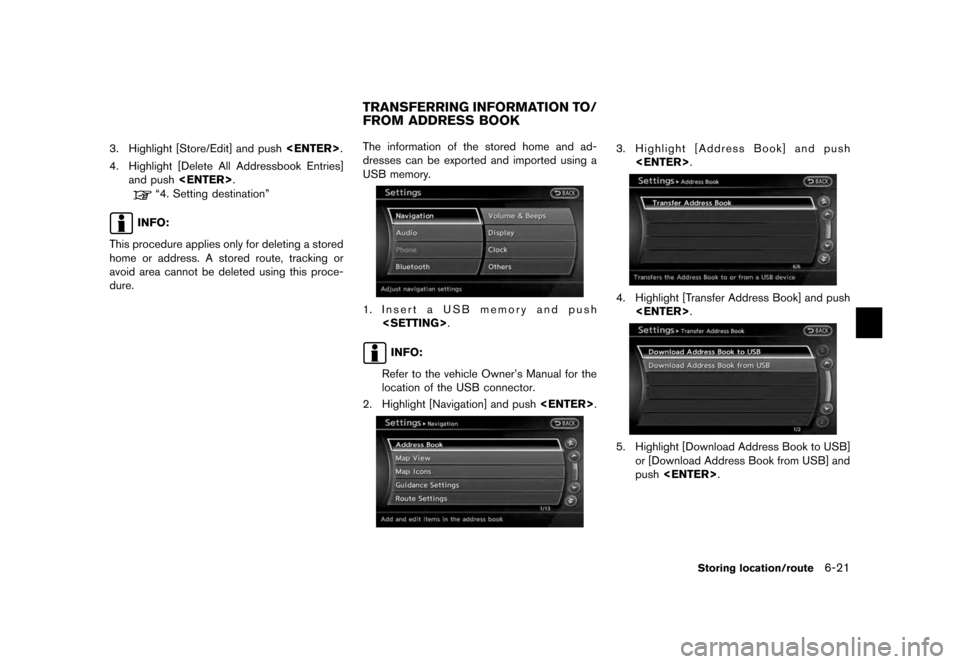

3. Highlight [Store/Edit] and push .
4. Highlight [Delete All Addressbook Entries] and push .
“4. Setting destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this proce-
dure. The information of the stored home and ad-
dresses can be exported and imported using a
USB memory.
1. Insert a USB memory and push
.
INFO:
Refer to the vehicle Owner’s Manual for the
location of the USB connector.
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.4. Highlight [Transfer Address Book] and push
.5. Highlight [Download Address Book to USB]
or [Download Address Book from USB] and
push .
Storing location/route
6-21
TRANSFERRING INFORMATION TO/
FROM ADDRESS BOOK

Black plate (137,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
7 Viewing technical informationInformation screen .................................................................... 7-2 Basic operation .................................................................... 7-2
Viewing information about current vehicle location .......... 7-3 Basic operation .................................................................... 7-3
Viewing available traffic information ..................................... 7-3 Basic operation .................................................................... 7-4
Info on route ........................................................................\
. 7-4
Nearby traffic info. ............................................................... 7-5
Display urgent traffic information .................................... 7-5
Traffic information on map ................................................ 7-6
Traffic information settings ................................................ 7-7 Viewing available weather information ................................ 7-8
Displaying weather information screen ....................... 7-9
Destination weather on suggested route screen ... 7-15
Automatically display warnings/watches .................. 7-15
Map update ........................................................................\
..... 7-17
Viewing navigation system unit identification ................. 7-18 Basic operation .............................................................. 7-18
Viewing navigation system version information ............. 7-18 Basic operation .............................................................. 7-18
Viewing GPS current location information ..................... 7-19 Basic operation .............................................................. 7-19
