2012 NISSAN QUEST navigation system

Black plate (68,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4-6
Setting destination
4. Highlight the preferred destination from the list, and push . The position of
the selected location is displayed in the
preview on the right side of the screen.
INFO:.
A maximum of 100 facilities can be displayed on the list screen.
.
To search for facilities along your route, select [Show Along Route].
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
If there is a route already set, the newly selected
location can substitute a previously set destina-
tion or be added to a route already set.
Other settings:
The destination can also be set by pushing
in the current or scrolled location
map screen and selecting [Nearby Places].
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To display the nearby category list and select the
destination from it:
“Navigation” “Places” (Standard mode)
“Places” (Alternate command mode)
Searching by other methods1. Push .
2. Highlight [Places] and push .

Black plate (73,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
INFO:
If the home location is not stored yet, the
system will automatically display a screen for
storing it.
“Storing location” (page 6-2)
4. The entire route to home is shown on the map. Highlight [Start] after confirming the
location of the displayed destination, and
push . The system sets the
destination to the selected location and
starts calculating a route.
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the home location as the destination:
“Navigation” “Destination Home” (Standard
mode) “Destination Home” (Alternate command mode)
SEARCHING FROM ADDRESS BOOKA location stored in the Address Book can be
set as the destination to which the system
calculates a route. To utilize this function more
effectively, destinations that are often traveled to
should be stored in advance.1. Push
.
2. Highlight [Address Book] and push . A list screen is displayed.
3. Highlight the preferred location from the list
and push .
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.
“Storing location” (page 6-2)
INFO:*1
Sort by Number:
The Address Book entries are displayed
in ascending numerical order.
*2
Sort by Name:
The Address Book entries are displayed
in alphabetic order.
*3
Sort by Icon:
By selecting a particular icon, a list that
contains only the Address Book entries
Setting destination
4-11

Black plate (74,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
4-12
Setting destinationassociated with that icon is displayed.
*4
Sort by Group:
By selecting a particular group (family,
friends, leisure, etc.) , the selected group
is displayed at the top of the list.
4. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“Procedures after setting destination”
(page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
“Navigation” “Address Book” (Standard mode)
“Address book” (Alternate command mode)
SETTING PREVIOUS DESTINATIONA previously set destination can be set again as
the destination to which the system calculates a
route. Up to 300 previous destinations will be
automatically stored.
If the number of previous destinations exceeds
300, the oldest one will be replaced by the new
one.1. Push .
2. Highlight [Previous Destinations] and push . A list screen is displayed.
3. Highlight the preferred destination from the
list and push .
INFO:
By highlighting [By Date], the list can be
sorted in chronological order. By highlight-
ing [By Name], it can be sorted in alphabe-
tical order.
4. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination

Black plate (75,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
to the selected location and starts calculat-
ing a route.INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“Procedures after setting destination”
(page 5-2)Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To display the Previous Destinations list:
“Navigation” “Previous Destinations” (Standard
mode)
“Previous Destinations” (Alternate command
mode)
SETTING PREVIOUS START POINTThe start point of the previous route guidance
can be set as the destination to which the
system calculates a route.
1. Push .
2. Highlight [Next Page] and push .3. Highlight [Previous Start Point] and push
.
4. The previous start point is set as a destina-
tion, and the entire route is shown on the
map. Highlight [Start] after confirming the
location of the displayed destination, and
push . The system sets the
destination to the selected location and
starts calculating a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.“Procedures after setting destination”
(page 5-2)Voice command
1. Push >located on the steering
wheel switch.Setting destination
4-13

Black plate (91,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates through the guide points using visual and
voice guidance.
CAUTION
. The navigation system’s visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. When driving along the suggested
route, follow all traffic regulations
(e.g., one-way traffic) .
“Route guidance” (page 10-9)
VOICE GUIDANCE DURING ROUTE
GUIDANCEWhen approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push
to repeat voice guidance.
Example of voice guidance*1
“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
*2
“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
*3
“In about one mile (1.6 kilometers) , exit on
your right.”
“Exit on your right.”
*4
“You have arrived at your destination. End-
ing route guidance.”
GUIDANCE SCREENS AND PREVIEW
MODERoute guidance displays map screens and
various information according to the situation.
Route guidance
5-7
ABOUT ROUTE GUIDANCE

Black plate (111,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
. [Guidance Display Settings]:
Activates or deactivates small turn arrow
display on the map.
“Displaying small turn arrow on map”
(page 5-28)
. [Estimated Time]:
Switches the display of estimated travel time
to the destination or waypoint that is
displayed on the map screen.“Switching estimated arrival time dis-
play” (page 5-28)
. [Others]:
— [Set Average Speeds]: Set an average vehicle speed for each
type of road, which is reflected in the
calculation of the required time to the
destination.
“Set average speeds” (page 5-29)
— [Auto Reroute]: If the vehicle deviates from the sug-
gested route, the system automatically
recalculates a route.“Setting Auto Reroute” (page 5-21)
SETTING VOICE GUIDANCE AT IN-
TERSECTIONS1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Guidance Settings] and push .
4. Highlight [Voice Guidance Settings] and push .5. Highlight [Intersection Guidance Settings]
and push .
6. Highlight the preferred item and push
.Available setting items.[Voice Announcements]:
Sets how many times the voice guidance is
announced before the vehicle reaches an
intersection.
1. Highlight [Voice Announcements] and push .
2. Highlight the preferred item and push .
.
[Full]:
The system announces three kinds of
voice guidance: “Turning Point”, “1
Guide” and “2 Guide”.
.
[Concise]:The system announces two kinds of
voice guidance: “Turning Point” and “1
Guide”.
Route guidance
5-27

Black plate (113,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
6. Push

Black plate (121,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

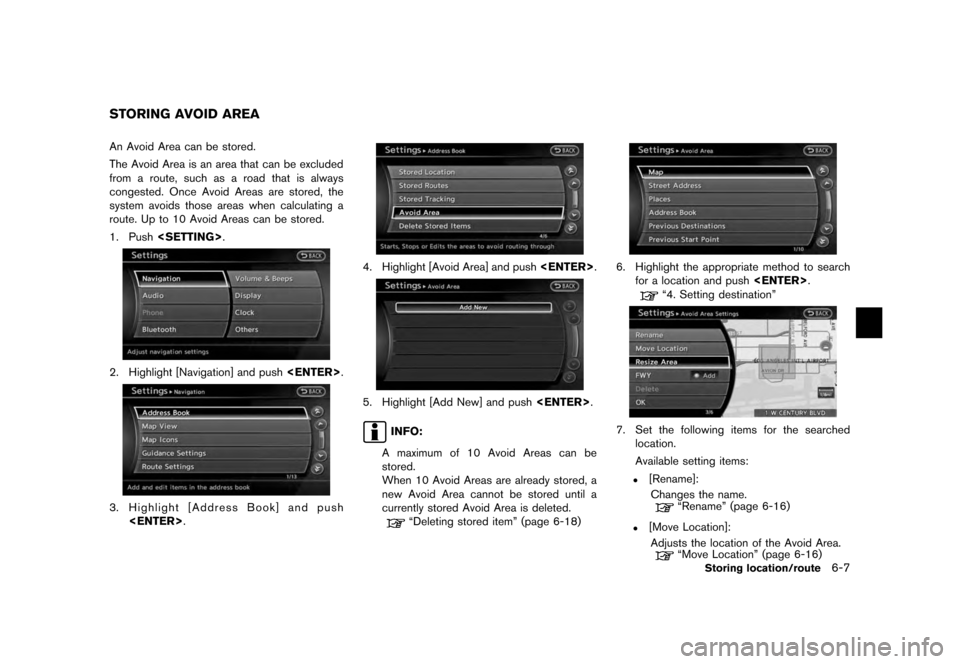

An Avoid Area can be stored.
The Avoid Area is an area that can be excluded
from a route, such as a road that is always
congested. Once Avoid Areas are stored, the
system avoids those areas when calculating a
route. Up to 10 Avoid Areas can be stored.
1. Push .2. Highlight [Navigation] and push .3. Highlight [Address Book] and push
.
4. Highlight [Avoid Area] and push .5. Highlight [Add New] and push .
INFO:
A maximum of 10 Avoid Areas can be
stored.
When 10 Avoid Areas are already stored, a
new Avoid Area cannot be stored until a
currently stored Avoid Area is deleted.
“Deleting stored item” (page 6-18)
6. Highlight the appropriate method to search for a location and push .
“4. Setting destination”
7. Set the following items for the searched
location.
Available setting items:
.
[Rename]:
Changes the name.
“Rename” (page 6-16)
.
[Move Location]:Adjusts the location of the Avoid Area.
“Move Location” (page 6-16)
Storing location/route
6-7
STORING AVOID AREA
