2012 NISSAN QUEST ECO mode

Black plate (33,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Type AType B1. Push >located on the steering
wheel switch.
2. A list of commands appears on the screen, and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from [
]to[
], speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until
operation is completed.
Operating tips.Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system. .
If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice recogni-
tion is canceled” will be announced.
. Push >to stop the voice prompt
and give the command at once. Remember
to wait for the tone before speaking.
. To adjust the volume of the system feed-
back, push the volume control buttons <+>
or < > on the steering wheel switch or use
the audio system volume control knob while
the system is making an announcement.
Getting started
2-25

Black plate (35,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Command Action
International Call Makes an international call by allowing more than 10 digits to be spoken.Information CommandCommandAction
Fuel Economy Displays fuel economy information.
Trip Computer (if so equipped) Displays trip information.
Maintenance Displays maintenance information.
Where am I? Displays GPS information.
Traffic Information Turns the traffic information system on and off.Audio CommandCommandAction
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.General CommandsCommand Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Getting started
2-27

Black plate (36,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-28
Getting startedINFO:
Refer to the vehicle Owner’s Manual for the
operations related to phone, information and
audio.
Voice command examplesTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that are performed by voice com-
mands are described here.
Example 1: Placing a call to the phone
number 800-662-6200:
1. Push >located on the steering
wheel switch.
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”. 3. Speak “Phone”.
4. Speak “Dial Number”.5. Speak “800”.
6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”.7. The system announces, “Please say last fourdigits or say change number”. Speak
“6200”.8. The system announces, “Dial or ChangeNumber?”. Speak “Dial”.

Black plate (37,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
9. The system makes a call to 800-662-6200.
INFO:
. Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits)
is acceptable, if the area code is not
necessary. However the 3-3-4 digit group-
ing is recommended for improved recogni-
tion.
“How to speak numbers” (page 9-20)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the “International Call” command.
. If “Change Number” is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts. .
Do not add a “1” in front of the area code
when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 2: Placing an international call to
the phone number 011-81-111-222-3333:
1. Push >located on the steering
wheel switch.
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Phone”.
4. Speak “International Call”.5. Speak “01181111222333”.
Getting started
2-29

Black plate (39,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

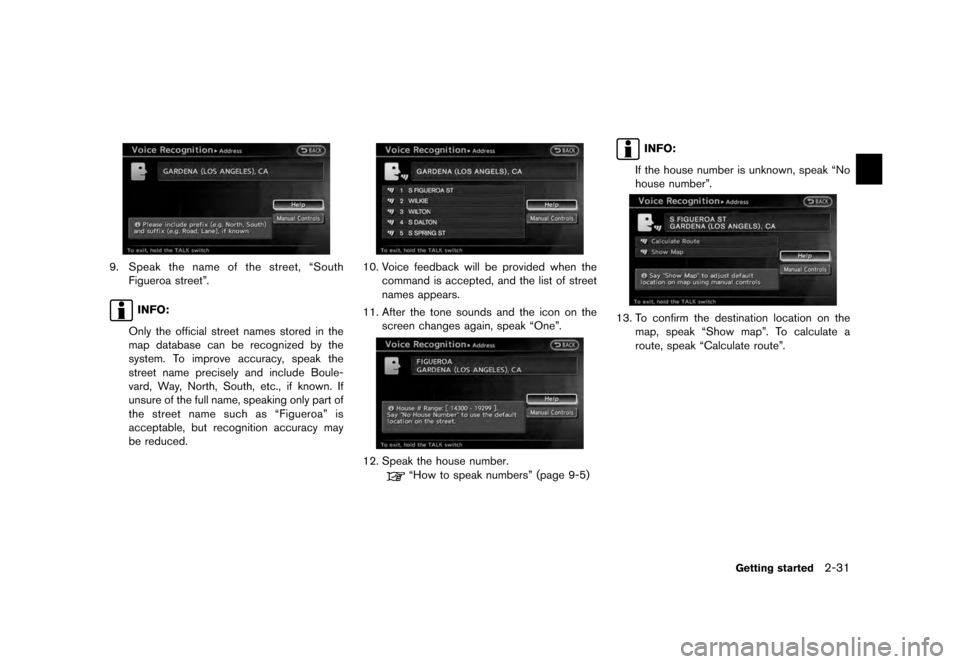

9. Speak the name of the street, “South Figueroa street”.
INFO:
Only the official street names stored in the
map database can be recognized by the
system. To improve accuracy, speak the
street name precisely and include Boule-
vard, Way, North, South, etc., if known. If
unsure of the full name, speaking only part of
the street name such as “Figueroa” is
acceptable, but recognition accuracy may
be reduced.
10. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak “One”.12. Speak the house number.
“How to speak numbers” (page 9-5)
INFO:
If the house number is unknown, speak “No
house number”.
13. To confirm the destination location on the map, speak “Show map”. To calculate a
route, speak “Calculate route”.
Getting started
2-31

Black plate (43,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
*7
Arrow:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
*8
Stored location (orange):
Displays the locations that are stored in the
Address Book. Icons can be changed
according to personal preferences.“Storing location” (page 6-2)
*9
Avoid Area (green or blue):
Displays the areas to avoid that are stored
in the Address Book with green or blue
icons. During the route search, the route
guidance is performed by searching for a
route that avoids those areas.“Storing avoid area” (page 6-7)
*10
Street name:
Displays the name of the street the vehicle
is currently driving on.
*11
Traffic indicator:
Displays the reception condition of traffic
information transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
No mark: Subscription to XM NavTraffic
®
service is not detected.
Birdview
TM
(3D) MAP
Birdview
TM
displays the map from an elevated
perspective. In Birdview
TM, it is easy to recog-
nize an image of the route because it provides a
panoramic view over a long distance.
INFO:
About the Birdview
TM
display
. “Birdview
TM” is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TM
always appears with
the current forward direction facing up.
BUILDING GRAPHICSIn the area where the building graphics are
stored in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called “Building
footprint graphics”, and on the Birdview
TM
display, these are called “3D building graphics”. The method to look at the map is the same for
the 2D and Birdview
TM
maps.
Building footprint graphics (2D map)3D building graphics (Birdview
TMmap)
INFO:
In the area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
Map settings
3-3

Black plate (49,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Push or . A scale
appears on the right side of the screen.
To view the map in detail, push .
To view a wider area, push .
The scale will automatically disappear when
neither nor has
been pushed for several seconds.
If the scaling operation is not performed for a
specified period of time, the scale display
disappears.
INFO:
Free zoom:
The scale can be changed in smaller steps when
or is pushed and
held than when the button is pushed briefly.
When the button is pushed briefly, the scale can
be changed in large steps.“Other navigation settings” (page 8-7)
OPERATING WITH CENTER DIAL1. Turn the center dial when the map screen is displayed. The map scale is displayed on the
right side of the screen.
2. Use the center dial to adjust the map scale.
*1
Clockwise: Zoom in
*2
Counterclockwise: Zoom out
INFO:
Free zoom:
Depending on the setting, using the center dial
to change the map scale may adjust the scale
normally, or it may engage the free zoom (finer
scale adjustment in smaller steps) .“Other navigation settings” (page 8-7)
Map settings
3-9

Black plate (67,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the “Matches” column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed dest ination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.
“Procedures after setting destination” (page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the destination from a street address:
“Navigation” “Address” (Standard mode)
“Address” (Alternate command mode)
INFO:
When using a voice command to set a street
name, the complete street name is recom-
mended to be stated.
Examples:
Correct input – North Elm Street East Jefferson Boulevard
Incorrect input – Elm Street East JeffersonFINDING PLACEThere are 3 methods to set the destination to
places of interest: typing the name, choosing a
category or selecting a Zagat reviewed location.
To help improve searching, different start points
can be chosen to search from such as Near
Current Location, Near the Destination, or a City
Center.
Finding nearby place1. Push.
2. Highlight [Places] and push .3. Highlight the preferred nearby category from
the list and push .
A list screen is displayed.
INFO:
Highlight [Customize Nearby Places] to
customize the nearby places list to show
categories that are frequently used.
Setting destination
4-5
