2012 NISSAN MAXIMA bluetooth

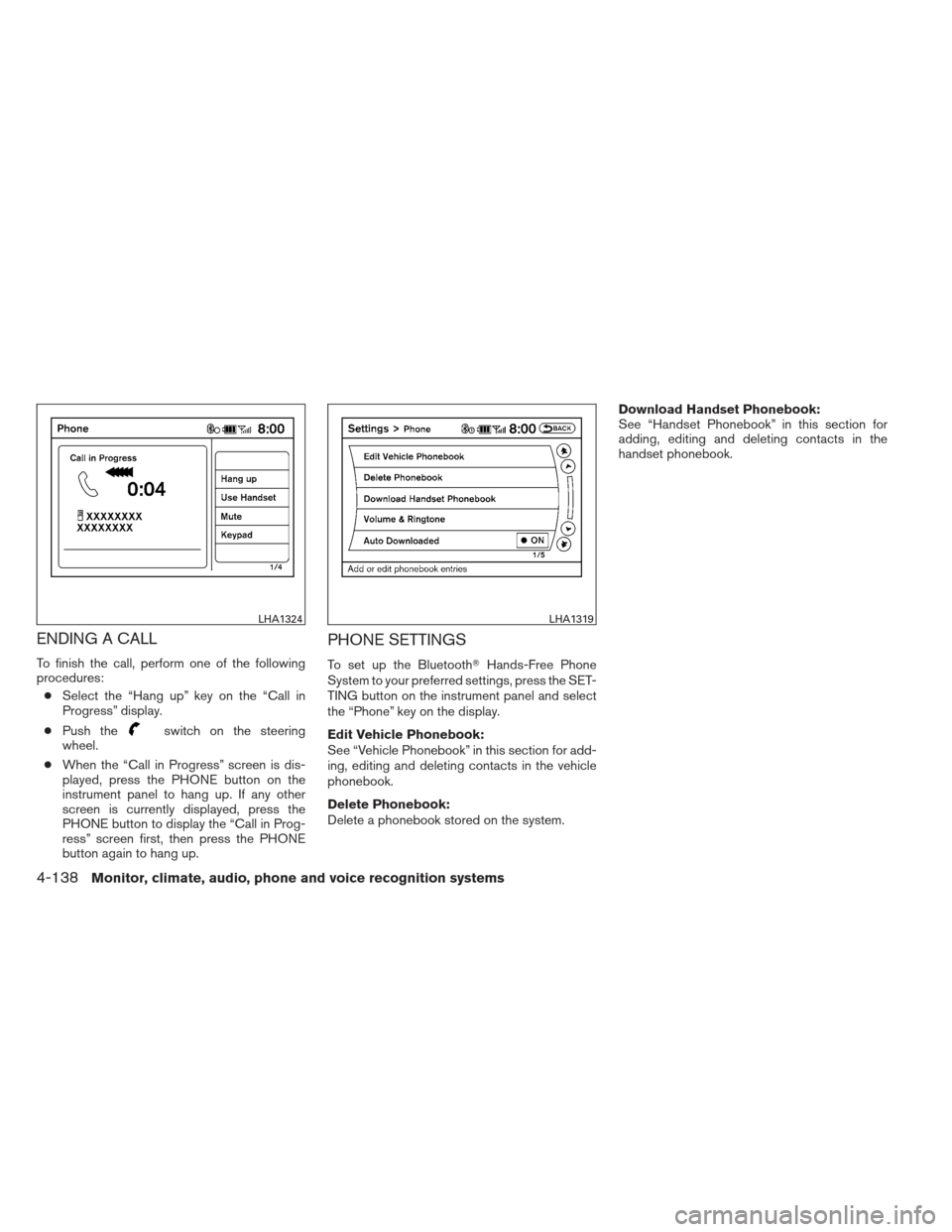

ENDING A CALL
To finish the call, perform one of the following
procedures:● Select the “Hang up” key on the “Call in
Progress” display.
● Push the
switch on the steering
wheel.
● When the “Call in Progress” screen is dis-
played, press the PHONE button on the
instrument panel to hang up. If any other
screen is currently displayed, press the
PHONE button to display the “Call in Prog-
ress” screen first, then press the PHONE
button again to hang up.
PHONE SETTINGS
To set up the Bluetooth Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the instrument panel and select
the “Phone” key on the display.
Edit Vehicle Phonebook:
See “Vehicle Phonebook” in this section for add-
ing, editing and deleting contacts in the vehicle
phonebook.
Delete Phonebook:
Delete a phonebook stored on the system. Download Handset Phonebook:
See “Handset Phonebook” in this section for
adding, editing and deleting contacts in the
handset phonebook.
LHA1324LHA1319
4-138Monitor, climate, audio, phone and voice recognition systems

Volume & Ringtone:
Adjust the volume level of the ringtone, incoming
call sound and outgoing call sound. When the
“Automatic Hold” option is turned on, an incom-
ing call will be placed on hold automatically after
several rings. When the “Vehicle Ringtone” op-
tion is turned on, a specific ringtone that is differ-
ent from the cellular phone’s will sound when
receiving a call.
Auto Downloaded:
See “Handset Phonebook” in this section for
information about automatically downloading the
handset phonebook.BLUETOOTH SETTINGS
To set up the BluetoothHands-Free Phone
System to your preferred settings, press the SET-
TING button on the instrument panel and select
the “Bluetooth” key on the display.
Bluetooth:
Turn the Bluetooth system on or off.
Connect Bluetooth:
See “Connecting procedure” in this section for
more information about connecting a phone.
Connected Devices:
Display a list of the Bluetooth devices con-
nected to the system. Edit Bluetooth Info:
Check information about the device name, device
address and device PIN.
Replace Connected Phone:
Replace the phone currently connected to the
system. This option allows you to keep any voic-
etags that were recorded using the previous
phone.
LHA1325LHA1316
Monitor, climate, audio, phone and voice recognition systems4-139

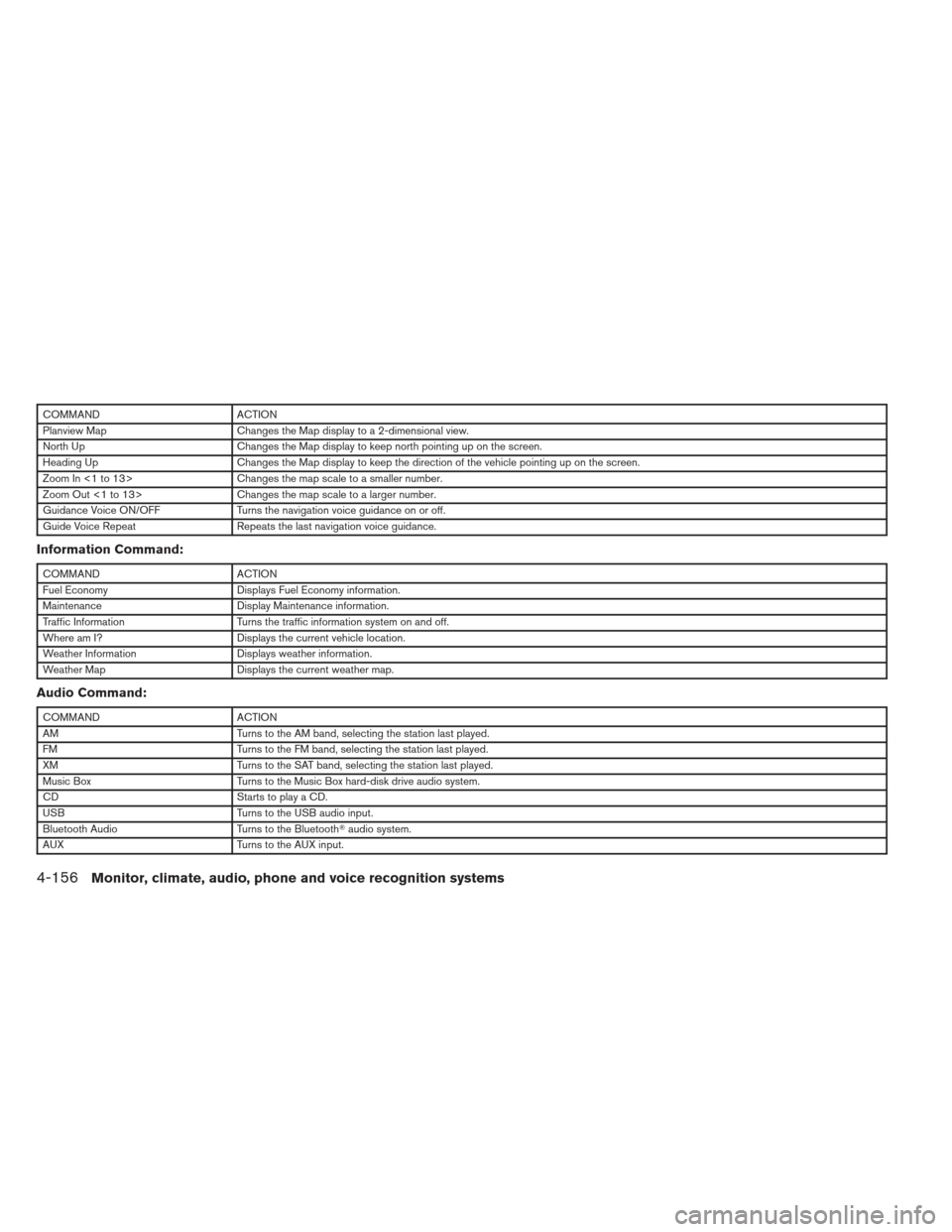

COMMANDACTION
Planview Map Changes the Map display to a 2-dimensional view.
North Up Changes the Map display to keep north pointing up on the screen.
Heading Up Changes the Map display to keep the direction of the vehicle pointing up on the screen.
Zoom In <1 to 13> Changes the map scale to a smaller number.
Zoom Out <1 to 13> Changes the map scale to a larger number.
Guidance Voice ON/OFF Turns the navigation voice guidance on or off.
Guide Voice Repeat Repeats the last navigation voice guidance.
Information Command:
COMMANDACTION
Fuel Economy Displays Fuel Economy information.
Maintenance Display Maintenance information.
Traffic Information Turns the traffic information system on and off.
Where am I? Displays the current vehicle location.
Weather Information Displays weather information.
Weather Map Displays the current weather map.
Audio Command:
COMMANDACTION
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the SAT band, selecting the station last played.
Music Box Turns to the Music Box hard-disk drive audio system.
CD Starts to play a CD.
USB Turns to the USB audio input.
Bluetooth Audio Turns to the Bluetoothaudio system.
AUX Turns to the AUX input.
4-156Monitor, climate, audio, phone and voice recognition systems

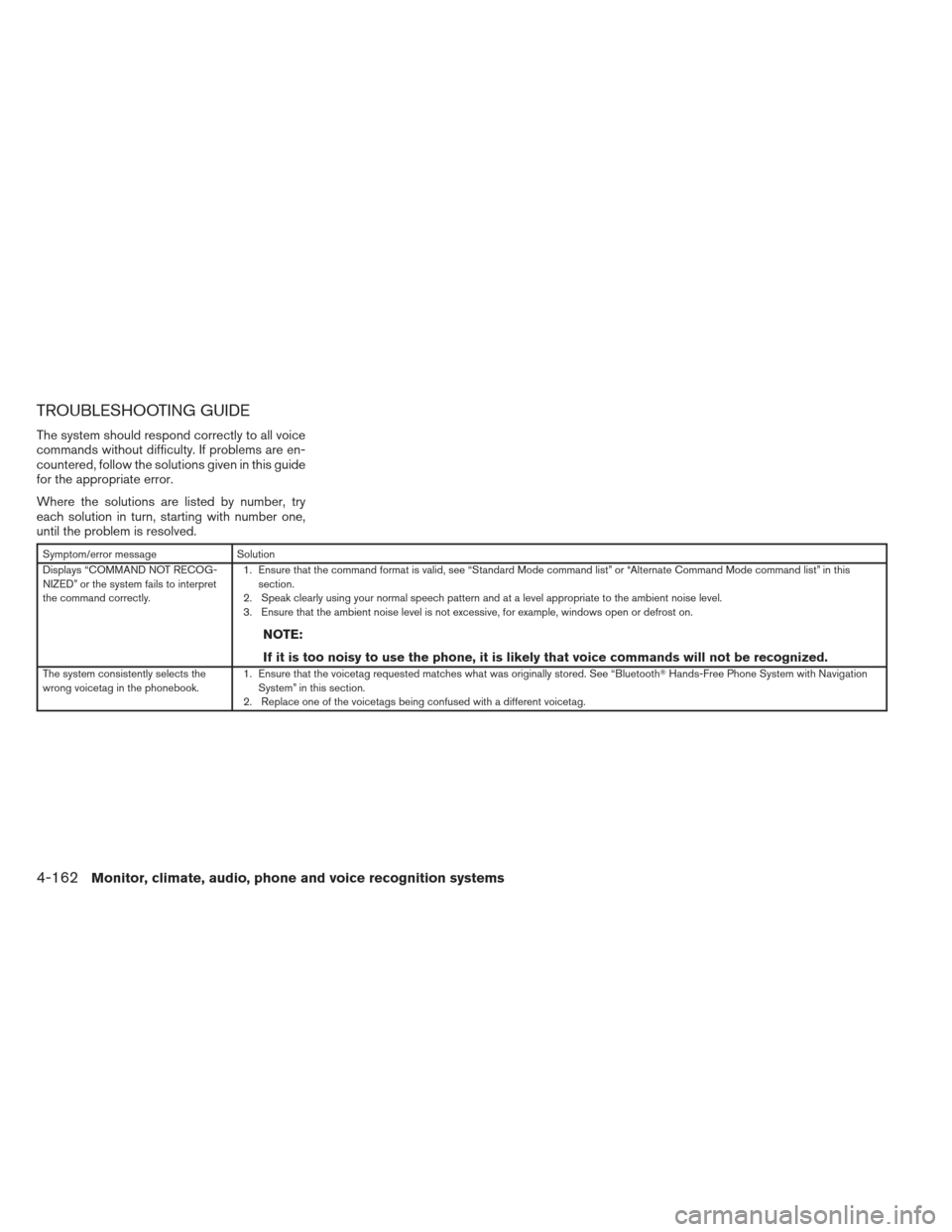

TROUBLESHOOTING GUIDE
The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, follow the solutions given in this guide
for the appropriate error.
Where the solutions are listed by number, try
each solution in turn, starting with number one,
until the problem is resolved.
Symptom/error messageSolution
Displays “COMMAND NOT RECOG-
NIZED” or the system fails to interpret
the command correctly. 1. Ensure that the command format is valid, see “Standard Mode command list” or “Alternate Command Mode command list” in this
section.
2. Speak clearly using your normal speech pattern and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
The system consistently selects the
wrong voicetag in the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. See “Bluetooth
Hands-Free Phone System with Navigation
System” in this section.
2. Replace one of the voicetags being confused with a different voicetag.
4-162Monitor, climate, audio, phone and voice recognition systems

10 Index
A
Air bag (See supplemental restraint
system) .....................1-37
Air bag system Front (See supplemental front impact
air bag system) ...............1-44
Airbagwarninglight...........1-51,2-14
Air cleaner housing filter ............8-18
Air conditioner Air conditioner service ...........4-47
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner
controls................4-42,4-45
Servicing air conditioner ..........4-47
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-23
Antenna....................4-114
Anti-lock brake warning light ......2-10,2-11
Anti-lock Braking System (ABS) ........5-23
Armrests .....................1-7
Audible reminders ...............2-16
Audio system ..................4-47
Bluetooth audio.............4-108
Compact Disc (CD) changer .......4-65
Compact disc (CD) player .....4-71,4-79
FM-AM radio with compact disc
(CD) changer ................4-63
FM/AM/SAT radio with CD/DVD player . .4-75 FM/AM/SAT radio with compact disc
(CD) player
.................4-68
Audio System iPod Player .............4-91,4-93
Music Box hard-disk drive audio
system ...............4-96,4-101
Audio system Radio ....................4-47
Audio System Settings ...............4-69,4-75
Audio system Steering wheel audio control switch . . .4-112
USB interface ............4-86,4-87
Autolight switch .................2-31
Automatic Automatic drive positioner .........3-29
Automatic power window switch .....2-45
Automatic transmission position indicator
light .....................2-14
Transmission shift selector lock release . .5-16
Automatic anti-glare inside mirror .......3-26
Automatic door locks ..............3-6
AUXjack ....................4-67
B
Battery ......................8-14
Chargewarninglight............2-11
Before starting the engine ...........5-10
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-27 Bluetooth
audio...............4-108
Bluetooth hands-free phone
system .................4- 115, 4-129
Boosterseats..................1-33
Brake Anti-lock Braking System (ABS) ......5-23
Brakefluid..................8-13
Brakelight(Seestoplight).........8-27
Brake system ................5-22
Brake warning light .............2-11
Brake wear indicators ........2-16,8-20
Parking brake operation ..........5-17
Self-adjusting

brakes ............8-20
Brakes ......................8-20
Break-inschedule ...............5-19
Brightness/contrast button .......4-15,4-31
Brightness control Instrument panel ..............2-33
Bulb check/instrument panel ..........2-10
Bulbreplacement................8-27
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargonet....................2-43
Cargo (See vehicle loading information) . . .9-12
CarphoneorCBradio............4-114
CDcareandcleaning.............4-111
CD changer (See audio system) .......4-65
CD player (See audio system) .....4-71,4-79
Check tire pressure ...............2-25

Power steering fluid.............8-12
Windshield-washerfluid...........8-14
F.M.V.S.S. certification label ...........9-10
Foglightswitch .................2-34
Foldingrearseat..................1-5
Front air bag system
(See supplemental restraint system) ......1-44
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel-filler door and cap ...........3-21
Fuel gauge ...................2-6
Fueloctanerating...............9-4
Fuel recommendation .............9-3
Loosefuelcapwarning........2-25,3-21
Fuses.......................8-21
Fusiblelinks ...................8-22
G
Garage door opener, HomeLink Universal
Transceiver....................2-54
Gascap .....................3-21
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Generalmaintenance...............8-2
Glovebox.....................2-42
Gloveboxlock..................2-42 Groceryhooks..................2-43
H
Hands-free phone system,
Bluetooth ...............4- 115, 4-129
Hazard warning flasher switch .........2-34
Headlight and turn signal switch ........2-29
Headlight control switch ............2-30
Headlights ....................8-26
Heated seats ...............2-35,2-37
Heated steering wheel .............2-37
Heater Heater and air conditioner
controls................4-42,4-45
Heater operation ...........4-43,4-46
HomeLink Universal Transceiver ........2-54
Hood release ...................3-18
Horn .......................2-35
I
Ignition Switch Push-Button Ignition Switch .........5-7
Image viewer ...................4-32
Immobilizer system .........2-26,3-3,5-10
Important vehicle information label .......9-10
In-cabin microfilter ................8-18
Increasing fuel economy .............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-10
Inside automatic anti-glare mirror ........3-26
Instrument brightness control ..........2-33Instrument panel
...............0-6,2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
I

nteriorlight....................2-51
Interior trunk lid release .............3-20
iPod Player................4-91,4-93
ISOFIX child restraints .............1-21
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
10-3

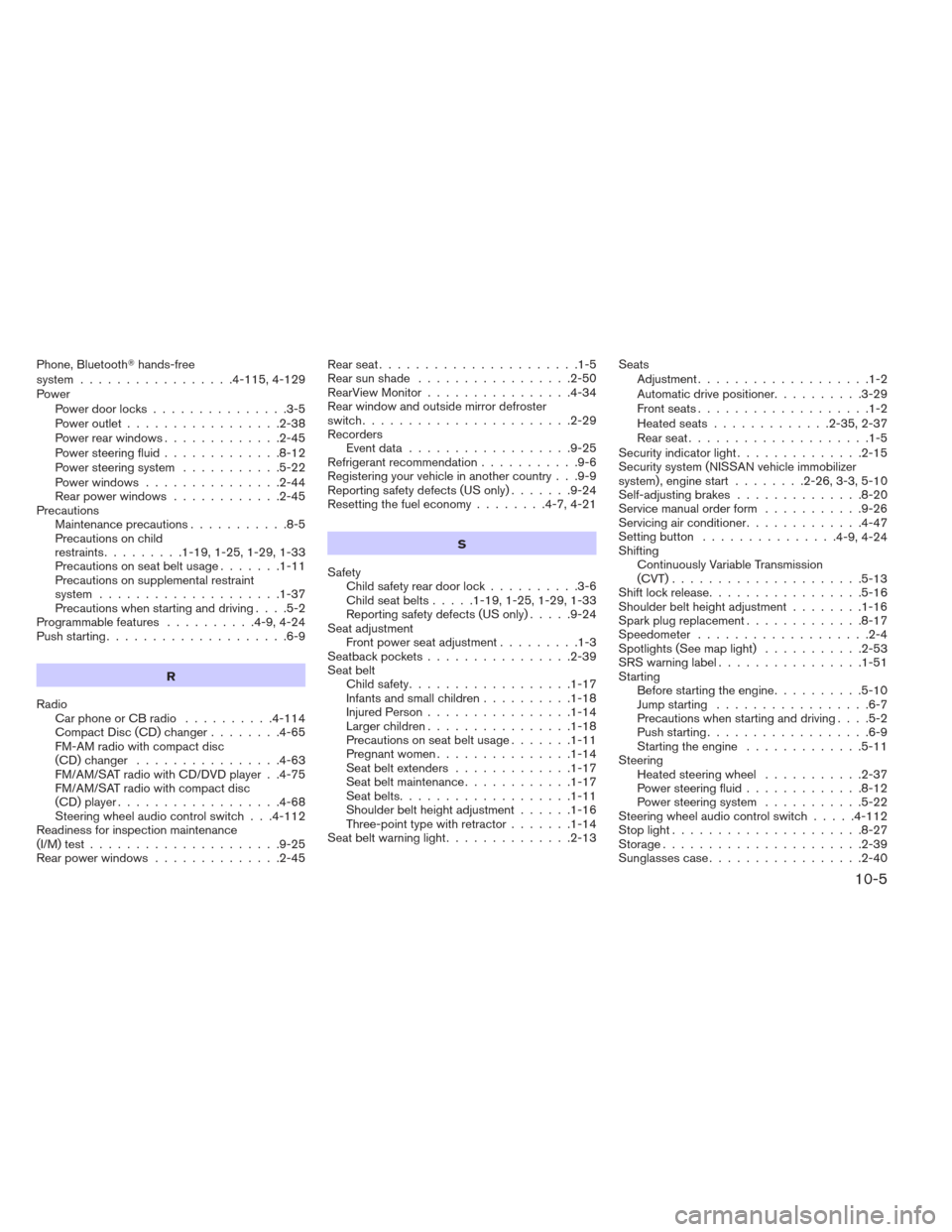

Phone, Bluetoothhands-free
system.................4- 115, 4-129
Power Power door locks ...............3-5
Power outlet .................2-38
Power rear windows .............2-45
Power steering fluid .............8-12
Power steering system ...........5-22
Power windows ...............2-44
Rear power windows ............2-45
Precautions Maintenanceprecautions...........8-5
Precautions on child
restraints .........1-19,1-25,1-29,1-33
Precautionsonseatbeltusage.......1-11
Precautions on supplemental restraint
system ....................1-37
Precautions when starting and driving ....5-2
Programmable features ..........4-9,4-24
Push starting ....................6-9
R
Radio Car phone or CB radio ..........4-114
Compact Disc (CD) changer ........4-65
FM-AM radio with compact disc
(CD) changer ................4-63
FM/AM/SAT radio with CD/DVD player . .4-75
FM/AM/SAT radio with compact disc
(CD) player ..................4-68
Steering wheel audio control switch . . .4-112
Readiness for inspection maintenance
(I/M) test .....................9-25
Rear power windows ..............2-45 Rearseat......................1-5
Rearsunshade .................2-50
RearViewMonitor................4-34
Rear window and outside mirror defroster
switch
.......................2-29
Recorders Eventdata..................9-25
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-24
Resetting the fuel economy ........4-7,4-21
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-19,1-25,1-29,1-33
Reporting safety defects (US only) .....9-24
Seat adjustment Front power seat adjustment .........1-3
Seatback pockets ................2-39
Seat belt Childsafety..................1-17
Infants and small children ..........1-18
Injured Person ................1-14
Largerchildren................1-18
Precautions on seat belt usage .......1-11
Pregnant women ...............1-14
Seatbeltextenders .............1-17
Seatbeltmaintenance............1-17
Seatbelts...................1-11
Shoulder belt height adjustment ......1-16
Three-point type with retractor .......1-14
Seat belt warning light ..............2-13 Seats
Adjustment ...................1-2
Automatic drive positioner ..........3-29
Frontseats...................1-2
Heated seats .............2-35,2-37
Rearseat....................1-5
Security indicator light ..............2-15
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-26,3-3,5-10
Self-adjusting brakes ..............8-20
Service manual order form ...........9-26
Servicing air conditioner .............4-47
Setting button ...............
4-9,4-24
Shifting Continuously Variable Transmission
(CVT).....................5-13
Shiftlockrelease.................5-16
Shoulder belt height adjustment ........1-16
Spark plug replacement .............8-17
Speedometer ...................2-4
Spotlights(Seemaplight) ...........2-53
SRSwarninglabel................1-51
Starting Before starting the engine ..........5-10
Jump starting .................6-7
Precautions when starting and driving ....5-2
Push starting ..................6-9
Starting the engine .............5-11
Steering Heated steering wheel ...........2-37
Power steering fluid .............8-12
Power steering system ...........5-22
Steering wheel audio control switch .....4-112
Stoplight.....................8-27
Storage......................2-39
Sunglasses case .................2-40
10-5
