TABLe Of cOnTenTS
Ess Ential i nformation
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
first DrivE fEatur Es
ni SSAn intelligent k ey
® System (if so equipped) ....................3
Power Liftgate Release (if so equipped) ............................3
Power Seat Adjustments (if so equipped) ...........................4
Automatic drive Positioner (if so equipped) ......................... 4
Outside Mirror control Switch .................................... 5
Starting/Stopping the engine (ni SSAn intelligent key
® models only -
if so equipped)) ................................................ 5
Headlight control Switch ........................................ 5
Windshield Wiper/Washer Switch ................................. 6
Automatic climate controls ...................................... 7
f M/AM/XM
® Satellite Radio with cd Player (if so equipped) .......... 8
cruise control ................................................. 9
fuel-filler door ............................................... 10
s yst Em GuiDE
Trip computer (if so equipped) .................................. 11
Bluetooth
® Hands-free Phone System (if so equipped)
System Operating Tips ....................................... 11
Bluetooth
® System without navigation (if so equipped) ............ 12
Bluetooth® System with navigation (if so equipped) ...............14
navigation System (if so equipped) ...............................16
ni SSAn Mobile entertainment System (M eS) (if so equipped) ........16
HomeLink
® universal Transceiver (if so equipped) ...................17
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)”, “monitor, climate, audio,
phone and voice recognition systems (section 4)” and “starting and
driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2012/armada or snap this barcode with an appropriate barcode reader.

4
first drive features
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

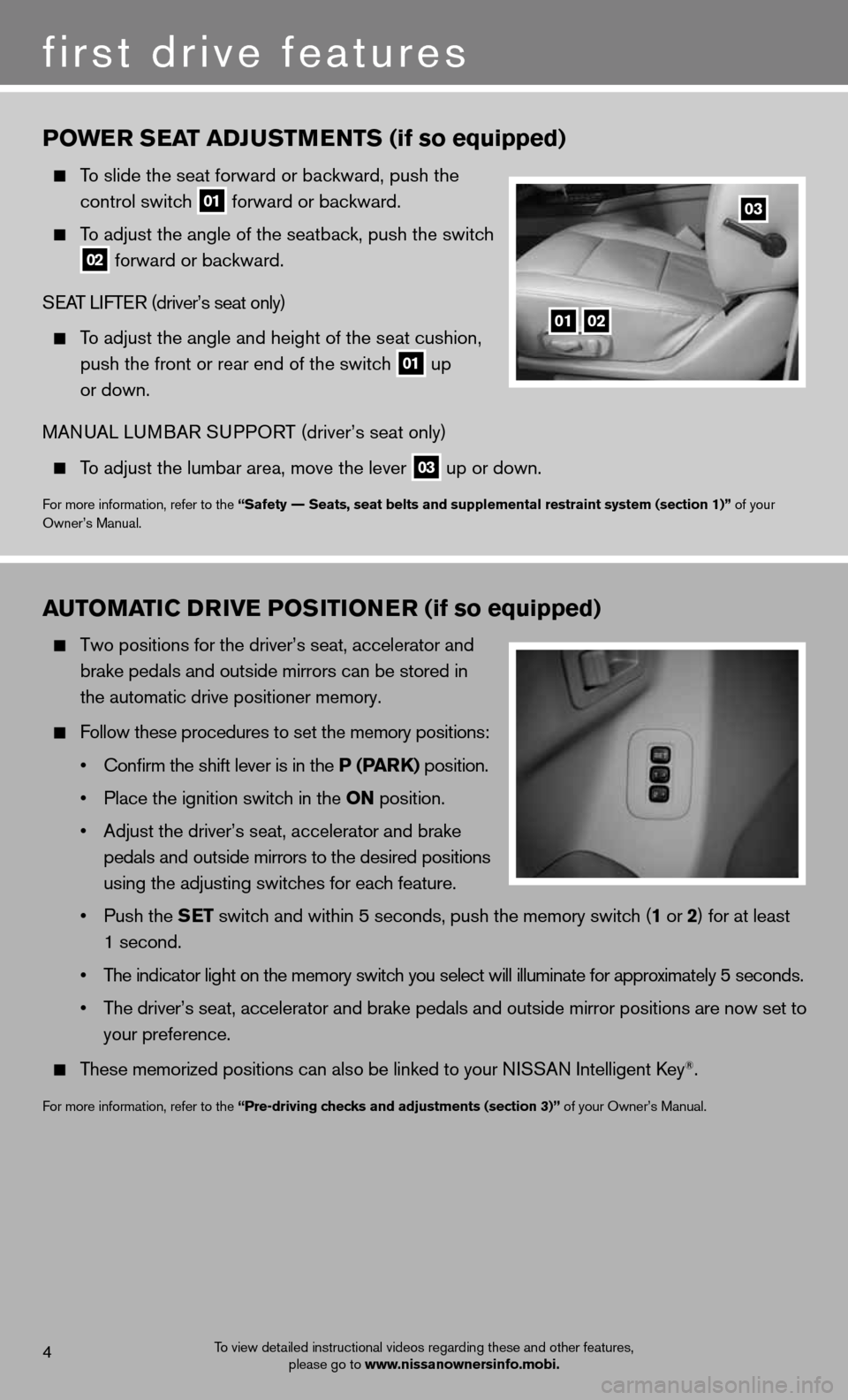

Po WE r s Eat aDJ ustmEnts (if so equipped)
To slide the seat forward or backward, push the
control switch

01 forward or backward.

To adjust the angle of the seatback, push the switch


02 forward or backward.
SeAT LifTe R (driver’s seat only)

To adjust the angle and height of the seat cushion,
push the front or rear end of the switch

01 up
or down.
MAnu AL LuMBAR S uPPORT (driver’s seat only)

To adjust the lumbar area, move the lever
03 up or down.
f
or more information, refer to the “safety –– seats, seat belts and supplemental restraint system (section 1)” of your
Owner’s Manual.
0102
03
automati C DrivE P osition Er (if so equipped)
Two positions for the driver’s seat, accelerator and
brake pedals and outside mirrors can be stored in
the automatic drive positioner memory.

follow these procedures to set the memory positions:
• Confirm the shift lever is in the P (P ark) position.
• Place the ignition switch in the on position.
• Adjust the driver’s seat, accelerator and brake
pedals and outside mirrors to the desired positions
using the adjusting switches for each feature.
• Push the s Et switch and within 5 seconds, push the memory switch (1 or 2) for at least
1 second.
• The indicator light on the memory switch you select will illuminate for approximately 5 seconds.
• The driver’s seat, accelerator and brake pedals and outside mirror positions are now set to
your preference.

These memorized positions can also be linked to your ni SSAn intelligent key®.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.

7To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
01
0408
09
05
0607
0203

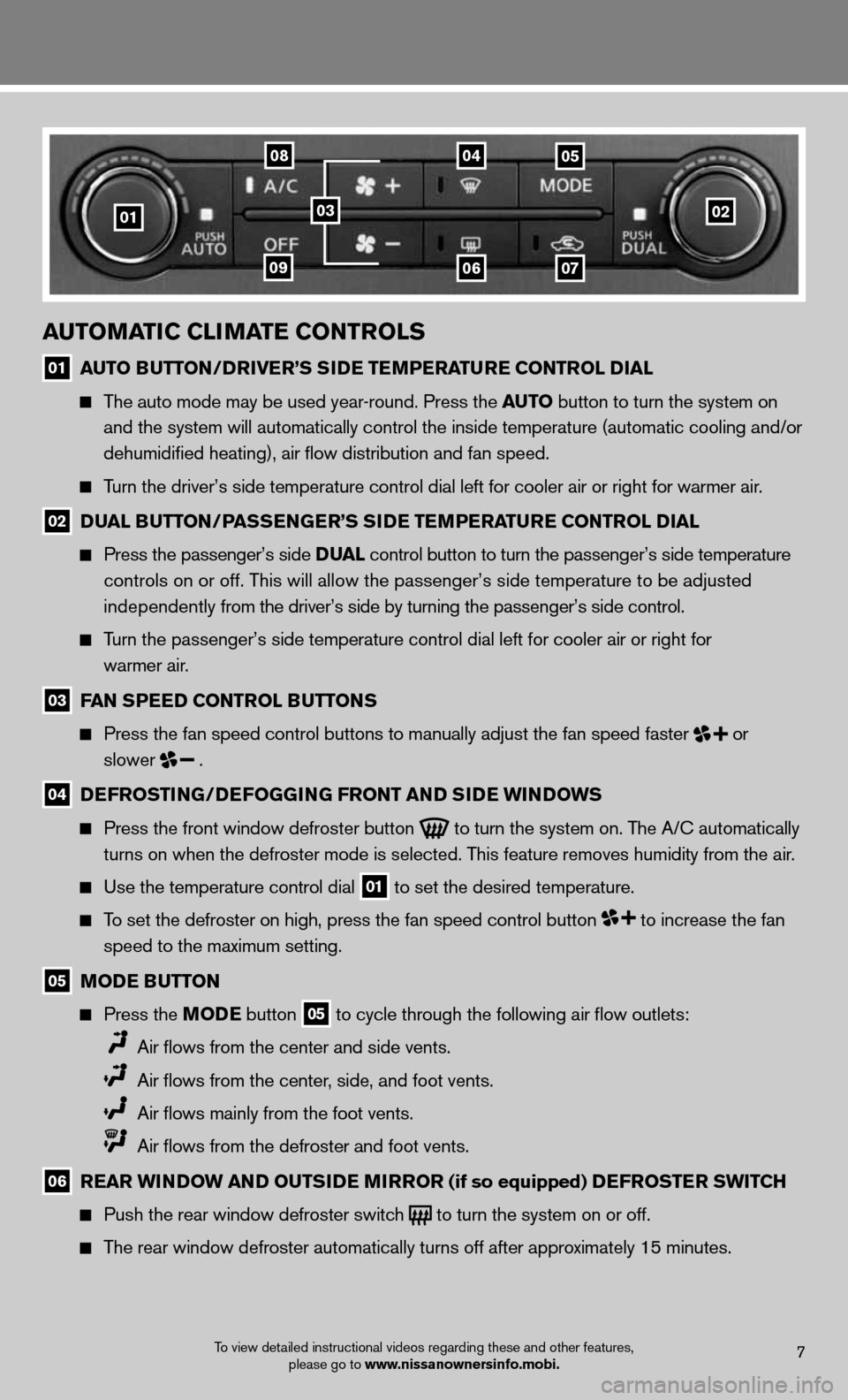

automatiC ClimatE Controls
01 auto B
utton/DrivE r’s si DE tEmPE ratur E Control D ial

The auto mode may be used year-round. Press the auto button to turn the system on
and the system will automatically control the inside temperature (autom\
atic cooling and/or
dehumidified heating), air flow distribution and fan speed.

Turn the driver’s side temperature control dial left for cooler air or\
right for warmer air.
02 D
ual B utton /Pass En GE r’s si DE tEmPE ratur E Control D ial

Press the passenger’s side D ual control button to turn the passenger’s side temperature
controls on or off. This will allow the passenger’s side temperature to be adjusted
independently from the driver’s side by turning the passenger’s side control.

Turn the passenger’s side temperature control dial left for cooler air\
or right for
warmer air.
03 fan s
PEED Control B uttons

Press the fan speed control buttons to manually adjust the fan speed fas\
ter
or

slower

.
04 DE
frostin G/DEfoGG inG front an D siDE Win Do Ws

Press the front window defroster button
to turn the system on. The A/c automatically

turns on when the defroster mode is selected. This feature removes humidity from the air.

use the temperature control dial
01 to set the desired temperature.

To set the defroster on high, press the fan speed control button to increase the fan
speed to the maximum setting.
05 moDE B
utton

Press the moDE button
05 to cycle through the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side, and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.
06 r
Ear Win Do W an D outsi DE mirror (if so equipped) DE frostEr sWitCh

Push the rear window defroster switch
to turn the system on or off.

The rear window defroster automatically turns off after approximately 15 minutes.
