3-6 Features and controls
3
NOTE
The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.

Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.

A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0138000US.book 6 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-15
3
3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
4. Remove the old battery.5. Install a new battery with the + side (A) down.
6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
8. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
+ side
- side
Coin type battery CR1620
BK0138000US.book 15 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100094
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the tailgate to be locked and unlocked
and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-45.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the tailgate, and starting the engine.
When leaving the vehicle, make sure you are carrying the
F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
BK0138000US.book 16 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-62 Features and controls
3

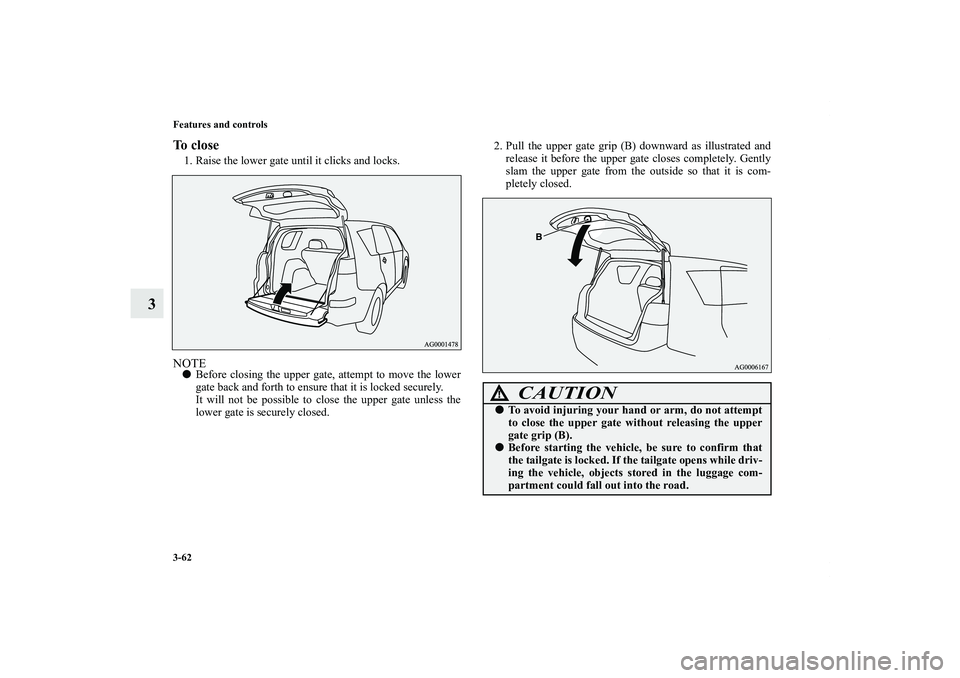

To close1. Raise the lower gate until it clicks and locks.NOTE
Before closing the upper gate, attempt to move the lower
gate back and forth to ensure that it is locked securely.
It will not be possible to close the upper gate unless the
lower gate is securely closed.2. Pull the upper gate grip (B) downward as illustrated and
release it before the upper gate closes completely. Gently
slam the upper gate from the outside so that it is com-
pletely closed.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the upper gate without releasing the upper
gate grip (B).
Before starting the vehicle, be sure to confirm that
the tailgate is locked. If the tailgate opens while driv-
ing the vehicle, objects stored in the luggage com-
partment could fall out into the road.
BK0138000US.book 62 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-75
3
NOTE
The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the door window to
be subjected to a physical shock similar to that caused by
trapped hand or head.

If the safety mechanism is activated 3 or more times con-
secutively, the safety mechanism is deactivated and nor-
mal closing of the door window will be aborted.
Use the following method to return to normal operation.
1. If the door window is open, repeatedly pull up the
power window switch to fully close the door window.
2. With fully closing the window, release the switch and
then pull up the switch again for about 1 second.
What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.
BK0138000US.book 75 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-77
3

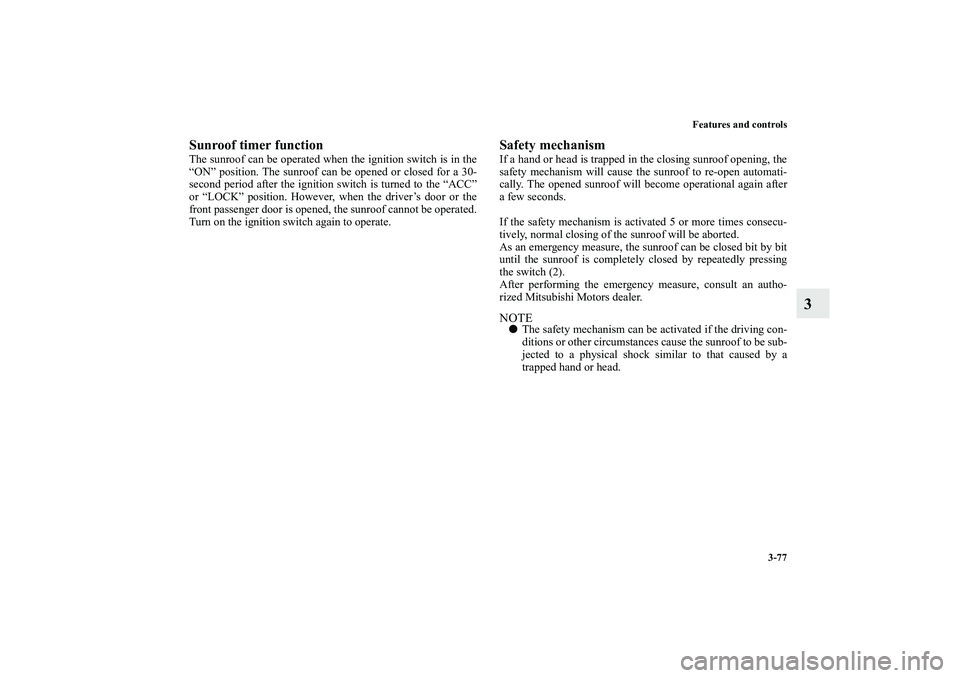

Sunroof timer functionThe sunroof can be operated when the ignition switch is in the
“ON” position. The sunroof can be opened or closed for a 30-
second period after the ignition switch is turned to the “ACC”
or “LOCK” position. However, when the driver’s door or the
front passenger door is opened, the sunroof cannot be operated.
Turn on the ignition switch again to operate.
Safety mechanismIf a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted.
As an emergency measure, the sunroof can be closed bit by bit
until the sunroof is completely closed by repeatedly pressing
the switch (2).
After performing the emergency measure, consult an autho-
rized Mitsubishi Motors dealer.NOTE
The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.
BK0138000US.book 77 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-82 Features and controls
3Inside rearview mirror
N00511600261
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!
After adjusting, make sure the lock lever is secured
in the locked (1) position.
Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
When releasing the tilt lock lever (moving it to the
position (2)), be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
BK0138000US.book 82 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-88 Features and controls
3Ignition switch
N00512400660
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Ignition switch” on page 3-25.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion.ACCAllows operation of electrical accessories with the engine off.ONThe engine runs and all accessories can be used.STARTEngages the starter. Release the key when the engine starts.It
will automatically back to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer. (Refer to “Electronic immobilizer”
on page 3-24.)
