6-14 For emergencies
6
5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off. 6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in the wheel, and then
mount the spare tire.
The jack should not be used for any purpose other
than to change a tire.
No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack.
CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.
WA R N I N G
!
BK0142300US.book 14 ページ ２０１１年８月７日　日曜日　午前１０時４４分

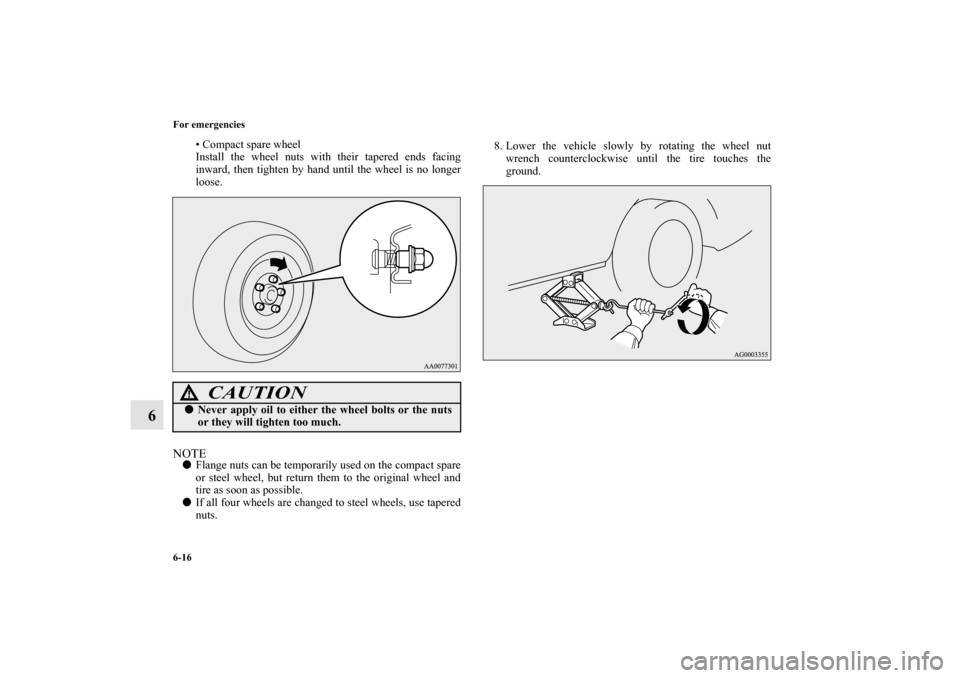

6-16 For emergencies
6
• Compact spare wheel
Install the wheel nuts with their tapered ends facing
inward, then tighten by hand until the wheel is no longer
loose.
NOTE
Flange nuts can be temporarily used on the compact spare
or steel wheel, but return them to the original wheel and
tire as soon as possible.

If all four wheels are changed to steel wheels, use tapered
nuts.8. Lower the vehicle slowly by rotating the wheel nut
wrench counterclockwise until the tire touches the
ground.
CAUTION
!
Never apply oil to either the wheel bolts or the nuts
or they will tighten too much.
BK0142300US.book 16 ページ ２０１１年８月７日　日曜日　午前１０時４４分

For emergencies
6-17
6
9. Tighten the nuts in the order shown in the illustration until
each nut has been tightened to the torque listed here.
65 to 80 ft-lb (88 to 108 N•m)
10. Lower the jack all the way and remove it.11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill as
shown in the illustration.
Refer to “Tire inflation pressures” on page 7-23.
CAUTION
!
Never use your foot or a pipe extension to apply
added force to the wheel nut wrench when tighten-
ing the wheel nuts. If you do so, you can over-tighten
the wheel nuts and damage the wheel, wheel nuts
and hub bolts.
CAUTION
!
Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-23.
After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.
