3-72 Features and controls
3Instrument cluster
N00519000287
1- Tachometer
2- Speedometer
3- Fuel gauge
4- Odometer/Trip odometer
5- Trip odometer reset button
6- Engine coolant temperature gauge
BK0139500US.book 72 ページ ２０１１年４月１９日 火曜日 午後１時４８分
Page 162 of 424
Features and controls
3-73
3
Speedometer
N00519100015
The speedometer shows your vehicle’s speed.Tachometer
N00519200032
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500338
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Odometer
2- Trip odometer
3- Reset button
BK0139500US.book 73 ページ ２０１１年４月１９日 火曜日 午後１時４８分
Page 163 of 424
3-74 Features and controls
3

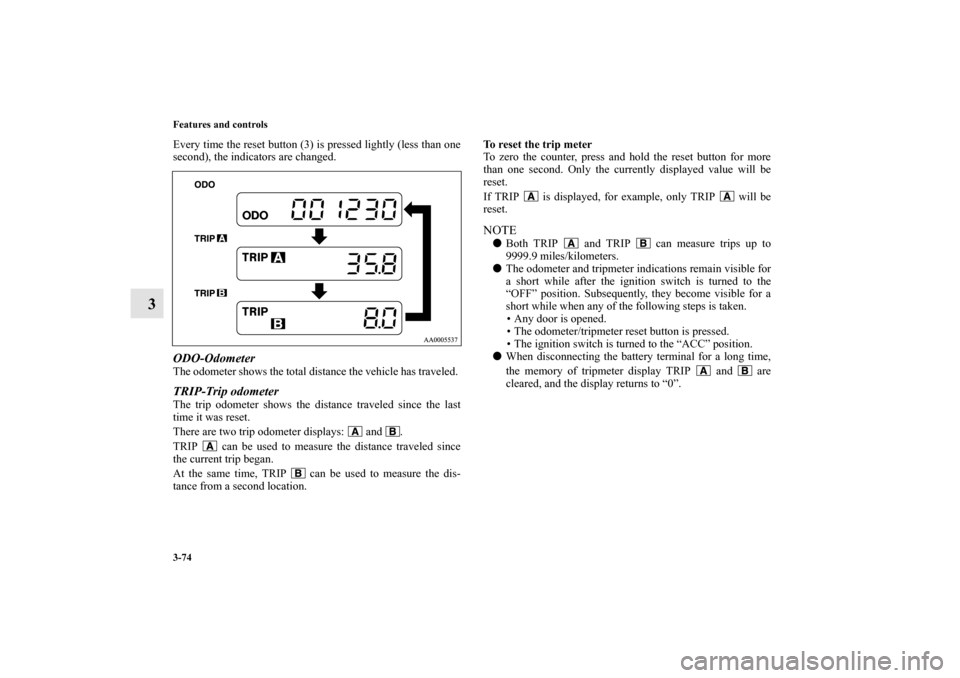

Every time the reset button (3) is pressed lightly (less than one
second), the indicators are changed. ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.To reset the trip meter
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset.
NOTEBoth TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.
The odometer and tripmeter indications remain visible for
a short while after the ignition switch is turned to the
“OFF” position. Subsequently, they become visible for a
short while when any of the following steps is taken.
• Any door is opened.
• The odometer/tripmeter reset button is pressed.
• The ignition switch is turned to the “ACC” position.
When disconnecting the battery terminal for a long time,
the memory of tripmeter display TRIP and are
cleared, and the display returns to “0”.
BK0139500US.book 74 ページ ２０１１年４月１９日 火曜日 午後１時４８分
Page 164 of 424
Features and controls
3-75
3
Fuel gauge
N00519600052
This gauge shows the amount of fuel in the fuel tank when the
ignition key is turned to the “ON” position.NOTEIt takes a little time after refueling for the gauge to register
the newly added fuel.
If you refuel when the ignition key is in the “ON” posi-
tion, the gauge may differ from the actual level.
Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle (Refer to “Filling the fuel tank”
on page 1-4).Low-fuel warning light
N00532000239
The warning light comes on with the ignition key in the “ON”
position when the fuel level is getting low.
Refuel as soon as possible.NOTEOn inclines or curves, due to the movement of fuel in the
tank, the low-fuel warning light may indicate incorrectly.
CAUTION
!Do not drive with an extremely low fuel level. Run-
ning out of gas could cause damage to the catalytic
converter.
BK0139500US.book 75 ページ ２０１１年４月１９日 火曜日 午後１時４８分
Page 165 of 424
3-76 Features and controls
3
Engine coolant temperature gauge
N00519700037
This gauge shows the engine coolant temperature. If the tem-
perature is low when the ignition key is turned to the “ON”
position, the indicator will remain at the “C” (cold) position
until the engine begins to warm up.
The indicator will normally stay near the center while driving,
but may rise slightly in stop-and-go traffic or when the engine
is under a heavy load.
CAUTION
!Take care to keep the engine operating temperature
within the normal range while driving. If the indica-
tor enters the “H” (hot) position, the engine is over-
heating (Refer to “Engine overheating” on page 6-
5).
BK0139500US.book 76 ページ ２０１１年４月１９日 火曜日 午後１時４８分
Page 166 of 424
Features and controls
3-77
3 Indicator and warning light package
N00519800780
1- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-79
2- Cruise control indicator → P.3-58
3- High beam indicator → P.3-78
4- Turn signal indicators/Hazard warning lights → P.3-78
5- Front fog light indicator (if so equipped) → P.3-78
6- Automatic transaxle position indicator → P.3-42
7- Active stability control (ASC) indicator → P. 3 - 5 4
8- Active stability control (ASC) OFF indicator → P.3-54
9- Driver’s seat belt reminder/warning light → P. 2 - 2 0
10- Door-ajar warning light → P. 3 - 8 0
11- Oil pressure warning light → P.3-80
12- Charging system warning light → P.3-80
13- Immobilizer indicator → P. 3 - 314- Tire pressure monitoring system warning light → P.3-65
15- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 6
16- Anti-lock braking system warning light → P.3-50
17- Brake warning light → P.3-78
18- Low-fuel warning light → P.3-75
