2012 MITSUBISHI ECLIPSE buttons

Comfort controls
5-39
5 AM/FM electronically tuned radio with CD autochanger-Type 2 (if so equipped)
AM/FM/Satellite electronically tuned radio with CD autochanger-Type 3 (if so equipped)
N00734300821
Volume and tone control panel-Type 2, Type 3
N00711900585
1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Memory select buttons
4- AUDIO switch
5- Display
BK0132701US.book 39 ページ ２０１０年１２月６日　月曜日　午後２時３分

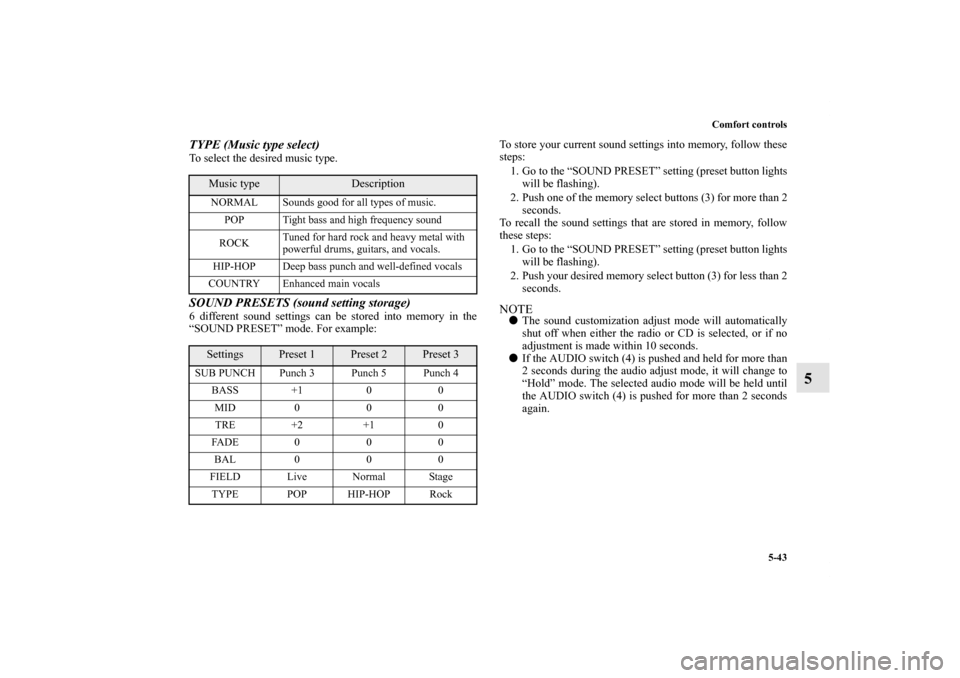

Comfort controls
5-43
5
TYPE (Music type select)To select the desired music type.SOUND PRESETS (sound setting storage)6 different sound settings can be stored into memory in the
“SOUND PRESET” mode. For example:To store your current sound settings into memory, follow these
steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push one of the memory select buttons (3) for more than 2
seconds.
To recall the sound settings that are stored in memory, follow
these steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push your desired memory select button (3) for less than 2
seconds.
NOTE
The sound customization adjust mode will automatically
shut off when either the radio or CD is selected, or if no
adjustment is made within 10 seconds.

If the AUDIO switch (4) is pushed and held for more than
2 seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the AUDIO switch (4) is pushed for more than 2 seconds
again.
Music type
Description
NORMAL Sounds good for all types of music.
POP Tight bass and high frequency sound
ROCKTuned for hard rock and heavy metal with
powerful drums, guitars, and vocals.
HIP-HOP Deep bass punch and well-defined vocals
COUNTRY Enhanced main vocalsSettings
Preset 1
Preset 2
Preset 3
SUB PUNCH Punch 3 Punch 5 Punch 4
BASS +1 0 0
MID 0 0 0
TRE +2 +1 0
FADE 0 0 0
BAL 0 0 0
FIELD Live Normal Stage
TYPE POP HIP-HOP Rock
BK0132701US.book 43 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-45
5
Radio control panel and display-Type 2
N00734900872
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM (AM/FM1/FM2) indicator
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0132701US.book 45 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-46 Comfort controls
5
To listen to the radio
N00735000740
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorised for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tions settings stored in the memory.
BK0132701US.book 46 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-47
5
Radio control panel and display-Type 3
N00734900885
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM/Satellite selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM/SAT (AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4)
indicator
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0132701US.book 47 ページ ２０１０年１２月６日　月曜日　午後２時３分

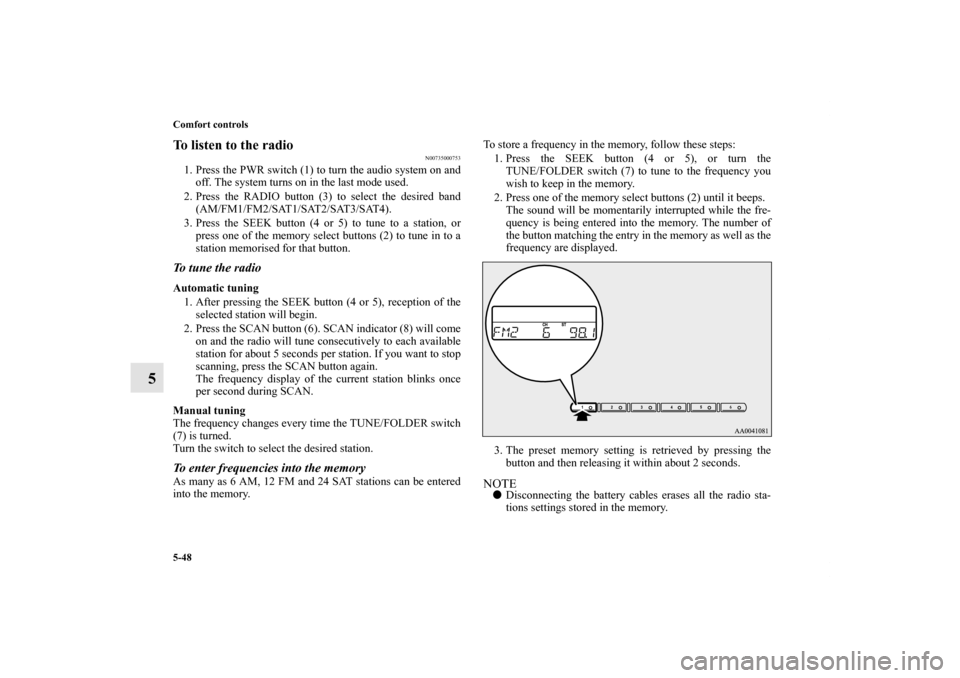

5-48 Comfort controls
5
To listen to the radio
N00735000753
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorised for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM, 12 FM and 24 SAT stations can be entered
into the memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tions settings stored in the memory.
BK0132701US.book 48 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-49
5
SIRIUS Satellite Radio control panel and display-Type 3
N00700200168
1. PWR (On-Off) switch
2. RADIO (AM/FM/Satellite selection) button
3. SEEK (Down-seek) button
4. SEEK (Up-seek) button
5. SCAN button
6. TUNE/FOLDER (Category selection) switch/AUDIO switch
7. Memory select buttons
8. Display
9. Preset memory number display
10. Channel number
11. SCAN indicator
BK0132701US.book 49 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-50 Comfort controls
5
To listen to SIRIUS Satellite Radio
N00760500130
1. If the audio system is OFF, turn it ON by pushing the
PWR switch (1). The audio system will start working in
the previously used mode. Push the RADIO button (2) to
turn ON the radio.
2. Push the RADIO button (2) to select your desired band
(SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the indication will change to the next one in the fol-
lowing sequence: AM → FM1 → FM2 → SAT1 → SAT2
→ SAT3 → SAT4. When “SIRIUS” has appeared on the
display, the radio will receive satellite radio.Category selection
N00760600030
1. Turn the TUNE/FOLDER switch (6) to activate the cate-
gory selection mode. The category number (CAT1 to
CAT12) of the channel currently being received will be
indicated.
2. Turn the TUNE/FOLDER switch (6) to select your
desired category.NOTE
Even when categories are changed, the currently selected
channel does not change. To select your desired channel,
use the SEEK button (3 or 4).

If you do not operate any switch for 15 seconds, the cate-
gory selection mode will be cancelled.
Channel selection
N00760700028
Push the SEEK button (3 or 4) to select a channel.NOTE
While the system is in category selection mode, only the
channels in the currently selected category can be
selected.Scan function
N00760800016
1. If you push the SCAN button (5), the system will select
receivable channels one by one, receiving each one for
about 7 seconds.
2. To cancel the SCAN mode, push the SCAN button (5)
once more.NOTE
While the system is in category selection mode, only
channels in the currently selected category are scanned.To store a channel in memory
N00760900033
It is possible to store one channel for each memory select but-
tons (7) in memory. (It is possible to store a maximum of 24
channels in memory.) Store a channel in memory using the fol-
lowing procedure:
1. Push the SEEK button (3 or 4) to select the channel you
wish to store in memory.
2. Store the channel in memory by pushing one of the mem-
ory select buttons (7) until you hear a beep.
BK0132701US.book 50 ページ ２０１０年１２月６日　月曜日　午後２時３分
