2012 MINI Coupe technical data

REFERENCETechnical data
202
CooperCooper SJohn Cooper Works
1Vehicle height without roof
antenna 55.7/1,414 55.7/1,414 55.7/1,414
2 Track, front
57.4/1,459 57.2/1,453 57.2/1,453
3 Vehicle width, with outside
mirror 75.3/1,913 75.3/1,913 75.3/1,913
4 Track, rear
57.8/1,467 57.5/1,461 57.5/1,461
5 Vehicle width, without outside
mirror 66.3/1,683 66.3/1,683 66.3/1,683
6 Wheelbase
97.1/2,467 97.1/2,467 97.1/2,467
7 Vehicle length
146.6/3,723 146.8/3,729 148/3,758
All dimensions in inches/mm. Minimum turning radius dia.: 35 ft 10 in/10.7 m.
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Technical dataREFERENCE
203
Weights
Never exceed either the approved axle loads or the gross vehicle weight.
MINI Coupe
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,557/1,160 2,679/1,215 2,712/1,230
> Automatic
transmission lbs/kg 2,635/1,195 2,734/1,240 2,767/1,255
Approved gross weight
> Manual transmission lbs/kg 3,175/1,440 3,252/1,475 3,263/1,480
> Automatic
transmission lbs/kg 3,252/1,475 3,307/1,500 3,318/1,505
Approved front axle load
> Manual transmission lbs/kg 1,786/810 1,885/855 1,896/860
> Automatic
transmission lbs/kg 1,863/845 1,940/880 1,951/885
Approved rear axle load lb s/kg 1,411/640 1,411/640 1,411/640
Cargo area capacity cu ft/ liters9.9/
280 9.9/
280 9.9/
280
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

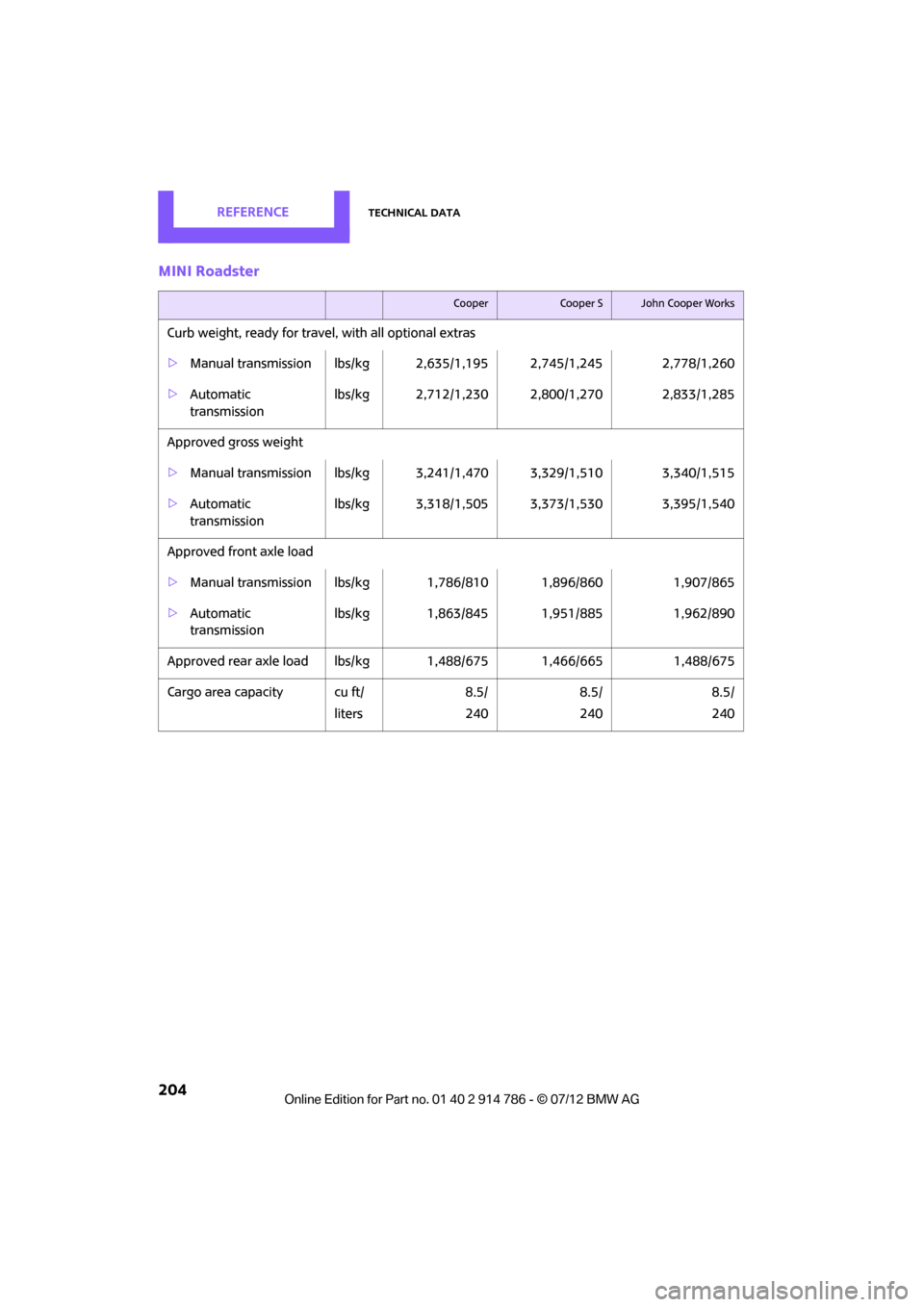

REFERENCETechnical data
204
MINI Roadster
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs/kg 2, 635/1,195 2,745/1,245 2,778/1,260
> Automatic
transmission lbs/kg 2,712/1,230 2,800/1,270 2,833/1,285
Approved gross weight
> Manual transmission lbs/kg 3, 241/1,470 3,329/1,510 3,340/1,515
> Automatic
transmission lbs/kg 3,318/1,505 3,373/1,530 3,395/1,540
Approved front axle load
> Manual transmission lbs/kg 1,786/810 1,896/860 1,907/865
> Automatic
transmission lbs/kg 1,863/845 1,951/885
1,962/890
Approved rear axle load lbs/kg 1,488/675 1,466/665 1,488/675
Cargo area capacity cu ft/ liters8.5/
240 8.5/
240 8.5/
240
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Technical dataREFERENCE
205
MINI Convertible
Capacities
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,701/1,225 2,811/1,275 2,822/1,280
> Automatic
transmission lbs/kg 2,778/1,260 2,855/1,295 2,866/1,300
Approved gross weight
> Manual transmission lbs/kg 3,560/1,615 3,671/1,665 3,704/1,680
> Automatic
transmission lbs/kg 3,638/1,650 3,737/1,695 3,748/1,700
Approved front axle load
> Manual transmission
> Automatic
transmission lbs/kg 1,863/845 1,951/885 1,973/895
lbs/kg 1,940/880 2,017/915 2,017/915
Approved rear axle load lb s/kg 1,786/810 1,786/810 1,797/815
Cargo area capacity cu ft/ liters6.0-23.3/
170-660 6.0-23.3/
170-660 6.0-23.3/
170-660
US gal/US quartsLitersNotes
Fuel tank 13.2/– approx. 50 Fuel grade: page 141
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page 62
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
212
Manual station search117
Manual transmission 57
Manual washing 162
Master key, refer to Integrated
key/remote control 22
Maximum cooling 97
Maximum speed
– with winter tires 154
Medical assistance, refer to First aid pouch 177
Microfilter
– for air conditioner 96
– for automatic climate
control 98
– MINI Maintenance System 159
Microfilter/activated-charcoal filter
– MINI Maintenance
System 159
Microphone for telephone 14
MINI Internet page 4
MINI Maintenance System 159
Mirror dimming feature 50
Mirrors 49
– exterior mirrors 49
– heating 50
– interior rearview mirror 50
Mobile phone
– adjusting volume 133
– connecting, refer to Mobile phone, pairing 130
– installation location, refer to
Center armrest 100
– pairing 130
– refer to Telephone 100
– What to do if…. 132
Mobility Kit 171
Modifications, technical, refer
to For your own safety 4
Monitoring syst em for tire
pressures, refer to Flat Tire
Monitor 80
MP3 121
Multifunctional steering
wheel, refer to Buttons on
the steering wheel 11Multifunction switch
– refer to Turn signals/
headlamp flasher 60
– refer to Wiper system 61
Music tracks
– playing a track 122
– random order 121
N
Neck support, refer to Head
restraints 47
Nets, refer to Storage
compartments 100
New tires 153
Number of cylinders, refer to
Engine data 196
Number of safety belts 45
Nylon rope, refer to Tow
rope 180
O
OBD socket, refer to Socket for
On-Board Diagnosis 160
Octane ratings, refer to Fuel specifications 141
Odometer 66
Oil, refer to Engine oil 156
Oil consumption 156
Oil level 156
Oil types 157
Old batteries, refer to
Disposal 176
Opening and closing
– Comfort Access 31
– from inside 27
– from outside 23
– using the door lock 26
– using the remote control 24
Opening and unlocking
– from inside 27
Outlets
– refer to Air vents 94
– refer to Ventilation 98
Output, refer to Engine data 196 Outside-air mode
– automatic climate control
97
Overheated engine, refer to Coolant temperature 158
P
Paintwork, care163
Park Distance Control PDC 75
Parking
– vehicle 56
Parking aid, refer to Park Distance Control PDC 75
Parking brake 57
Parking lamps, replacing bulb 168
Parking lamps/low beams 88
Parts and accessories, see Vehicle equipment 4
Pathway lighting 89
PDC
– volume 116
Personal Profile 22
Phone numbers
– dialing 134
Plastic parts, care 164
Playing a track, scan
– CD 122
Pollen
– refer to Microfilter/activated- charcoal filter for automatic
climate control 98
– refer to Microfilter for air
conditioner 96
Power convertible top 34
Power failure 176
Power windows 33
Power windows, refer to Windows 33
Pressure, tires 143
Pressure moni toring, tires80
– Flat Tire Monitor 80
Pressure monitori ng of tires,
refer to Tire Pressure Monitor
TPM 82
PTY 119
Puncture
– Flat Tire Monitor 80
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
215
T
Tachometer65
Tailgate 28
– Comfort Access 32
– emergency operation 29
– emergency unlocking 29
– manually releasing 28
– opening/closing 28
– opening from outside 28
– unlocking with remote control 26
Tail lamp, refer to Tail
lamps 169
– replacing bulb 169
Tail lamps 169
Tank volume, refer to Capacities 205
Technical data 196
Technical modifications 4
Telephone 128
– hands-free system 136
– installation location, refer to Center armrest 100
Temperature display
– setting the units 70
Temperature of coolant, refer to Coolant temperature 158
Temperature setting
– air conditioner 95
– automatic climate control 97
Tempomat, refer to Cruise control 63
Tensioning straps, refer to Securing cargo 111
Third brake lamp, refer to
Center brake lamp 170
Three-point safety belt 48
Tightening the lug bolts
– keys 165
– torque 175
Tightening torque, refer to
Tightening lug bolts 175
Time
– setting 117
Tire change set
– space-saver spare tire 165Tire failure
– Flat Tire Monitor
81
– indicator/warning lamp 81
– MINI Mobility Kit 171
– run-flat tires 81
– space-saver spare tire 173
– Tire Pressure Monitor 82
Tire inflation pressure 143
– loss 81
– space-saver spare tire 143
Tire pressure mo nitoring, refer
to Flat Tire Monitor 80
Tire Pressure Monitor TPM 82
– limitations of system 82
–

resetting system 82
– warning lamp 83
Tire Quality Grading 150
Tires
– age 152
– breaking in 106
– changing, refe r to Changing
wheels 173
– condition 151
– damage 151,152
– inflation pressure 143
– inflation pressure loss 83
– minimum tread depth 151
– new tires 153
– pressure monitoring, refer to Flat Tire Monitor 80
– pressure monitoring, refer to Tire Pressure Monitor
TPM 82
– puncture 81
– size 150
– wear indicators, refer to
Minimum tread depth 152
– winter tires 153
– with emergency operation
properties 152
Tires with emergency operation properties, refer to
Run-flat tires 152
Tires with safety features, refer
to Run-flat tires 152
Tone
– middle setting 117 Toolkit
165
Tools, refer to Toolkit 165
Torque 196
– lug bolts 175
Tow bar 179
Tow fitting 179
– screw thread 179
Tow fittings for tow-starting and towing away 179
Towing 178
– car with automatic transmission 179
– methods 179
Tow rope 180
Tow-starting 178
TPM, refer to Tire Pressure
Monitor 82
Track width, refer to Dimension 197
Traction control, refer to
– Dynamic Stability Control DSC 76
Trailer operation
– trailer loads and gross vehicle weight 203
Transmission
– automatic transmission with
Steptron
ic57
– manual transmission 57
– overriding selector lever lock
for automatic transmission
with Steptronic 59
Transporting children safely 51
Transport securing devices, refer to Securing cargo 111
Tread depth, refer to Minimum
tire tread 151
"TRIP" 71
Trip-distance counter, refer to
Trip odometer 66
Triple turn signal activation 60
Trip odometer 66
Trunk, refer to Luggage compartment in the MINI
Convertible 109
Turning circle, refer to Dimensions 197
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG
