2012 MINI Coupe stop start

CONTROLSLamps
92
If the automatic headlamp control is acti-
vated, the low beams will come on auto-
matically when you switch on the fog lamps. <
Rear fog lamp
The low beams or parking lamps with fog lamps
must be switched on. The yellow indicator lamp
c o m e s o n w h e n t h e r e a r f o g l a m p i s s w i t c h e d o n .
Instrument lighting
You can adjust the brightness of the instrument
lighting only when the parking lamps or the low
beams are on.
The intensity of the brightness changes up to a
predetermined end point, and then decreases.
Adjusting brightness
>Briefly press button: br ightness changes in
stages.
> Press and hold the button. Brightness
changes in a continuous manner.
Interior lamps
The interior lighting, the footwell lamps and the
luggage compartment lighting are automati-
cally controlled.
To reduce the drain on the battery, a short
while after the ignition is switched off,
refer to Start/Stop button on page 55, all lights in
the vehicle's passenger compartment are
switched off. <
Switching interior lamps on/off manually
To switch the interior lamps on/off.
Press the switch.
To switch off the interior lamps permanently,
press the switch for about 3 seconds.
Reading lamps
To switch the reading lamps on and off.
Press the switch.
MINI Roadster with semi-automatic
convertible top
>To switch on interior lamps:
Press switches back together.
> To switch on reading lamps:
Press the switch forward.
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

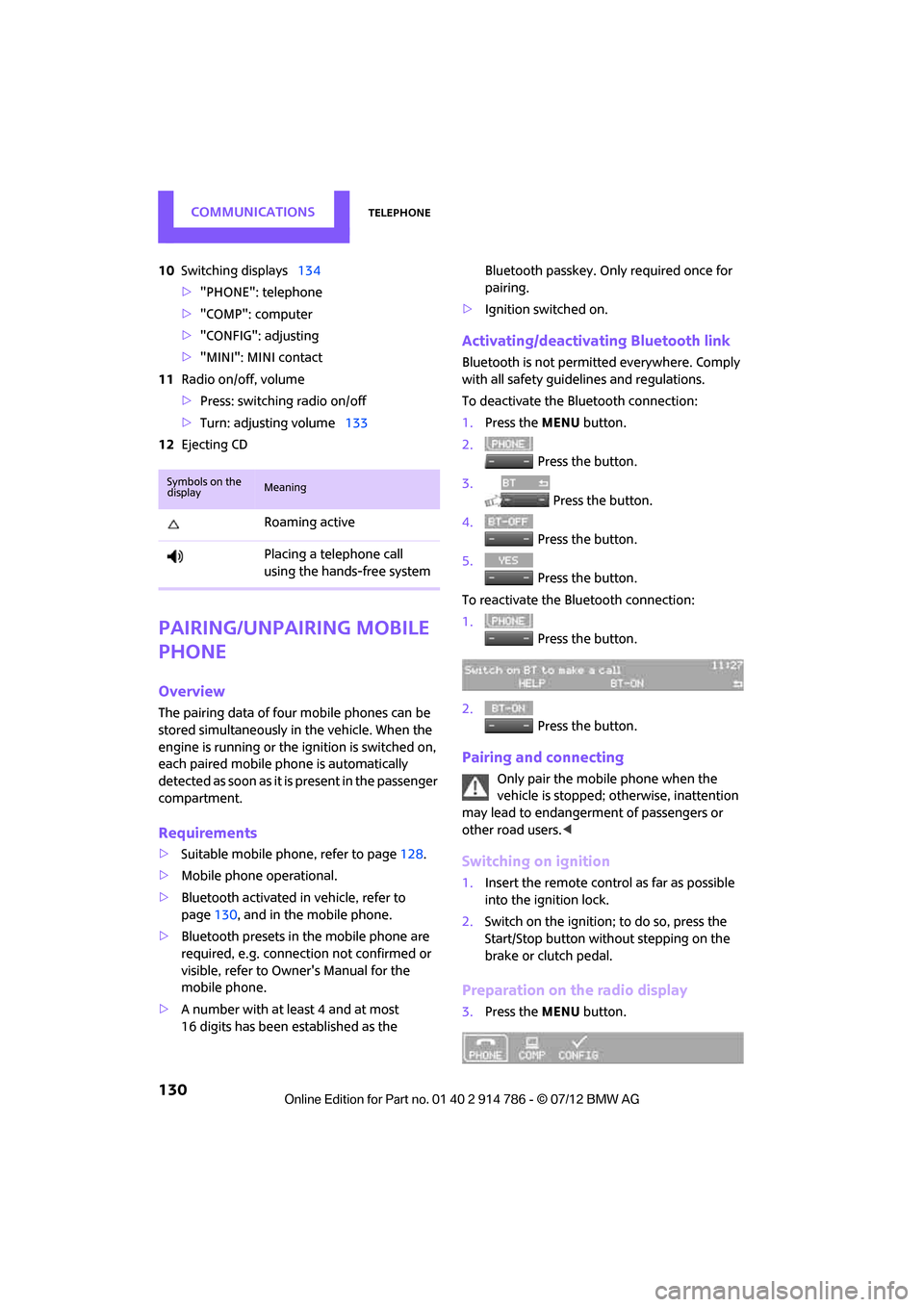

COMMUNICATIONSTelephone
130
10Switching displays 134
> "PHONE": telephone
> "COMP": computer
> "CONFIG": adjusting
> "MINI": MINI contact
11 Radio on/off, volume
>Press: switchin g radio on/off
> Turn: adjusting volume 133
12 Ejecting CD
Pairing/unpairing mobile
phone
Overview
The pairing data of four mobile phones can be
stored simultaneously in the vehicle. When the
engine is running or the ignition is switched on,
each paired mobile phone is automatically
detected as soon as it is present in the passenger
compartment.
Requirements
>Suitable mobile ph one, refer to page128.
> Mobile phone operational.
> Bluetooth activated in vehicle, refer to
page 130, and in the mobile phone.
> Bluetooth presets in the mobile phone are
required, e.g. connection not confirmed or
visible, refer to Owner's Manual for the
mobile phone.
> A number with at least 4 and at most
16 digits has been established as the Bluetooth passkey. Only required once for
pairing.
> Ignition switched on.
Activating/deactivating Bluetooth link
Bluetooth is not permitted everywhere. Comply
with all safety guidelines and regulations.
To deactivate the Bluetooth connection:
1.Press the MENU button.
2. Press the button.
3. Press the button.
4. Press the button.
5. Press the button.
To reactivate the Bluetooth connection:
1. Press the button.
2. Press the button.
Pairing and connecting
Only pair the mobile phone when the
vehicle is stopped; otherwise, inattention
may lead to endangerment of passengers or
other road users. <
Switching on ignition
1.Insert the remote control as far as possible
into the ignition lock.
2. Switch on the ignition; to do so, press the
Start/Stop button without stepping on the
brake or clutch pedal.
Preparation on the radio display
3.Press the MENU button.
Symbols on the
displayMeaning
Roaming active
Placing a telephone call
using the hands-free system
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

MOBILITYGiving and receiving assistance
180
Only attach the tow bar to the tow fittings,
as attachment to other vehicle parts can
lead to damage. <
Towing with a tow rope
When starting off in the towing vehicle, make
sure that the tow rope is taut.
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Attach the tow rope to the tow fittings only, as
attaching it to other pa rts of the vehicle could
result in damage. <
Towing with a tow truck
Have the MINI transported by a tow truck with a
so-called lift bar or on a flat bed.
Do not lift vehicle by tow fitting or body
and chassis parts, otherwise damage may
result. <
Tow-starting
Avoid tow-starting the vehicle whenever possi-
ble; instead, jump-start the engine, page 177.
Vehicles with a catalyti c converter should only
be tow-started when the engine is cold, vehicles
with an automatic transmission cannot be tow-
started at all.
1. Switch on hazard warning flashers, comply
with local regulations.
2. Switch on the ignition, page 55.
3. Shift into 3rd gear.
4. Have the vehicle tow-started with the clutch
completely depressed and then slowly
release the clutch. Afte r the engine starts, immediately depress the clutch completely
again.
5. Stop at a suitable lo cation, remove the tow
bar or rope and switch off the hazard
warning flashers.
6. Have the vehicle checked.
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

MOBILITYIndicator and warning lamps
184
Fuel cap missing or looseMake sure that the fuel cap is correctly
positioned and close it until it audibly
clicks. Do not jam the strap between
the fuel cap and the vehicle.
Window washer fluid level too low Add washer fluid as soon as possible,
page 62.
Lights up in red:
Service due Arrange a service appointment.
Check service requirements,
page 159.
Lights up in yellow:
The next time that the Start/Stop
button is pressed, the engine starts,
possibly even without a foot on the
brakes or without depressing the
clutch
Remote control malfunctioning or, in
cars with Comfort Access, not
detected The engine cannot be started. Have
the remote control checked, if
necessary.
Remote control battery is discharged Use the remote control for a longer journey or, in cars with Comfort
Access, replace the battery.
Belt tensioners and/ or airbag system
failed Have the system checked immedi-
ately. Fasten the safety belts anyway.
Power steering failed You can continue your journey, but
moderate your speed and exercise
due caution. Steering response will be
markedly different. Have the system
checked without delay.
12Cause What to do
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Indicator and warning lampsMOBILITY
189
The Dynamic Stability Control DSC
and Dynamic Traction Control DTC
systems have failedDriving stability limited during
acceleration and cornering.
You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked as soon as possible.
Display in US models
The driving stabili ty control systems,
including ABS and the Tire Pressure
Monitor, have failed, refer also to
page 76 Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kickdown position. Have the system
checked immediately.
Display in Canadian models
The driving stabili ty control systems,
including ABS and the Flat Tire
Monitor or the Tire Pressure Monitor,
have failed, refer also to page 76Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kickdown position. Have the system
checked immediately.
Vehicles with Flat Tire Monitor
Light up in yellow and red:
> Tire damage Carefully bring the car to a stop.
Observe the information starting on
page
80.
> Flat Tire Monitor not initialized Initialize Flat Tire Monitor, page
80.
Light up in yellow:
Flat Tire Monitor failed. Punctures are
not indicated Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

MOBILITYIndicator and warning lamps
190
Vehicles with Tire Pressure Monitor
Light up in yellow and red:
There is a flat tire or substantial loss
in tire pressure Carefully bring the car to a stop.
Observe the information starting on
page
82.
Vehicles with Tire Pressure Monitor
Light up in yellow:
Tire Pressure Monitor not initialized Check the inflation pressure and reset
the system, page
83.
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
> Tire Pressure Monitor failed.
Punctures are not indicated Have the system checked.
> Wheel mounted without TPM
electronics Have the system checked.
> The TPM is temporarily malfunc-
tioning due to other systems or
devices using the same radio
frequency.
Vehicles with Tire Pressure Monitor
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
> Tire Pressure Monitor failed.
Punctures are not indicated Have the system checked.
> Wheel mounted without TPM
electronics Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
214
Selector lever
– automatic transmission with Steptronic 58
Selector lever lock
– automatic transmission with Steptronic, refer to
Shiftlock 58
– overriding manually 59
Selector lever positions
– automatic transmission with
Steptronic 58
Service, refer to Roadside Assistance 177
Service car, refer to Roadside Assistance 177
Service data in the remote
control 159
Service Interval Display, refer to Condition Based Service
CBS 159
Service requirement display, refer to Condition Based
Service CBS 159
Service requirements 71
Settings
– clock, 12 h/24 h mode 70
Setting the date 117
Setting the time format 117
Setting tone controls 117
Shifting gears
– automatic transmission with Steptronic 59
– manual transmission 57
Shiftlock
– automatic transmission, refer to Changing selector lever
positions 58
Side airbags 85
Side turn signal
– replacing bulb 169
Side windows, refer to Windows 33
Signal horn, refer to Horn 10Sitting safely
45
– airbags 45
– safety belts 45
– with head restraint 45
Size, refer to Dimensions 197
Slipstream deflec tor, refer to
Wind deflector 38,43
Slot for remote control 55
Smokers' package, refer to Ashtray 101
Snap-in adapter
– inserting/removing 136
– refer to Center armrest
storage compartment 100
– use 128
Snow chains 154
Socket, refer to Connecting electrical appliances 101
Socket for On-Board Diagnosis
OBD 160
Space-saver spare tire
– changing tires 173
– inflation pressure 143
Spare wh
eel, refer to Space-
saver spare tire 173
Special oils, refer to Approved engine oils 157
Speed 196
– with winter tires 154
Speed-dependent volume 116
Speedo, refer to Speedometer 12
Speedometer 12
Split-folding rear seats 110
Split rear backrest, refer to Split-folding rear seats 110
Sport button 78
Stability contro l, refer to
Driving stability control
systems 76
Start/Stop button 55
– starting the engine 56
– switching off the engine 56
Starting, refer to Starting the engine 56 Starting assistance, refer to
Jump-starting 177
Starting the CD player 121
Starting the engine 56
– Start/Stop button 55
Start-off assistance, refer to
– DSC 76
– Hill Assist 78
Stations, refer to Radio MINI
Boost CD 118
Status of this Owner's Manual at time of printing 4
Steering wheel 50
– adjustment 50
– buttons on steering wheel 11
– lock 55
– shift paddles 59
Steptronic, refer to Automatic transmission with
Steptronic 57
Storage area
– cargo area 108
Storage compartment, front passenger side 100
Storage compartments 100
Storage space
– refer to Luggage compartment in the MINI
Convertible 109
– storage compartments 100
Storing the vehicle 164
Storing tires 154
Stowage, refer to Storage
compartments 100
Summer tires, refer to Wheels and tires 143
Switches, refer to Cockpit 10
Switching off
– engine 56
Switching off
the engine56
– Start/Stop button 55
Switching on
– CD player 116,121
– radio MINI Boost CD 116
Switching the cooling function
on and off 98
Symbols 4
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG
