DRIVING TIPSThings to remember when driving
96
sary. This strategy helps you avoid placing
excessive loads on the brake system. Down-
shifting in manual mode of the automatic trans-
mission, page48.
Never drive with the clutch held down,
with the transmission in neutral or with
the engine switched off; otherwise, engine
braking action will not be present or there will be
no power assistance to the brakes or steering.
Never allow floor mats, carpets or any other
objects to protrude into the area around the
pedals; otherwise, pedal function could be
impaired. <
Corrosion on brake rotors
When the vehicle is driven only occasionally,
during extended periods when the vehicle is not
used at all, and in op erating conditions where
brake applications are less frequent, there is an
increased tendency for corrosion to form on
rotors, while contaminan ts accumulate on the
brake pads. This occurs because the minimum
pressure which must be exerted by the pads
during brake applications to clean the rotors is
not reached.
Should corrosion form on the brake rotors, the
brakes will tend to respond with a pulsating
effect that even extended application will fail to
cure.
When the vehicle is parked
Condensation forms while the automatic climate
control is in operation, and then exits under the
vehicle. Traces of condensed water under the
vehicle are therefore normal.
In the MINI Cooper S, the coolant pump may
continue to run for some time after the engine is
switched off. This will generate noise in the
engine compartment.
Cargo loading
To avoid loading the tires beyond their
approved carrying capacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
develops inside the tires. The ultimate result can
assume the form of a sudden blowout. <
Avoid fluid spills in the cargo area as they
could damage the vehicle. <
MINI: cargo area cover
Do not place any objects on the cover;
otherwise, they could endanger the car's
occupants, e.g. in the case of braking or sudden
swerving, or they may damage the cover. <
When you open the tailgate, the roll-up cover is
raised.
To load bulky luggage, the cover can be
removed.
1. Unhook the lift straps from the tailgate.
2. Pull the cover out of the holders toward the
rear.
MINI Clubman: luggage compartment
roller cover
Do not place heavy or hard objects on the
luggage compartment roller cover. If you
do so, they may already po s e a d a n g e r t o v e h i c l e
occupants during braking or evasive maneuvers.
Do not allow the luggage compartment roll-up
cover to snap back, otherwise it can be
damaged. <
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Things to remember when drivingDRIVING TIPS
99
3.Subtract the combined weight of the driver
and passengers from XXX pounds or YYY
kilograms.
4. The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the XXX amount equals
1,400 lbs and there will be four 150 lbs
passengers in your vehicle, the amount of
available cargo and luggage load capacity is
650 lbs:
1,400 lbs minus 750 lbs = 650 lbs.
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in step 4.
6. If your vehicle will be towing a trailer, part of
the load from your trail er will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how this
may reduce the available cargo and luggage
load capacity of your vehicle.
Load
The permissible load is the sum of the occu-
pants' weights and the weight of the cargo. The
greater the weight of the occupants, the less
cargo/luggage can be transported.
Stowing cargo
> Position heavy objects as low and as far for-
ward as possible, ideally directly behind the
rear seat backrests.
> Cover sharp edges and corners.
> For very heavy cargo when the rear seat is
not occupied, secure each safety belt in the
respective opposite buckle. >
Do not stack higher than the top edge of the
backrests.
> Use the cargo net, refer to page 98. Ensure
that no objects can penetrate through the
net.
MINI
MINI Clubman
Securing cargo
By way of example, the illustration shows the
cargo area in the MINI.
> Secure smaller and lighter items using
retaining or draw straps.
> Heavy-duty cargo straps for securing larger
and heavier objects ar e available at your
MINI dealer. Four lashing eyes are provided
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

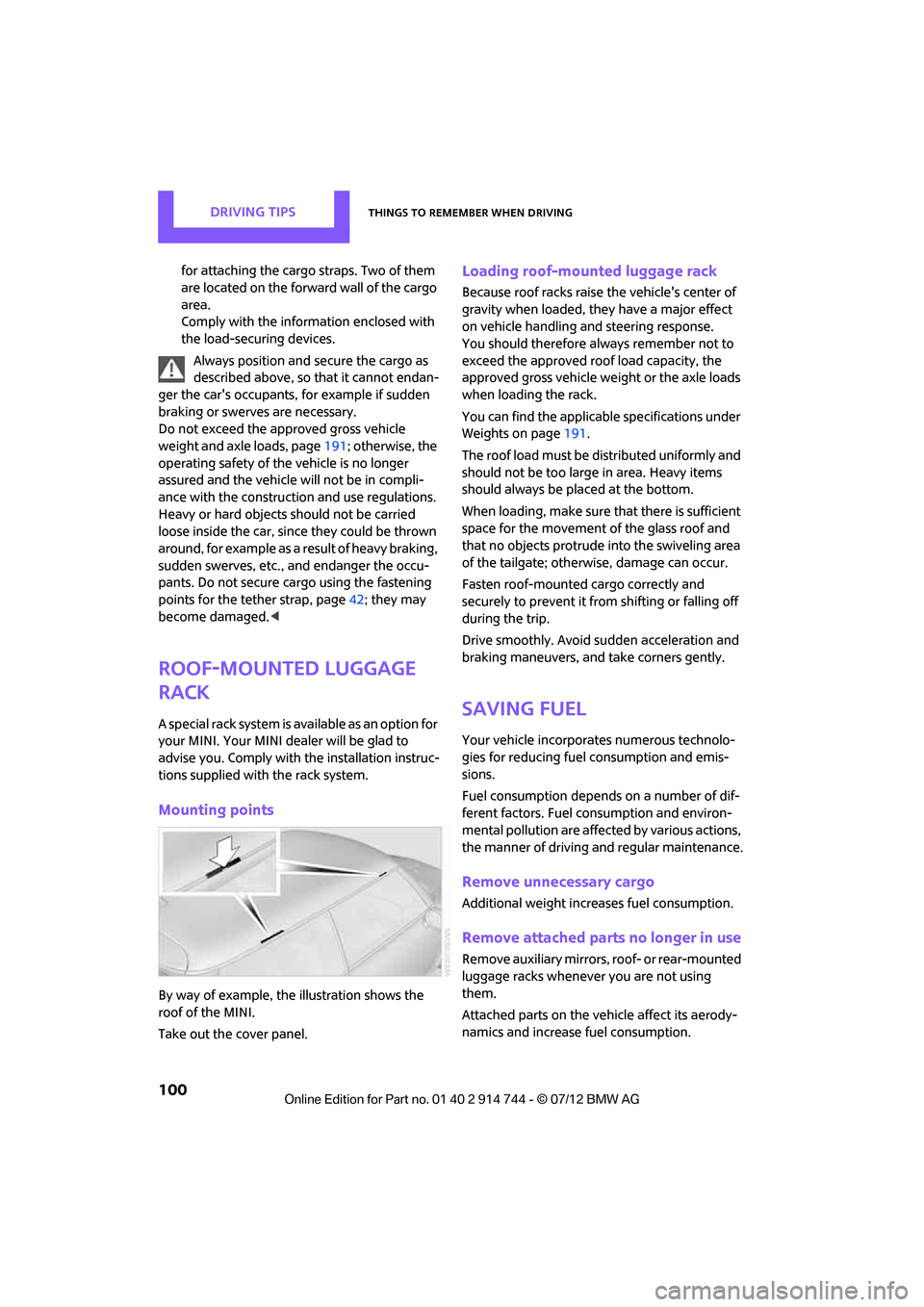

DRIVING TIPSThings to remember when driving
100
for attaching the cargo straps. Two of them
are located on the forward wall of the cargo
area.
Comply with the information enclosed with
the load-securing devices.
Always position and secure the cargo as
described above, so that it cannot endan-
ger the car's occupants, for example if sudden
braking or swerves are necessary.
Do not exceed the approved gross vehicle
weight and axle loads, page 191; otherwise, the
operating safety of the vehicle is no longer
assured and the vehicle will not be in compli-
ance with the construction and use regulations.
Heavy or hard objects should not be carried
loose inside the car, since they could be thrown
around, for example as a result of heavy braking,
sudden swerves, etc., and endanger the occu-
pants. Do not secure cargo using the fastening
points for the tether strap, page 42; they may
become damaged. <
Roof-mounted luggage
rack
A special rack system is available as an option for
your MINI. Your MINI dealer will be glad to
advise you. Comply with the installation instruc-
tions supplied with the rack system.
Mounting points
By way of example, the illustration shows the
roof of the MINI.
Take out the cover panel.
Loading roof-mounted luggage rack
Because roof racks raise the vehicle's center of
gravity when loaded, they have a major effect
on vehicle handling and steering response.
You should therefore always remember not to
exceed the approved roof load capacity, the
approved gross vehicle we ight or the axle loads
when loading the rack.
You can find the applicable specifications under
Weights on page 191.
The roof load must be distributed uniformly and
should not be too large in area. Heavy items
should always be placed at the bottom.
When loading, make sure that there is sufficient
space for the movement of the glass roof and
that no objects protrude into the swiveling area
of the tailgate; otherwise, damage can occur.
Fasten roof-mounted cargo correctly and
securely to prevent it from shifting or falling off
during the trip.
Drive smoothly. Avoid su dden acceleration and
braking maneuvers, and take corners gently.
Saving fuel
Your vehicle incorporates numerous technolo-
gies for reducing fuel consumption and emis-
sions.
Fuel consumption depends on a number of dif-
ferent factors. Fuel consumption and environ-
mental pollution are affect ed by various actions,
the manner of driving and regular maintenance.
Remove unnecessary cargo
Additional weight increases fuel consumption.
Remove attached parts no longer in use
Remove auxiliary mirrors, roof- or rear-mounted
luggage racks whenever you are not using
them.
Attached parts on the ve hicle affect its aerody-
namics and increase fuel consumption.
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

MOBILITYReplacing components
164
stability during braking, longer braking
distances and changes in self-steering proper-
ties when close to the handling limit. These
properties are more noticeable with winter
tires. <
Only one space-saver spare tire may be
mounted at one time. Mount a wheel and
tire of the original size as soon as possible, to
avoid any safety risks. <
Check the tire inflat ion pressure at the
earliest opportunity and correct it if
necessary. Replace the defective tire as soon as
possible and have the new wheel/tire assembly
balanced. <
Preparing for a tire change
Observe the safety precautions regarding
flat tires on page 160.<
Additional safety measures when chang-
ing tires:
Only change the tire wh en parked on a surface
that is level, firm and not slippery.
The vehicle or the jack could slip sideways on
soft or slippery support surfaces, such as snow,
ice, flagstones, etc.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
Do not lie under the vehicle or start the engine
when the vehicle is supported by the jack; other-
wise, there is a risk of fatal injury. <
1. Place the foldable chock behind the front
wheel on the other side of the vehicle or in
front of the wheel if the vehicle is on an
incline. If the wheel is changed on a surface
with a more severe slope, take additional
precautions to secure the vehicle from
rolling.
2. Uncover the lug bo lts if necessary.
3. Loosen the lug bolts by a half turn.
Jacking up the vehicle
The vehicle jack is designed for changing
wheels only. Do not attempt to raise
another vehicle model with it or to raise any load
of any kind. To do so could cause accidents and
personal injury. <
1. Place the jack at the jacking point closest to
the wheel.
The jack base must be perpendicular to the
surface beneath the jacking point.
2. During jacking up, insert the jack head in the
square recess of the jacking point.
3. Jack the vehicle up until the wheel you are
changing is raised off the ground.
Mounting the space-saver spare tire
1.Unscrew the lug bolts and remove the
wheel.
2. Remove accumulations of mud or dirt from
the mounting surfaces of the wheel and
hub. Clean the lug bolts.
3. Lift the new wheel into place.
4. Screw at least two lug bolts finger-tight into
opposite bolt holes.
5. Screw in the remaining bolts.
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Technical dataREFERENCE
191
Weights
Never exceed either the approved axle loads or the gross vehicle weight.
MINI
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,535/1,150 2,668/1,210 2,679/1,215
> Automatic
transmission lbs/kg 2,612/1,185 2,712/1,230 2,723/1,235
Approved gross weight
> Manual transmission lbs/kg 3,384/1,535 3,494/1,585 3,527/1,600
> Automatic
transmission lbs/kg 3,461/1,570 3,538/1,605 3,571/1,620
Approved front axle load
> Manual transmission lbs/kg 1,830/830 1,918/870 1,929/875
> Automatic
transmission lbs/kg 1,907/865 1,962/890 1,973/895
Approved rear axle load lb s/kg 1,664/755 1,664/755 1,676/760
Approved roof load
capacity lbs/kg 165/75 165/75 165/75
Cargo area capacity cu ft/ liters5.7 - 24.0/
160 - 680 5.7 - 24.0/
160 - 680 5.7 - 24.0/
160 - 680
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

REFERENCETechnical data
192
MINI Clubman
Capacities
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs/kg 2, 712/1,230 2,833/1,285 2,844/1,290
> Automatic
transmission lbs/kg2,789/1,265 2,877/1,305 2,888/1,310
Approved gross weight
> Manual transmission lbs/kg 3, 549/1,610 3,671/1,665 3,715/1,685
> Automatic
transmission lbs/kg
3,627/1,645 3,726/1,690 3,759/1,705
Approved front axle load
> Manual transmission lbs/kg 1,830/830 1,918/870 1,940/880
> Automatic
transmission lbs/kg1,907/865 1,962/890 1,984/900
Approved rear axle load lbs/kg 1,830/830 1,841/835 1,863/845
Approved roof load
capacity lbs/kg
165/75 165/75 165/75
Cargo area capacity cu ft/ liters9.2 - 32.8/
260 - 930 9.2 - 32.8/
260 - 930 9.2 - 32.8/
260 - 930
US gal/US quartsLitersNotes
Fuel tank 13.2/– approx. 50 Fuel grade: page 129
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page 52
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
195
Battery165
– disposal 32,165
– jump-starting 168
– temporary power failure 165
Battery renewal
– remote control 32
Being towed 170
Belts, refer to Safety belts 38
Belt tensioner, refer to Safety belts 38
Beverage holders, refer to Cupholders 90
Black ice, refer to External
temperature warning 55
Blower, refer to Air flow rate 81,83
Bluetooth, activating/ deactivating 118
Bottle holders, refer to
Cupholders 90
Brake Assist 64
Brake fluid, refer to Service
requirements 59
Brake lamps
– replacing bulbs 158,159
Brake pads, breaking in 94
Brake rotors 96
– brakes 94
– breaking in 94
Brakes
– ABS 64
– breaking in 94
– MINI Maintenance
System 147
– parking brake 46
– service requirements 59
Brakes, refer to Braking safely 95
Brake system 94
– breaking in 94
– disc brakes 96
– MINI Maintenance
System 147
Breakdown service, refer to Roadside Assistance 167
Breaking in the clutch 94
Break-in period 94 Bulb changing, refer to Lamps
and bulbs 155
Button for starting the engine 44
Buttons on the steering wheel 11
C
California Proposition 65
warning 5
Call ending 122
Calling, refer to Phone
numbers, dialing 122
Calling, refer to Telephone 89
Can holders, refer to
Cupholders 90
Capacities 192
Car battery, refer to Vehicle
battery 165
Car care 149
Care 149
– car-care products 149
– car washes 149
– CD/DVD drives 152
– high-pressure washers 150
– leather 151
– manual washing 150
– upholstery and fabrics 151
– windows 150
– wiper blades 150
Cargo, securing 99
Cargo area 96
– capacity 191
– Comfort Access 31
– cover 96
– doors, refer to Split Rear Barn Doors 28
– expanding 97
– lamp 79
– opening from outside 28
– trunk lid, refer to Split Rear
Barn Doors 28
Cargo area doors, refer to Split Rear Barn Doors 28
Cargo area lamp 79 Cargo area lid, refer to
Tailgate 28
Cargo area partition net, refer to Cargo net 98
Cargo loading 98
– securing cargo 99
– stowing cargo 99
– vehicle 96
Cargo net 98
Car key, refer to Keys/remote
controls 22
Carpets, care 151
Car phone
– installation location, refer to Center armrest 89
– refer to Telephone 89,116
Car radio, refer to Radio 16
Car wash, care 149
Car washes 149
Cataly

tic converter, refer to
Hot exhaust system 95
CD player 109
– changing the track 109
– fast forward/reverse 109
– playing a track 110
– random order 109
– volume 104
Center armrest 89
Center brake lamp 160
Center console, refer to
Around the center
console 14
Central locking system 23
– Comfort Access 30
– from inside 26
– from outside 23
Changing bulbs 155
Changing wheels 162
Charging the battery 165
Chassis number, refer to Engine compartment 143
Check Control 61
Child restraint fixing system LATCH 42
Child restraint systems 41
Child seats 41
Chrome parts, care 151
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
197
Drive-off assistant, refer to Hill
Assist 66
Driving dynamics control, refer to Sport button 66
Driving lamps, refer to Parking lamps/low beams 75
Driving notes 94
Driving off on inclines, refer to Hill Assist 66
Driving stability control
systems 64
Driving through water 95
Driving tips, refer to Driving
notes 94
Dry air, refer to Cooling function 84
DSC Dynamic Stability Control 64
DTC Dynamic Traction
Control 65
Dynamic Brake Control DBC, refer to Brake Assist 64
Dynamic Stability Control DSC 64
Dynamic Traction Control
DTC 65
E
Eject button 110
Electrical malfunction
– door lock 26
– fuel filler flap 128
Electric power windows
– initializing 33
Electronic brake-force
distribution 64
Electronic Stability Program ESP, refer to Dynamic
Stability Control DSC 64
Emergency operation, refer to Manual operation
– door lock 26
– fuel filler flap 128
– transmission lock, automatic
transmission 48 Emergency services, refer to
Roadside Assistance 167
Ending a call 122
Engine
– breaking in 94
– data 186
– overheated, refer to Coolant
temperature 146
– speed 186
– starting, Comfort Access 30
Engine compartment 143
Engine coolant, refer to Coolant 146
Engine oil
– additives, refer to Approved engine oils 145
– alternative oil types 145
– approved engine oils 145
– capacity 145
– checking level 144
– dipstick 144
– intervals between changes,
refer to Service
requirements 59
– MINI Maintenance
System 147
Engine oil level, checking 144
Engine output, refer to Engine
data 186
Engine starting, refer to
Starting the engine 45
ESP Electronic Stability Program, refer to Dynamic
Stability Control DSC 64
Exhaust system, refer to Hot exhaust system 95
Exterior mirrors 39
– adjusting 39
– automatic heating 39
– folding in and out 39
External audio device 89,104
External care 149
External temperature display
– change units of measure 58
– in the onboard computer 58Eyes
– for tow-

starting and towing
away 169
– for tying down loads 99
F
Failure messages, refer to
Check Control 61
Failure of an electrical
consumer 166
Fastening safety be lts, refer to
Safety belts 38
Fast forward
– CD 109
Fault messages, refer to Check
Control 61
Filter
– microfilter/activated-
charcoal filter for automatic
climate control 84
– microfilter for air
conditioner 82
Fine wood, care 152
First aid pouch 167
Fixture for remote control, refer to Ignition lock 44
Flash when locking/
unlocking 24
Flat load floor 98
Flat tire
– run-flat tires 140
– Tire Pressure Monitor TPM 69
Flat Tire Monitor FTM 66
– indicating a flat tire 67
– initializing the system 67
– snow chains 67
– system limits 67
Flat tires, refer to Tire
condition 139
Floor mats, care 151
Floor plate, refe r to Flat load
floor 98
Fog lamps
– replacing bulb 156,159
Folding rear seat backrest 97
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG
