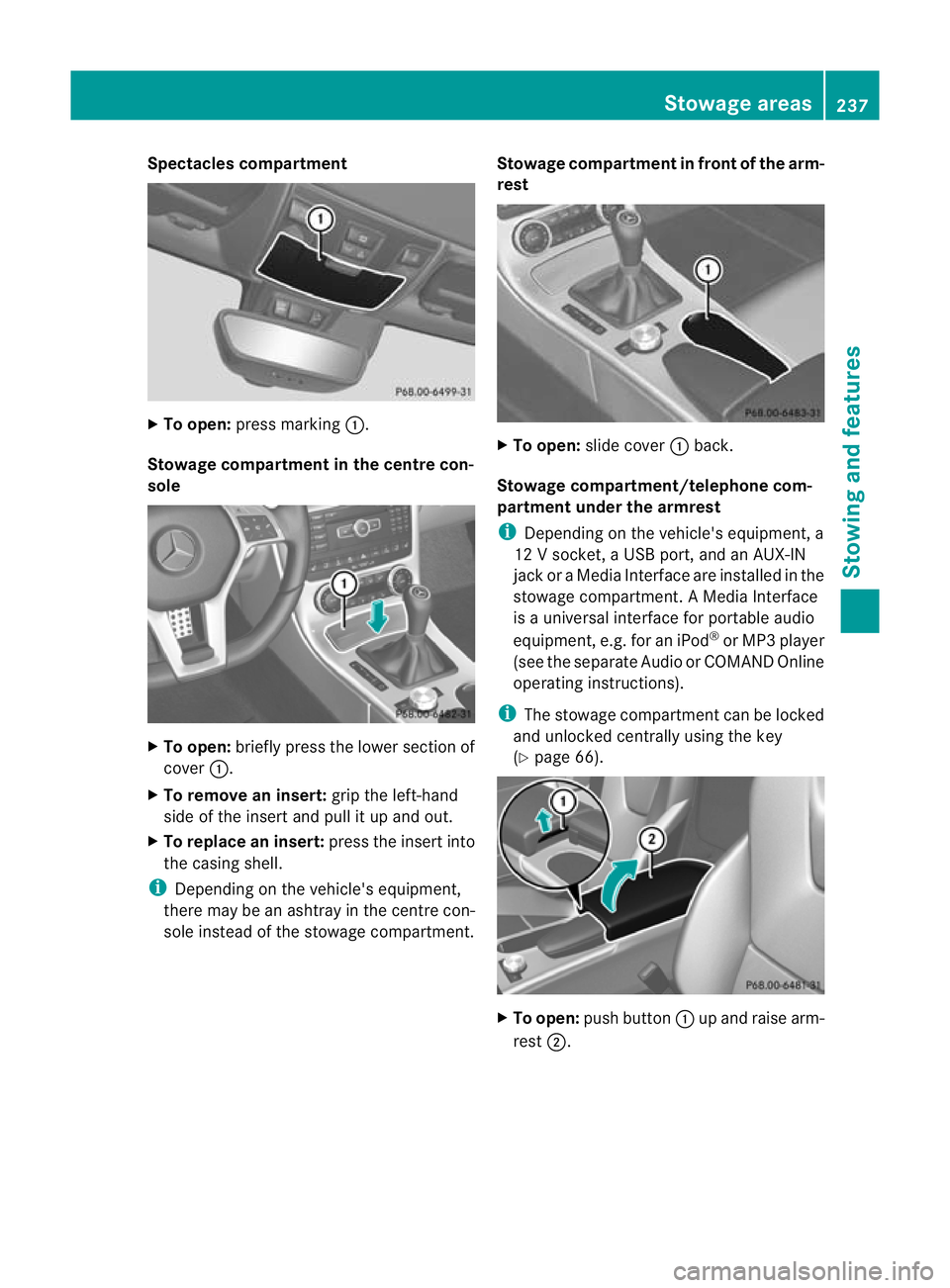

Spectacles compartment
X
To open: press marking :.
Stowage compartment in the centre con-
sole X
To open: briefly press the lower section of
cover :.
X To remove an insert: grip the left-hand
side of the insert and pull it up and out.
X To replace an insert: press the insert into
the casing shell.
i Depending on the vehicle's equipment,
there may be an ashtray in the centre con-
sole instead of the stowage compartment. Stowage compartment in front of the arm-
rest X
To open: slide cover :back.
Stowage compartment/telephone com-
partment under the armrest
i Depending on the vehicle's equipment, a
12 V socket, a USB port, and an AUX-IN
jack or a Media Interface are installed in the
stowage compartment. A Media Interface
is a universal interface for portable audio
equipment, e.g. for an iPod ®
or MP3 player
(see the separate Audio or COMAND Online
operating instructions).
i The stowage compartmen tcan be locked
and unlocked centrally using the key
(Y page 66). X
To open: push button :up and raise arm-
rest ;. Stowage areas
237Stowing and features Z
