Overvie wofclimatecontrol sys-
tems ................................................... 136
Operating the clima tecontrol sys-
tem ..................................................... 141
Adjusting the air vents .....................154 135Climat
econtrol

Usefu
linfor mati on
i This Owner's Manual describes all mod-
els, series and optional equipment for your
vehicle that were available at the time of
going to press. National variation sare pos-
sible. Note that your vehicl emay not be
equippe dwith all of the function sdescri-
bed. This is also the case for system sand
functions relevant to safety.
i Read the information on qualified special-
ist workshops: (Y page25). Overvie
wofclimatecontrol systems Important safet
ynotes G
WARNING
Observ ethe settings recommende donthe
followin gpages. The windows could other-
wise mist up. This may preven tyou from
observing the traffic conditions, thereby caus-
ing an accident.
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control is only operational when the
engine is running. The system only works
optimally if the side windows and the roof are
closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 147).
i Ven tilate the vehicle for abriefp eriod
during war mweather ,e.g. using the con-
venienc eopening feature (Y page 90).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached mor equickly.
i The integrated filter can filter out most
particles of dust and completely filters out
pollen. Aclogged filter reduces the amount
of air supplied to the vehicle interior .For
this reason, you should always observ ethe interval for replacing the filter
,which is
specifie dinthe Servic eBooklet .Asit
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Servic eBooklet. 136
Overview of climat
econtrol systemsClimat econtrol

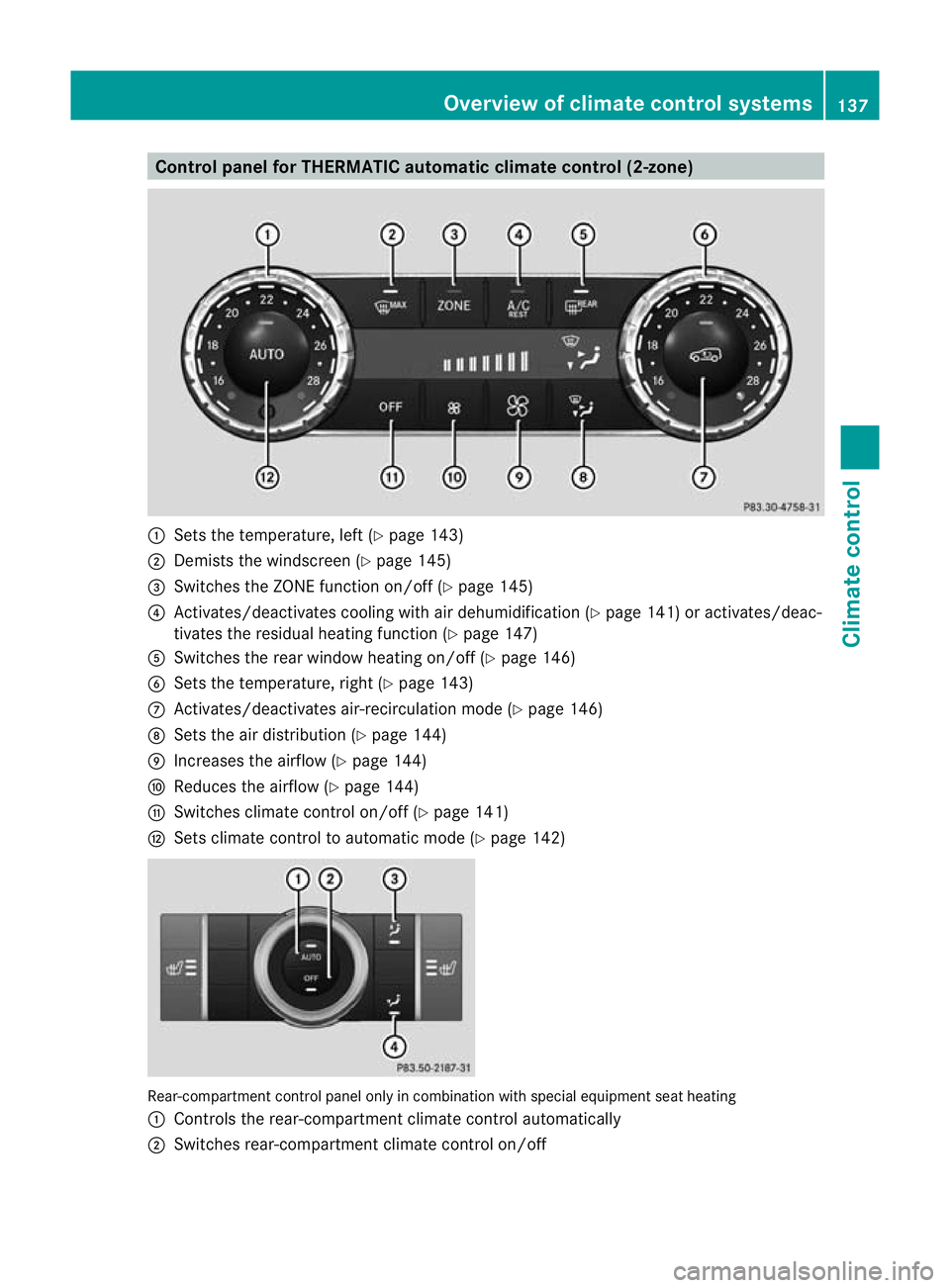

Control panel for THERMATIC automatic clima
tecontrol (2-zone) :
Setsthe tem perature, left (Y page 143)
; Demists th ewindscree n(Ypage 145)
= Switches th eZONE fu nction on/of f(Y page 145)
? Activates/deactivate scooling with ai rdehumidi fication (Y page141)ora ctivates/deac-
tivates the residual heating functio n(Ypage 14 7)
A Switches the rear window heating on/off (Y page146)
B Sets the tempera ture,right (Y page 143)
C Activates/deactivates air-recirculation mode (Y page 146)
D Setsthe air distribution (Y page 144)
E Increase sthe airflo w(Ypage 14 4)
F Reduces the airflow (Y page 144)
G Switches climate control on/off (Y page 141)
H Setsclimate control to automatic mode (Y page 142)Rear-
compartment control panel onl yincombination with special equipmen tseat heating
: Controls the rear-compartment climate control automatically
; Switches rear-compartment climate control on/off Overview of climat
econtrol systems
137Climatecontrol Z

=

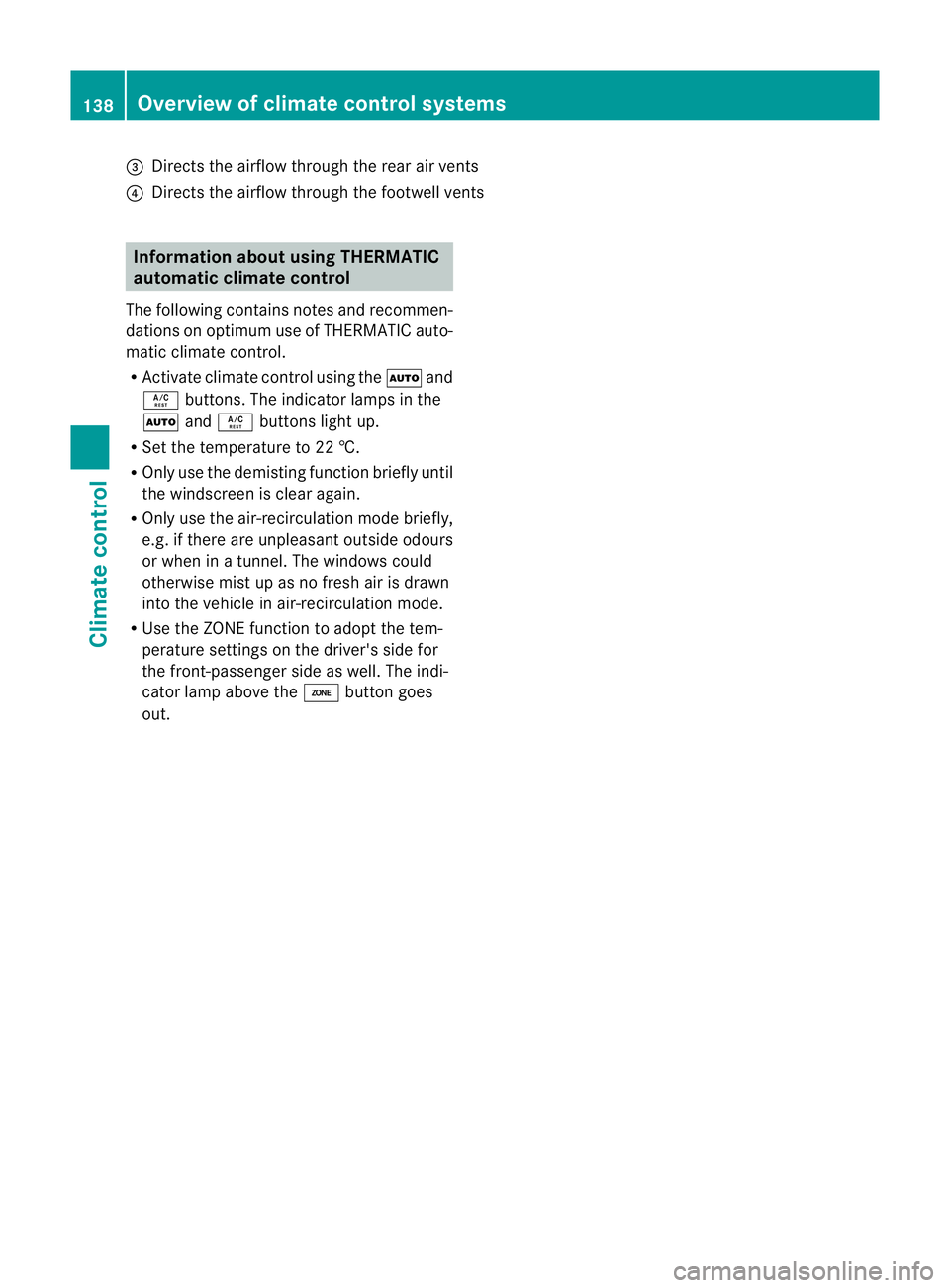

Directs the airflo wthroug hthe rear air vents
? Directs the airflow thr oughthe footwell vents Informatio
nabout using THERMATIC
automatic climate control
The following contains notes and recommen-
dation sonoptimum use of THERMATIC auto-
matic climate control.
R Activat eclimate control using the Ãand
Á buttons. The indicator lamps in the
à andÁ buttons light up.
R Set the temperature to 22 †.
R Only use the demisting func tion briefly until
the windscreen is clea ragain.
R Only use the air-recirculation mode briefly,
e.g. if ther eare unpleas anto utside odours
or when in atunnel. The windows could
otherwis emist up as no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE func tion to adopt the tem-
peratur esettings on the driver' sside for
the front-passenger side as well. The indi-
cator lamp above the ábutton goes
out. 138
Overview of climate control systemsClimat
econtrol

Control panel for THERMOTRONIC automatic climat
econtrol (3-zone) Fron
tcontrol panel
: Setsthe te mperature, left (Y page 143)
; Demist sthe windscree n(Ypage 145)
= Activates/deactivates th eresidual heat function (Y page 147)
? Switche scooling with air dehumidificatio non/off (Y page 141)
A Switche sthe rear windo wheatin gon/off (Y page146)
B Sets the tempera ture,right (Y page 143)
C Switches the ZONE function on/off (Y page 145)
D Switches climate control on/off (Y page 141)
E Setsthe air distribution (Y page 144)
F Increase sthe airflo w(Ypage 14 4)
G Reduces the airflow (Y page 144)
H Display
I Setsthe cli mate mode (Y page 143)
J Activates/deactivates air-recirculation mode (Y page 146)
K Setsclimate control to automatic mode (Y page 142)
Rea rcontrol panel
L Increases the airflow (Y page 144)
M Setsthe temperatur e(Ypage 14 3)
N Controls the rear-compartmen tclimate control automatically (Y page 142)
O Direct sthe airflo wthrough the rea rair vents (Y page 144)
P Direct sthe airflo wthrough the footwell vents (Y page 144)
Q Switches rear-compartment climate control on/off (Y page141)
R Reduce sthe airflo w(Ypage 14 4) Overview of clim
atec ontrol systems
139Climate control Z

Control panel for THERMOTRONIC automatic clima
tecontrol with additional
rear-compartment clima tecontrol (3-zone) Fron
tcontrol panel
: Setsthe te mperature, left (Y page 143)
; Demist sthe windscree n(Ypage 145)
= Switche sthe ZONE function on/off (Ypage 145)
? Activates/dea ctivates cooling with air dehumidificatio n(Ypage 14 1)or activates/deac-
tivates the residual heatin gfunction (Y page 147)
A Switches the rear window heating on/off (Y page 146)
B Setsthe temperature, right (Y page 143)
C Switches rear-compartment climate contro lon/off
D Switches the climate contro lon/off (Y page141)
E Sets the air dist ribution (Y page 144)
F Increases th eairflow (Y page 144)
G Reduces the airflow ( Ypage 144)
H Display
I Setsthe clima te mode (Y page 14 3)
J Activates/deactivates air-recirculatio nmode (Y page 14 6)
K Climate control, automatic mode (Y page 142)
Rear control panel
L Increases the airflow (Y page 144)
M Setsthe temperature (Y page 143)
N Controls the rear-compartment climat econtr ol automaticall y(Ypage 14 2)
O Directs the airflow through the rear air vent s(Ypage 14 4)
P Directs the airflow through the footwell vent s(Ypage 14 4) 140
Overview of climat
econtrol systemsClimat econtrol

Q
Switche srear-com partment climate contro lon/of f(Y page 141)
R Reduces the airflow (Y page 144)Informat
iona bout using
THERMOTRONIC automatic climate
control
The following contains instructions and rec-
omm endations to enabl eyou to get the most
ou tofy our THERMOTRONIC automatic cli-
mate con trol.
R Activate climate con trol using the Ãand
¿ buttons. The indicator lamps above
the à and¿ button slight up.
R In automatic mode, you can also use the
ñ button to set aclimate mode
(FOCUS/MEDIUM/DIFFUSE). The
MEDIU Mlevel is recommended.
R Set the temperature to 22 †.
R Only use the demisting function briefly until
the windscreen is clear again.
R Only use the air-recir culation mode briefly,
e.g. if there are unpleasant outside odours
or when in atunnel. The windows could
otherwis emist up as no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE func tion to adopt the tem-
peratur esettings on the driver' sside for
the front-passenger side and the rear com-
partmen taswell. The indicator lamp above
the á button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicl einterior
whe nthe ignition is switched off .The resid-
ual heat func tion can only be activated or
deactivated with the ignition switched off. Operating th
eclimat econtrol system Switching climate control on/off
Points to observe before use i
If climat econtrol is switched off ,the air
supply and air circulation ar ealso switched off. Only select this settin
gbriefly. Other-
wise ,the windows ma ymist up.
i Switch on climate control primarily using
the à button (Y page 142).
In the rear compartment, you can also switch
climate control on and off using the Ãand
^ buttons.
Switching on/off X
Turn the key to position 2in the ignition
lock.
X To switch on: press buttonÃ.
The indicator lamp in the Ãbutton lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the ^button.
The indicator lamp in the ^button goes
out. The previous settings are reactivated.
X To switch off: press the^button.
The indicator lamp in the ^button lights
up. Activating/deactivating the cooling
with air dehu
midification function
Points to observe before use G
WARNING
If the "cooling with air dehumidification" func-
tion is deactivated, the air inside the vehicle
will not be cooled (during warm weather) or
dehumidified. The windows could mist up
more quickly. This may prevent you from
observing the traffic conditions, thereby caus-
ing an accident.
The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu- Operating the climate control system
141Climatecontrol Z
