2012 MERCEDES-BENZ E-CLASS ESTATE tyre pressure

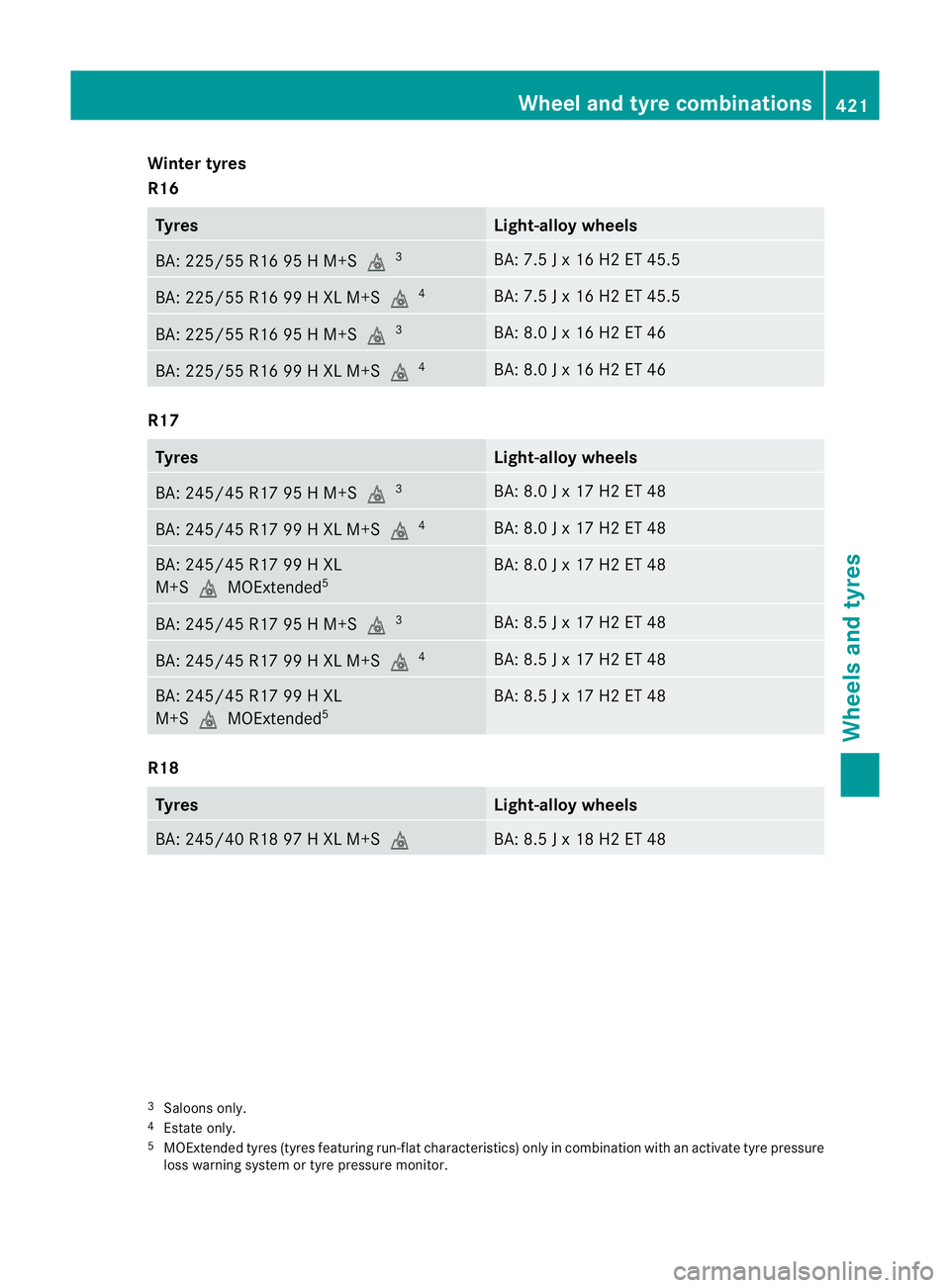

Winter tyres
R16
Tyres Light-alloy wheels
BA: 225/55 R16 95 H M+S
i3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 H XL M+S
i4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 H M+S
i3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 H XL M+S
i4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
3
Saloons only.
4 Estate only.
5 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. Wheel and tyre combinations
421Wheels and tyres Z

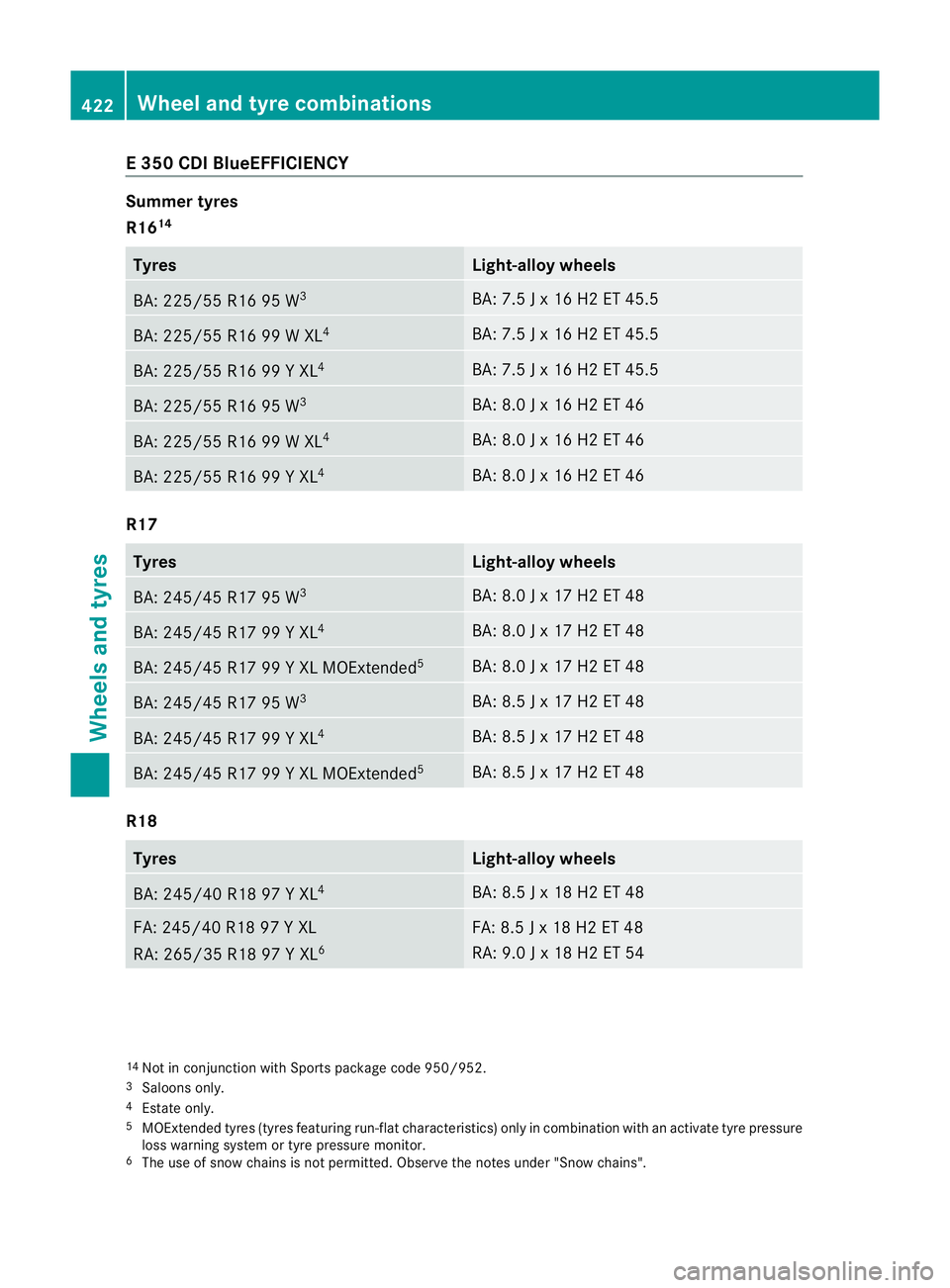

E 350 CDI BlueEFFICIENCY
Summer tyres
R16
14 Tyres Light-alloy wheels
BA: 225/55 R16 95 W
3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 W XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 Y XL
4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 W
3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 W XL
4 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 Y XL
4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 W
3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 W
3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2 ET 48
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL
6 FA: 8.5 J x 18 H2 ET 48
RA: 9.0 J x 18 H2 ET 54
14
Not in conjunction with Sports package code 950/952.
3 Saloons only.
4 Estate only.
5 MOExtended tyres (tyres featuring run-flat characteristics) only in combinatio nwith an activate tyre pressure
loss warning syste mortyre pressure monitor.
6 The use of snow chains is no tpermitted. Observe the notes under "Snow chains". 422
Wheel and tyre combinationsWheels and tyres

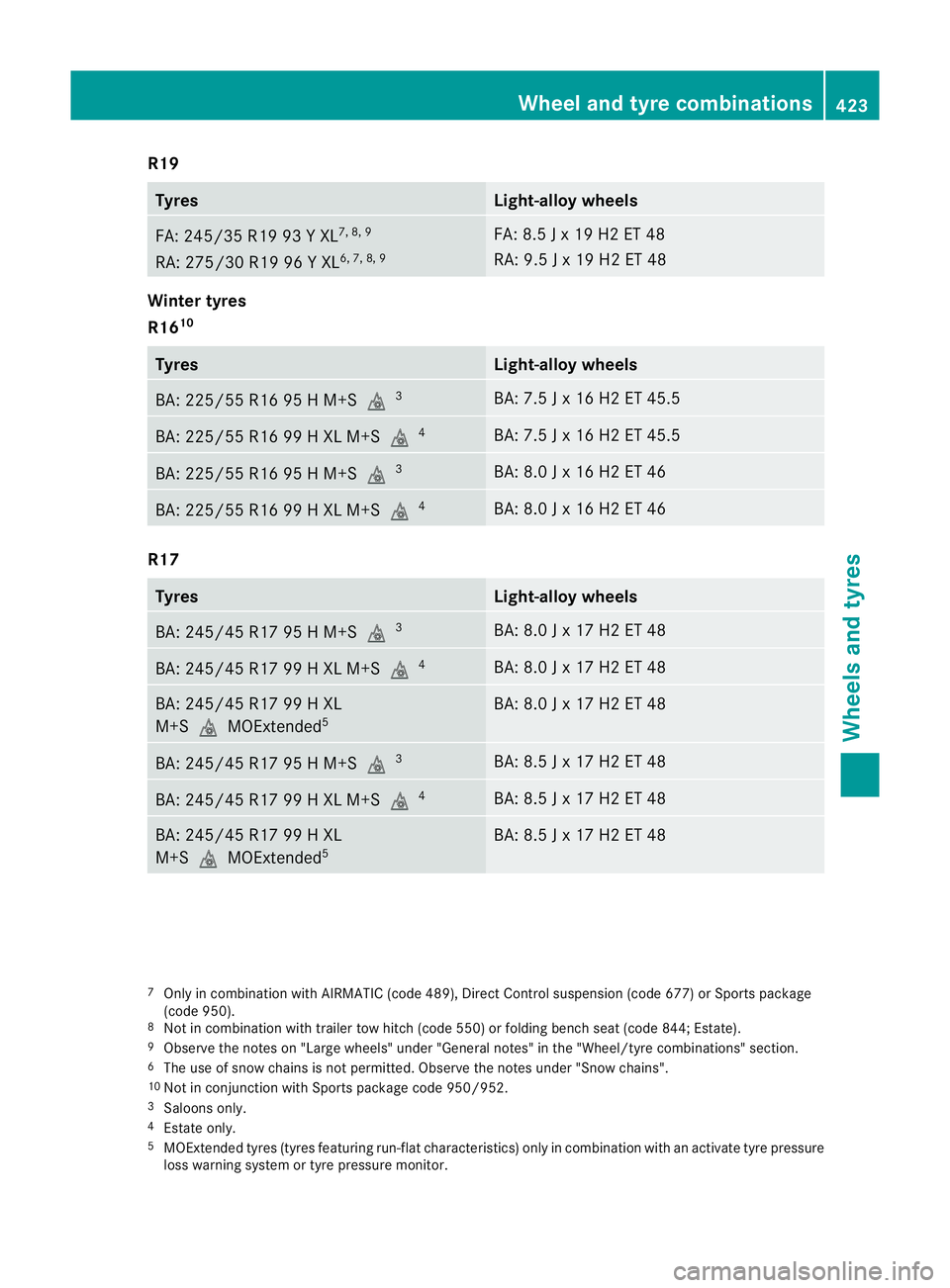

R19
Tyres Light-allo
ywheels FA: 245/35 R19 93 Y XL
7, 8, 9
RA: 275/30 R19 96 Y XL 6, 7, 8, 9 FA: 8.5 J x 19 H2 ET 48
RA: 9.5 J x 19 H2 ET 48
Winter tyres
R16
10 Tyres Light-alloy wheels
BA: 225/55 R16 95 H M+S
i3 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 99 H XL M+S
i4 BA: 7.5 J x 16 H2 ET 45.5
BA: 225/55 R16 95 H M+S
i3 BA: 8.0 J x 16 H2 ET 46
BA: 225/55 R16 99 H XL M+S
i4 BA: 8.0 J x 16 H2 ET 46
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.5 J x 17 H2 ET 48
7
Only in combination with AIRMATIC (code 489), Direct Control suspension (code 677) or Sports package
(code 950).
8 Not in combination with trailer tow hitch (code 550) or folding bench seat (code 844; Estate).
9 Observe the notes on "Large wheels" under "General notes" in the "Wheel/tyre combinations" section.
6 The use of snow chains is not permitted. Observe the notes under "Snow chains".
10 Not in conjunction with Sports package code 950/952.
3 Saloons only.
4 Estate only.
5 MOExtended tyres (tyre sfeaturing run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. Wheel and tyre combinations
423Wheels and tyres Z

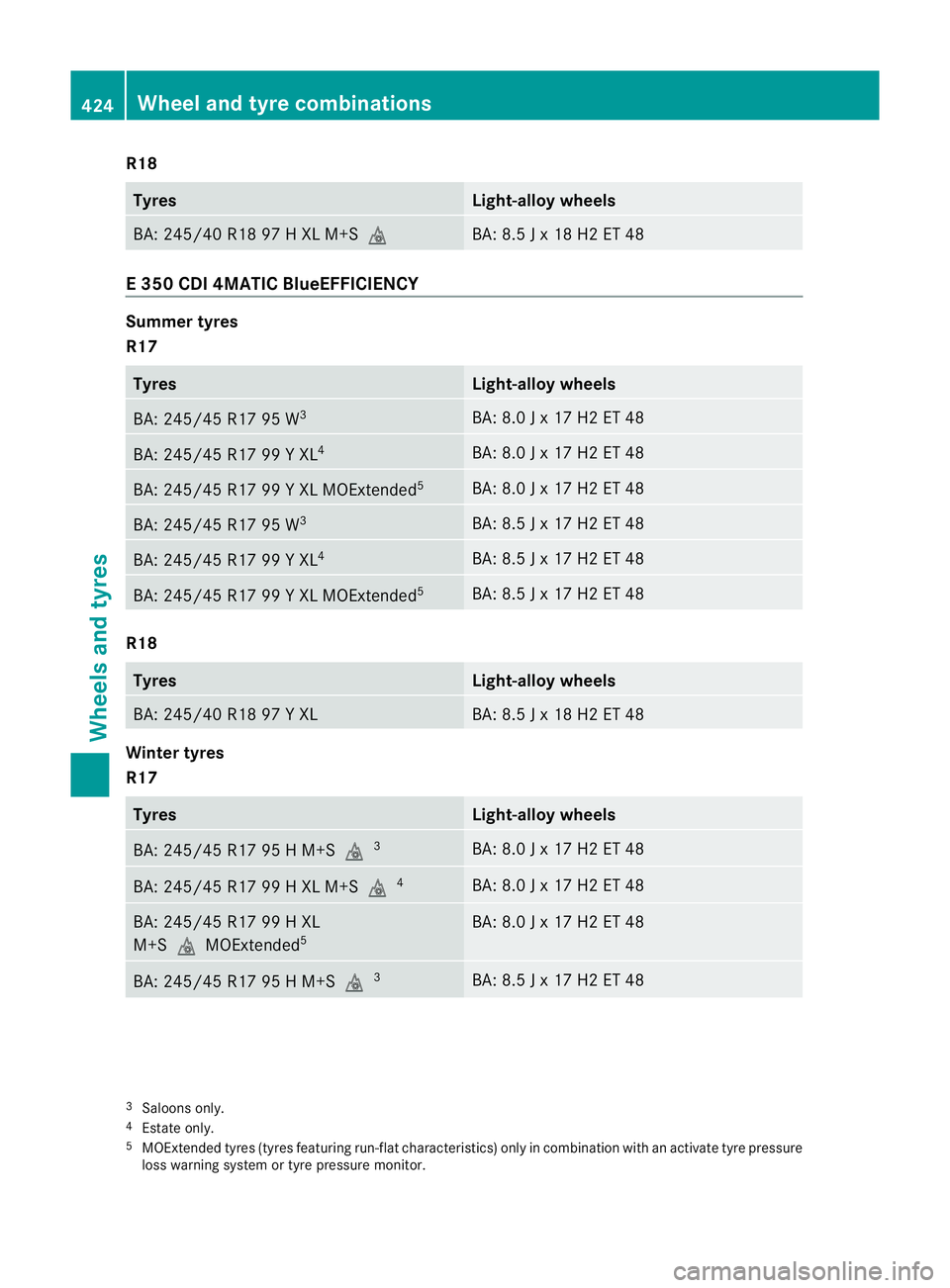

R18
Tyres Light-allo
ywheels BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
E 350 CDI 4MATIC BlueEFFICIENCY
Summer tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 W
3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 W
3 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL
4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 Y XL MOExtended
5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 Y XL BA: 8.5 J x 18 H2 ET 48
Winter tyres
R17
Tyres Light-alloy wheels
BA: 245/45 R17 95 H M+S
i3 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+SiMOExtended
5 BA: 8.0 J x 17 H2 ET 48
BA: 245/45 R17 95 H M+S
i3 BA: 8.5 J x 17 H2 ET 48
3
Saloons only.
4 Estate only.
5 MOExtended tyres (tyre sfeaturing run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. 424
Wheel and tyre combinationsWheels and tyres

Tyres Light-alloy wheels
BA: 245/45 R17 99 H XL M+S
i4 BA: 8.5 J x 17 H2 ET 48
BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2 ET 48
R18
Tyres Light-alloy wheels
BA: 245/40 R18 97 H XL M+S
i BA: 8.5 J x 18 H2 ET 48
Emergenc
yspare wheel Important safety notes
G
WARNING
The wheel/tyre dimensions and the tyre type
of the spare wheel/emergency spare wheel
and the wheel to be replaced may differ .Fit-
ting a spare wheel/emergency spare wheel
may severely impair the driving characteris-
tics. There is a risk of accident.
To prevent hazardous situations:
R Adapt your driving style accordingly and
drive carefully.
R Never fit more than one spare wheel/emer-
gency spare wheel if the dimesions are dif-
ferent to those of the wheel being replaced.
R Only use a spare wheel/emergency spare
wheel briefly if the dimesions are different
to those of the wheel being replaced.
R Do not switch off ESP ®
.
R Have the spare wheel/emergency spare
wheel in question replaced at the nearest
qualified specialist workshop. Make sure
that the wheel/tyre dimensions and tyre
type are correct.
When using an emergency spare wheel or
spare wheel of a differen tsize, you must not
exceed the maximum speed of 80 km/h. Snow chains must not be fitted to emergency
spare wheels. General notes
You should regularly chec kthe pressure of all
your tyres, including the emergency spare
wheel, particularly prior to long trips, and cor-
rect the pressure as necessary (Y page 383).
The applicable value is found on the wheel or
under "Technical data" (Y page 429).
An emergency spare wheel may also be fitted
against the direction of rotation. Observe the
time restriction on use as well as the speed
limitation specified on the emergency spare
wheel.
Replace the tyres after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
i When you are driving with the collapsible
emergency spare wheel fitted, the tyre
pressure loss warning system or the tyre
pressure monitor cannot function reliably.
Only restart the tyre pressure loss warning
system/tyre pressure monitor when the
defective wheel has been replaced with a
new wheel.
Vehicles with tyre pressure monitor:
after mounting an emergency spare wheel,
the system may still display the tyre pres-
4 Estate only.
5 MOExtended tyres (tyres featuring run-flat characteristics) only in combination with an activate tyre pressure
loss warning system or tyre pressure monitor. Emergency spare wheel
425Wheels and tyres Z

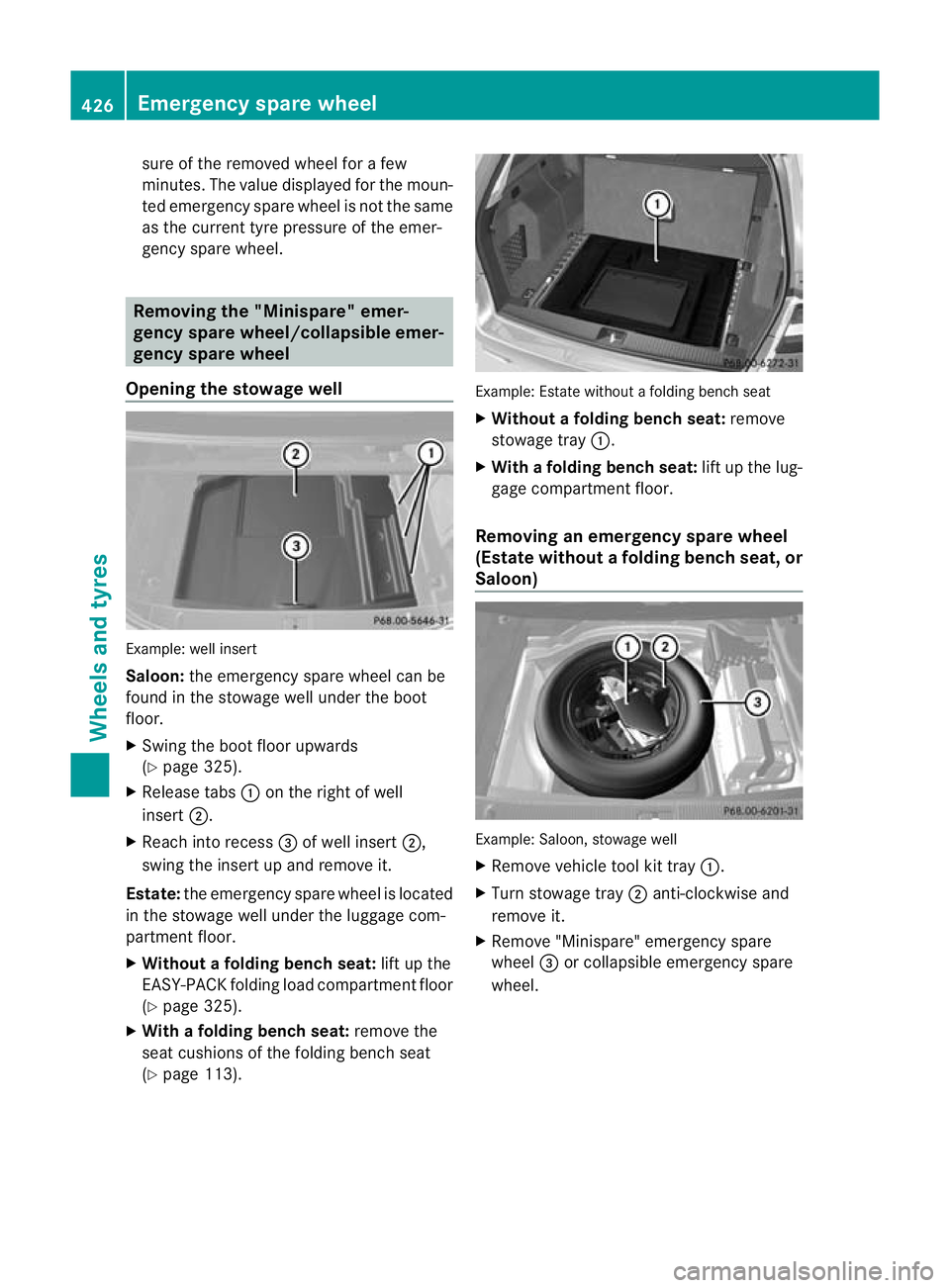

sure of the removed wheel for a few
minutes. The value displayed for the moun-
ted emergency spare wheel is not the same
as the current tyre pressure of the emer-
gency spare wheel.
Removing the "Minispare" emer-
gencys
pare wheel/collapsible emer-
genc yspare wheel
Opening the stowage well Example
:well insert
Saloon: the emergency spare wheel can be
found in the stowage well under the boot
floor.
X Swing the boot floor upwards
(Y page 325).
X Release tabs :on the right of well
insert ;.
X Reach into recess =of well insert ;,
swing the insert up and remove it.
Estate: the emergency spare wheel is located
in the stowage well under the luggage com-
partment floor.
X Without a folding bench seat: lift up the
EASY-PACK folding load compartment floor
(Y page 325).
X With a folding bench seat: remove the
seat cushions of the folding bench seat
(Y page 113). Example: Estate without a folding bench seat
X
Without a folding bench seat: remove
stowage tray :.
X With afolding bench seat: lift up the lug-
gage compartmen tfloor.
Removing an emergency spare wheel
(Estate withou tafolding bench seat ,or
Saloon) Example: Saloon, stowage well
X
Remove vehicle tool kit tray :.
X Turn stowage tray ;anti-clockwise and
remove it.
X Remove "Minispare" emergency spare
wheel =or collapsible emergency spare
wheel. 426
Emergency spare wheelWheels and tyres

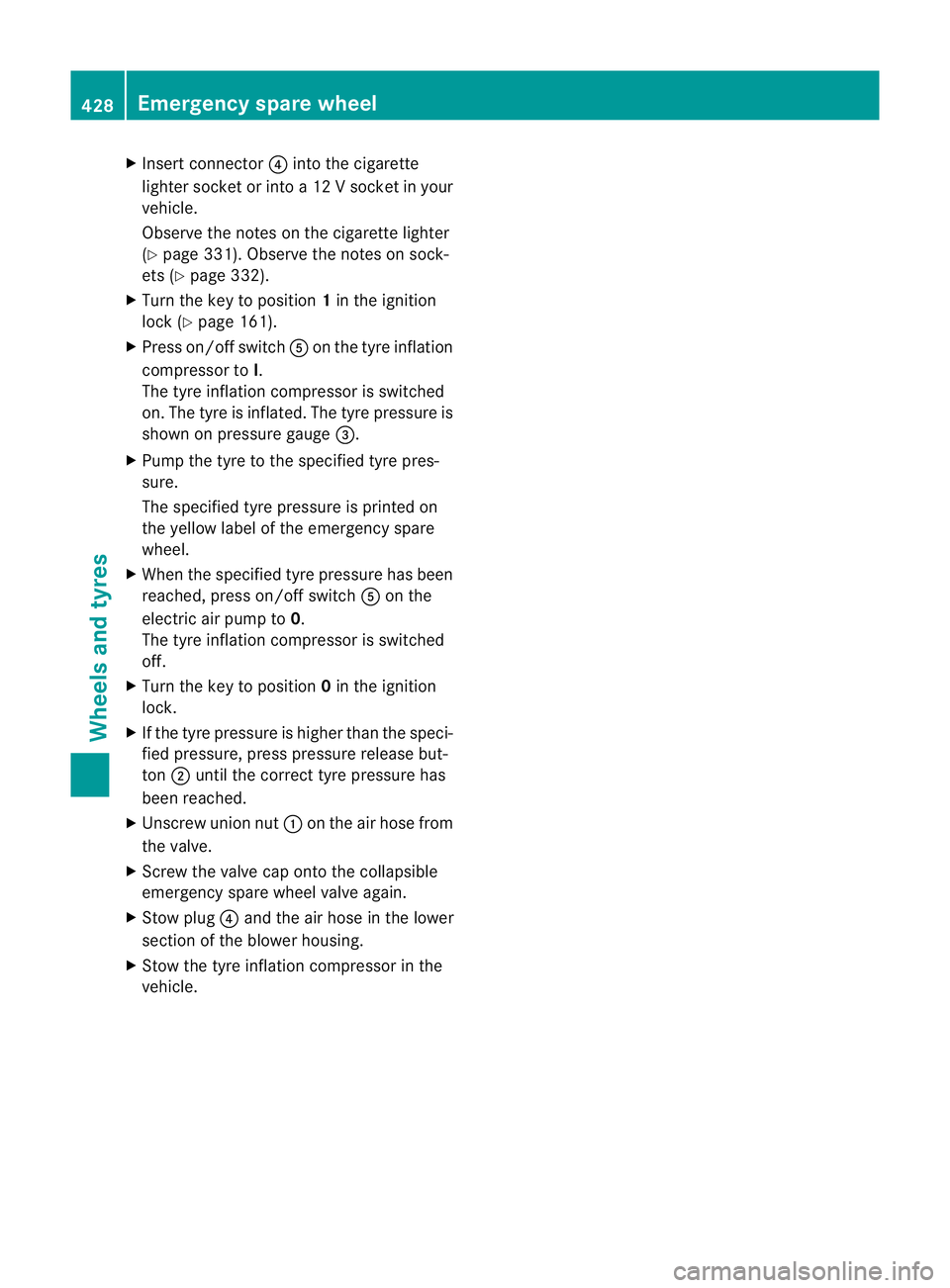

X
Insert connector ?into the cigarette
lighter socket or into a 12 Vsocket in your
vehicle.
Observe the notes on the cigarette lighter
(Y page 331). Observe the notes on sock-
ets (Y page 332).
X Turn the key to position 1in the ignition
lock (Y page 161).
X Press on/offs witchAon the tyre inflation
compressor to I.
The tyre inflatio ncompressor is switched
on. The tyre is inflated. The tyre pressure is
shown on pressure gauge =.
X Pump the tyre to the specified tyre pres-
sure.
The specified tyre pressure is printed on
the yellow label of the emergency spare
wheel.
X When the specified tyre pressure has been
reached, press on/offs witchAon the
electric air pump to 0.
The tyre inflatio ncompressor is switched
off.
X Turn the key to position 0in the ignition
lock.
X If the tyre pressure is higher than the speci-
fied pressure, press pressure release but-
ton ;until the correct tyre pressure has
been reached.
X Unscrew union nut :on the air hose from
the valve.
X Screw the valve cap ontot he collapsible
emergency spare wheel valve again.
X Stow plug ?and the air hose in the lower
section of the blower housing.
X Stow the tyre inflation compressor in the
vehicle. 428
Emergency spare wheelWheels and tyres

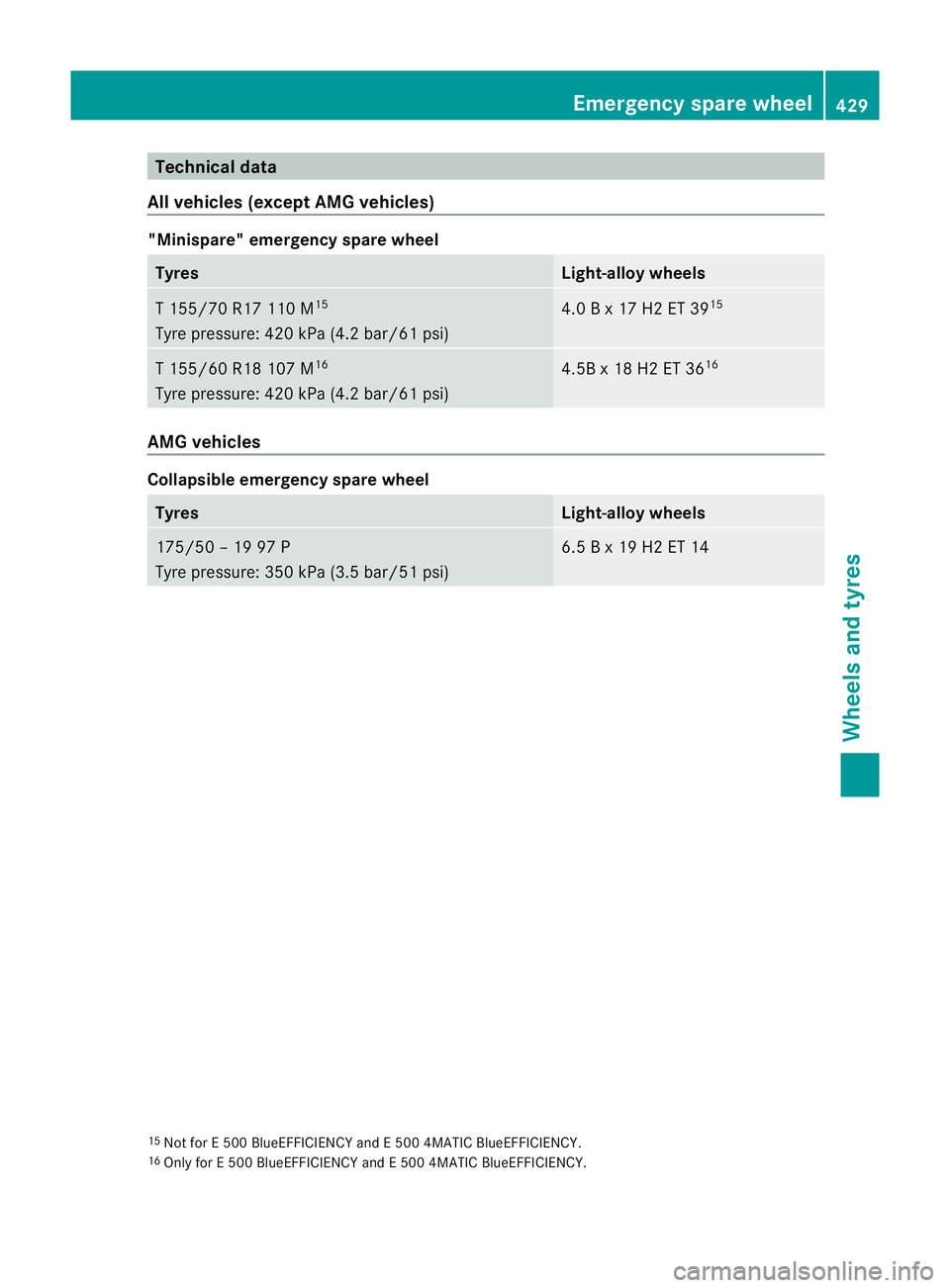

Technical data
All vehicles (except AM Gvehicles) "Minispare" emergency spare wheel
Tyres Light-alloy wheels
T 155/70 R17 110 M
15
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 17 H2 ET 39
15 T 155/60 R18 107 M
16
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.5B x 18 H2 ET 36
16 AMG vehicles
Collapsible emergency spare wheel
Tyres Light-alloy wheels
175/50 – 19 97 P
Tyre pressure: 350 kPa (3.5 bar/51 psi) 6.5 B x 19 H2 ET 14
15
Not for E 500 BlueEFFICIENCY and E 500 4MATIC BlueEFFICIENCY.
16 Only for E 500 BlueEFFICIENCY and E 500 4MATIC BlueEFFICIENCY. Emergency spare wheel
429Wheels and tyres Z
