Advanced Keyless Entry and Start System
3-17
MX-5_8CC1-EA-11F_Edition2 Page81
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (82,1)
qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-30).
Opening the trunk lid
The trunk lid can be opened using the
auxiliary key, refer to Opening and
Closing the Trunk Lid (page 3-33).
CAUTION
Do not open the trunk while the
power retractable hardtop is
opening/closing. The power
retractable hardtop and trunk lid
mechanisms could be damaged.
Starting the engine
The engine can be started with the
auxiliary key, refer to Ignition Switch
(page 5-2).
Advanced Key Suspend
Function
If one key is left in the vehicle or trunk
and the second key is used to lock the
vehicle, the functions of the advanced key
left in the vehicle or the trunk are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the start
knob.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions suspended.
lWhile carrying another advanced key,
push in the start knob until the KEY
indicator light (green) in the instrument
cluster illuminates.
lInsert the auxiliary key and switch the
ignition ON.
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8CC1-EA-11F_Edition2 Page82
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (83,1)
Warning and Beep Sounds
qSystem Malfunction Warning Beep
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously and beep sounds will be
heard.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Ignition Switch (page 5-2).
qStart Knob Not in LOCK
Warning Beep
If the ignition is switched to ACC and the
driver's door is opened, a continuous beep
sound will be heard to notify the driver
that the ignition has not been switched off.
In this case, the keyless entry system does
not operate, the car cannot be locked, and
the battery will run down.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the advanced key has
been removed. The KEY warning light
(red) will stop flashing when the advanced
key is back inside the vehicle:
lThe ignition has not been switched off,
the driver's door is open, and the
advanced key is removed from the
vehicle. (A beep sound will be heard 3
times.)
However the beep sound will be heard
continuously when the ignition is
switched to ACC and the door is open
due to the activation of the warning
beep sound indicating that the ignition
is not switched off.
lThe ignition has not been switched off
and all the doors are closed after
removing the advanced key from the
vehicle. (A beep sound will be heard 6
times.)
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
q Request Switch Inoperable
Warning Beep
If the request switch for a front door is
pressed under the following conditions
while the advanced key is being carried, a
beep will be heard 6 times to indicate that
the front doors cannot be locked.
lA door is open (door ajar included).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
MX-5_8CC1-EA-11F_Edition2 Page83
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (84,1)
lThe ignition has not been switched off.lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the ignition is switched to ACC or
switched off from ON, the KEY indicator
light (green) flashes for approximately 30
seconds indicating that the remaining
battery power is low. Replace with a new
battery before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Setting Change (page 3-21).
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the ignition cannot be switched
from off.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-trunk
Warning Beep
If the advanced key is left in the trunk
compartment with both doors locked and
the trunk lid closed, a beep sound is heard
for about 10 seconds to remind the driver
the advanced key has been left in the
trunk compartment. If this happens, open
the trunk lid by pressing the request
switch and remove the advanced key. An
advanced key removed from the trunk
may not function because its functions
may have been temporarily suspended. To
restore the advanced key function,
perform the applicable procedure (page
3-18).
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and both doors are locked using a
separate advanced key, a beep sound is
heard for about 10 seconds to remind the
driver that the advanced key has been left
in the vehicle cabin. If this happens, the
doors lock but the functions of the
advanced key left in the vehicle cabin
may be temporarily suspended. Perform
the following procedure to restore the
functions of the advanced key (page
3-18).
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8CC1-EA-11F_Edition2 Page84
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (85,1)
Setting Change (Function Customization)
The following function settings are possible. These settings can only be changed by an
Authorized Mazda Dealer.
SettingFunctionAt Initial SettingAfter Setting
Change
Advanced key battery
dead indicator KEY indicator light (green) flashes to indicate
that the advanced key battery power is low.
Activated Deactivated
Lock/unlock operation
confirmation beep
sound
*1
A beep sound is heard to confirm that both doors
or the trunk lid have been locked/unlocked. Activated Deactivated
Auto-lock function
*2
When both doors are closed and the advanced key
is being carried and out of operational range, both
the doors automatically lock after three seconds.
(Even if the driver is in the operational range,
both doors are locked automatically after about 30
seconds.) Deactivated Activated
*1: When the auto-lock function is operating, the warning sound will be heard regardless of the setting.
*2: When the auto-lock function is enabled, windows will not automatically close. You must close them before leaving vehicle.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-21
MX-5_8CC1-EA-11F_Edition2 Page85
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (86,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-19).
WarningWhat to check
When a door is open, a continuous beep sound will be
heard. Check whether the start knob has been returned to the
LOCK position.
When a door is open, 3 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes. Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes. Check whether the advanced key has been removed
from the vehicle.
When locking the doors or closing the trunk, the chime
sounds for about 10 seconds. Check whether the advanced key has not been left in the
vehicle or the trunk.
When attempting to lock the doors, a beep sound is
heard. Check whether the advanced key has been left in the
vehicle.
Check whether a door is open.
When the KEY indicator light (green) flashes in the
instrument cluster. The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster. The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
3-22
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8CC1-EA-11F_Edition2 Page86
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (87,1)

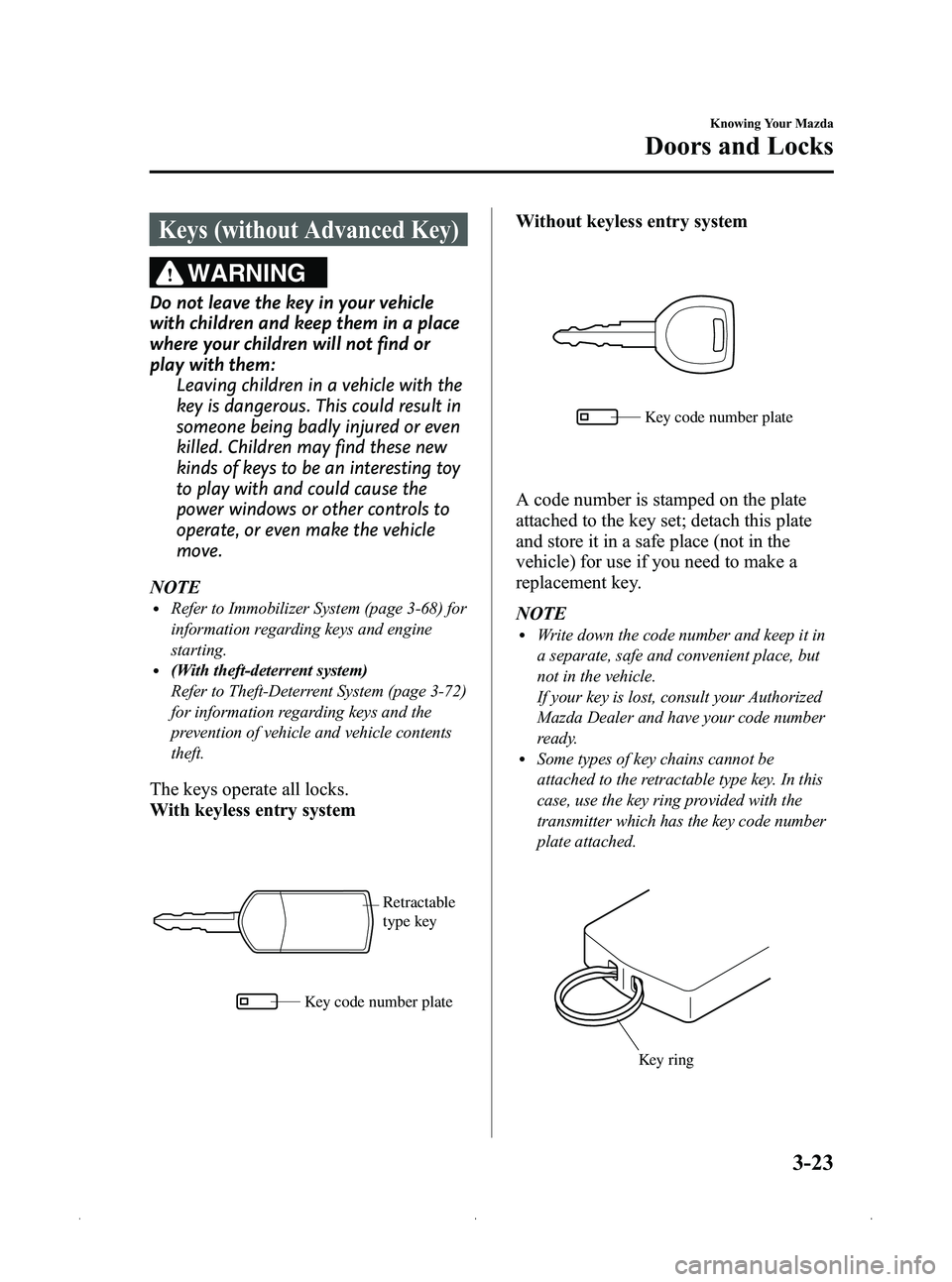

Keys (without Advanced Key)
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-68) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-72)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
lWrite down the code number and keep it in
a separate, safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
lSome types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.
Key ring
Knowing Your Mazda
Doors and Locks
3-23
MX-5_8CC1-EA-11F_Edition2 Page87
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (88,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System (with
Retractable Type Key)
í
This system remotely locks and unlocks
the doors, and opens the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-27).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
3-24
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8CC1-EA-11F_Edition2 Page88
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F
