WARNING
Do not rely on ABS or RSC as a
substitute for safe driving:
The ABS and RSC cannot compensate
for unsafe and reckless driving,
excessive speed, tailgating (following
another vehicle too closely), driving
on ice and snow, and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.
NOTE
lBraking distances may be longer on loose
surfaces (snow or gravel, for example)
which usually have a hard foundation. A
vehicle with a normal braking system may
require less distance to stop under these
conditions because the tires will build up a
wedge of surface layer when the wheels
skid.
lThe sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle,
however, it does not indicate a malfunction.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
Driving Your Mazda
Starting and Driving
5-9
CX-9_8CA8-EA-11G_Edition1 Page187
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (225,1)
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47
CX-9_8CA8-EA-11G_Edition1 Page225
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (455,1)

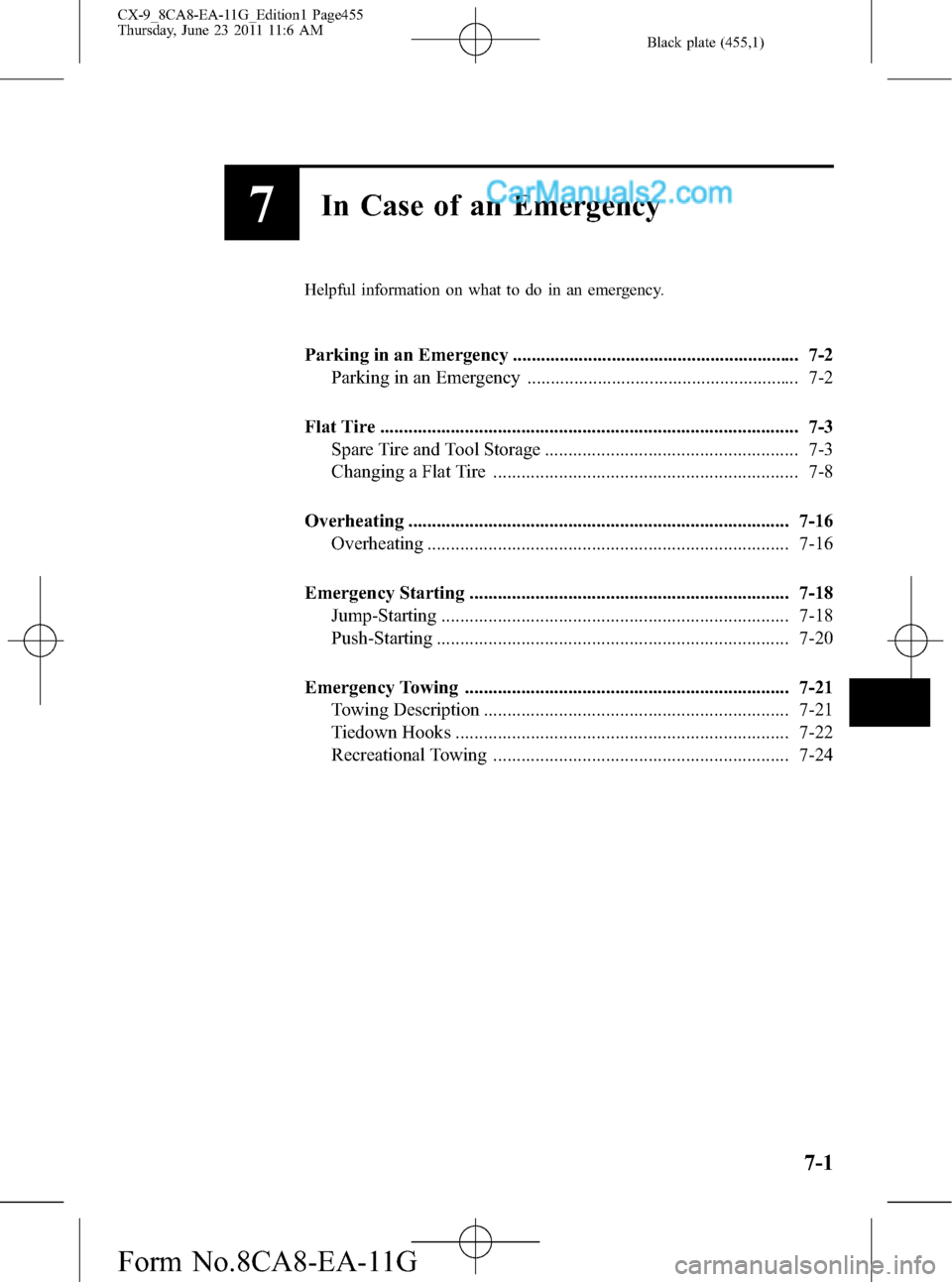

7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-8
Overheating ................................................................................. 7-16
Overheating ............................................................................. 7-16
Emergency Starting .................................................................... 7-18
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-20
Emergency Towing ..................................................................... 7-21
Towing Description ................................................................. 7-21
Tiedown Hooks ....................................................................... 7-22
Recreational Towing ............................................................... 7-24
7-1
CX-9_8CA8-EA-11G_Edition1 Page455
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (472,1)
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery
fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in
eyes, skin or clothing. If this happens, immediately flush your eyes with water for 15
minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a
battery, do not allow metal tools to contact the positive (
) or negative ()
terminal of the battery.
7-18
In Case of an Emergency
Emergency Starting
CX-9_8CA8-EA-11G_Edition1 Page472
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (473,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
Connect cables in
numerical order and
disconnect in reverse
orderJumper cables Discharged
battery
Booster battery
In Case of an Emergency
Emergency Starting
7-19
CX-9_8CA8-EA-11G_Edition1 Page473
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (474,1)
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
Push-Starting
Do not push-start your Mazda.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
7-20
In Case of an Emergency
Emergency Starting
CX-9_8CA8-EA-11G_Edition1 Page474
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (600,1)
D
Driving Tips ........................................ 4-6
Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area .............. 4-12
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-9
Winter driving ............................ 4-10
Dynamic Stability Control
(DSC)/Roll Stability Control
(RSC) ................................................ 5-26
TCS/DSC/RSC Indicator light.... 5-27
E
Emergency Starting ........................... 7-18
Jump-starting .............................. 7-18
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-4
Hood release .............................. 3-49
Oil .............................................. 8-19
Overheating ................................ 7-16
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-18
Engine Coolant
Overheating ................................ 7-16
Engine Coolant Temperature
Gauge ................................................ 5-41
Event Data Recorder ......................... 9-22
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-56
F
Flasher
Hazard warning .......................... 5-75
Headlights .................................. 5-60
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-16
Fog Lights ......................................... 5-67
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-47
Gauge ......................................... 5-42
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-47
Panel description ........................ 8-49
Replacement ............................... 8-47
G
Glove Compartment ........................ 6-194
H
Hazard Warning Flasher .................... 5-75
Hazardous Driving .............................. 4-7
Headlights
Control ....................................... 5-60
Flashing ...................................... 5-64
High-low beam .......................... 5-63
Leveling ..................................... 5-65
On reminder ............................... 5-63
11-4
Index
CX-9_8CA8-EA-11G_Edition1 Page600
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (601,1)
H
HomeLink Wireless Control
System .............................................. 5-75
Hood Release .................................... 3-49
Horn .................................................. 5-74
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Illuminated Entry System ............... 6-184
Immobilizer System
(with Advanced Key) ........................ 3-54
Immobilizer System
(without Advanced Key) ................... 3-58
Indicator Lights ................................. 5-44
BSM OFF ................................... 5-57
Cruise ......................................... 5-56
Headlight high-beam .................. 5-55
Security ...................................... 5-55
Shift position .............................. 5-55
TCS OFF .................................... 5-56
TCS/DSC/RSC ........................... 5-56
Turn-signal/hazard warning ....... 5-57
Information Display ........................ 6-186
Ambient temperature display .... 6-187
Audio display ........................... 6-188
Climate control display ............ 6-188
Clock ........................................ 6-187
Information display functions ... 6-186
Trip computer ........................... 6-188
Instrument Cluster ............................. 5-39
Interior Care ...................................... 8-60
Interior Lights ................................. 6-184
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-66
Liftgate .............................................. 3-33
Light Bulbs
Replacement ............................... 8-38
Specifications ............................. 10-6
Lighting Control ............................... 5-60
Lubricant Quality .............................. 10-4
Luggage Compartment Light .......... 6-185
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-17
Owner maintenance schedule ..... 8-16
Scheduled ..................................... 8-3
Map Lights ...................................... 6-185
Mirror Defroster ................................ 5-74
Mirrors
Outside mirrors .......................... 3-65
Rearview mirror ......................... 3-66
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-51
O
Odometer and Trip Meter .................. 5-40
Outside Mirrors ................................. 3-65
Overhead Console ........................... 6-193
Overhead Lights .............................. 6-184
Overheating ....................................... 7-16
Index
11-5
CX-9_8CA8-EA-11G_Edition1 Page601
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G
