6-118
Interior Comfort
Rear Entertainment System
CX-9_8CA8-EA-11G_Edition1 Page374
Thursday, June 23 2011 11:5 AM
Form No.8CA8-EA-11G

Black plate (440,1)
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position)and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition is
switched off (with the ignition key
removed).
lAbout 15 seconds after all doors are
closed.
(With Advanced key)
About 5 seconds after all doors are
closed when the advanced key is
outside of the vehicle.
lAbout 15 seconds after the ignition is
switched off (with the ignition key
removed) with all doors closed.
The light also turns off when:
lThe ignition is switched ON and all
doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light turns off
after about 30 minutes to save the battery.
The light turns on again when the ignition is
switched ON, or when any door is opened after
all doors have been closed.
qOverhead Lights
When the center/rear overhead light
switch is in the DOOR position, the
center/rear overhead light can be turned
on or off using the front overhead light
switch.
Front
Switch
PositionOverhead Lights
lLight offlAll overhead lights are off when
the center/rear overhead light
switch is in the DOOR position
lLight is on when any door is openlLight is on or off when the
illuminated entry system is on
lLight onlAll overhead lights are on when
the center/rear overhead light
switch is in the DOOR position
6-184
Interior Comfort
Interior Equipment
CX-9_8CA8-EA-11G_Edition1 Page440
Thursday, June 23 2011 11:5 AM
Form No.8CA8-EA-11G

Black plate (450,1)
qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
To open, push the button.
qArmrest Boxí
To open, pull the release catch.
qCargo Securing Loops
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
6-194
Interior Comfort
íSome models.
Interior Equipment
CX-9_8CA8-EA-11G_Edition1 Page450
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (466,1)

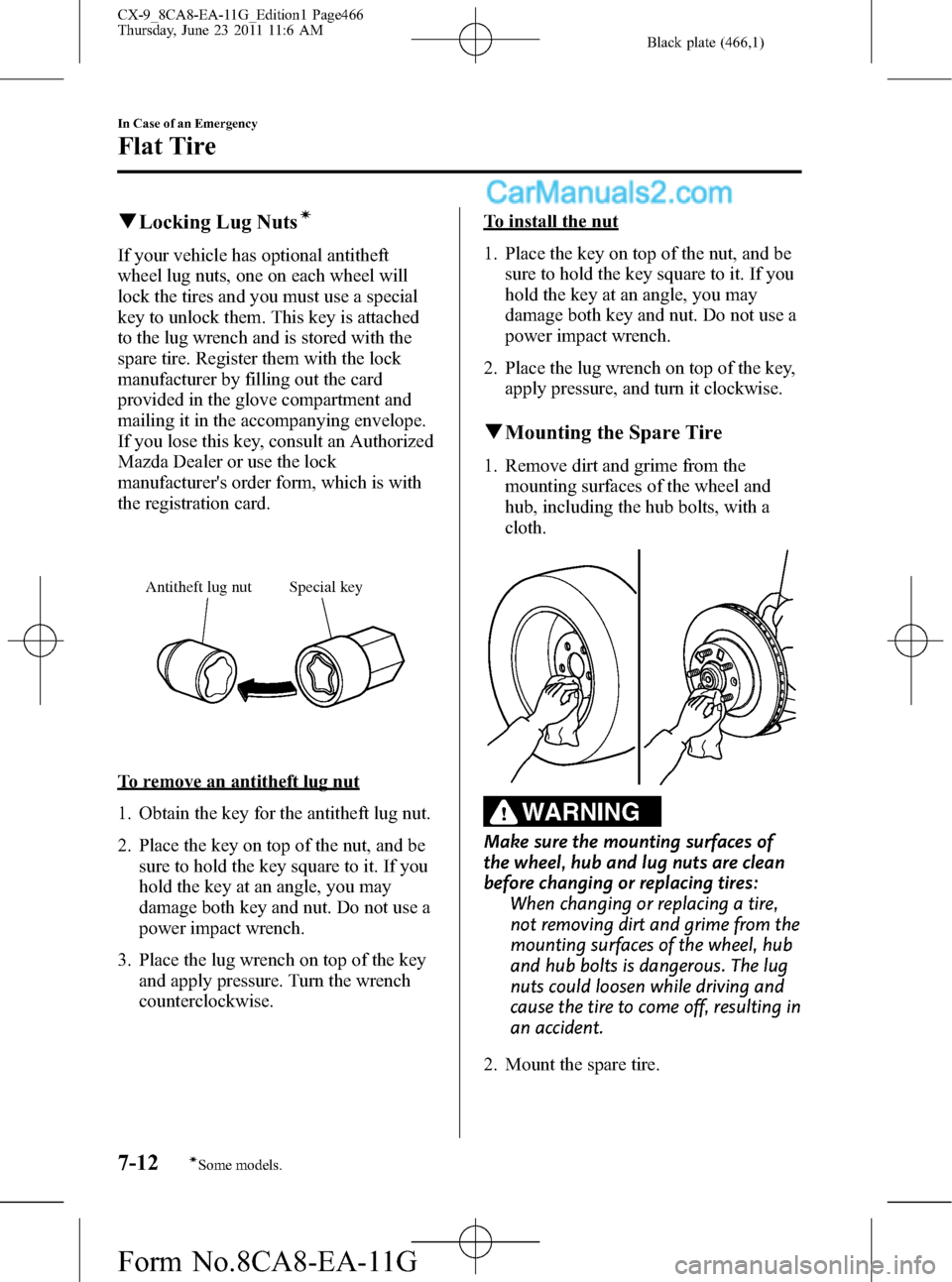

qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not use a
power impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the nut
1. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not use a
power impact wrench.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the spare tire.
7-12
In Case of an Emergency
íSome models.
Flat Tire
CX-9_8CA8-EA-11G_Edition1 Page466
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (527,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 150 A For protection of all circuits
2 ENGINE 20 A Engine control system
3 R HEATER 40 A Heater
4 P.SEAT R 30 A Power seat (RH)
í
5 HEATER 50 A Heater
6 IGKEY2 40 A For protection of various circuits
7 FAN130 A
íCooling fan
40 Aí
8 P.SEAT L 40 A Power seat (LH)í
9 DEFOG 30 A Rear window defroster
10 BTN 50 A For protection of various circuits
11 FUEL PUMP 30 A Fuel pump
12 IGKEY1 30 A For protection of various circuits
13 FOG 15 A Fog lights
í
14 ABS (SOL) 30 A ABS
15 D/L 25 A Power door locks
16 ROOM 15 A Overhead light
Maintenance and Care
Owner Maintenance
8-49íSome models. CX-9_8CA8-EA-11G_Edition1 Page527
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (596,1)
Personalization Features
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Advanced keyless
entryThe advanced key's remaining battery level
warning light in the instrument cluster can be
deactivatedActivated Deactivated
The beep sound which is heard when
locking/unlocking all doors or the liftgate can
be deactivated
*1Activated Deactivated
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be activated
*2Deactivated Activated
*1 When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2 When the autolock function is enabled, windows will not automatically close. You must close them before
leaving vehicle.
10-8
Personalization Features
CX-9_8CA8-EA-11G_Edition1 Page596
