Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power windows will stop operating.
qPower Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
qOpening/Closing the Power Windows
and the Moonroof from Outside
The front power windows and the
moonroof can be opened or closed from
outside the vehicle after the doors and the
liftgate are closed.
The front power windows may be
operated remotely when the power
window lock switch on the driver's door is
in the lock or unlocked position.
WARNING
Make sure the opening is clear before
closing a window and the moonroof:
Closing power windows and the
moonroof are dangerous. A person's
hands, head, or even neck could be
caught by the window or the
moonroof and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows and the moonroof
cannot be opened or closed from outside
the vehicle under the following condition:
lA door or the liftgate is opened.lThe key is inserted into the ignition
switch.
lThe ignition is in any position except
OFF. (With advanced key)
lThe power windows and the moonroof may
not close completely. Make sure all the
windows and the moonroof are closed.
If the power windows and the moonroof
cannot be closed completely, operate each
power window switch or the tilt/slide switch
from inside the vehicle. After closing the
windows and the moonroof from outside the
vehicle, verify that they are completely
closed.
3-44
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page132
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (135,1)
2. Press and hold the request switch on
the driver's door. After the doors and
the liftgate are locked, the windows
and the moonroof close as long as the
request switch is pressed.
Request switch
To stop the windows and the moonroof
from closing, release the request switch. If
the operation is performed from the
beginning again, the windows and the
moonroof close.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-47
CX-9_8CA8-EA-11G_Edition1 Page135
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (136,1)
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
3-48
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page136
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (137,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the hood latch lever to the right,
and lift the hood.
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Pad
Clip
Support rod
qClosing the Hood
WARNING
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
Knowing Your Mazda
Doors and Locks
3-49
CX-9_8CA8-EA-11G_Edition1 Page137
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (140,1)
qSlide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To fully close automatically, momentarily
press the front of the slide switch or pull
the tilt switch.
To stop sliding partway, press any part of
the tilt or slide switch.
Close Tilt down
(Close)
Open
qPower Moonroof Re-set Procedure
If the battery is disconnected, the
moonroof will not operate. The moonroof
will not operate correctly until it is re-set.
Carry out the following procedure to re-
set the moonroof and resume operation:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the
moonroof tilts open to the fully open
position, then closes a little.
NOTE
If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.
qEngine-off Moonroof Operation
The moonroof can be operated for about
40 seconds after the ignition is switched
from ON to ACC or switched off with all
doors closed. If any door is opened, the
moonroof will be inoperable.
qOpening/Closing the Moonroof
from Outside
The moonroof can be opened or closed
from outside the vehicle after the doors
and the liftgate are closed.
Refer to Opening/Closing the Power
Windows and the Moonroof from Outside
on page 3-44.
qJam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof during closing
operation, the moonroof will stop and
open halfway.
WARNING
Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
stopping. If fingers are caught,
serious injuries could occur.
NOTE
lDepending on driving conditions, a closing
moonroof could stop and start opening
when the moonroof feels a shock that is
similar to something blocking it.
lThe moonroof's jam-safe function does not
function while the moonroof is initializing.
3-52
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page140
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (142,1)

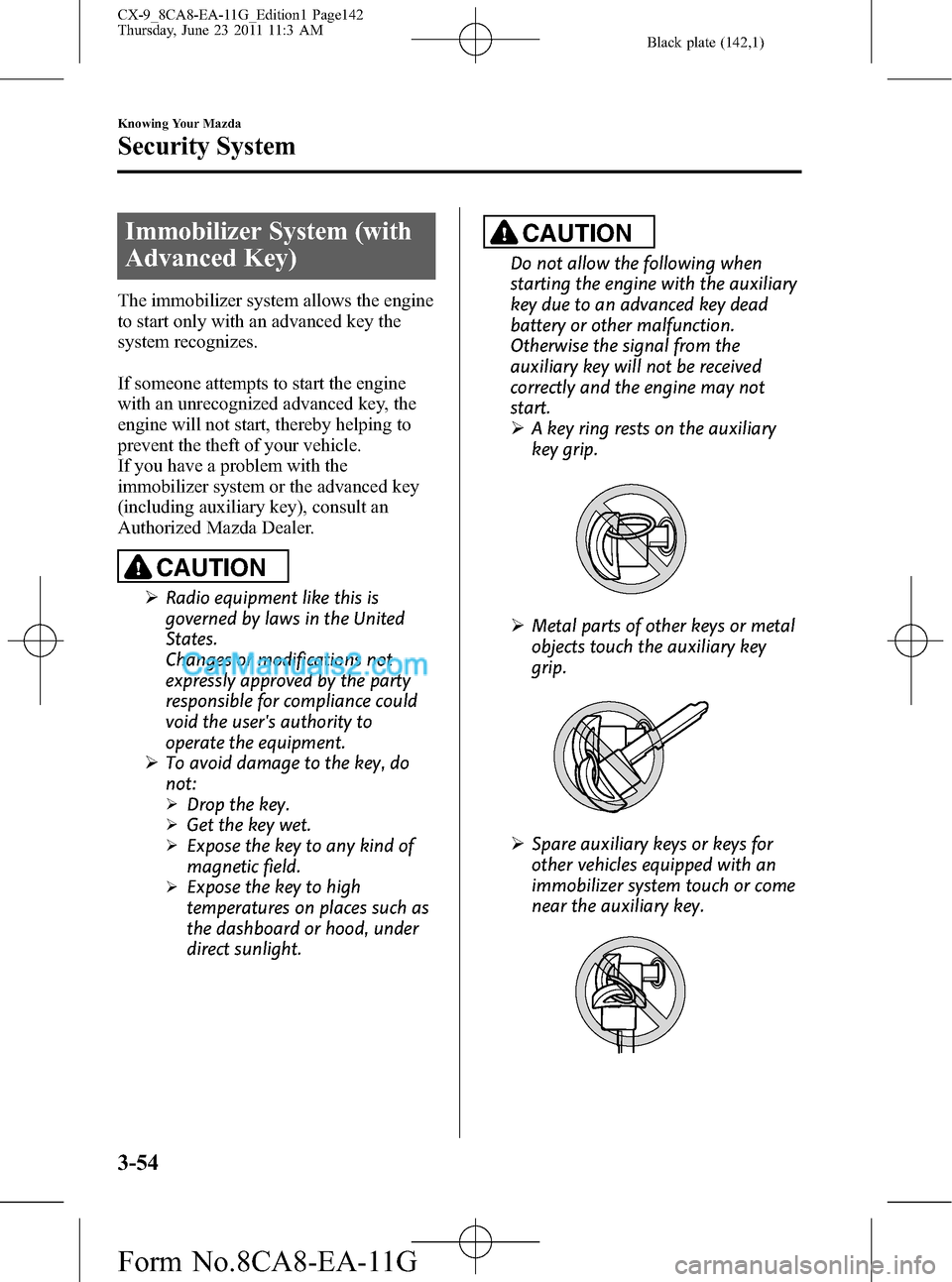

Immobilizer System (with
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the auxiliary
key grip.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
3-54
Knowing Your Mazda
Security System
CX-9_8CA8-EA-11G_Edition1 Page142
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (145,1)
qOperation
Arming
The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every 2 seconds until the
system is disarmed.
Disarming
The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, switch the ignition off, and
then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
Knowing Your Mazda
Security System
3-57
CX-9_8CA8-EA-11G_Edition1 Page145
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (146,1)
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Immobilizer System
(without Advanced Key)
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
3-58
Knowing Your Mazda
Security System
CX-9_8CA8-EA-11G_Edition1 Page146
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G
