2012 MAZDA MODEL CX-9 display

26
RoutingAddress
Book
Getting started
Press the disp button (DISP) to display the display menu.
■Adjusting the screen quality
●
Screen brightness
Press the on-screen button to brighten the screen, or to darken.
● Screen contrast
Press the on-screen button to increase contrast, to decrease.
Note
●Select the on-screen button to restore the adjustment values to the default settings.
●The screen changes to SETTINGS when the on-screen button is selected.
■Turning off the display
Select the on-screen button to turn off the display.
Press the MAP/VOICE or MENU button to turn on the display.
Press the RETURN button to return to the display previously shown.
■Tilt display operation
Select the on-screen button to tilt the display, to close it.
The display angle can be adjusted in five stages.
When opening, the display angle changes one stage at a time each time the on-
screen button is pressed.
When closing, the display angle changes one stage at a time each time the on-
screen button is pressed.
■Daytime/Night screen
When the headlights are on, daytime mode can also be selected (if a brighter screen is
needed at night). This selection can only be done when the headlights are on.
● The screen can be returned to the daytime screen while the headlights or running lights are
on by rotating the dashboard illumination knob clockwise fully. You will hear a beep sound
and the illumination dimmer will be canceled.
Screen adjustments, beep alert and other settings
0#8.87&'DQQMMo+9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬

27
Getting started
Press the disp button (DISP) followed by the on-screen button to display the
settings menu.
■Returning to the navigation screen from the audio unit screen
●Select the on-screen button to set the function to return to the navigation screen
from the audio unit screen by operation of the button only.
● Select the on-screen button to set the function to return to the navigation screen
from the audio unit screen automatically after 20 seconds.
■Beep sound settings
●Select the on-screen button to activate the operation beep sound.
● Select the on-screen button to deactivate the operation beep sound.
0#8.87&'DQQMMo+9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬

28
RoutingAddress
Book
Getting started
Screen change
■Do not keep your eyes fixed on the monitor screen or operate the system
while driving
Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident. Always stop the vehicle in a safe location and use the parking brake
before operating the system.
Map
orientation
Map scale
Warning
1
Select , on-
screen button.●North Up: Geographic north is up.
●Head Up: The direction you are
heading is up.
1
Select or on-screen
button.
●The map can be displayed in
14 steps with scales from
to . ●
ZOOM OUT
●ZOOM IN

Miles
display1/32 mi
(mile) 1/4 mi
(mile) 2 mi
(mile) 16 mi
(mile) 128 mi
(mile)
km
display50 m 500 m 4 km 32 km 256 km
0#8.87&'DQQMMo+9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬

30
Before
UseGetting
started
Routing

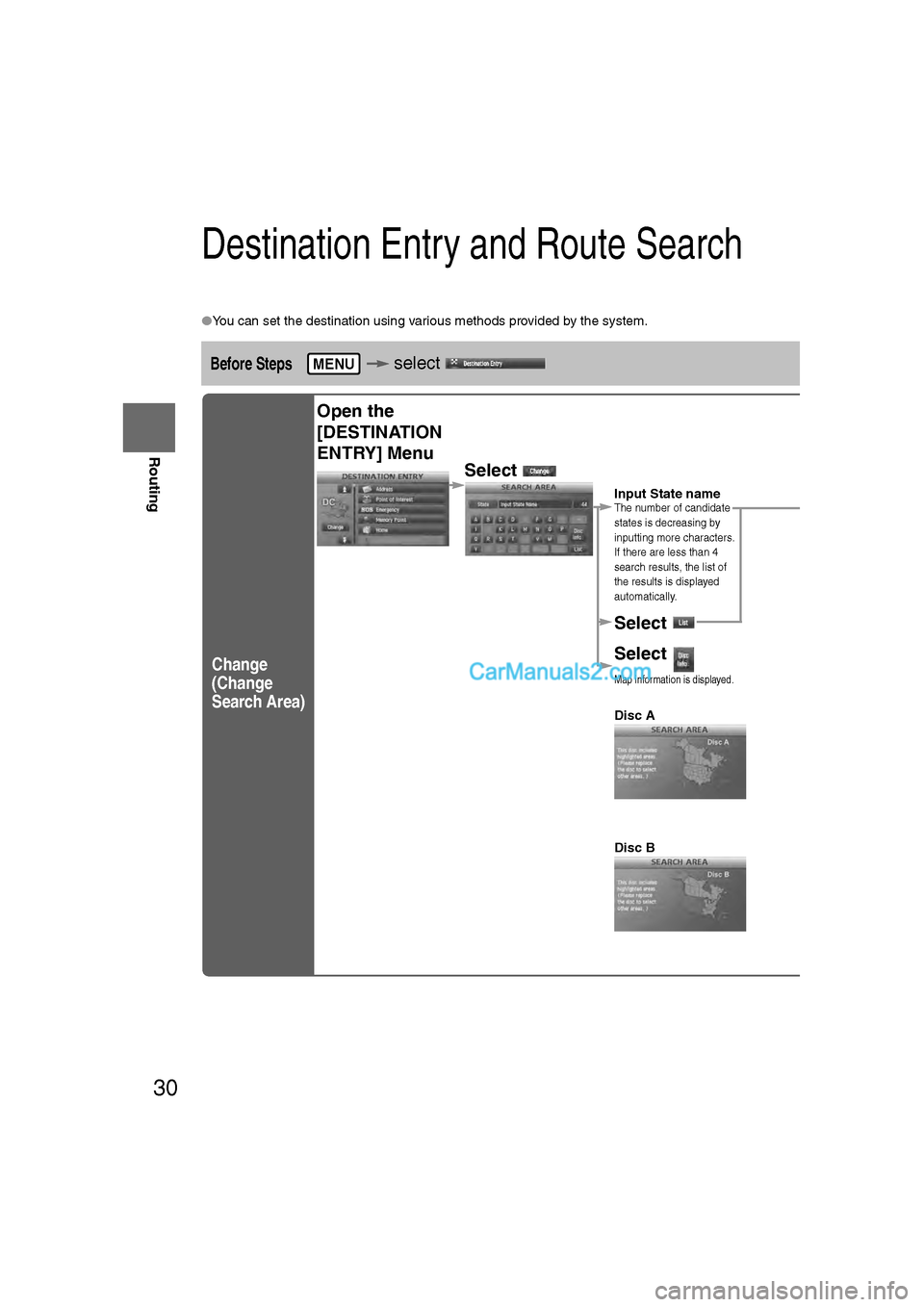

Destination Entry and Route Search
●
