Black plate (180,1)
qAWD Warning Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
Thereafter, the warning light will
illuminate or flash under the following
conditions:
lIlluminates when there is an
abnormality with the AWD system.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there are continually
large differences between front and rear
wheel rotation, such as when trying to
pull away from an icy surface, or when
trying to extricate the vehicle from
mud, sand or similar conditions.
If the AWD warning light illuminates:
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
If the AWD warning light flashes:
Park the vehicle in a safe place. After a
few moments, if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.
WARNING
Never spin a wheel that is off the
ground:
Spinning a wheel that is off the
ground as a result of the vehicle
being stuck or in a ditch is
dangerous. The drive assembly could
be seriously damaged which could
lead to an accident or could even
lead to overheating, oil leakage, and
a fire.
qTires and Tire Chains
The condition of the tires plays a large
role in the performance of the vehicle.
Moreover, to prevent adverse effects to
the drive assembly, please note the
following:
Tires
lWhen replacing tires, always replace
all front and rear tires at the same time.
lAll tires must be of the same size,
manufacture, brand and tread pattern.
Pay particular attention when
equipping snow or other types of
winter tires.
lDo not mix tread-worn tires with
normal tires.
lInspect tire inflation pressures at the
specified periods and adjust to the
specified pressures.
NOTE
Check the tire inflation pressure label attached
to driver's door frame for the correct tire
inflation pressure.
lMake sure to equip the vehicle with
genuine wheels of the specified size,
on all wheels. With AWD, the system
is calibrated for all four wheels being
of the same dimensions.
5-20
Driving Your Mazda
Starting and Driving
CX-7_8CG3-EA-11J_Edition1 Page180
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (511,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.3-liter engineWith oil filter replacement 5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engineWith oil filter replacement 5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
6-speed transaxle 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluidWith low washer fluid level warning
light4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank2.3-liter engine 69.0 L (18.2 US gal, 15.2 Imp gal)
2.5-liter engine 62.0 L (16.4 US gal, 13.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthWith license plate holder 4,694 mm (184.8 in)
Without license plate holder 4,682 mm (184.3 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread17 inch 1,627 mm (64.1 in)
18 or 19 inch 1,617 mm (63.7 in)
Rear tread17 inch 1,622 mm (63.9 in)
18 or 19 inch 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
2.3-liter engine
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,233 kg (4,923 lbs) 2,322 kg (5,119 lbs)
GAWR (Gross Axle Weight Rating)Front 1,188 kg (2,619 lbs) 1,217 kg (2,683 lbs)
Rear 1,049 kg (2,313 lbs) 1,115 kg (2,458 lbs)
Specifications
10-5
CX-7_8CG3-EA-11J_Edition1 Page511
Saturday, September 24 2011 10:34 AM
Form No.8CG3-EA-11J

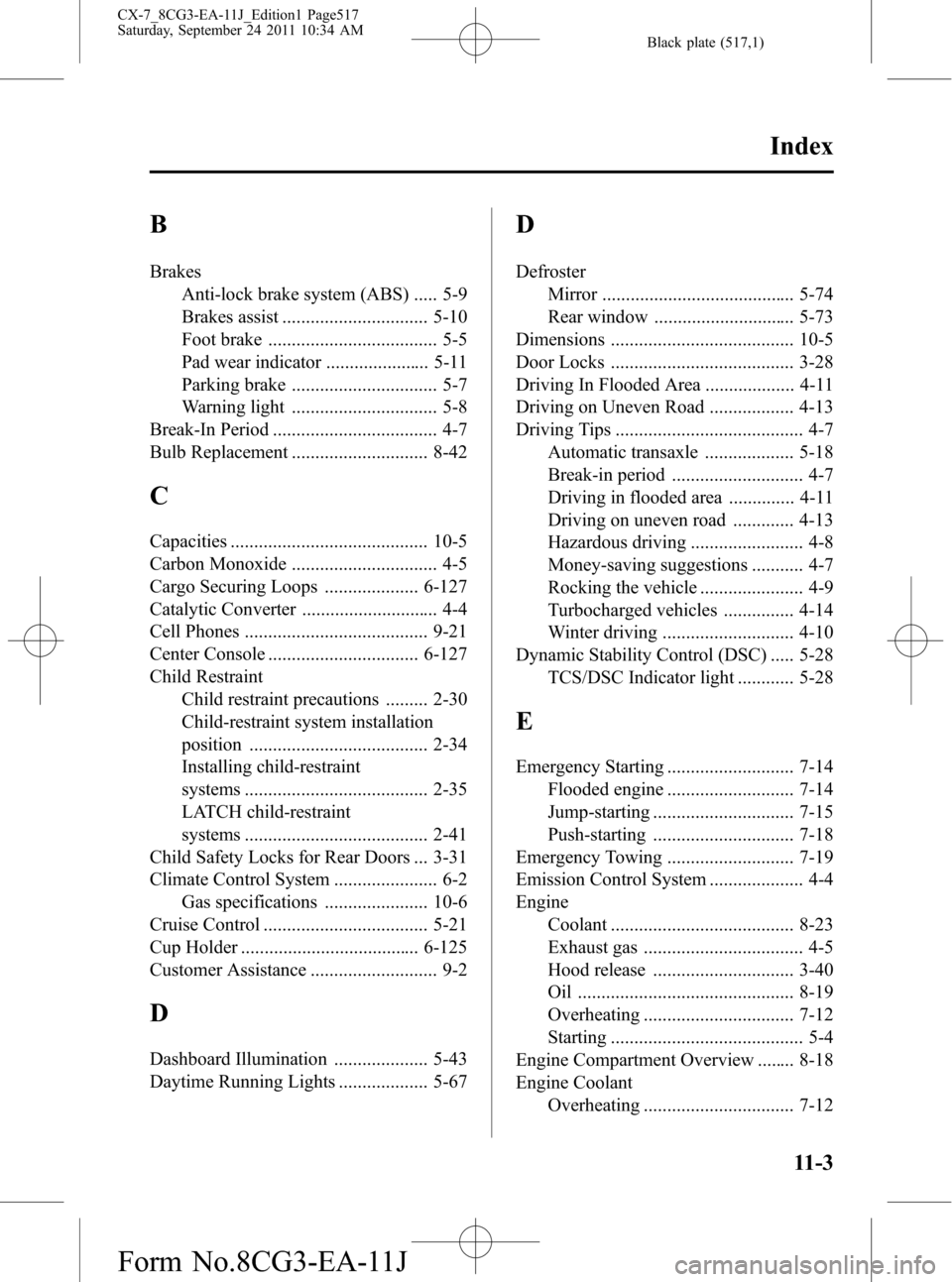

Black plate (517,1)
B
Brakes
Anti-lock brake system (ABS) ..... 5-9
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Pad wear indicator ...................... 5-11
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-42
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops .................... 6-127
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-21
Center Console ................................ 6-127
Child Restraint
Child restraint precautions ......... 2-30
Child-restraint system installation
position ...................................... 2-34
Installing child-restraint
systems ....................................... 2-35
LATCH child-restraint
systems ....................................... 2-41
Child Safety Locks for Rear Doors ... 3-31
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-125
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-43
Daytime Running Lights ................... 5-67
D
Defroster
Mirror ......................................... 5-74
Rear window .............................. 5-73
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving ............................ 4-10
Dynamic Stability Control (DSC) ..... 5-28
TCS/DSC Indicator light ............ 5-28
E
Emergency Starting ........................... 7-14
Flooded engine ........................... 7-14
Jump-starting .............................. 7-15
Push-starting .............................. 7-18
Emergency Towing ........................... 7-19
Emission Control System .................... 4-4
Engine
Coolant ....................................... 8-23
Exhaust gas .................................. 4-5
Hood release .............................. 3-40
Oil .............................................. 8-19
Overheating ................................ 7-12
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-18
Engine Coolant
Overheating ................................ 7-12
Index
11-3
CX-7_8CG3-EA-11J_Edition1 Page517
Saturday, September 24 2011 10:34 AM
Form No.8CG3-EA-11J
