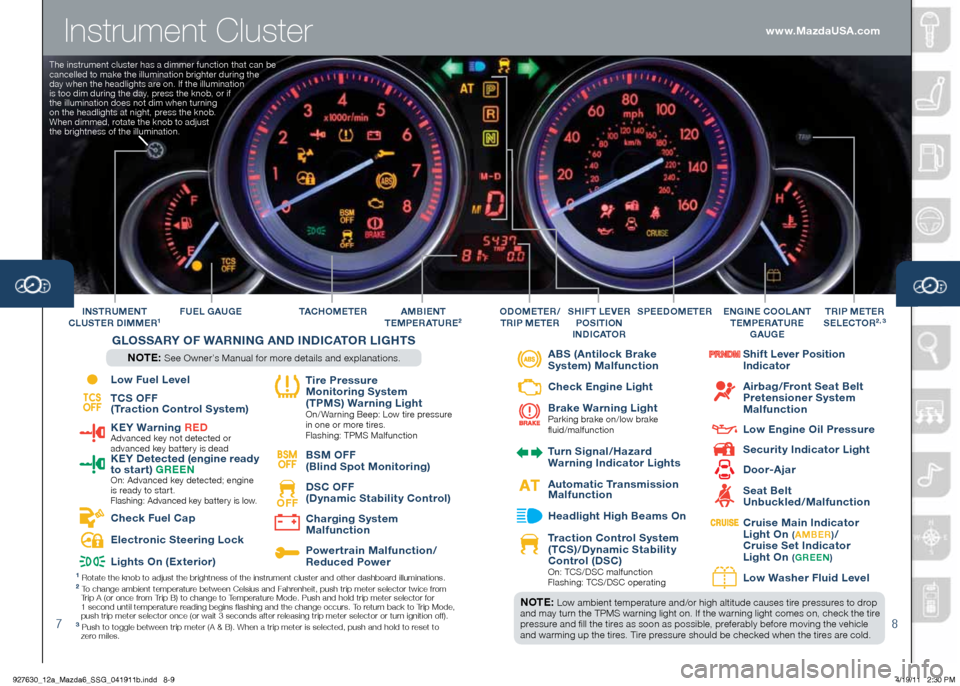

Instrument Cluster
78
FUEL gAU gE TAChO M E T E RINSTRUMENT
CLUSTER d IMMER1AMBIENT
TEMPERATURE2
gLOSSARY OF W ARNINg ANd INdICATOR LI ghTS
NOTE: See Owner’s Manual for more details and explanations. SPEEd
OMETER
EN g INE COOLANT
T EMPERATURE
g AU gETRIP METER
SELECTOR2 , 3Od OMETER /
TRIP METERShIFT LEVER
POSITION
IN dICATOR
1 Rotate the knob to adjust the brightness of the instrument cluster and \
other dashboard illuminations.2 To change ambient temperature between Celsius and Fahrenheit, push trip meter selector twice from
Trip A (or once from Trip B) to change to Temperature Mode. Push and hold trip meter selector for
1 second until temperature reading begins flashing and the change occurs. To return back to Trip Mode,
push trip meter selector once (or wait 3 seconds after releasing trip meter selector or turn ignition off).
3 Push to toggle between trip meter (A & B). When a trip meter is selec\
ted, push and hold to reset to
zero miles.
NOTE: Low ambient temperature and/or high altitude causes tire pressures to drop
and may turn the TPMS warning light on. If the warning light comes on, check the tire
pressure and fill the tires as soon as possible, preferably before moving the vehicle
and warming up the tires. Tire pressure should be checked when the tires are cold.
www.MazdaUSA.com
The instrument cluster has a dimmer function that can be
cancelled to make the illumination brighter during the
day when the headlights are on. If the illumination
is too dim during the day, press the knob, or if
the illumination does not dim when turning
on the headlights at night, press the knob.
When dimmed, rotate the knob to adjust
the brightness of the illumination.
Low Fuel Level
TCS
OFF TCS OFF

(Traction Control System)
KEY Warning R
Ed Advanced key not detected or
advanced key battery is dead
KEY d
etected (engine ready
to start) gREEN
On: Advanced key detected; engine
is ready to start.
Flashing: Advanced key battery is low.
Check Fuel Cap
Electronic Steering Lock
Lights On (Exterior)
Tire Pressure

Monitoring System
(TPMS) Warning Light
On/ Warning Beep: Low tire pressure
in one or more tires.
Flashing: TPMS Malfunction
BSM OFF BSM OFF

(Blind Spot Monitoring)
OFF
dSC OFF

( d ynamic Stability Control)
Charging System
Malfunction
Powertrain Malfunction/
Reduced Power

ABS (Antilock Brake
System) Malfunction
Check Engine Light
Brake Warning Light
Parking brake on/low brake
fluid/malfunction
Turn Signal/
hazard
Warning Indicator Lights
Automatic Transmission
Malfunction
headlight h
igh Beams On
Traction Control System
(TCS)/d
ynamic Stability
Control ( dSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
Shift Lever Position
Indicator
Airbag/Front Seat Belt
Pretensioner System
Malfunction
Low Engine Oil Pressure
Security Indicator Light
door-Ajar
Seat Belt

Unbuckled/Malfunction
Cruise Main Indicator

Light On ( A MBER )/
Cruise Set Indicator
Light On
( gREEN )
Low Wa
sher Fluid Level
927630_12a_Mazda6_SSG_041911b.indd 8-94/19/11 2:30 PM

Bluetooth
®
Roadside assistance is available 24 hours a day, 365 days a year. Using the toll free
phone number or iPhone® app (which uses gPS-enabled technology to determine
your exact location), will put you in touch with a roadside assistance agent.
Phone: 1-800-866-1998
The app can be downloaded, free of charge, by logging onto
http://mazda.crosscountry-auto.com/ or directly from App store on your iPhone or your
PC using iTunes. After downloading app, customer name, email, iPhone number and VIN\

are required.
• 3.5 mm Audio Cable
• All-Weather Floor Mats
• Auto-Dimming Rearview
Mirror with Compass
and HomeLink
®
• Bluetooth® Car Kit
by Motorola
• Car Cover
• Car Cover Cable Lock
• Cargo Mat
• Cargo Net • Cargo Tray
• Door Sill Trim Plates
• First Aid Kit
• Fog Lights
• Front Mask
• Fuel-Filler Door
• iPod® Integration
• License Plate Frames
• Moonroof Wind Deflector
• Portable Navigation
Devices by Garmin
®
• Rear Bumper Guard
• Remote Engine Start
• Roadside Assistance Kit
• SIRIUS Satellite Radio
• Splash Guards
(Front and Rear)
• Spoiler
• Touch-up Paint
• Wheel Locks
• Windshield Sunscreen
gENUINE MAzd A A CCESSORIES
Genuine Mazda Accessories are built to the same standards of quality as your Mazda.
That means they fit right, work right, and look great. Choose from a wide range of
interior and exterior accessories to make your Mazda6 fit your personality and lifestyle.
After all, you are what you drive.
Personalize your Mazda6 with the following genuine Mazda Accessories:
MyMazda.com
—The Official Site
for Mazda Owners
Register today on MyMazda.com
—the ultimate destination for Mazda
Owners. Once registered, you’ll be
able to take advantage of benefits
exclusively for Mazda Owners:
• Insider access to exclusive events
and promotions
• Personalized maintenance schedules
• Zoom-Zoom Owner Magazine
• Warranty information and on-line
Owner’s Manuals • Wallpaper, videos and other fun stuff
•
Accessories specifically designed for
your vehicle
• Car Care Discount Coupons available
from your Mazda Dealer
Visit and register at MyMazda.com today!
www.MazdaUSA.com
25
NOTE: If your compatible Bluetooth® phone is equipped with a music player and
supports the Bluetooth® profile A2DP, your phone will pair for both hands-free calling
as well as Bluetooth® audio during the pairing process, and will be considered one
unit. Please refer to your Owner’s Manual for complete details on how to “pair” up to
7 Bluetooth
® phones and audio devices, and how to use the built-in tutorial and
other important safety information.
T O MAKE OR RECEIVE A h ANdS-FREE CALL
Basic Oper ation:
button: To make/receive/swap (during call
interruption) a call.
button: To end/reject a call.
button: To skip voice guidance (for
speeding up your operation).
Auto Re-connect: On engine start, the
last-connected device will be automatically
re-connected. The system is operable several
seconds after engine start.
Voice Pairing 1 Push and release (wait for
beep) the button on the
steering wheel.
2 From main menu, say, “Setup,
Pairing Options.”
3 S a y, “Pair.”
4 Say a four-digit code
(i.e., “1, 2, 3, 4”).
5 Place phone in discovery
mode; if necessary, consult
your phone’s manual or go to
www.mazdausa.com/bluetooth.
Select model, Bluetooth, and
follow screen prompts.
6 After phone is recognized,
you will be prompted to name
the paired phone.
7 Pairing completed.
Pairing with Navigation 1 Push SOURCE button next
to Navigation screen.
2 Select B T- A u d i o on
Navigation screen.
3 Select Settings.
4 Select Pair/Select d evice.
5 Select Add New.
6 System will provide a
four-digit code.
7 Use the four-digit code to
begin the pairing procedure;
if necessary, consult your
phone’s manual or go to
www.mazdausa.com/bluetooth.
Select model, Bluetooth, and
follow screen prompts.
8 Pairing completed.
PAIRIN g YOUR BLUETOOT h® PhONE OR AU dIO dEVICE
NO TE: • For safety reasons, you cannot pair a phone while driving.
• Before pairing your cell phone or audio device, it is recommended that you
refer to its manual for steps to turn on Bluetooth
® and perform pairing.
• For toll-free Bluetooth® Hands-Free customer service and device compatibility
call 800-430-0153 or go to www.MazdaUSA.com/bluetooth for assistance.
• IMPORTANT: Set the volume level on your cell phone or audio device to the
highest level before distortion starts, then adjust the volume on the audio system.
When using Bluetooth®
audio function:
The sound quality of
Bluetooth
® streaming
audio varies depending
on the device, even
when recorded with a
recommended bit rate
of 128 kbps.
927630_12a_Mazda6_SSG_041911b.indd 26-274/19/11 2:32 PM

Customer Delivery Checklist
Smart Start guide
•
Remove this checklist from
Smart Start Guide
• Personalization Features
(refer to your Owner’s Manual)
Warranty Information

Warranty Start date:
Customer Ini tial:
• Basic Vehicle –
36 months/36,000 miles
• Roadside assistance program
MyMazda.com
•
Offer to register customer on
MyMazda.com
Owner’s Manual
Floor Mats
•
Ensure floor mats are properly
hooked after cleaning
• Do not install two floor mats, one on
top of the other, on the driver side
P RESENTATION OF OWNER ’S M ATERIALS :
Review the following items with the customer
SERVICE dEPARTMENT
Introduce Service Manager;
provide business cards
Review Service and Parts Department
hours of operation
Explain free Full Circle
Service Inspection
Schedule first maintenance service
d EALERS hIP dAT E
SALES CONSULTANT CUSTOMER’S NAME
VIN E-MAIL
VE h ICLE PRESENTATION :
Refer to Smart Start Guide during presentation
Customer Delivery Checklist
*if equipped
Keyless Entry
.................................1
• Smart Entry
(Advanced Key*)
• Door Request Switch*
• Trunk Request Switch*
• Power Door Locks
Starting the Engine* ......................2
• Push Button Ignition
• Emergency Engine Stop
Seat Adjustments*
.........................3
Fuel d
oor ........................................4
• Fuel Door Release and Fuel Spec
Aluminum Wheel Care
...................4
d
river’s View ...............................5-6
• Location of Switches and Controls
Instrument Cluster
......................7- 8
• Review indicator light function
and location
Lighting Contro
l ............................9
Wiper Washer
................................10
Auto-
dimming Mirrors* ................12
Blind Spot Monitoring*
.................13
A
Ux Input .......................................14
Climate Control
.........................15 -16
• Manual Mode
• Auto Mode*
Audio Controls
..........................17-2 2
• SIRIUS Radio®* Operation
and Activation
Set Clock
..............................17-19 , 2 2
Navigation System*
.................23-24
• Inserting the Map Disc
• Selecting a Destination
• Set Home Location
Bluetooth® h
ands-Free* ..............25
• Tutorial
• Pair Phone
• Make a Call
• Toll-Free Customer Service
800-430-0153
Tutorial Videos on MyMazda.com
........................... Inside Back Cover
SChEdULE d MAINTENANCE
(2.5L Engine Only)
When replacing or topping off engine oil,
use Mazda Genuine oil. For optimal
engine performance, use SAE 0W-20
engine oil. Please consult an Authorized
Mazda Dealer for additional information.
SALES CONSULTANT dAT E CUSTOMER dAT E
All items in the Customer Deliver y Checklist have been reviewed with the
customer and the first maintenance appointment has been scheduled:
Signed copy must be placed in dealer jacket
