2012 MAZDA MODEL 5 display

Black plate (279,1)

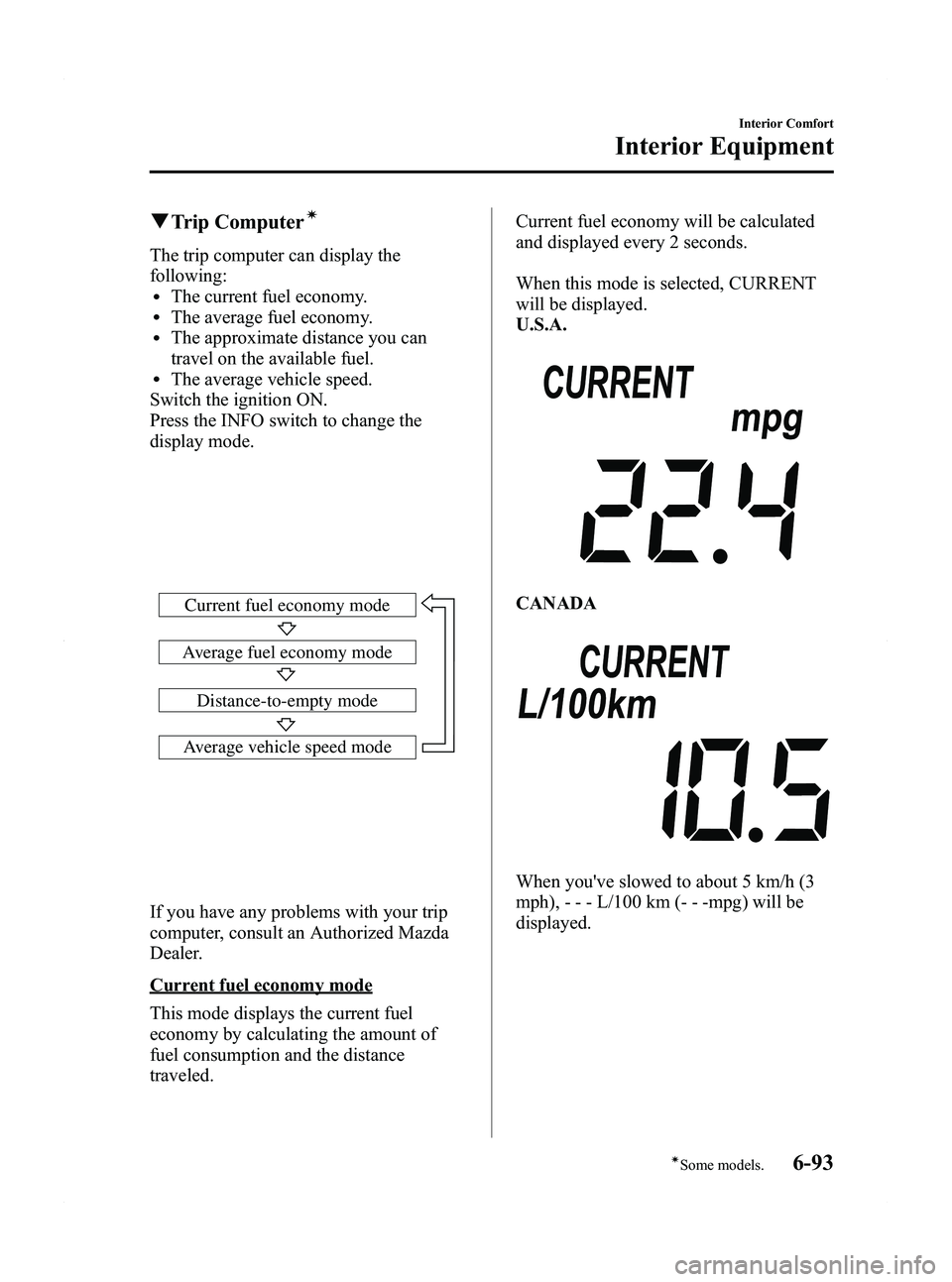

qTrip Computerí
The trip computer can display the
following:
lThe current fuel economy.lThe average fuel economy.lThe approximate distance you can
travel on the available fuel.
lThe average vehicle speed.
Switch the ignition ON.
Press the INFO switch to change the
display mode.
Average vehicle speed mode Distance-to-empty mode
Average fuel economy mode
Current fuel economy mode
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled. Current fuel economy will be calculated
and displayed every 2 seconds.
When this mode is selected, CURRENT
will be displayed.
U.S.A.
CANADA
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - -mpg) will be
displayed.
Interior Comfort
Interior Equipment
6-93íSome models.
Mazda5_8BR9-EA-10J_Edition3 Page279
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (280,1)
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed
every minute.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second.After pressing the INFO switch, - - - L/
100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
When this mode is selected, RANGE will
be displayed.
U.S.A.
CANADA
6-94
Interior Comfort
Interior Equipment
Mazda5_8BR9-EA-10J_Edition3 Page280
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (281,1)
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 5 L (6 US qt, 5
Imp qt) of fuel.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AVG will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch, -
- - km/h (- - - mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Interior Comfort
Interior Equipment
6-95
Mazda5_8BR9-EA-10J_Edition3 Page281
Monday, February 21 2011 1:45 PM
Form No.8BR9-EA-10J

Black plate (434,1)
A
Accessory Socket ............................ 6-105
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Air Bag Systems ............................... 2-46
Ambient Temperature Display .......... 6-92
Antenna ............................................. 6-11
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-53
Audio System .................................... 6-11 Audio control switch .................. 6-50
Audio set .................................... 6-21
AUX mode ................................. 6-53
Operating tips for audio
system ........................................ 6-12
Safety certification ..................... 6-55
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-23
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-30
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Seat belt warning ........................ 5-50
Tire inflation pressure warning ... 5-50
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Bluetooth Audio ............................... 6-56
Bluetooth Hands-Free ....................... 6-66
Bluetooth Hands-Free
(Voice Recognition)
Bluetooth Hands-Free cannot be
used ............................................ 6-87
Bluetooth Hands-Free
operation .................................... 6-70
Convenient use of the hands-free
system ........................................ 6-75
Hands-free setting ...................... 6-81
Mazda Bluetooth Hands-Free
customer service ......................... 6-88
Safety certification ..................... 6-88
Body Lubrication .............................. 8-25
Bottle Holder ..................................... 6-97
Brake/Clutch
Fluid ........................................... 8-21
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-40
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-103
Cargo Sub-Compartment ................ 6-103
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-20
Center Console ................................ 6-100
11-2
Index
Mazda5_8BR9-EA-10J_Edition3 Page434
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J

Black plate (436,1)
F
Front Seats .......................................... 2-2
FuelFiller lid and cap ........................ 3-19
Gauge ......................................... 5-34
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-48
Panel description ........................ 8-50
Replacement ............................... 8-48
G
Gauges .............................................. 5-32
Glove Compartment ........................ 6-100
H
Hazard Warning Flasher .................... 5-62
Hazardous Driving .............................. 4-7
Head Restraint .................................. 2-14
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-54
High-low beam .......................... 5-54
Leveling ..................................... 5-54
On reminder ............................... 5-54
Hood Release .................................... 3-20
Horn .................................................. 5-62
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-89
Immobilizer System .......................... 3-25
I
Indicator Lights ................................. 5-36 Cruise ......................................... 5-47
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Low engine coolant
temperature ................................ 5-47
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-46
TCS/DSC ................................... 5-47
Turn signal/hazard warning ........ 5-48
Information Display .......................... 6-91 Ambient temperature display ..... 6-92
Audio display ............................. 6-92
Climate control display .............. 6-92
Clock .......................................... 6-92
Information display functions .... 6-91
Trip computer ............................. 6-93
Instrument Cluster ............................. 5-32
Interior Care ...................................... 8-59
Interior Lights ................................... 6-89
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-55
Liftgate .............................................. 3-13
11-4
Index
Mazda5_8BR9-EA-10J_Edition3 Page436
Monday, February 21 2011 1:46 PM
Form No.8BR9-EA-10J
