2012 MAZDA MODEL 3 4-DOOR bulb

Black plate (11,1)
Front (4 Door)
Hood .................................................................................................................. page 3-50
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-52
Child safety locks .............................................................................................. page 3-37
Tires ................................................................................................................... page 8-37
Door lock ........................................................................................................... page 3-32
Light bulbs ......................................................................................................... page 8-44
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
Mazda3_8BY6-EA-11F_Edition3 Page11
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (12,1)

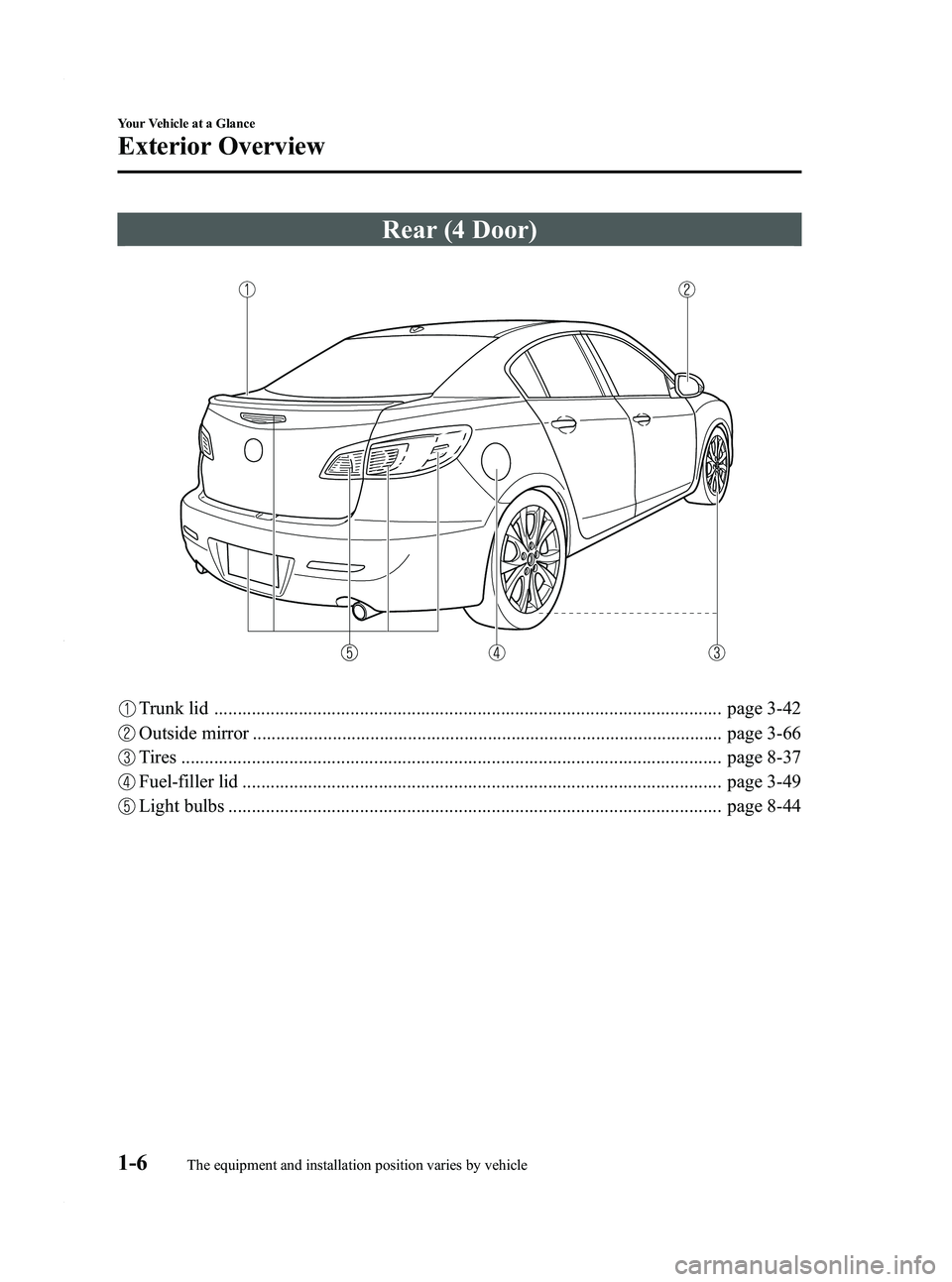

Rear (4 Door)
Trunk lid ............................................................................................................ page 3-42
Outside mirror .................................................................................................... page 3-66
Tires ................................................................................................................... page 8-37
Fuel-filler lid ...................................................................................................... page 3-49
Light bulbs ......................................................................................................... page 8-44
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda3_8BY6-EA-11F_Edition3 Page12
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (13,1)
Front (5 Door)
Hood .................................................................................................................. page 3-50
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-52
Door lock ........................................................................................................... page 3-32
Tires ................................................................................................................... page 8-37
Light bulbs ......................................................................................................... page 8-44
Your Vehicle at a Glance
Exterior Overview
1-7The equipment and installation position varies by vehicle
Mazda3_8BY6-EA-11F_Edition3 Page13
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (14,1)
Rear (5 Door)
Rear wiper blade ................................................................................................ page 8-30
Liftgate .............................................................................................................. page 3-38
Antenna ............................................................................................................. page 6-16
Fuel-filler lid ...................................................................................................... page 3-49
Child safety lock ................................................................................................ page 3-37
Outside mirror .................................................................................................... page 3-66
Tires ................................................................................................................... page 8-37
Light bulbs ......................................................................................................... page 8-44
1-8
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda3_8BY6-EA-11F_Edition3 Page14
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (226,1)
qTurn Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-69).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-77).
NOTE
If an indicator light remains illuminated (does
not flash) or if it flashes abnormally, one of the
turn signal bulbs may be burned out.
Beep Sounds
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
5-62
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8BY6-EA-11F_Edition3 Page226
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (230,1)
NOTElThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the light turns off if the light switch is turned to the OFF position.
lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by pressing the knob. To adjust the brightness of the
dashboard illumination: Refer to Dashboard Illumination on page 5-45.
lWhen the headlight switch is in the AUTO position and the ignition is switched to ACC or the
ignition is switched off, the headlights, other exterior lights and dashboard illumination will turn
off.
lThe sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer. Refer to
Personalization Features on page 10-12.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourselfReplacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
5-66
Driving Your Mazda
íSome models.
Switches and Controls
Mazda3_8BY6-EA-11F_Edition3 Page230
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (234,1)
NOTElIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the number of flashes.
Refer to Personalization Features on page
10-12.
lA personalized function is available to
change the turn indicator sound volume.
Refer to Settings on page 6-108.
Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will help you to see as well
as be seen under foggy conditions or at
night.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
5-70
Driving Your Mazda
íSome models.
Switches and Controls
Mazda3_8BY6-EA-11F_Edition3 Page234
Thursday, March 1 2012 10:17 AM
Form No.8BY6-EA-11F

Black plate (387,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-19
Engine Coolant ....................................................................... 8-22
Brake/Clutch Fluid .................................................................. 8-24
Power Steering Fluid ............................................................... 8-25
Automatic Transaxle Fluid (ATF)
í........................................ 8-26
Washer Fluid ........................................................................... 8-27
Body Lubrication .................................................................... 8-28
Wiper Blades ........................................................................... 8-29
Battery ..................................................................................... 8-33
Tires ........................................................................................ 8-37
Light Bulbs ............................................................................. 8-44
Fuses ....................................................................................... 8-56
Appearance Care ........................................................................ 8-63 How to Minimize Environmental Paint Damage .................... 8-63
Exterior Care ........................................................................... 8-65
Interior Care ............................................................................ 8-69
8-1íSome models.
Mazda3_8BY6-EA-11F_Edition3 Page387
Thursday, March 1 2012 10:18 AM
Form No.8BY6-EA-11F
